Interface cables and connection methods
For more information about E1 interface cables, see

SIC-2E1-F

Introduction
The 2-port fractional E1 interface module (fractional) provides the following features:
•
Transmission/Receiving and handling of E1 data streams
•
CE1 (channelized E1) access
•
Remote loopback and local loopback functions, facilitating fault test and location.
The FE1 operating mode supported by the SIC-2E1-F module allows only one bundle. The time slots
can only be bundled into one n × 64 kbps channel, where n is in the range of 1 to 31.
The SIC-2E1-F does not support the PRI mode.
Interface specifications
Table 17 Interface specifications
Item
Connector type
Number of connectors
Interface standard
Interface rate
Cable type
Operating modes
Supported services
Interface LEDs

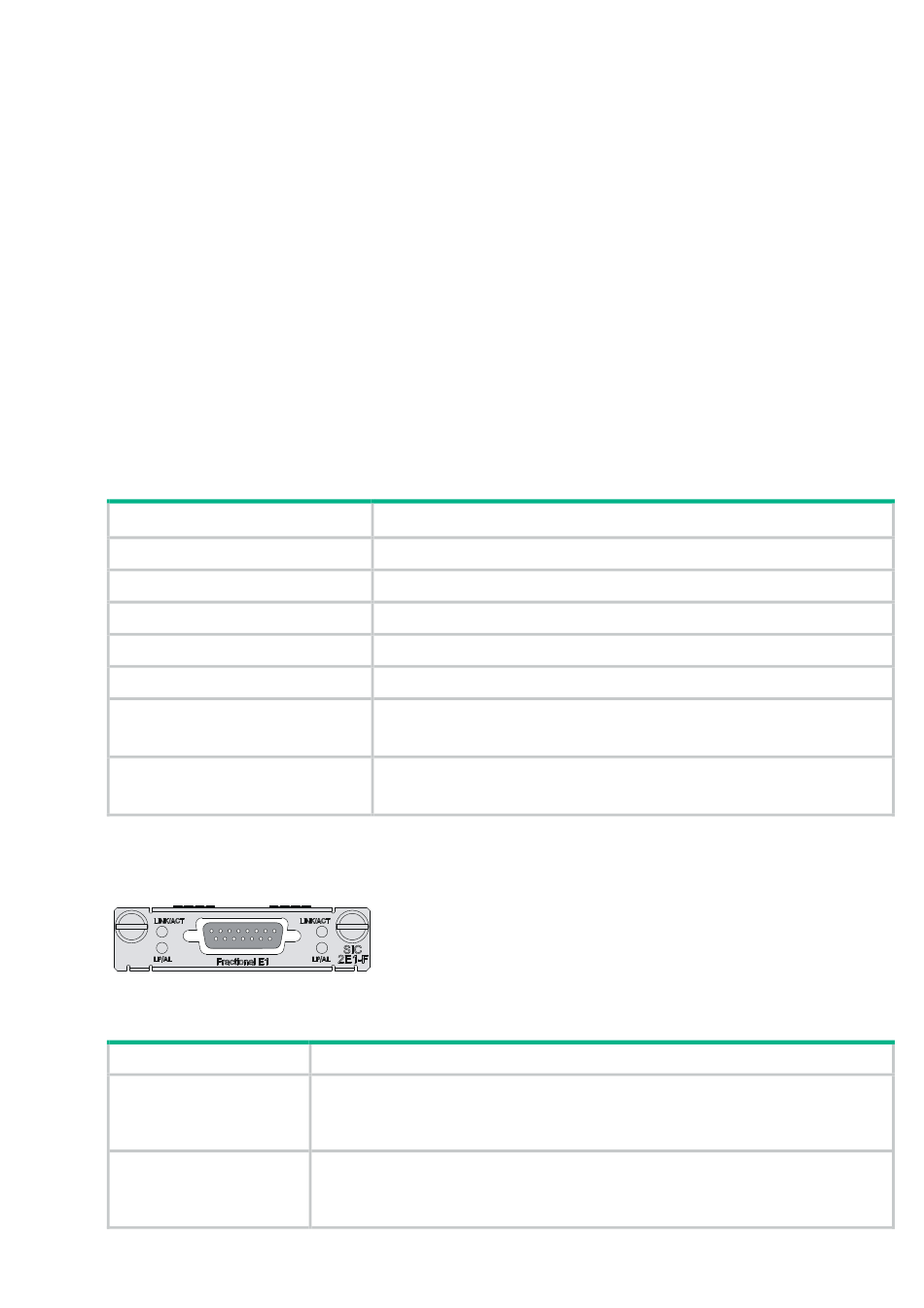

Figure 13 SIC-2E1-F panel
Table 18 LED description
LED
LINK/ACT
LP/AL
Specification
D15
1
G.703, G.704
2.048 Mbps
75-ohm unbalanced coaxial cable (D15 to BNC)
E1
CE1
Backup
Terminal access
Description
•
On means carrier signal has been received.
•
Flashing means data is being transmitted or received.
•
Off means no carrier signal has been received.
•
On means the interface is in a loopback.
•
Flashing means an AIS, LFA, or RAI alarm signal is present.
•
Off means neither loopback nor alarm is present.
9
"E1 interface."
