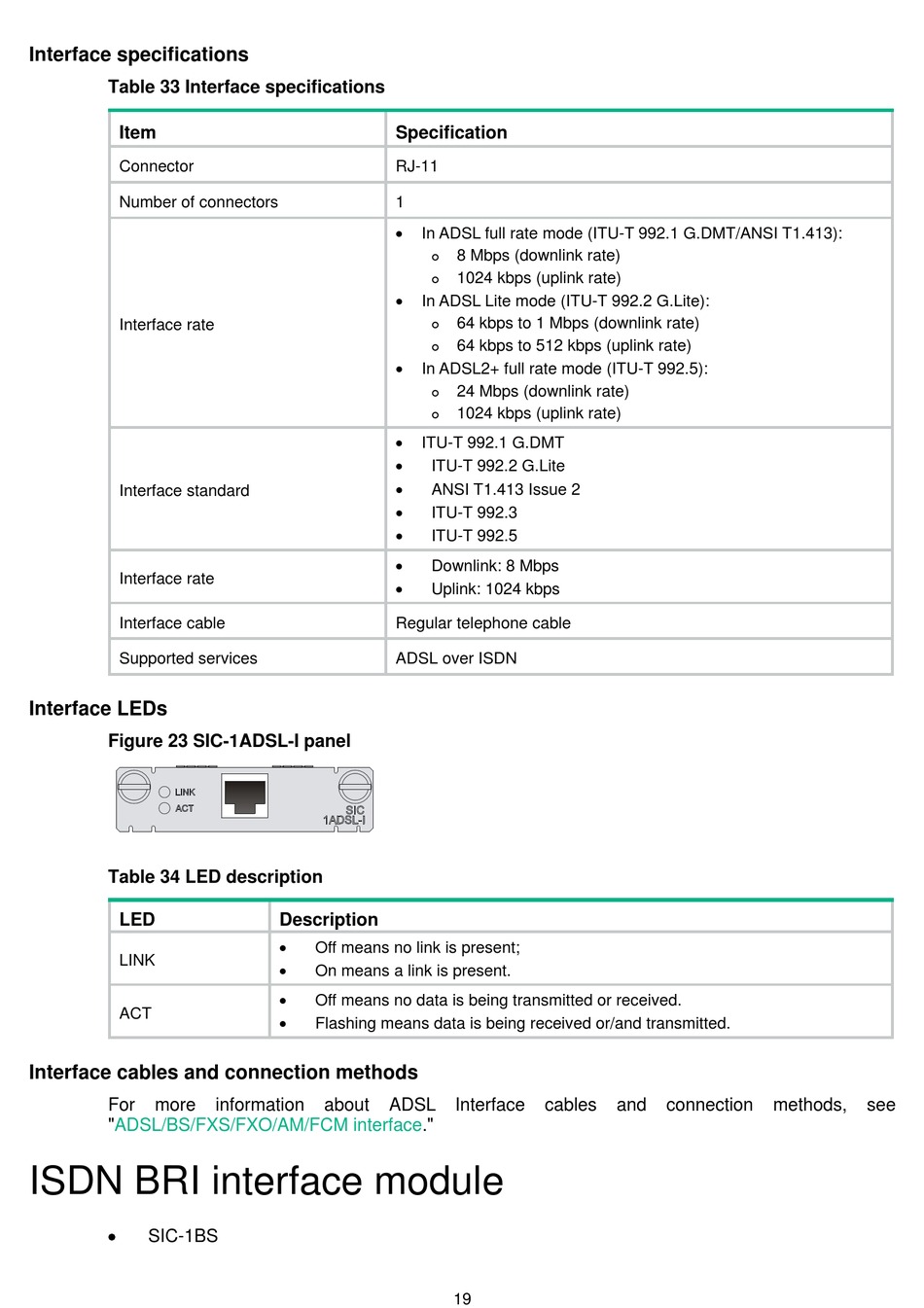

Interface specifications
Table 33 Interface specifications
Item
Connector
Number of connectors
Interface rate
Interface standard
Interface rate
Interface cable
Supported services
Interface LEDs
Figure 23 SIC-1ADSL-I panel
Table 34 LED description
LED
LINK
ACT
Interface cables and connection methods
For more
"ADSL/BS/FXS/FXO/AM/FCM

ISDN BRI interface module

•
SIC-1BS
Description
•
Off means no link is present;
•
On means a link is present.
•
Off means no data is being transmitted or received.
•
Flashing means data is being received or/and transmitted.
information about ADSL
interface."
Specification
RJ-11
1
•
In ADSL full rate mode (ITU-T 992.1 G.DMT/ANSI T1.413):
8 Mbps (downlink rate)

1024 kbps (uplink rate)

•
In ADSL Lite mode (ITU-T 992.2 G.Lite):
64 kbps to 1 Mbps (downlink rate)

64 kbps to 512 kbps (uplink rate)

•
In ADSL2+ full rate mode (ITU-T 992.5):
24 Mbps (downlink rate)

1024 kbps (uplink rate)

•
ITU-T 992.1 G.DMT
•
ITU-T 992.2 G.Lite
•
ANSI T1.413 Issue 2
•
ITU-T 992.3
•
ITU-T 992.5
•
Downlink: 8 Mbps
•
Uplink: 1024 kbps
Regular telephone cable
ADSL over ISDN
Interface cables
19
and connection methods, see
