Interface specifications
Table 216 Interface specifications
Item
Connector
Number of connector
Interface standard
Interface rate
Cable type
Operating mode
Services
Interface LEDs

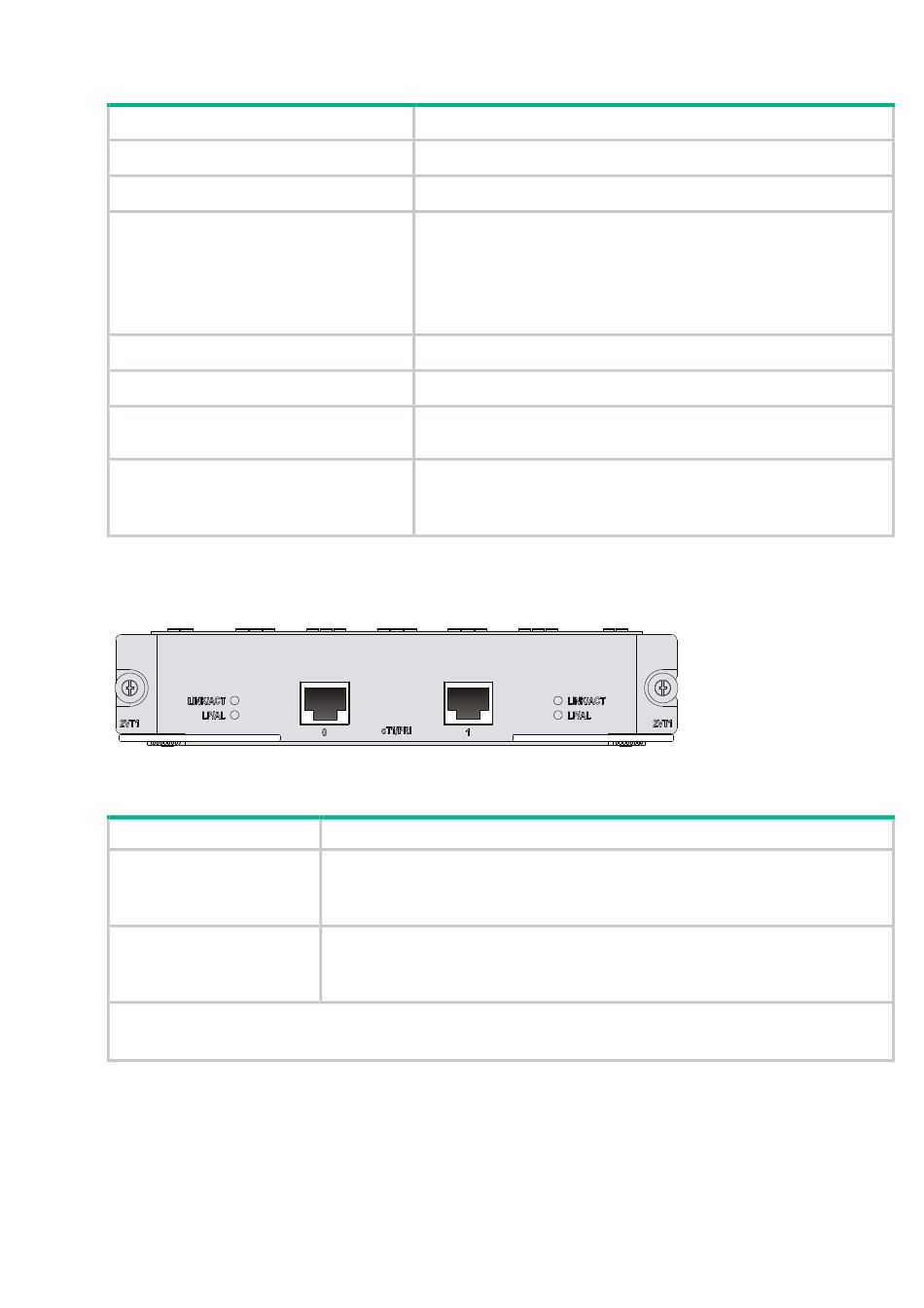

Figure 158 FIC-2VT1 panel
Table 217 LED description
LED
LINK/ACT
LP/AL
Note:
AIS = Alarm indication signal; LFA = loss of frame alignment; RAI = Remote alarm indication
Interface cables and connection methods
For more information about T1 interface cables and connection methods, see
Specification
RJ-45
2
•
G.703/T1.102
•
G.704
•
AT&T TR 54016
•
AT&T TR 62411
•
ANSI T1.403
1.544 Mbps
T1 cable (100-ohm standard shielded cable)
•
CT1
•
ISDN PRI
•
Backup
•
Terminal access
•
ISDN
Description
•
On means carrier signal has been received.
•
Flashing means data is being received or/and transmitted.
•
Off means no carrier signal has been received.
•
On means the interface is in a loopback.
•
Flashing means an AIS, LFA, or RAI alarm signal is present.
•
Off means no loopback or alarm is present.
134
"T1 interface."
