Interface LEDs

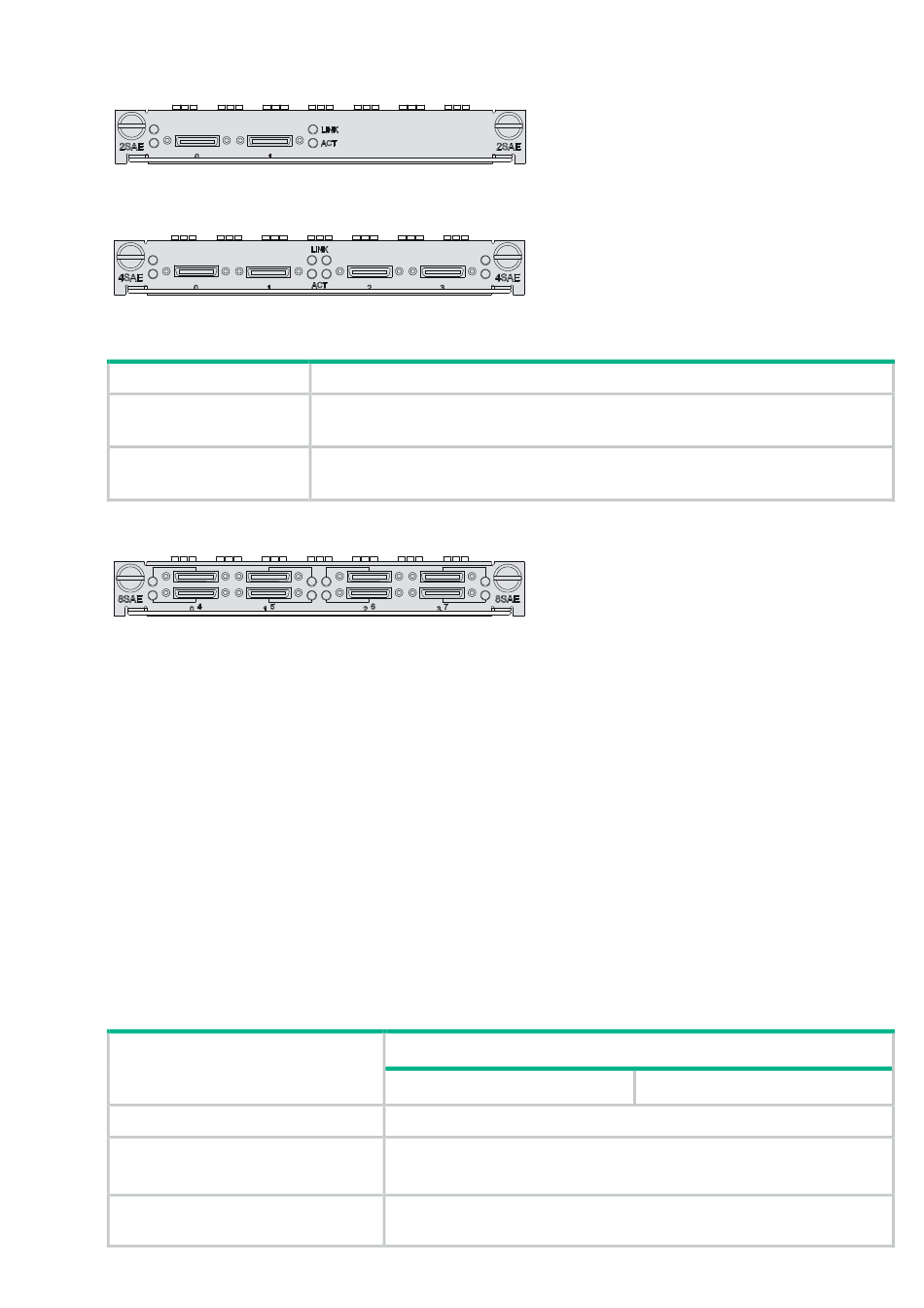

Figure 71 MIM-2SAE panel
Figure 72 MIM-4SAE panel
Table 104 LED description
LED
LINK
ACT
Figure 73 MIM-8SAE panel
On the MIM-8SAE module, each link has one LED. On means the link is connected. Flashing means
data is being transmitted or received.
Interface cables and connection methods
For more
"Synchronous/asynchronous serial

MIM-8ASE/MIM-16ASE

Introduction
The 8/16-port enhanced asynchronous serial interface module (MIM-8ASE/MIM-16ASE) transmits,
receives, and handles asynchronous serial interface data streams. The ASE modules use RJ-45
connectors and AUX cables.
Interface specifications
Table 105 Interface specifications
Item
Connector
Number of connectors
Interface standard and operating
mode
Description
•
Off means no link is present;
•
On means a link is present.
•
Off means no data is being transmitted or received;
•
Flashing means data is being received or/and transmitted.
information about
ports."
Specification
MIM-8ASE module
RJ-45
8 (MIM-8ASE)
16 (MIM-16ASE)
RS232
synchronous/asynchronous
67
serial port cables,
MIM-16ASE module
see
