Fic-2Vt1 - HPE FlexNetwork MSR Series Manual

Item
Operating mode
Interface rate
Cable
Supported service
Interface LEDs

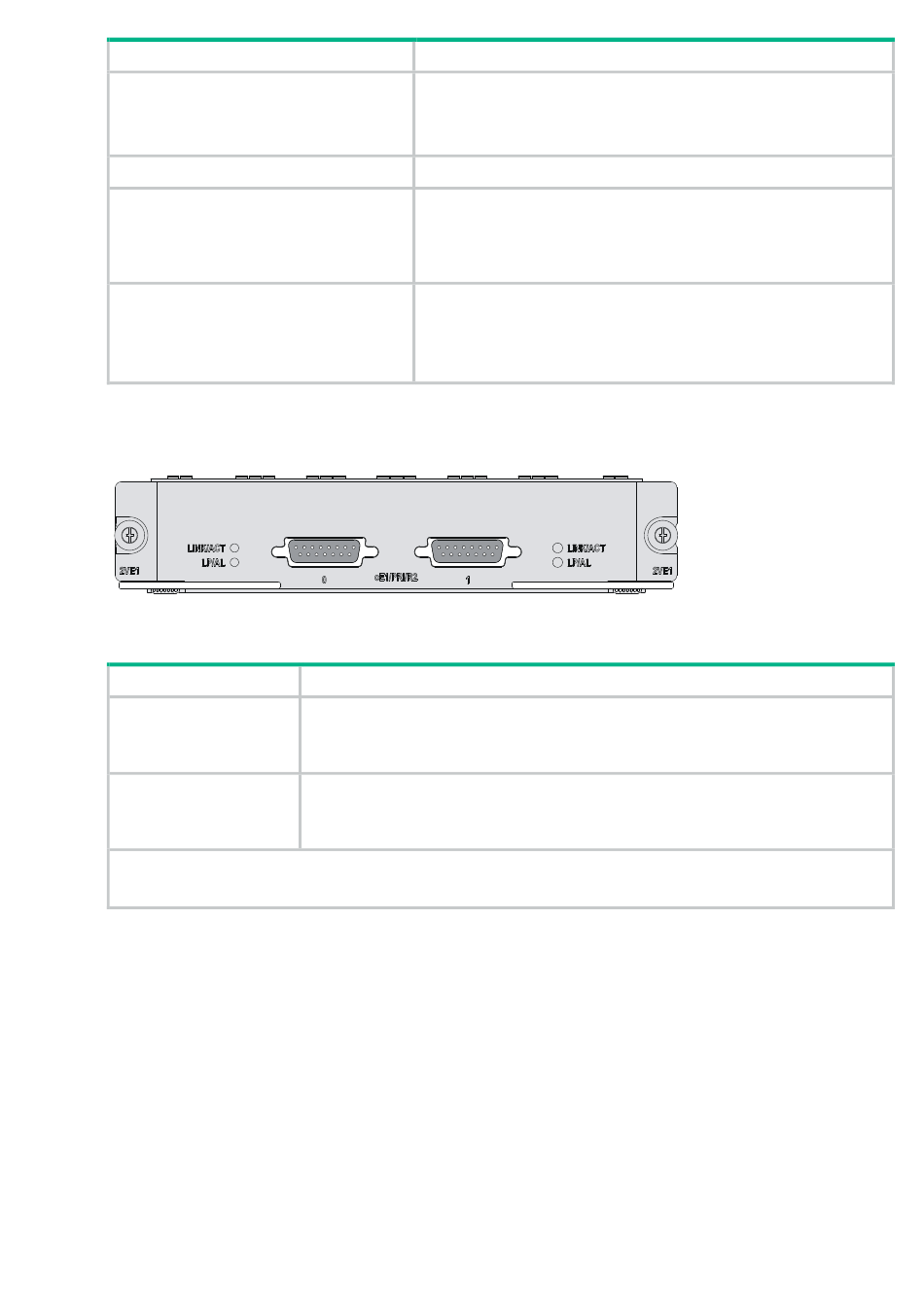

Figure 157 FIC-2VE1 panel
Table 215 LED description
LED
LINK/ACT
LP/AL
Note:
AIS = Alarm indication signal; LFA = loss of frame alignment; RAI = Remote alarm indication
Interface cables and connection methods
For more information about E1 interface cables and connection methods, see

FIC-2VT1

Introduction
The 2-port T1 voice interface module (FIC-2VT1) handles dense voice signals in VoIP system. It
provides two CE1/PRI ports that allow access of a maximum of 48 channels of voice signals.
Specification
CE1
ISDN PRI
R2
2.048 Mbps
•
E1 75-ohm unbalanced twisted pair cable
•
E1 120-ohm balanced twisted pair cable
•
Coaxial connector, network connector, 75-to-120-ohm
adapter (with BNC connector)
•
R2 signaling
•
DSS1 signaling
•
IP Fax
•
General VoIP features in Comware
Description
•
On means carrier signal has been received.
•
Flashing means data is being received or/and transmitted.
•
Off means no carrier signal has been received.
•
On means the interface is in a loopback.
•
Flashing means an AIS, LFA, or RAI alarm signal is present.
•
Off means no loopback or alarm is present.
133
"E1 interface."
