MIM/DMIM/XMIM

The MSR series routers provide a wide range of optional MIM/DMIMs. The MIM/DMIMs provide
interfaces such as synchronous/asynchronous serial interface, Ethernet interface, E1/T1, ISDN
BRI/PRI, audio interface, and Layer 2 switching interface.
The MIM-16FSW and the DMIM-24FSW support PoE to provide –48 VDC power to remote PDs
such as IP phone, AP, and network camera through straight-through network cables when installed
in a PoE router.

Ethernet switching module

•
MIM-16FSW
•
MIM-16FSW-PoE
•
DMIM-24FSW
•
DMIM-24FSW-PoE
•
XMIM-16FSW
•
XMIM-24FSW

XMIM-16FSW/XMIM-24FSW

Introduction
The 16/24-port 10/100 Mbps Ethernet Layer 2 switching MIM interface modules (XMIM-16FSW and
XMIM-24FSW) can be installed on the MSR30-11. Both the XMIM-16FSW and XMIM-24FSW are
suitable for a small enterprise network to act as a switching & routing device, which can be directly
connected to PCs and network devices of the enterprise.
Interface specifications
Table 71 Interface specifications
Item
Connector type
Interface type
Number of
connectors
Transmission
distance
Operating mode
Interface LEDs

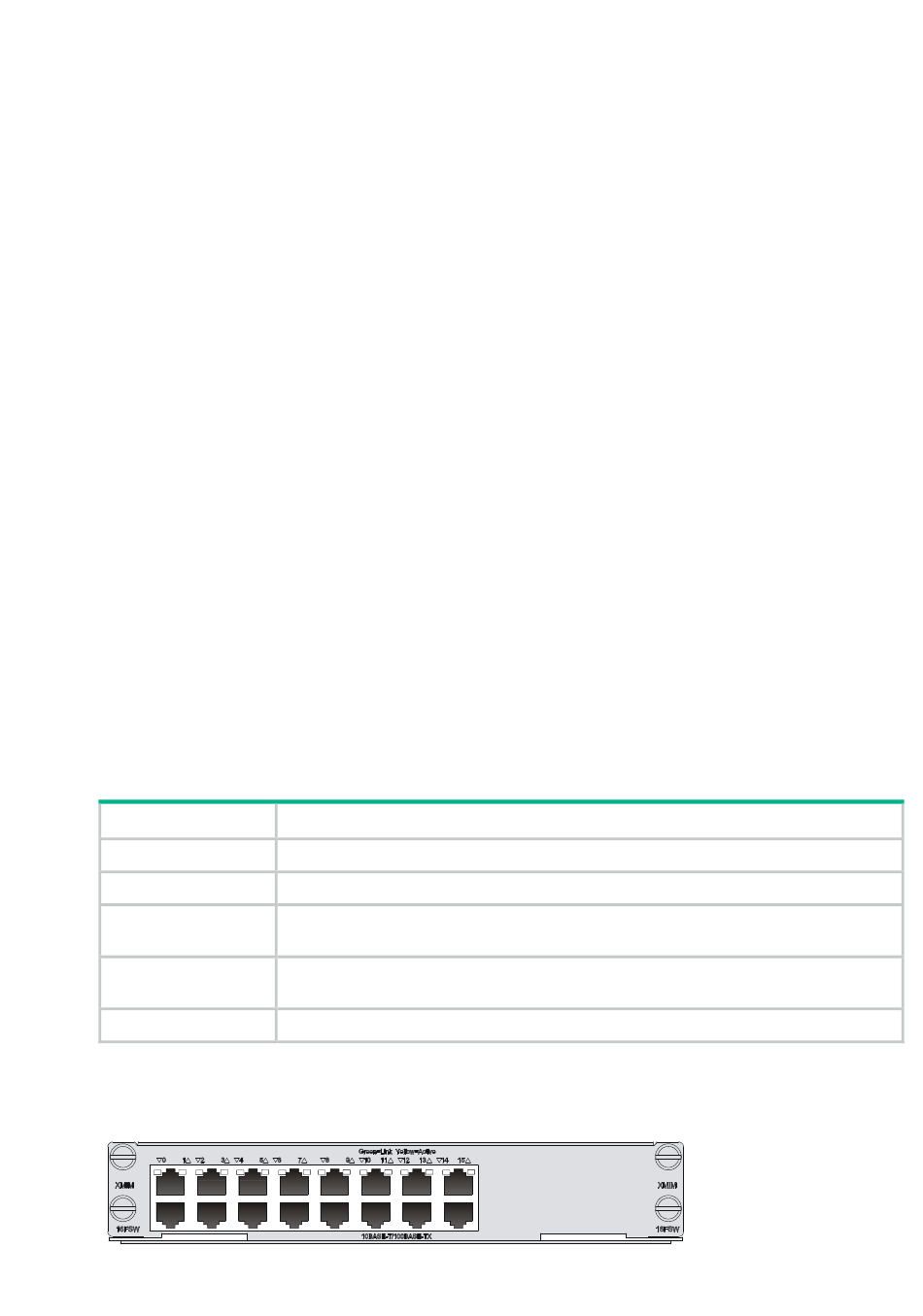

Figure 46 XMIM-16FSW panel
Specification
RJ-45
MDI/MDIX
16/24 × 100 Mbps RJ-45 connector
100 m (328.08 ft) over category-5 twisted pair cables (both crossover and
straight-through)
10/100 Mbps auto-sensing, full duplex/half duplex
