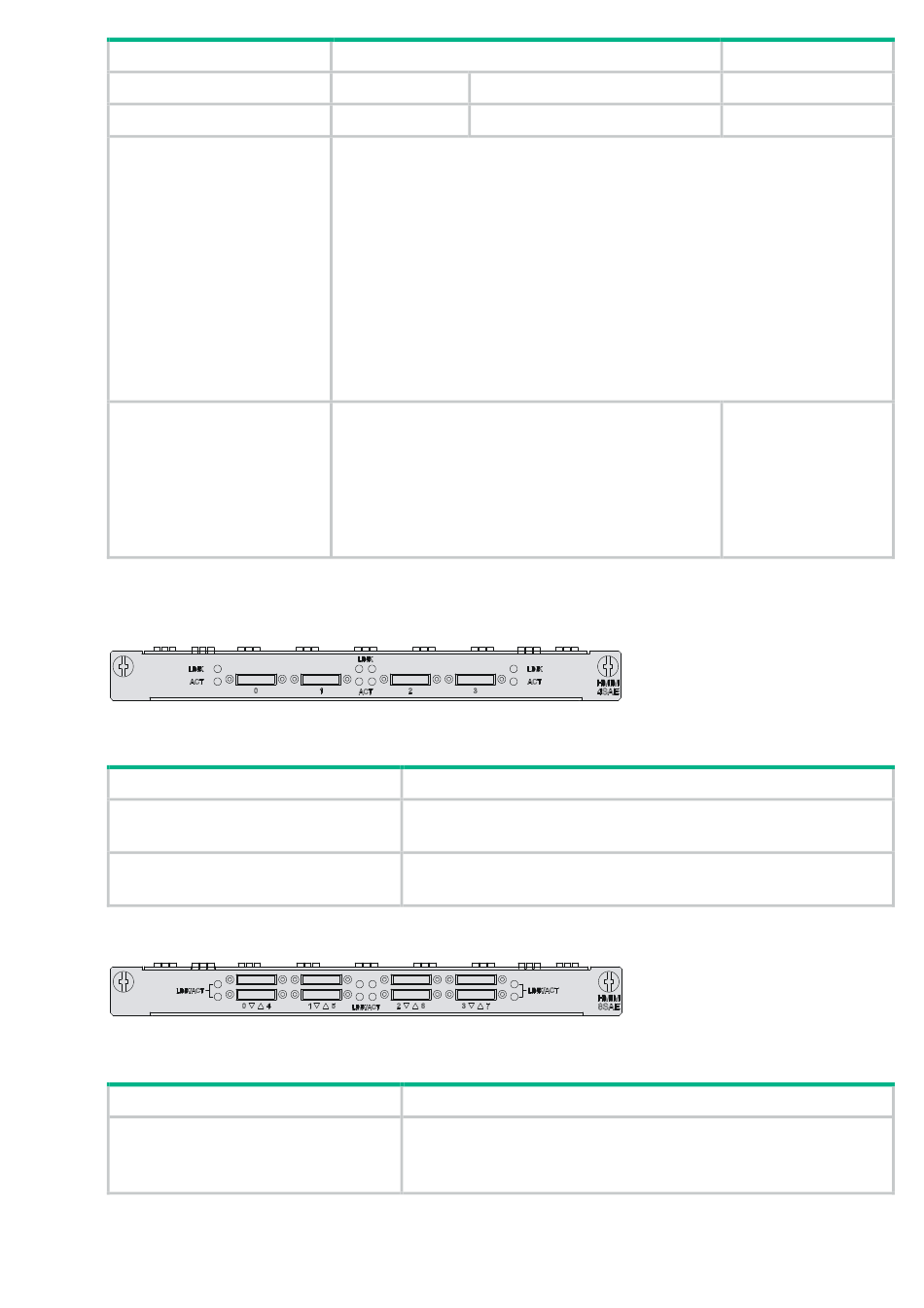

HPE FlexNetwork MSR Series Manual page 101

Item
Minimum baud rate (bps)
Maximum baud rate (bps)
cable type
Supported services
Interface LEDs
Figure 111 HMIM-4SAE panel
Table 149 LED description
LED
LINK
ACT
Figure 112 HMIM-8SAE panel
Table 150 LED description
LED
LINK/ACT
Synchronous
1200 1200
64 k 2.048 M
V.24 (RS232) DTE cable
V.24 (RS232) DCE cable
V.35 DTE cable
V.35 DCE cable
X.21 DTE cable
X.21 DCE cable
RS449 DTE cable
RS449 DCE cable
RS530 DTE cable
RS530 DCE cable
•
DDN leased line
•
Terminal access service
Description
•
Off means no link is present.
•
On means a link is present.
•
Off means no data is being transmitted or received.
•
Flashing means data is being received or/and transmitted.
Description
•
On means a link is present.
•
Off means no data is being transmitted or received.
•
Flashing means data is being received or/and transmitted.
95
Asynchronous
300
115.2
•
Dialup through
modems
•
Backup
•
Asynchronous
leased line
•
Dumb terminal
access
