Item
Supported services
Interface LEDs

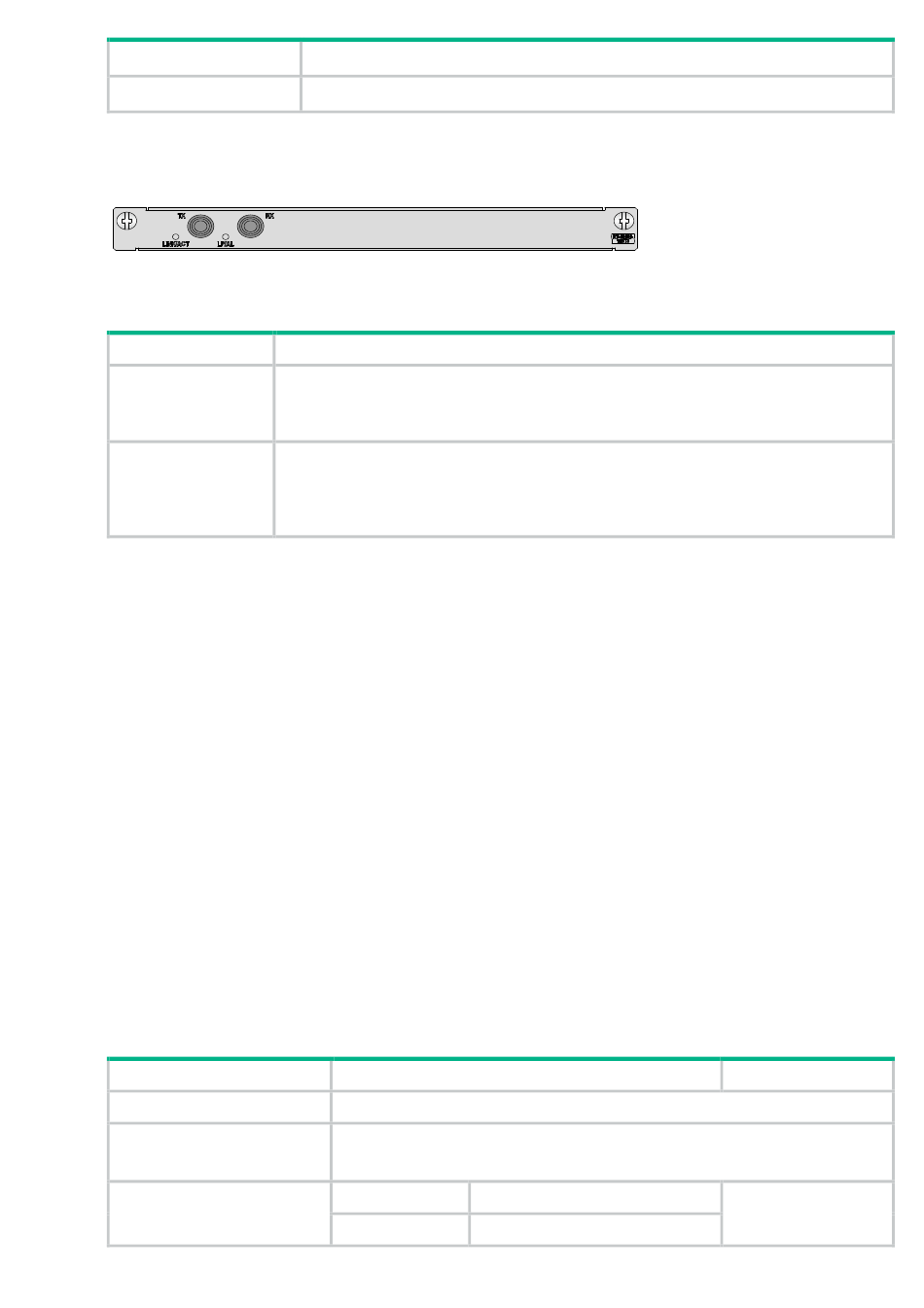

Figure 110 HMIM-1E3T3 panel
Table 147 LED description
LED
LINK/ACT
LP/AL
Interface cables and connection methods
For information about T3 interface cables and connection methods, see

Serial interface module

•
HMIM-4SAE
•
HMIM-8SAE
•
HMIM-16ASE

HMIM-4SAE/HMIM-8SAE

Introduction
The 4-port SAE module (HMIM-4SAE) and 8-port SAE module (HMIM-8SAE) are enhanced
high-speed synchronous/asynchronous serial interface modules. The SAE modules are the same as
the SA modules except that the SAE modules support additional protocols, for example, RS449,
X.21, and RS530.
Interface specifications
Table 148 Interface specifications
Item
Connector type
Number of connectors
Interface standard and
operating mode
Specification
T3 leased line
Description
•
On: Carrier signal has been received.
•
Flashing: Data is being received or/and transmitted.
•
Off: No carrier signal has been received.
•
On: The interface is in a loopback.
•
Off: No loopback or alarm is present.
•
Flashing: An alarm indication signal (AIS), loss of frame alignment (LFA) signal,
or remote alarm indication (RAI) alarm is present.
Synchronous
D28
4 (HMIM-4SAE)
8 (HMIM-8SAE)
V.24
DTE and DCE
94
V.35, RS449, X.21, and RS530
DTE and DCE
"E3/T3 interface."
Asynchronous
RS232
