Hmim-2T1/Hmim-4T1-F - HPE FlexNetwork MSR Series Manual

Item
Supported services
Interface LEDs

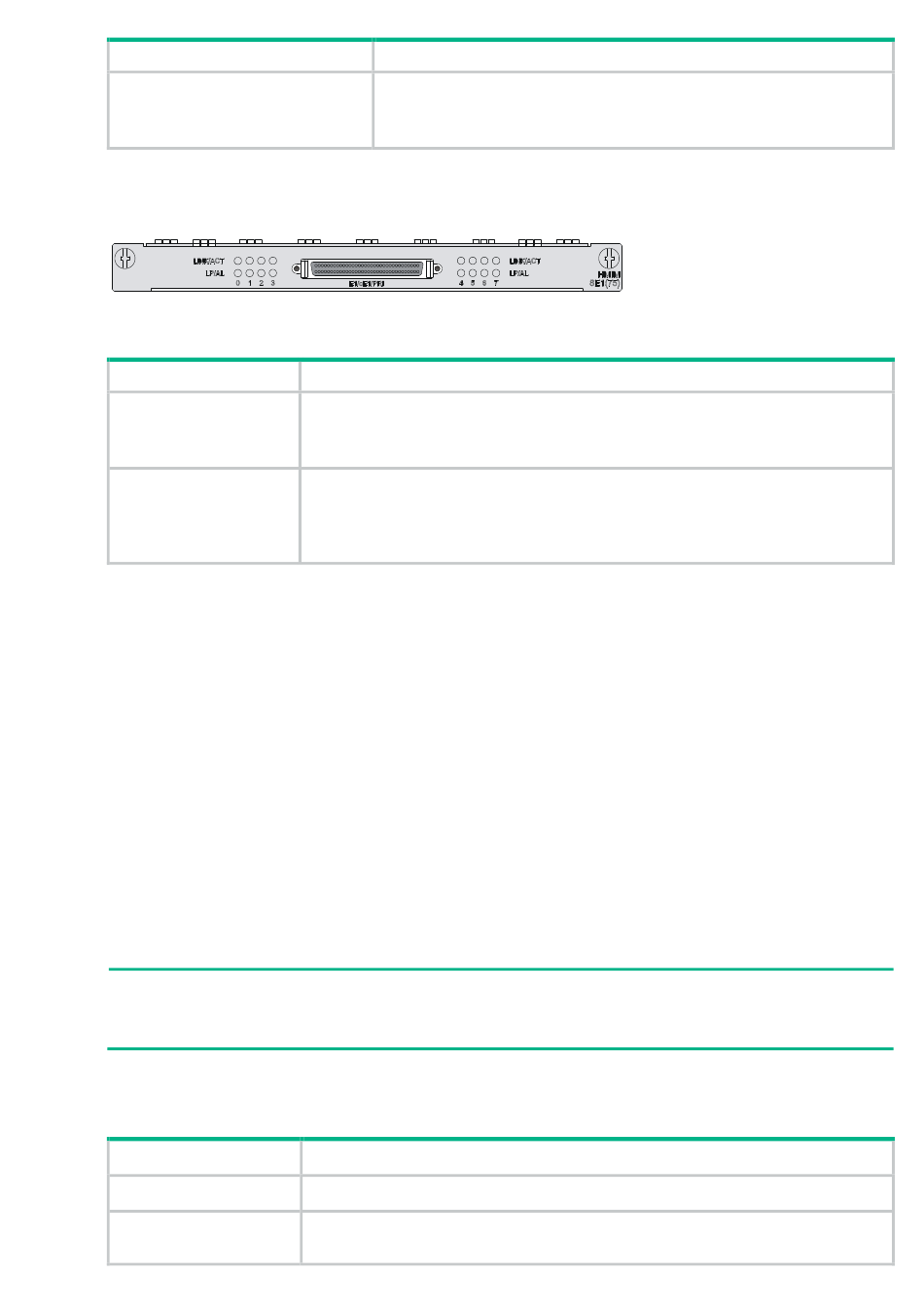

Figure 101 HMIM-8E1 (75-ohm) panel
Figure 102 LED description
LED
LINK/ACT
LP/AL
Interface cables and connection methods
For more information about E1 interface cables, see

HMIM-2T1/HMIM-4T1-F

Introduction
The 2-port channelized CT1/PRI interface module (HMIM-2T1) transmits, receives, and handles T1
data streams. In addition, you can use the module for CT1 access and ISDN PRI.
The 4-port fractional T1 interface module (HMIM-4T1-F) differs from the HMIM-CT1 module in the
following ways:
•
FT1 operating mode supported by T1-F modules allows only one bundle. The time slots can
only be bundled into one n × 64 Kbps/56 Kbps channel, where the value range of n is 1 to 24.
However, a CT1 module allows of arbitrary grouping of the 24 channels.
•
T1-F does not support the PRI mode.
NOTE:
For a T1 module, the system automatically creates a serial interface for each timeslot bundle formed
on a controller T1 interface.
Interface specifications
Table 138 Interface specifications
Item
Connector type
Number of connectors
Description
•
Backup
•
Terminal access service
•
ISDN PRI
Description
•
On means carrier signal has been received.
•
Flashing means data is being received or/and transmitted.
•
Off means no carrier signal has been received.
•
On means the interface is in a loopback.
•
Off means no loopback or alarm is present.
•
Flashing means an alarm indication signal (AIS), loss of frame alignment
(LFA) signal, or remote alarm indication (RAI) signal is present.
Specification
RJ45
•
2 (HMIM-2T1)
•
4 (HMIM-4T1-F)
87
"E1 interface."
