MIM-1VE1

Introduction
The 1-port E1 voice interface module (MIM-1VE1) handles dense voice signals in a VoIP system. It
provides a CE1/PRI/R2 port that allows access of a maximum of 30 channels of voice signals.
Interface specifications
Table 115 Interface specifications
Item
Connector
Number of connectors
Operating mode
Interface rate
Cable
Supported service
Interface LEDs

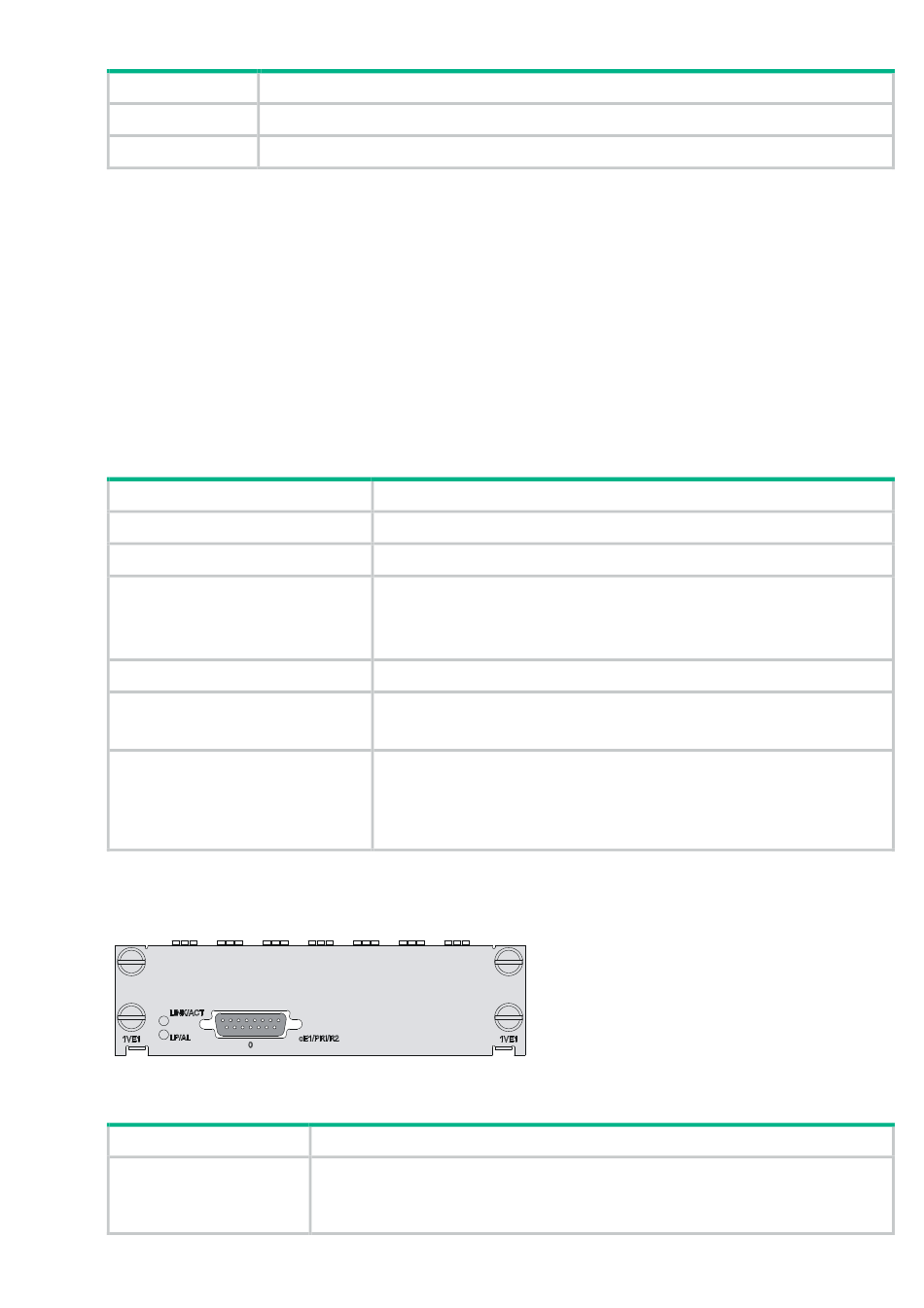

Figure 82 MIM-1VE1 panel
Table 116 LED description
LED
LINK/ACT
Description
•
Off means no link is present; On means a link is present.
•
Off means the channel is idle. On means there is call activity.
Specification
D15
1
CE1
ISDN PRI
R2
2.048 Mbps
E1 120-ohm balanced twisted pair cable
75-ohm-to-120-ohm adapter (with BNC connector)
•
R2 signaling
•
DSS1 signaling
•
IP Fax
•
General VoIP features in Comware
Description
•
On means carrier signal has been received.
•
Flashing means data is being received or/and transmitted.
•
Off means no carrier signal has been received.
