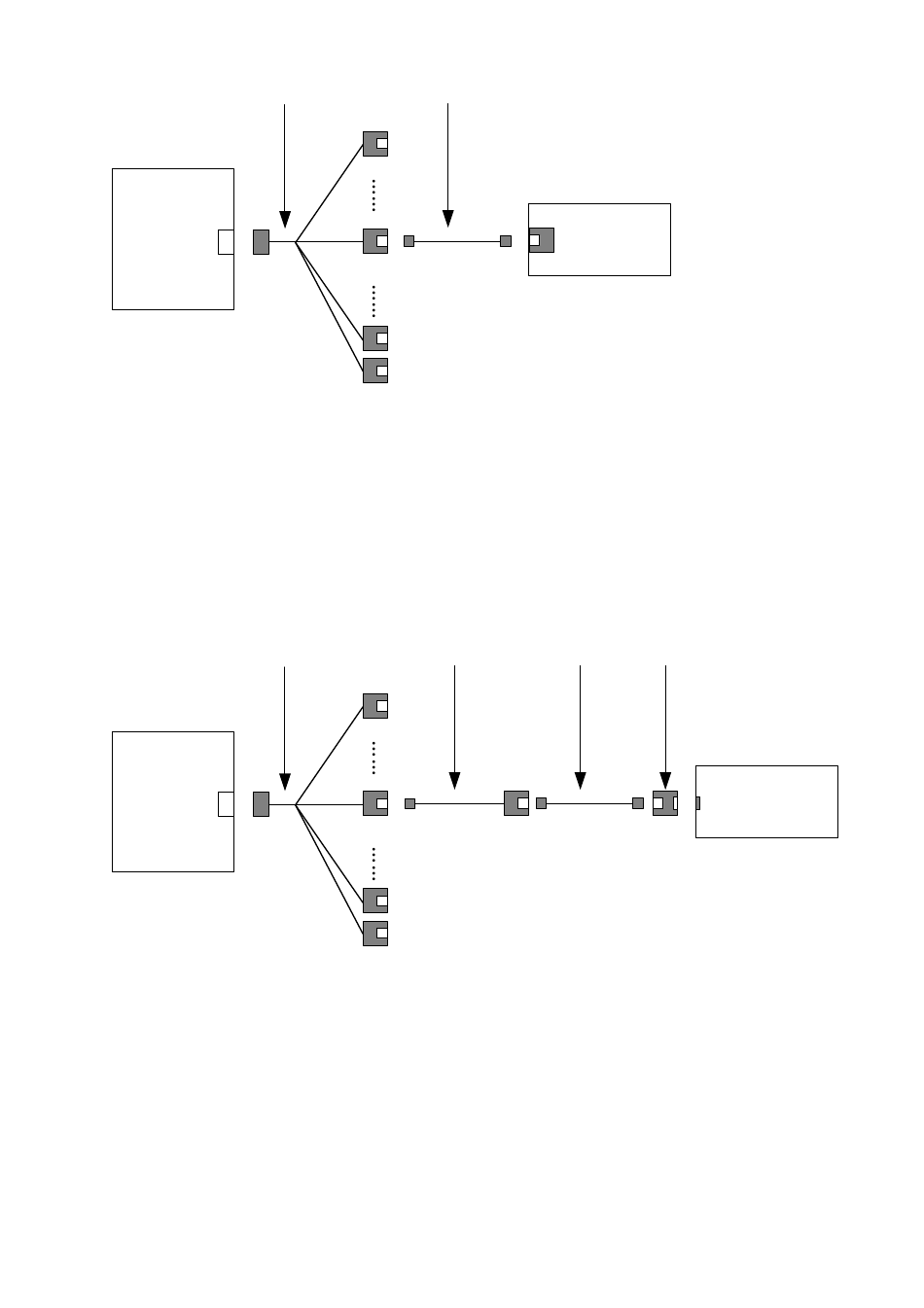

Figure 168 Connecting a telecommunication device
Asynchronous serial
port adapter cable
8AS
16AS
•
If the remote device is a bank dumb terminal device:
•
Connect the RJ45 connector (male) on one end of the dumb terminal cable to the RJ45
interface on the asynchronous serial port adapter cable.
•
Connect the RJ45 connector (female) on the other end of the dumb terminal cable to the RJ45
interface on one end of the dumb terminal adapter by a straight-through cable.
•
The other end of the dumb terminal adapter is a D25 interface and can be connected to the
bank dumb terminal device. The sequence is shown in the following figure:
Figure 169 Connecting the dumb terminal device
Asynchronous serial
port adapter cable
8AS
16AS
•
If the interface of the remote device is a D25/D9 interface, use the AUX cable to connect the
asynchronous serial port adapter cable to the interface:
Straight-through cable
Telecom device
Dumb terminal
Straight-
adapter cable
through cable
162
Dumb terminal
adapter
Bank dumb terminal
device
