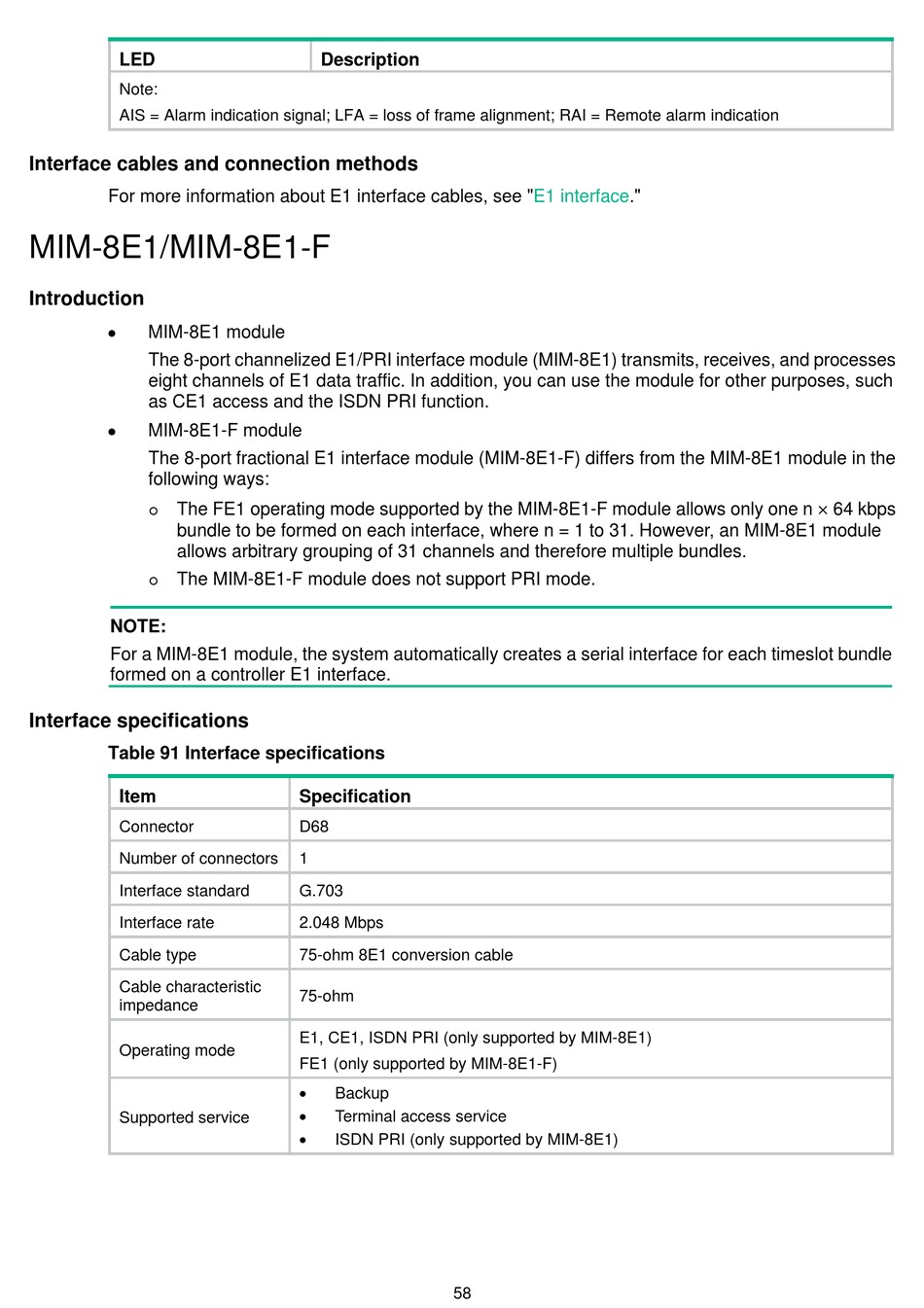

LED
Note:
AIS = Alarm indication signal; LFA = loss of frame alignment; RAI = Remote alarm indication
Interface cables and connection methods
For more information about E1 interface cables, see

MIM-8E1/MIM-8E1-F

Introduction
•
MIM-8E1 module
The 8-port channelized E1/PRI interface module (MIM-8E1) transmits, receives, and processes
eight channels of E1 data traffic. In addition, you can use the module for other purposes, such
as CE1 access and the ISDN PRI function.
•
MIM-8E1-F module
The 8-port fractional E1 interface module (MIM-8E1-F) differs from the MIM-8E1 module in the
following ways:
The FE1 operating mode supported by the MIM-8E1-F module allows only one n × 64 kbps

bundle to be formed on each interface, where n = 1 to 31. However, an MIM-8E1 module
allows arbitrary grouping of 31 channels and therefore multiple bundles.
The MIM-8E1-F module does not support PRI mode.

NOTE:
For a MIM-8E1 module, the system automatically creates a serial interface for each timeslot bundle
formed on a controller E1 interface.
Interface specifications
Table 91 Interface specifications
Item
Connector
Number of connectors
Interface standard
Interface rate
Cable type
Cable characteristic
impedance
Operating mode
Supported service
Description
Specification
D68
1
G.703
2.048 Mbps
75-ohm 8E1 conversion cable
75-ohm
E1, CE1, ISDN PRI (only supported by MIM-8E1)
FE1 (only supported by MIM-8E1-F)
•
Backup
•
Terminal access service
•
ISDN PRI (only supported by MIM-8E1)
58
"E1 interface."
