Interface LEDs

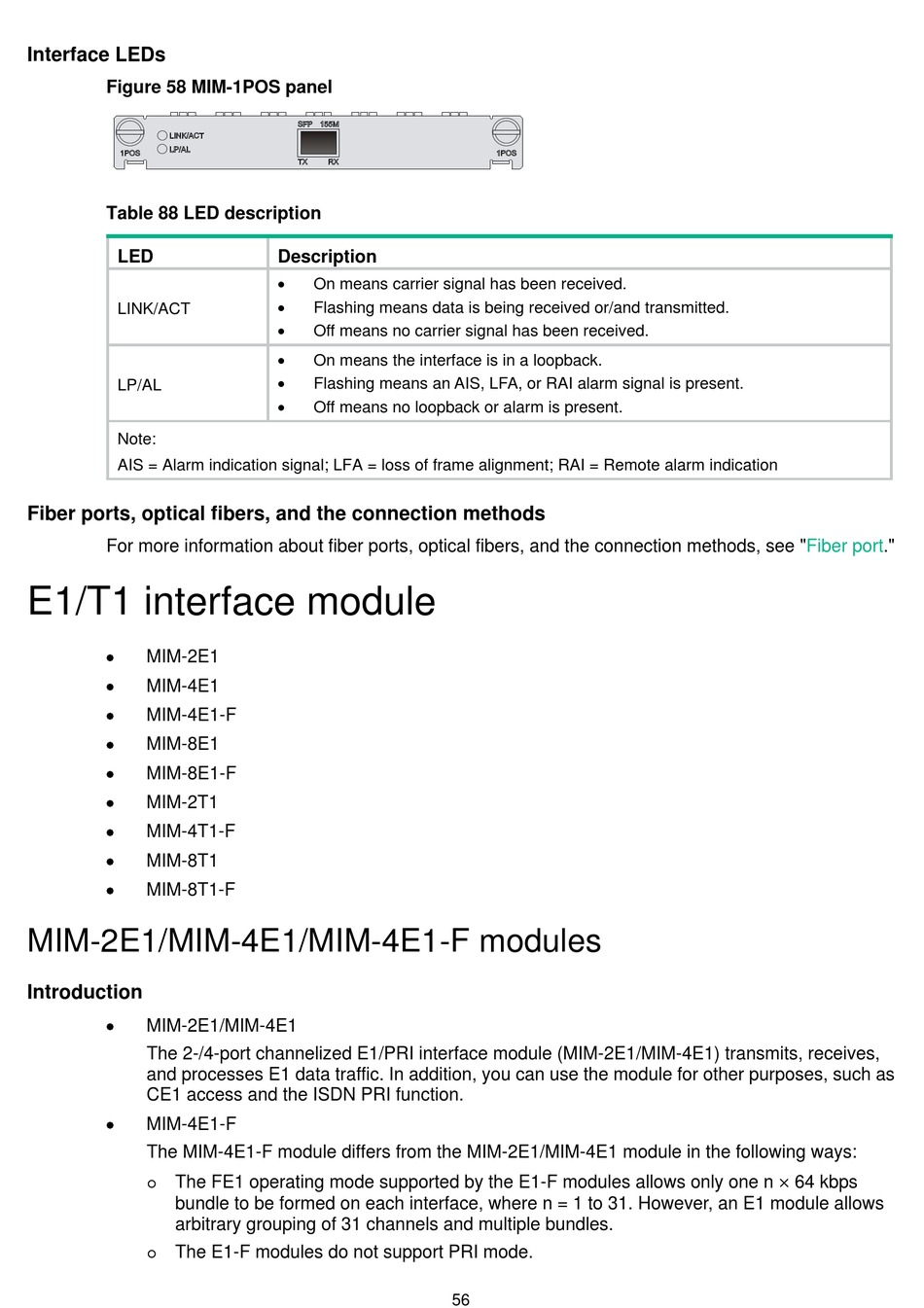

Figure 58 MIM-1POS panel
Table 88 LED description
LED
LINK/ACT
LP/AL
Note:
AIS = Alarm indication signal; LFA = loss of frame alignment; RAI = Remote alarm indication
Fiber ports, optical fibers, and the connection methods
For more information about fiber ports, optical fibers, and the connection methods, see

E1/T1 interface module

•
MIM-2E1
•
MIM-4E1
•
MIM-4E1-F
•
MIM-8E1
•
MIM-8E1-F
•
MIM-2T1
•
MIM-4T1-F
•
MIM-8T1
•
MIM-8T1-F

MIM-2E1/MIM-4E1/MIM-4E1-F modules

Introduction
•
MIM-2E1/MIM-4E1
The 2-/4-port channelized E1/PRI interface module (MIM-2E1/MIM-4E1) transmits, receives,
and processes E1 data traffic. In addition, you can use the module for other purposes, such as
CE1 access and the ISDN PRI function.
•
MIM-4E1-F
The MIM-4E1-F module differs from the MIM-2E1/MIM-4E1 module in the following ways:
The FE1 operating mode supported by the E1-F modules allows only one n × 64 kbps

bundle to be formed on each interface, where n = 1 to 31. However, an E1 module allows
arbitrary grouping of 31 channels and multiple bundles.
The E1-F modules do not support PRI mode.

Description
•
On means carrier signal has been received.
•
Flashing means data is being received or/and transmitted.
•
Off means no carrier signal has been received.
•
On means the interface is in a loopback.
•
Flashing means an AIS, LFA, or RAI alarm signal is present.
•
Off means no loopback or alarm is present.
56
"Fiber port."
