SIC-EPRI/SIC-1EPRI

Introduction
The 1-port E1/CE1/PRI SIC interface module (SIC-EPRI/SIC-1EPRI) provides the following
features:
•
Transmission/Receiving and handling of E1 data streams.
•
CE1 (channelized E1) access.
•
ISDN PRI.
•
Remote loopback and local loopback functions, facilitating fault test and location.
Interface specifications
Table 19 Interface specifications
Item
Connector type
Number of connectors
Interface standard
Interface rate
Cable type
Operating modes
Supported services
Interface LEDs

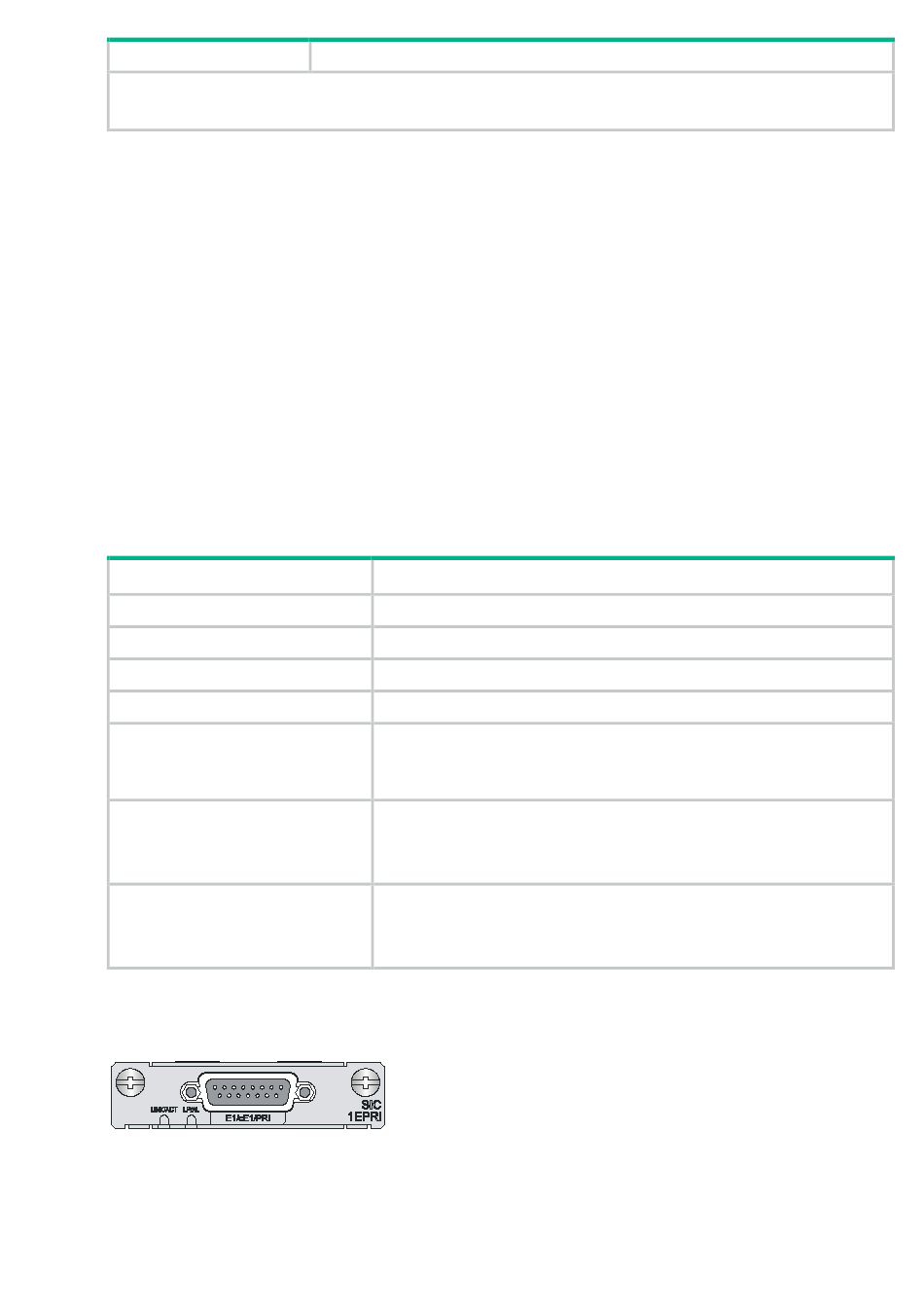

Figure 14 SIC-EPRI/SIC-1EPRI panel
Description
Specification
D15
1
G.703, G.704
2.048 Mbps
75-ohm unbalanced coaxial cable (D15 to BNC)
Coaxial connector, network interface connector, and 75-to-120-ohm
adaptor (with BNC connector)
E1
CE1
ISDN PRI
Backup
Terminal access
ISDN
10
"E1 interface."
