Table 178 LED description
LED
LINK
ACT
Interface cables and connection methods
For more information about E1 interface cables, see

FIC-IMA-8T1

Introduction
The 8-port T1 ATM inverse multiplexing interface module (FIC-IMA-8T1) provides four/eight T1
interfaces that support the IMA technology.
Interface specifications
Table 179 Interface specifications
Item
Connector
Number of connectors
Interface standard
Cable type
Max transmission
distance
Operating mode
Supported service
Protocol
Transmission rate
Interface LEDs

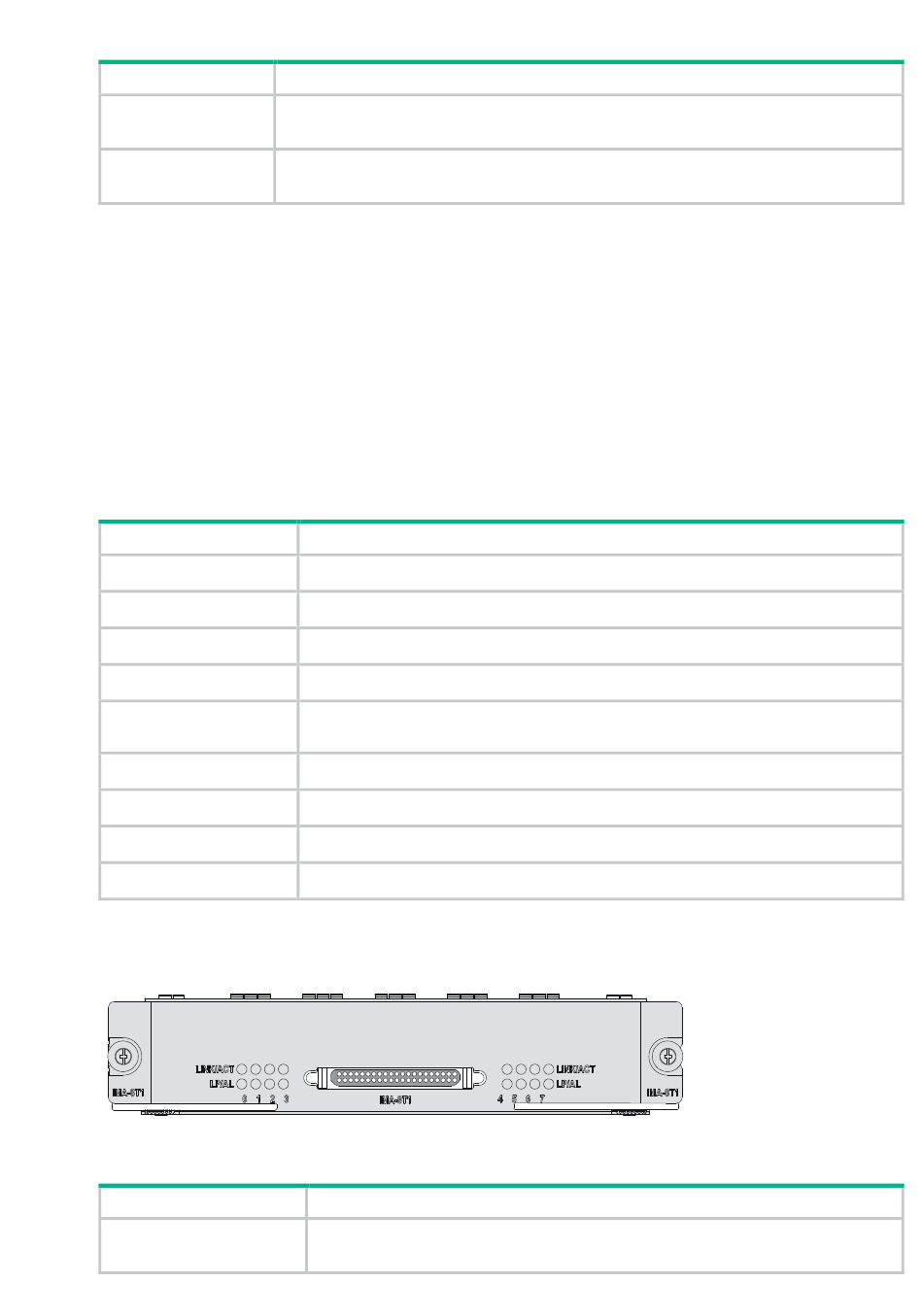

Figure 134 FIC-IMA-8T1 panel
Table 180 LED description
LED
LINK
Description
•
Off means no link is present;
•
On means a link is present.
•
Off means no data is being transmitted or received;
•
Flashing means data is being received or transmitted.
Specification
D68
1
ITU-G.703, ITU-G.704
8T1 conversion cable (100-ohm straight-through shielded)
150 m (492.1 ft)
ATM T1 independent link/IMA bundle mode
AAL5
PPPoA, PPPoEoA, IPoA, IPoEoA
CBR/VBR-rt/VBR-nrt/UBR
Description
•
Off means no link is present;
•
On means a link is present.
111
"E1 interface."
