Interface LEDs

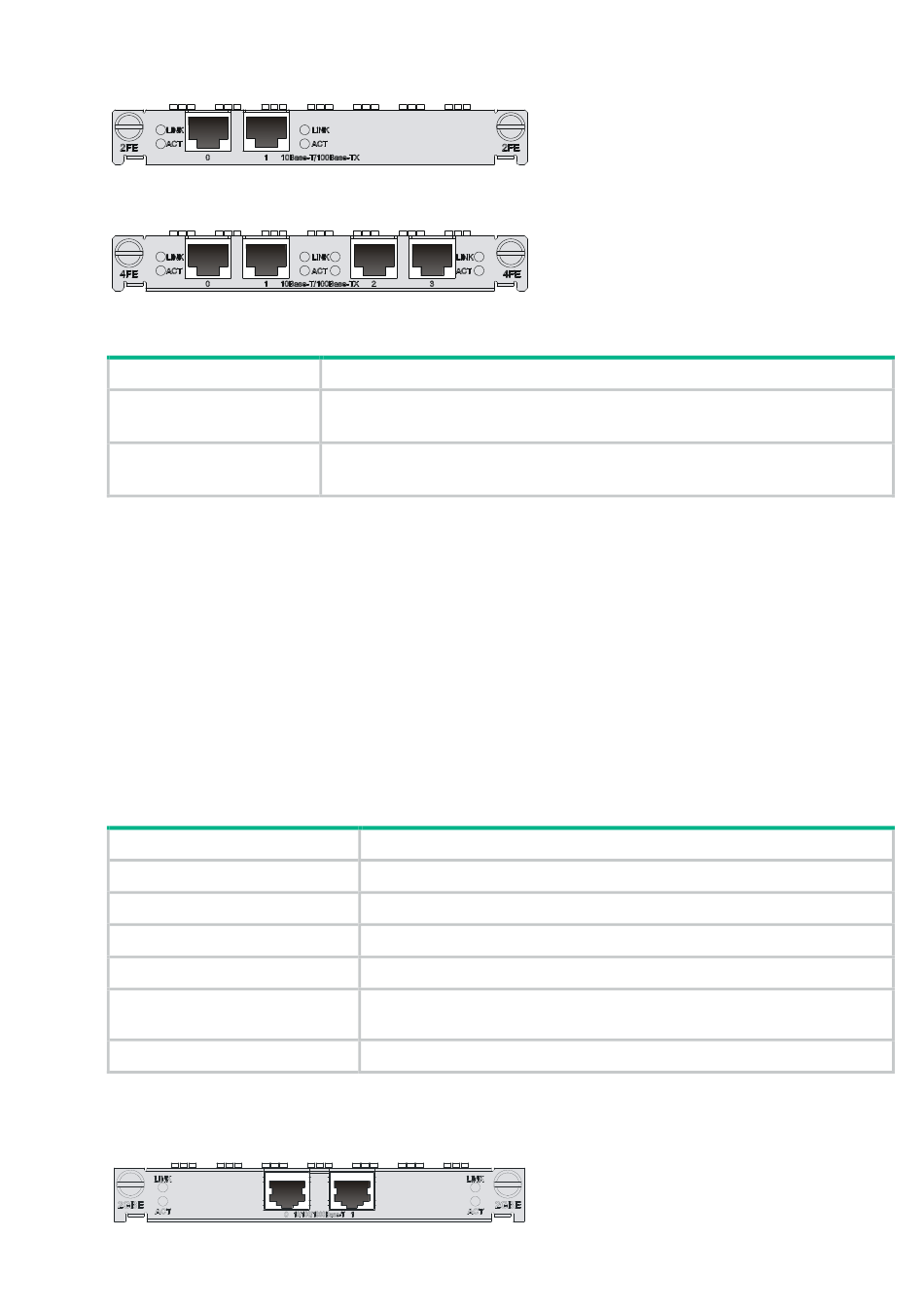

Figure 52 MIM-2FE panel
Figure 53 MIM-4FE panel
Table 78 LED description
LED
LINK
ACTIVE
Interface cables and connection methods
For more information about the Ethernet interface cables and connection methods, see
interface."

MIM-2GBE

Introduction
The 2-port 10Base-T/100Base-TX/1000Base-T Ethernet electrical interface module completes the
communication between a router and a LAN.
Interface specifications
Table 79 Interface specifications
Item
Connector
Number of connectors
Interface type
Interface standard
Transmission distance
Operating mode
Interface LEDs
Figure 54 MIM-2GBE
Description
•
Off means the Ethernet link is not connected.
•
On means the link is connected.
•
Off means no data is being transmitted or received;
•
Flashing means data is being received or/and transmitted.
Specification
RJ-45
2
MDI/MDIX
802.3, 802.3u, 802.3ab
100 m (328.08 ft) over category-5 twisted pair cables (both crossover
and straight-through)
10/100/1000 Mbps auto-sensing, half/full duplex
51
"Ethernet
