Web Operation, cont'd

Saving a preset

Save the current configuration (configuration 0) as a preset as follows:
1.
2.
3.
4.

Recalling a preset

To recall a global preset to be the current configuration, click the button associated
with the desired preset.

Physical Connections pages

The Physical Inputs and Physical Outputs pages (figure 5-17) are reference pages
only, with no active functions. The pages show the virtual numbers, names, signal
types, and physical connectors associated with the inputs and outputs. Signal
types include RGB, video, audio, video & audio, component video, S-video, and
vid (composite). To access the page, click the Physical Inputs or Physical Outputs link
on the left of the Set and View Ties page.
Select
Set and View Ties
Select RGBHV Settings
Select Global Presets

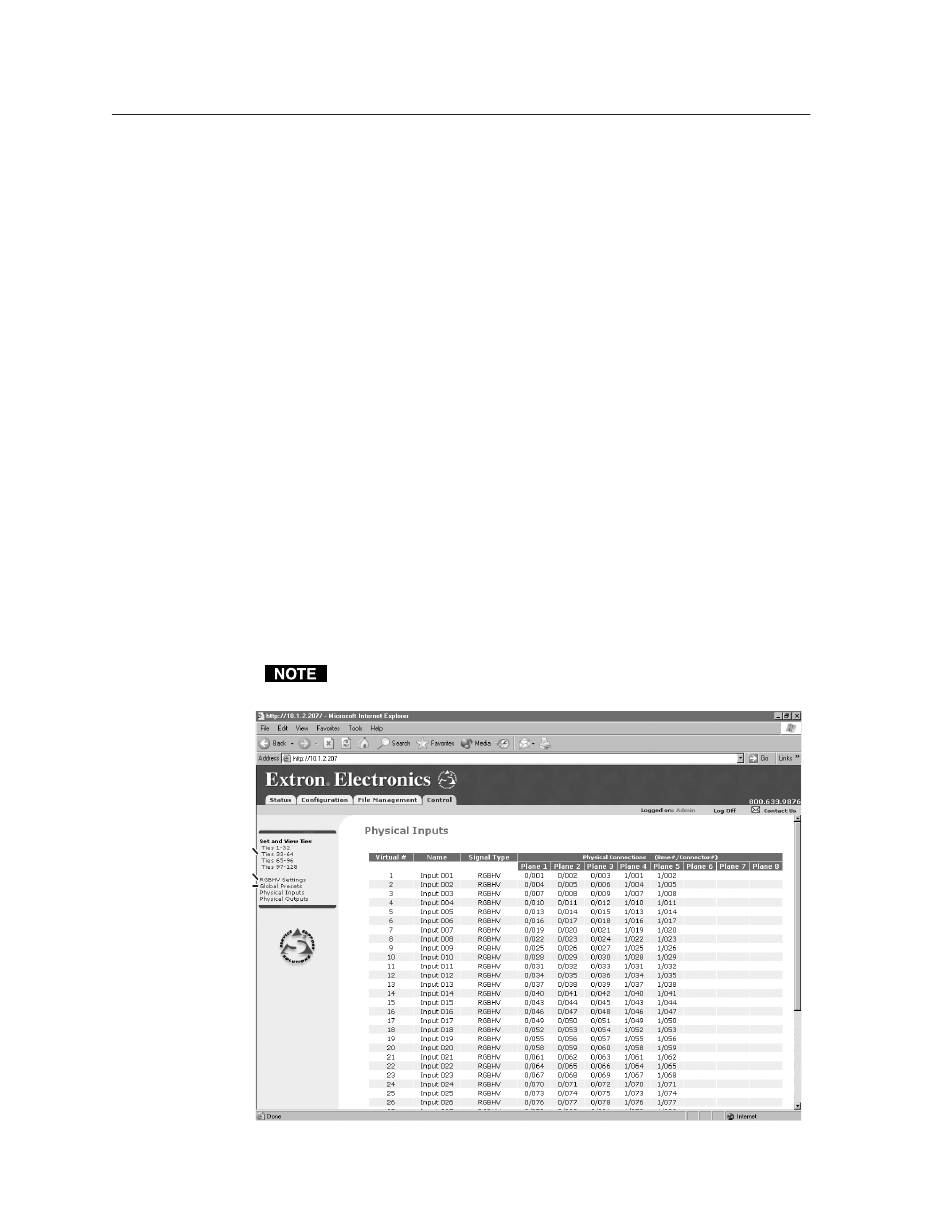

Figure 5-17 — Physical Inputs page
www.camboard.de
5-14 Matrix 12800 Switchers • Web Operation
CAMBOARD Electronics
Click the Save Preset button.
Select the desired preset by clicking on one of the presets listed. To create a
new preset, click the on one of the [unassigned] buttons. Overwrite an existing
preset by clicking on an already existing preset.
If desired, type over the current name in the box adjacent to the Save Preset
button.
If you do not rename an unassigned button, the Matrix 12800 automatically
names the preset as Preset {next available number}.
If you do not rename an existing preset when it is overwritten, the
Matrix 12800 retains the same name.
Click the Accept button.
Figure 5-17 shows the Physical Inputs page. The Physical Outputs page is
similar.
