Web Operation, cont'd

Creating a tie

Create a tie as follows:
1.
2.
3.

RGBHV Settings page

The RGBHV Settings page provides a way to set the input audio gain and
attenuation, mute and unmute all video and audio outputs, and (for RGBHV video
only) set the RGB delay (switching interval). Access the RGBHV Settings page
(figure 5-10) by clicking on the RGBHV Settings link on the Set and View Ties page.
Select
Set and View Ties
Select Global Presets
Select Input and
Output Maps

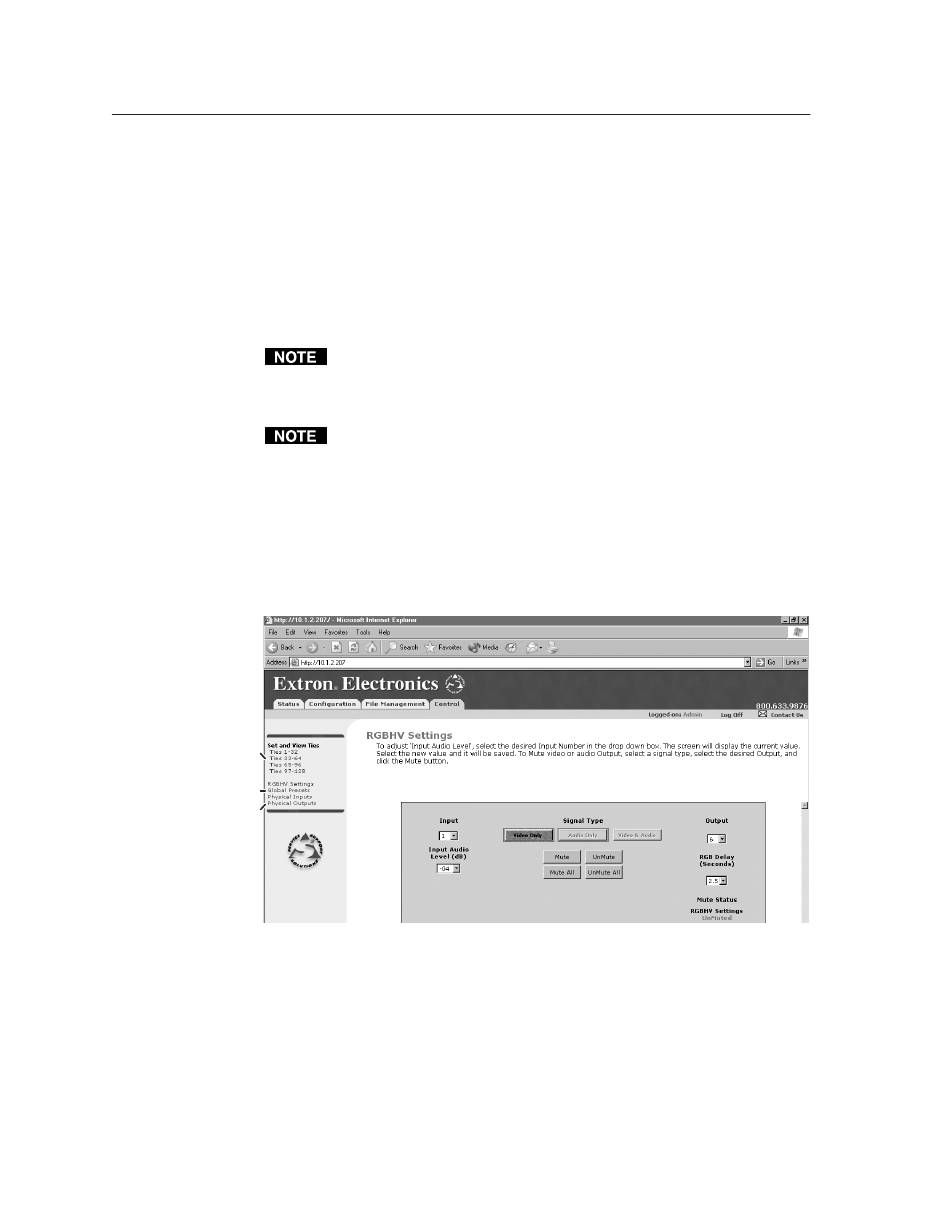

Figure 5-10 — RGBHV Settings page
www.camboard.de
5-10 Matrix 12800 Switchers • Web Operation
CAMBOARD Electronics
Click on the Video Only, Audio Only, or Video & Audio button to select video,
audio, or both for switching (audio follow or audio breakaway). Each mouse
click on a button toggles the other two buttons off.
Move the mouse pointer over the matrix of input and output selection
buttons. Click on a button to create a preliminary tie (if not tied) or
preliminary untie (if tied) of the input and output associated with that button.
A "P" (for preliminary) appears in the button.
If you lose track of the input and output associated with a specific button, let
the mouse pointer rest over one of the tie buttons for a moment. A field pops
up (as shown on figure 5-9) that identifies the input and output for that
button.
To tie an input to all outputs, click on that input's input number.
Click on the Take button to make the configuration changes or Cancel button to
abandon the configuration changes.
