Ethernet Connection
Ethernet Connection, cont'd
Ethernet Link
The rear panel Ethernet connector (figure A-1) on the matrix
switcher BME 0 can be connected to the Ethernet LAN or
WAN. This connection makes SIS control of the switcher
possible using a computer connected to the same LAN.
Ethernet connection
The Ethernet cable can be terminated as a straight-through cable or a crossover
cable and must be properly terminated for your application (figure A-1).

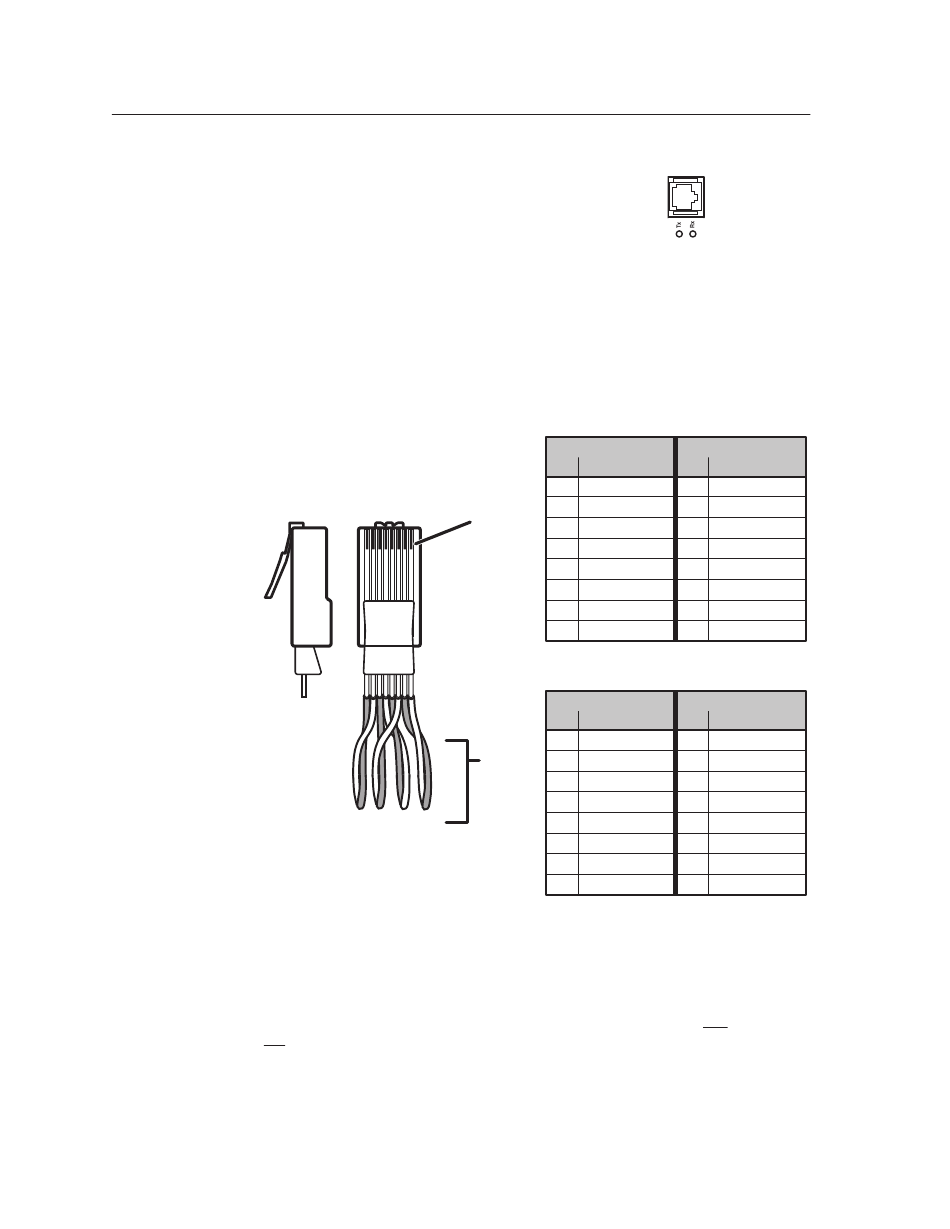

Figure A-1 — RJ-45 connector pinout table
Subnetting — A Primer
It is not the purpose of this manual to describe TCP/IP protocol in detail.
However, some understanding of TCP/IP subnetting (a subnet is a subset of a
network — a set of IP devices that have portions of their IP addresses in common)
is necessary in order to understand the interaction of the Matrix 12800 system
components (consisting of the Matrix 12800 and the FPC 5000) and the system's
interaction with the mail server gateway. To understand subnetting at the level
required to install and operate the Matrix 12800 system, you must understand the
concepts of a gateway, local and remote devices, IP addresses and subfields, and
subnet masks and subfields.
www.camboard.de
A-2
Matrix 12800 Switchers • Ethernet Connection
CAMBOARD Electronics
Crossover cable — Direct connection between the computer and BME 0 of
the Matrix 12800 switcher.
Patch (straight) cable — Connection between the Ethernet hub and BME 0 of
the Matrix 12800 switcher.
Side
Clip Down
Pins
1
2 3 4 5 6 7 8
RJ-45
connector
1
2 3 4 5 6 7 8
1&2
7&8
3&6 4&5
Tel. 07131 911201
Fax 07131 911203
Patch (straight) cable
Side 1
Pin
Wire color
1
White-orange
2
Orange
3
White-green
4
Blue
5
White-blue
6
Green
7
White-brown
8
Brown
Crossover cable
Side 1
Pin
Wire color
1
White-orange
Twisted
2
Orange
Pairs
3
White-green
4
Blue
5
White-blue
6
Green
7
White-brown
8
Brown
ce-info@camboard.de
Side 2
Pin
Wire color
1
White-orange
2
Orange
3
White-green
4
Blue
5
White-blue
6
Green
7
White-brown
8
Brown
Side 2
Pin
Wire color
1
White-green
2
Green
3
White-orange
4
Blue
5
White-blue
6
Orange
7
White-brown
8
Brown
