The Gateway IP Address field identifies the address of the gateway to the mail
server to be used if the Matrix 12800 and the mail server are not on the same
subnet.
Valid IP addresses consist of four 1-, 2-, or 3-digit numeric subfields separated by
dots (periods). Each field can be numbered from 000 through 255. Leading zeroes,
up to 3 digits total per field, are optional. Values of 256 and above are invalid.
Edit this field as follows:
1.
Click in the Gateway IP Address field. The graphic cursor becomes a text
cursor.
2.
Edit the address as desired.
3.
Press the Tab key on the keyboard or click the mouse in another field to exit
the gateway IP Address field.
4.
Click the Take button to make the address change take affect.
The Hardware Address field is hardcoded on the primary controller board in
BME 0 and cannot be changed.
The Subnet Mask field is used to determine whether the Matrix 12800 is on the
same subnet as the mail server when you are subnetting.
Edit this field as follows:
1.
Click in the Subnet Mask field. The graphic cursor becomes a text cursor.
2.
Edit the mask as desired.
3.
Press the Tab key on the keyboard or click the mouse in another field to exit
the Subnet Mask field.
4.
Click the Take button to make the mask take affect.
The Date field displays the current date in the Greenwich Mean Time zone. If
necessary, adjust the date as follows:
1.

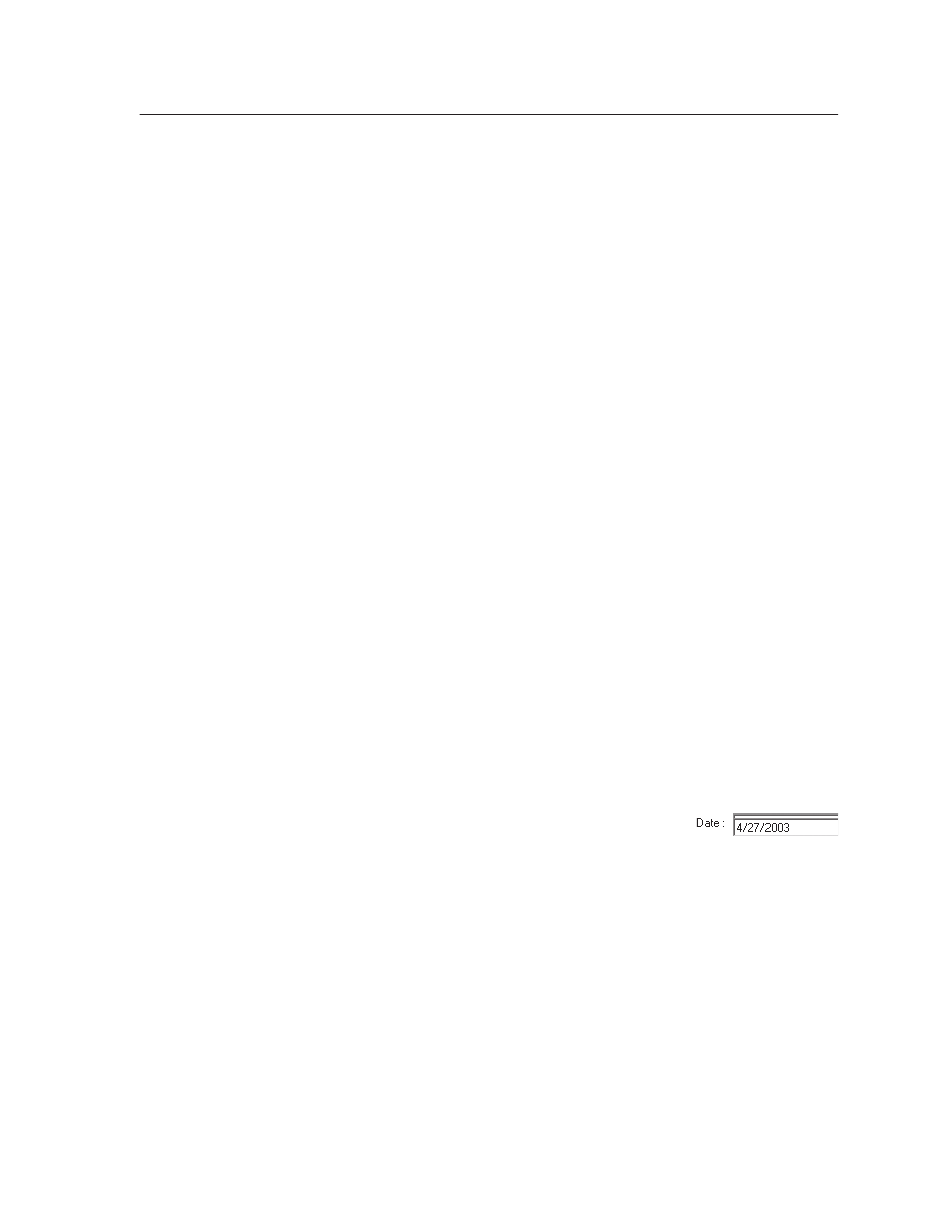

Click the mouse in the Date field. A set date field
appears with the date in the format
(M)M/(D)D/YYYY. Leading zeroes are not used.
2.
Click in the date field. The graphic cursor becomes a text cursor.
3.
Edit the date as desired to set the proper date. Leading zeroes are optional.
4.
Press the Tab key on the keyboard or click the mouse in another field to exit
the Date field.
5.
Click the Take button to make the date change take affect.
