Upgrades and Maintenance, cont'd
Setting the DIP Switches
Swapping the serial port protocol (RS-232/RS-422)
The Matrix 12800 controller boards are factory configured for RS-232 use. Change
the RS-232/RS-422 configuration of the controller board as follows:
1.
2.
CAUTION
3.

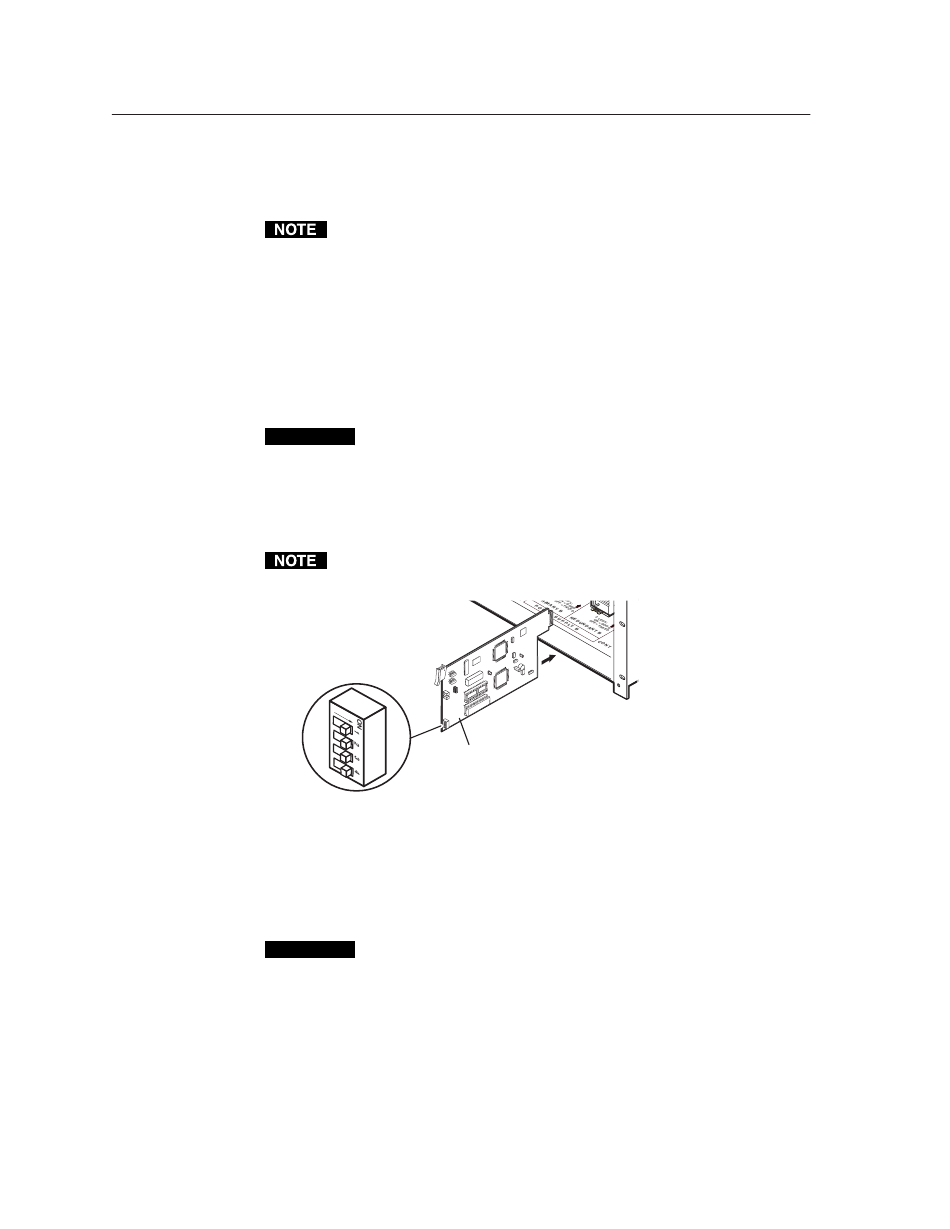

Figure 6-8 — Serial port selection DIP switch
4.
CAUTION
5.
www.camboard.de
6-10
Matrix 12800 Switchers • Upgrades and Maintenance
CAMBOARD Electronics
If this BME is equipped with a redundant controller, the primary and
redundant controllers must be configured for the same communications
protocol.
If changing the configuration of an installed board, open and remove the front
door.
If changing the configuration of an installed board, turn the left and right
knurled knobs on the fan assembly door ¼-turn counterclockwise. Raise the
door and rest it on the roof of the power distribution enclosure.
Do not touch the electronic components or the connectors on the power
distribution plane or on the circuit boards without being electrically
grounded. Handle circuit boards by their edges only. Electrostatic
discharge (ESD) can damage ICs, even if you cannot feel, see, or hear it.
Set DIP switch 3, on the rear edge of the controller board (figure 6-8), to the
Off position for RS-232 or to the On position for RS-422.
The controller board is shown removed for clarity, but the board does not need
to be removed.
Controller
Board
Serial Port
Selection
DIP Switch (3)
If you changed the configuration of a board that is installed, close the fan
assembly door and turn the left and right knurled knobs ¼-turn clockwise.
Ensure that you close and secure the fan assembly door when you have
finished this maintenance procedure. The Matrix 12800 may overheat
otherwise.
If you changed the configuration of a board that is installed, close the front
door.
