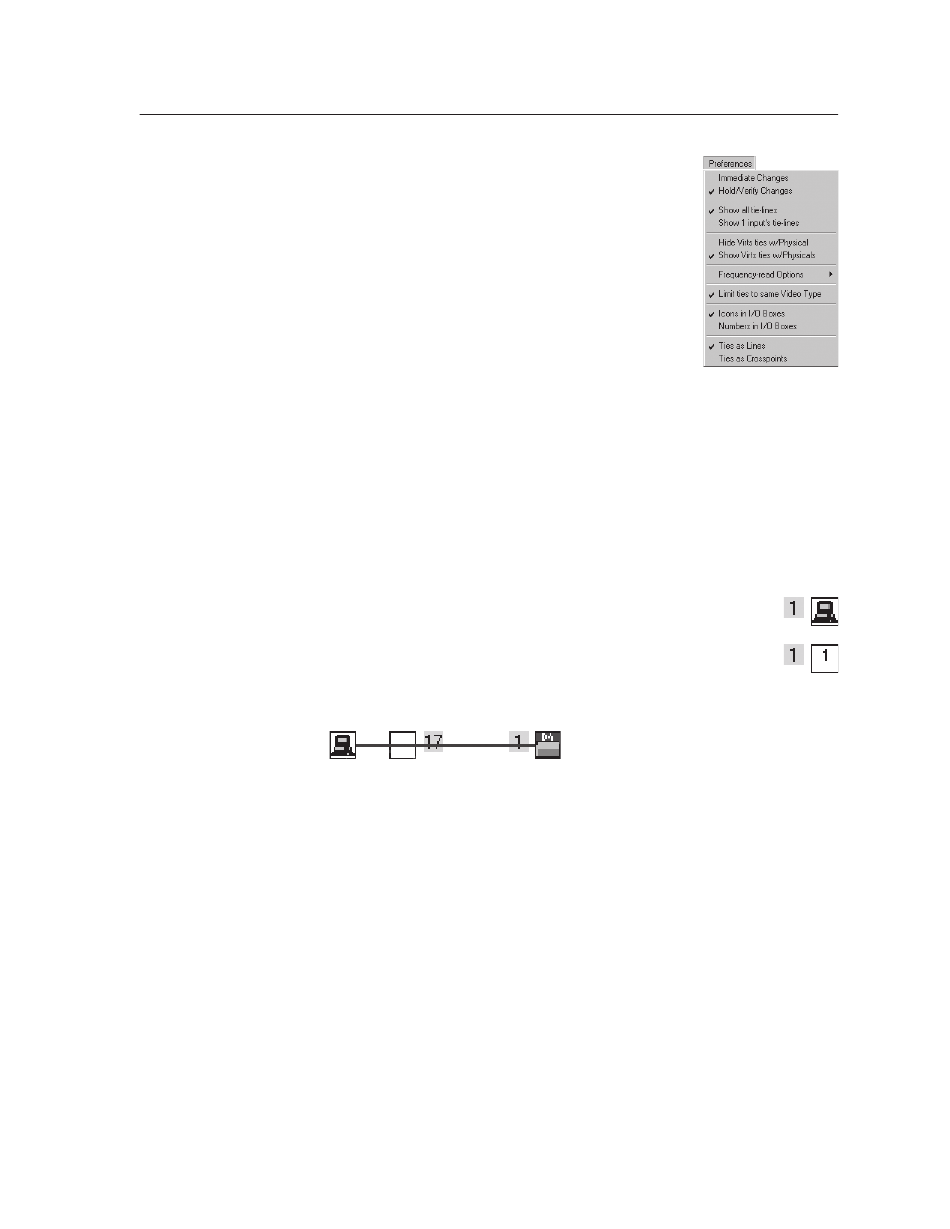

Preferences menu —
Immediate changes — Causes changes to take effect
immediately.
Hold/verify changes — Delays implementation of
changes until the Changes – Take button is pressed.
Show all tie-lines — Causes the main screen to display
all ties at once, as shown in figure 3-2.
Show 1 input's tie-lines — Because the Show all tie-
lines selection can be confusing, this selection
removes all of the tie lines from the main screen.
The main screen shows all of the ties for one input
only when you rest the mouse cursor over that input or one of its
outputs.
Hide Virts ties w/Physical — Hides the virtual ties when you select the Edit
Mode Physical display.
Show Virts ties w/Physical — Shows the virtual ties when you select the Edit
Mode Physical display.
Frequency-read options — Allows you to enable or disable periodic DSVP
input frequency reads.
Limit ties to same Video type — Limits ties to the same video type (RGBHV,
component, and the like).
Icons in I/O Boxes — Displays icons, if assigned, in the virtual
input and virtual output boxes on the main screen.
Numbers in I/O Boxes — Displays virtual input numbers in the
virtual input boxes and virtual output numbers in the virtual
output boxes.
Ties as lines — Displays ties as lines (figure 3-19).
Figure 3-19 — Ties shown as lines
