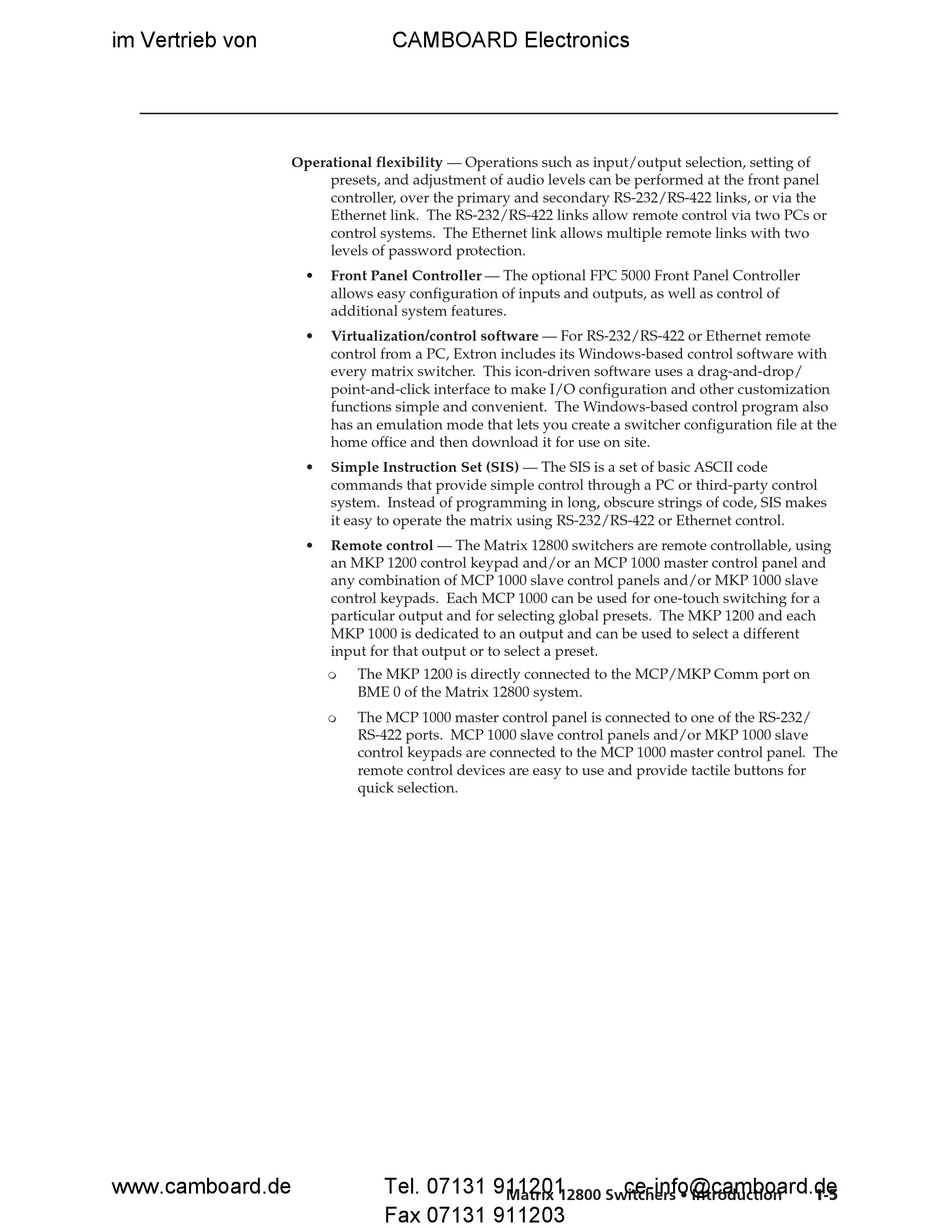

Operational flexibility — Operations such as input/output selection, setting of
presets, and adjustment of audio levels can be performed at the front panel
controller, over the primary and secondary RS-232/RS-422 links, or via the
Ethernet link. The RS-232/RS-422 links allow remote control via two PCs or
control systems. The Ethernet link allows multiple remote links with two
levels of password protection.
•
Front Panel Controller — The optional FPC 5000 Front Panel Controller
allows easy configuration of inputs and outputs, as well as control of
additional system features.
•
Virtualization/control software — For RS-232/RS-422 or Ethernet remote
control from a PC, Extron includes its Windows-based control software with
every matrix switcher. This icon-driven software uses a drag-and-drop/
point-and-click interface to make I/O configuration and other customization
functions simple and convenient. The Windows-based control program also
has an emulation mode that lets you create a switcher configuration file at the
home office and then download it for use on site.
•
Simple Instruction Set (SIS) — The SIS is a set of basic ASCII code
commands that provide simple control through a PC or third-party control
system. Instead of programming in long, obscure strings of code, SIS makes
it easy to operate the matrix using RS-232/RS-422 or Ethernet control.
•
Remote control — The Matrix 12800 switchers are remote controllable, using
an MKP 1200 control keypad and/or an MCP 1000 master control panel and
any combination of MCP 1000 slave control panels and/or MKP 1000 slave
control keypads. Each MCP 1000 can be used for one-touch switching for a
particular output and for selecting global presets. The MKP 1200 and each
MKP 1000 is dedicated to an output and can be used to select a different
input for that output or to select a preset.
The MKP 1200 is directly connected to the MCP/MKP Comm port on
!
BME 0 of the Matrix 12800 system.
The MCP 1000 master control panel is connected to one of the RS-232/
!
RS-422 ports. MCP 1000 slave control panels and/or MKP 1000 slave
control keypads are connected to the MCP 1000 master control panel. The
remote control devices are easy to use and provide tactile buttons for
quick selection.
