Installation, cont'd
External sync connections (wideband and video BMEs only)
For NTSC/PAL/SECAM video, when the switcher switches between inputs, the
resulting change in image should be seamless, or clean. The Matrix 12800 switcher
can use an external signal to synchronize switching during the vertical interval.
Without the external sync locking feature, switching between inputs can result in a
brief rolling (sync loss) or a brief change in the picture size.
15

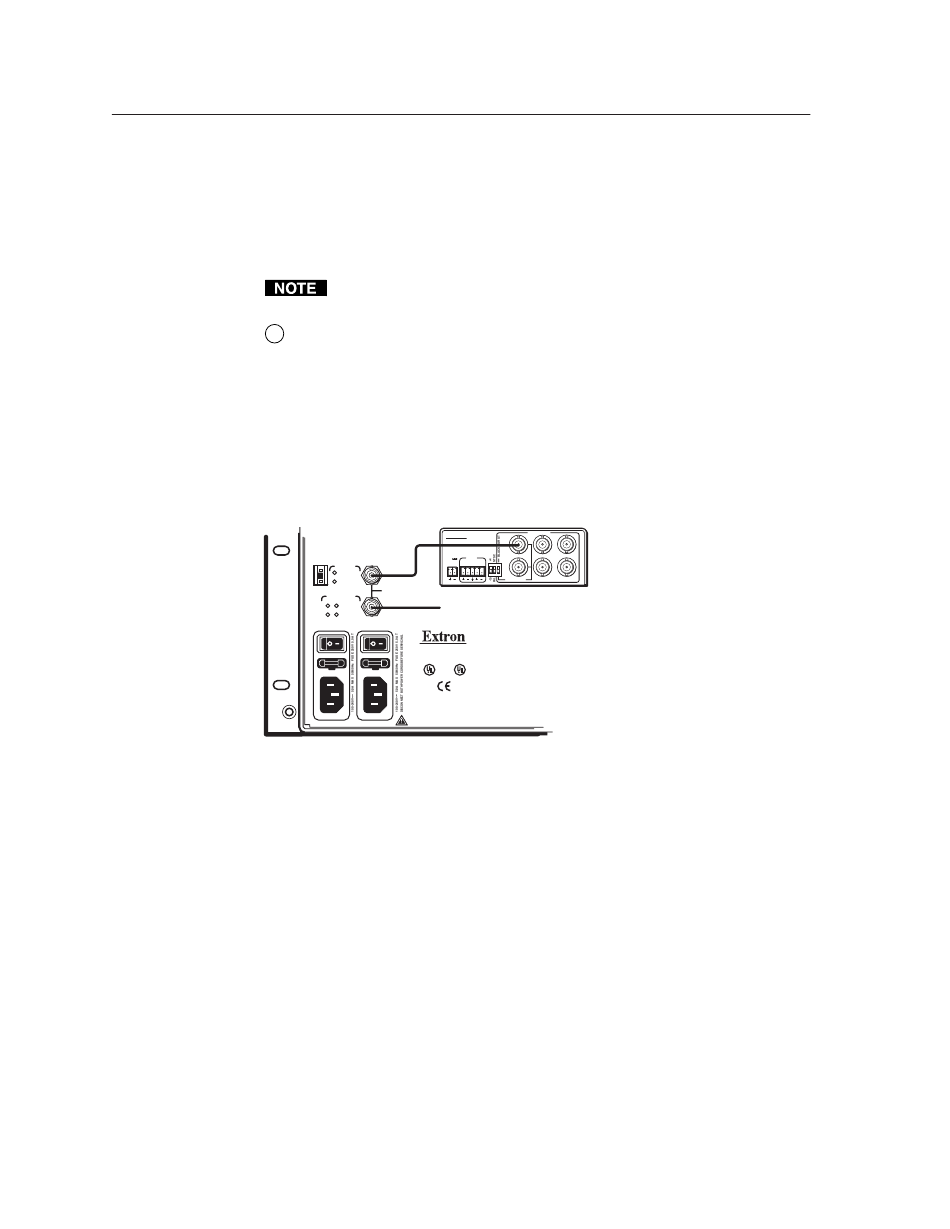

Figure 2-14 shows a basic external sync configuration. The Ext Sync In connector
receives a timing signal. The Out connector allows the signal to be passed on to
another video device, if required.
Figure 2-14 — Simple external sync connection example
www.camboard.de
2-14
Matrix 12800 Switchers • Installation
CAMBOARD Electronics
External sync only works for inputs that have been virtualized as NTSC/PAL/
SECAM video only, not for inputs virtualized as RGB video.
External Sync In connector — Connect an external sync signal to this BNC
connection for genlocking the video signal in broadcast or other sync-critical
applications.
External Sync Out connector — Connect any downstream equipment that
requires genlocking to this BNC connector to route the external sync signal
throughout the system in broadcast or other sync-critical applications.
BBG 6A
BBG 6 A
BLACKBURST AND AUDIO
GENERATOR
POWER
1 KHZ
12V
AUDIO
BME
.2A MAX
L
R
CPU STATUS
-
PRIMARY
IN
4
+
REDUNDANT
ADDRESS
SYNC
POWER SUPPLIES
+V -V
To Next Device
PRIMARY
OUT
REDUNDANT
PRIMARY AC
REDUNDANT AC
POWER INPUT
POWER INPUT
ANAHEIM, CA
MADE IN USA
LISTED
1T23
I.T.E.
CAUTION
For protection against risk of
fire, replace only with same
type and rating of fuse.
Tel. 07131 911201
Fax 07131 911203
BLACKBURST
1
3
5
ON
1 2 3
2
4
6
COLORBARS
