Set and View Ties Page

Refresh or Select
Different Tie (Output)
Groups
Select RGBHV Settings
Select Global Presets
Select Input and
Output Maps
www.camboard.de
CAMBOARD Electronics
You can create ties on the Set and View Ties page (figure 5-9). Access the Set and
View Ties page by clicking the Control tab.

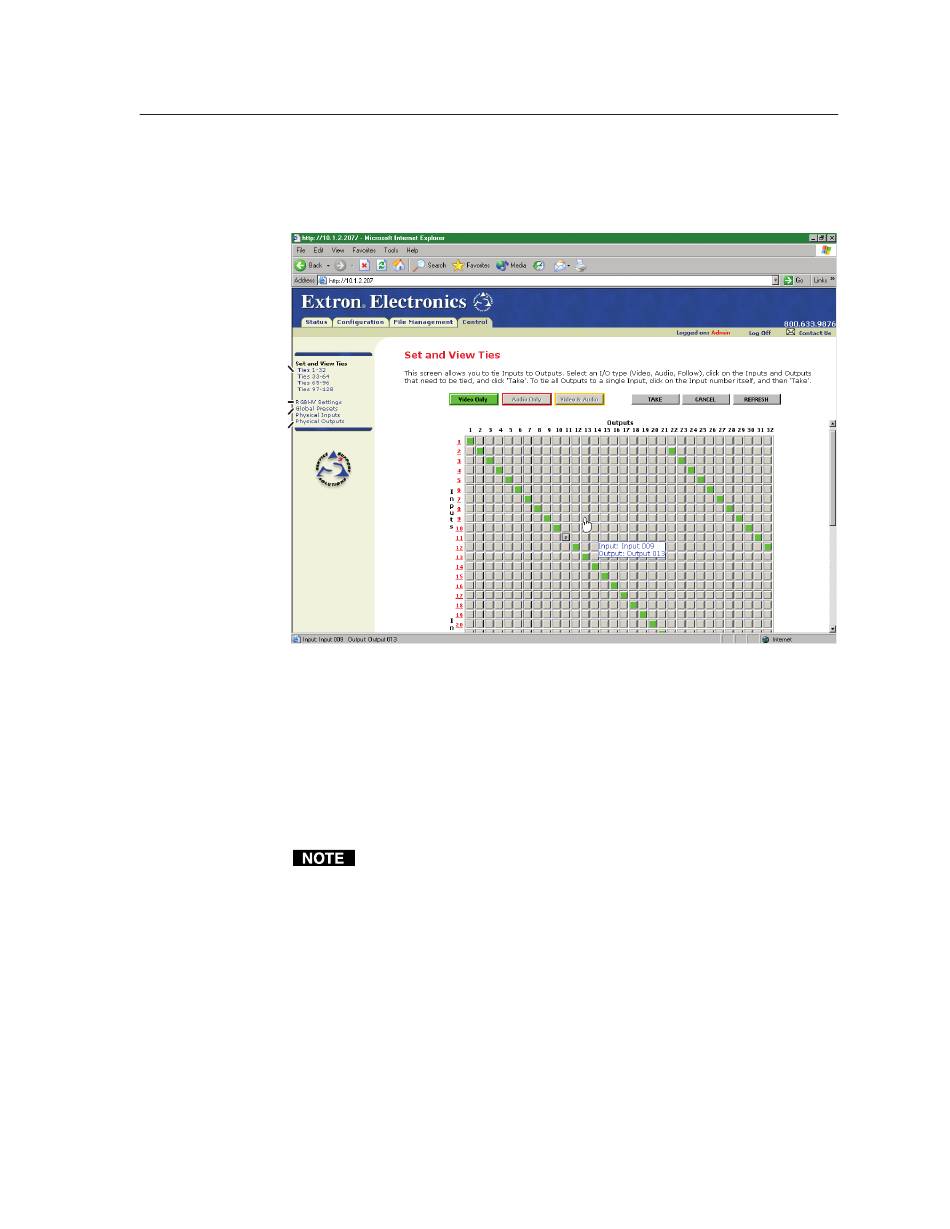

Figure 5-9 — Set and View Ties page
The page consists of a matrix of input (rows) and output (columns) (up to 32
outputs at a glance) selection buttons of four different colors:
• The amber buttons indicate video and audio ties.
• The green buttons indicate video only ties.
• The red buttons indicate audio only ties.
• The gray buttons indicate no ties.
If you lose track of the input and output associated with a specific button, let
the mouse pointer rest over a button for a moment. As shown on figure 5-9, a
field pops up that identifies the input and output for that button.
Select a different group of outputs by clicking the desired Ties link to the left of the
screen.
