Virtualization/Control Software, cont'd
5.

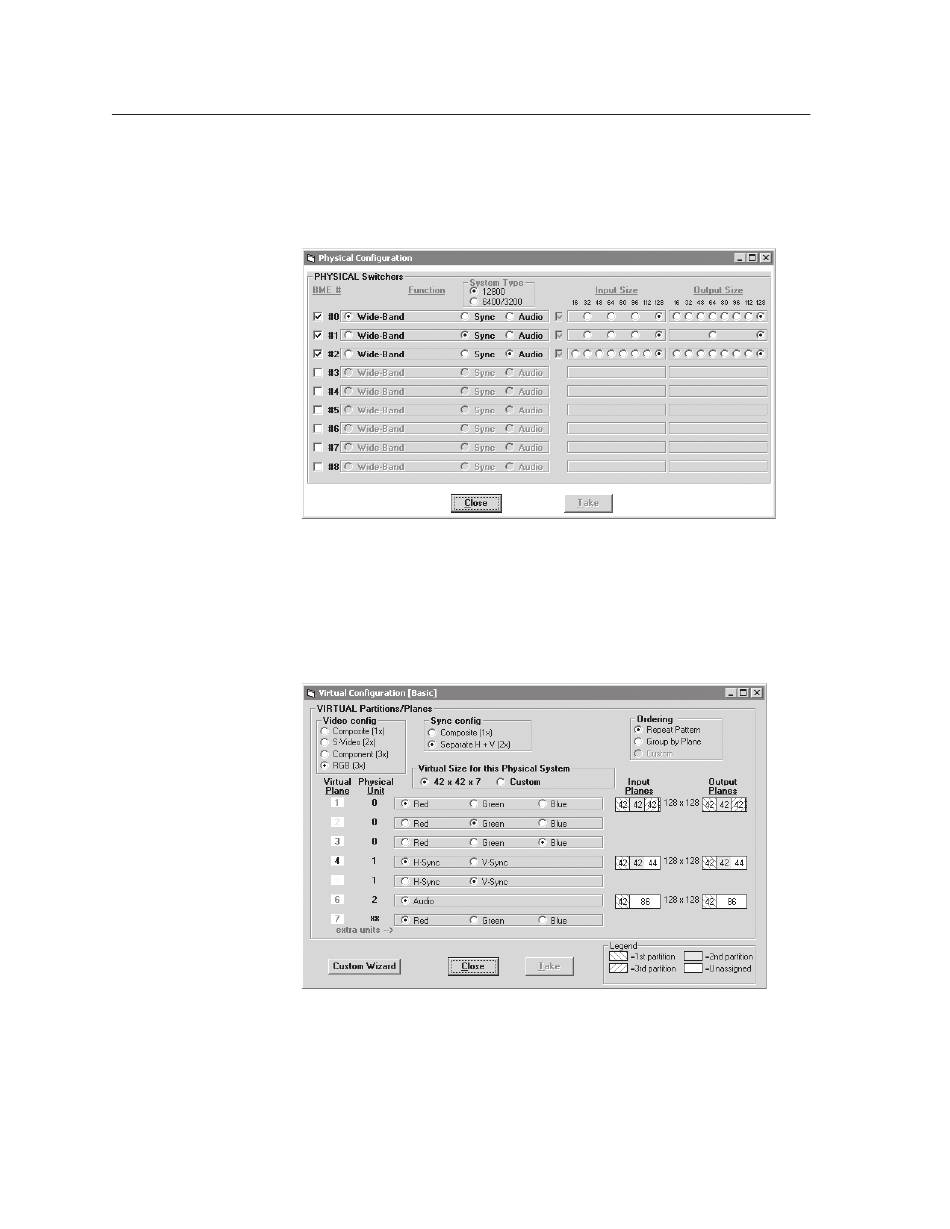

Figure 3-4 — Physical Configuration screen
6.
Figure 3-5 — Virtual Configuration screen
www.camboard.de
3-8
Matrix 12800 Switchers • Virtualization/Control Software
CAMBOARD Electronics
On the menu bar, click Configure>Physical Switchers to show the Physical
Configuration screen (figure 3-4). Check this screen to ensure that all BMEs
were seen on program startup and that their type and size is reported correctly.
Click the Close button to return to the Virtual Map screen.
On the menu bar, click Configure>Virtual Switcher-Basic to show the Virtual
Configuration screen (figure 3-5). This screen shows how the software has
mapped the physical system into a virtual system. There are several variables
that you can change on this screen that affect the number of virtual planes and
inputs and outputs that are available and how they are presented.
