Opening and Closing the Matrix Switcher

Opening the switcher

All maintenance and upgrade procedures require access to the switcher's interior
by opening the front door (figure 6-1). Gain access to the switcher's interior as
follows:
Door Fastener

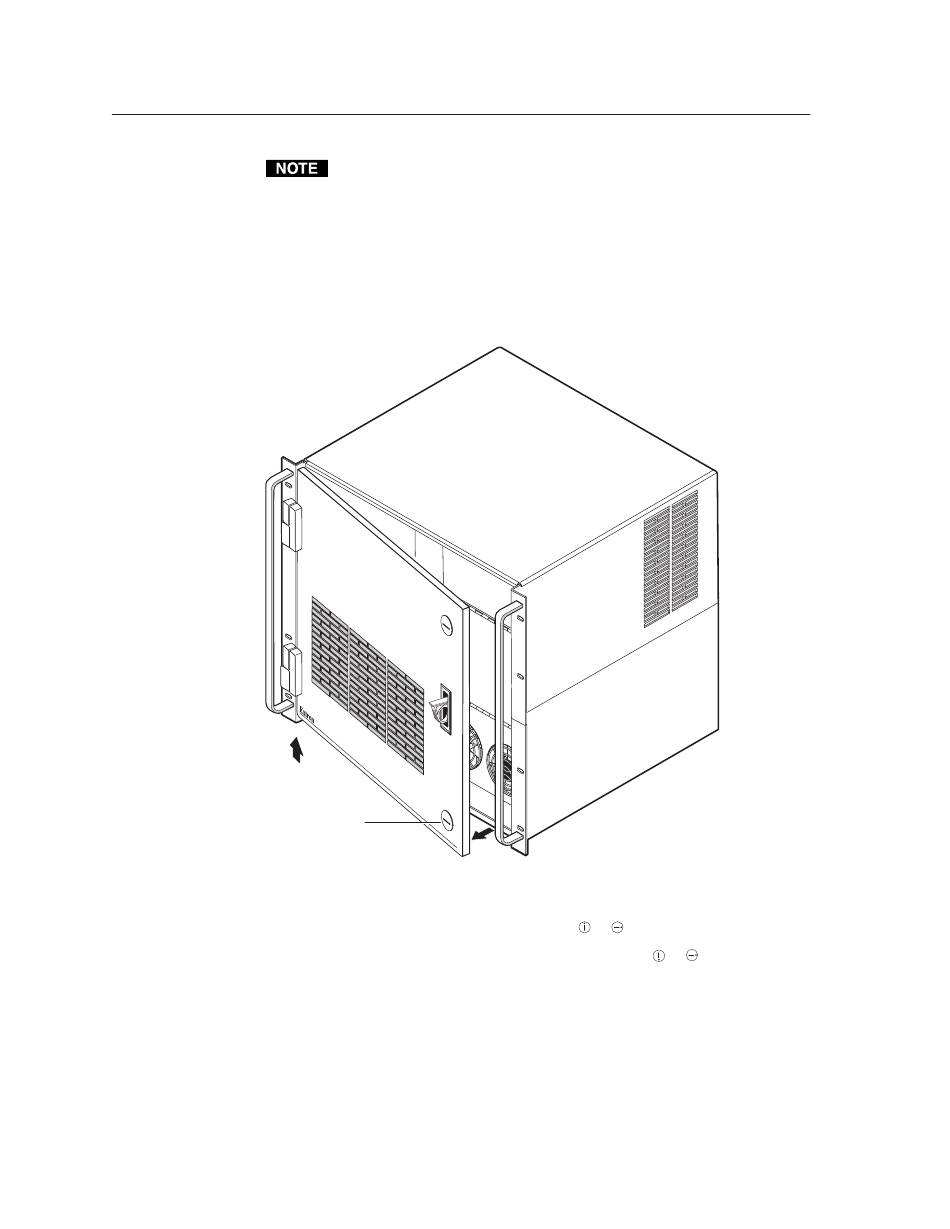

Figure 6-1 — Opening the Matrix 12800 switcher.
1.
2.
3.
4.
www.camboard.de
6-2 Matrix 12800 Switchers • Upgrades and Maintenance
CAMBOARD Electronics
For proper cooling and air flow, all access doors should be closed during
normal switcher operations.
M A
T R
I X
1 2
8 0
0
Turn the top door fastener clockwise from
Turn the bottom door fastener counterclockwise from
Open the door.
If you need to open the fan assembly door, remove the front door by lifting it
straight up off the hinge pins.
Tel. 07131 911201
Fax 07131 911203
to .
to .
