Remote control panel and front panel controller/Ethernet
connections
www.camboard.de
CAMBOARD Electronics

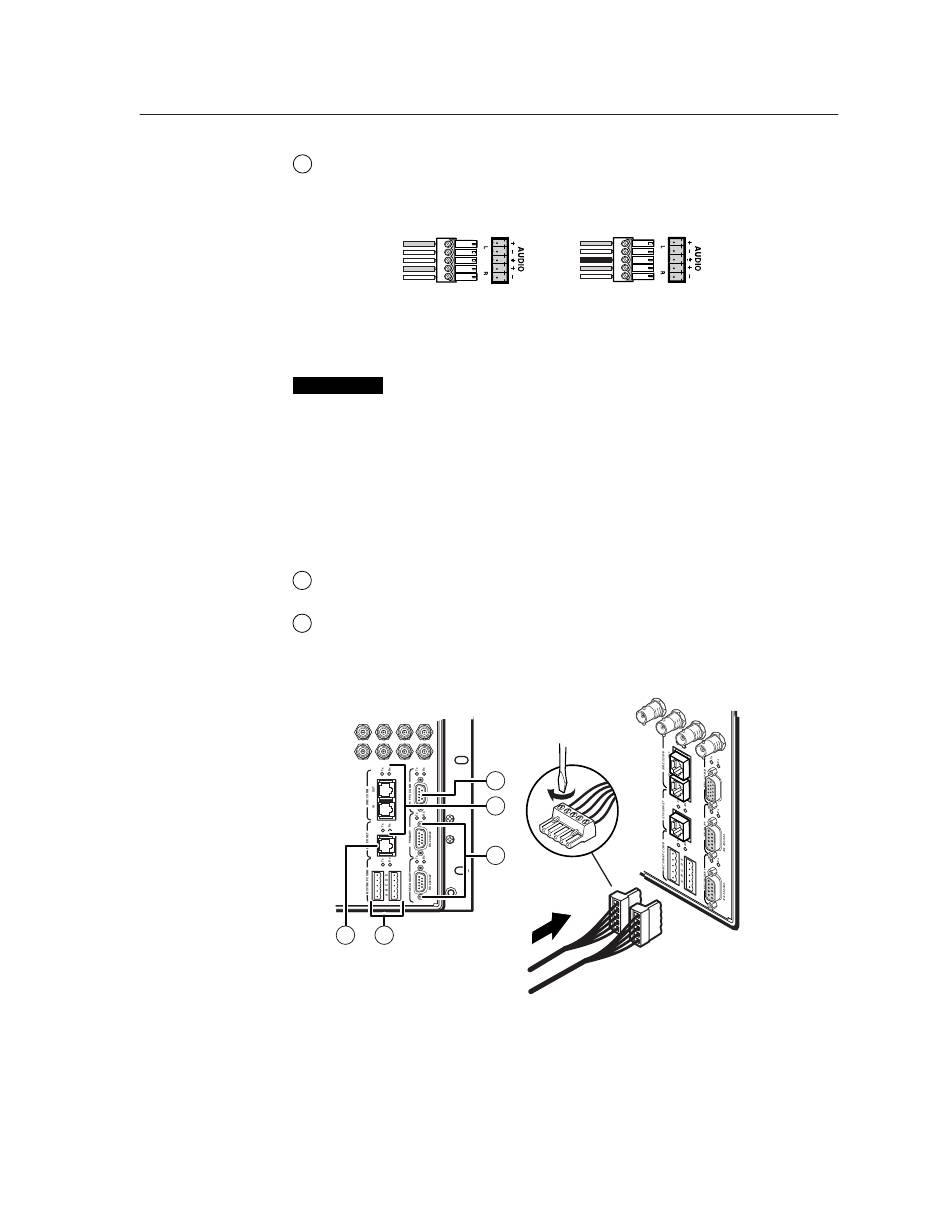

Audio outputs connectors — These 3.5 mm, 5-pole captive screw connectors
11
output the selected unamplified, line level audio. Connect audio devices,
such as an audio amplifier or powered speakers. See figure 2-10 to properly
wire an output connector.
Tip
See caution
Sleeve
Tip
See caution
Unbalanced Output
Figure 2-10 — Captive screw connector wiring for audio output
Connect the sleeve to ground (Gnd). Connecting the sleeve to a
CAUTION
negative (-) terminal will damage the audio output circuits.
By default, the audio output follows the video switch. Audio breakaway,
activated via the front panel, RS-232/RS-422 control, or the Windows-based
control program, allows you to select from any one of the audio input sources.
Refer to the Matrix 12800 Switcher Front Panel Controller manual, and see
chapter 3, Virtualization/Control Software, and chapter 4, Programmer's Guide.
FPC Comm port — (FUTURE CAPABILITY)
12
MCP/MKP Comm ports — For systems consisting of a single switcher or for
13
BME 0 on a multi-BME system, if desired, connect an MKP 1200 remote
keypad to either of these 3.5 mm, 5-pole captive screw connectors
(figure 2-11). Refer to the MKP 1200 User's Manual, for details.
79 95 111 127
80 96 112 128
14 13
Figure 2-11 — Connecting a control keypad
Tel. 07131 911201
Fax 07131 911203
Tip
Ring
Sleeve (s)
Tip
Ring
Balanced Output
8 0
12
2
3
ce-info@camboard.de
Matrix 12800 Switchers • Installation
9 6
1 1
2
1 2
8
2-11
