EDID 111H 4K PLUS • Setup Guide
IMPORTANT NOTE:
Go to www.extron.com
before connecting the product to the power source.
This setup guide provides instructions for an experienced installer to install and operate the EDID 111H 4K PLUS.
The EDID 111H 4K PLUS is a single-input, single-output HDMI EDID emulator supporting video rates up to 4K@60 Hz 4:4:4. It
supports EDID Minder, HDCP 2.3, and Extron Product Configuration Software (PCS) configuration. The EDID 111H 4K PLUS can
also capture and store EDID information from a connected display via the front panel STORE button.
The EDID 111H 4K PLUS is housed in a 1 inch high, quarter-rack width, 6-inch deep enclosure. An external universal power supply
is included.
Rear Panel Cabling
B
A
POWER
12V
0.4A MAX
INPUT

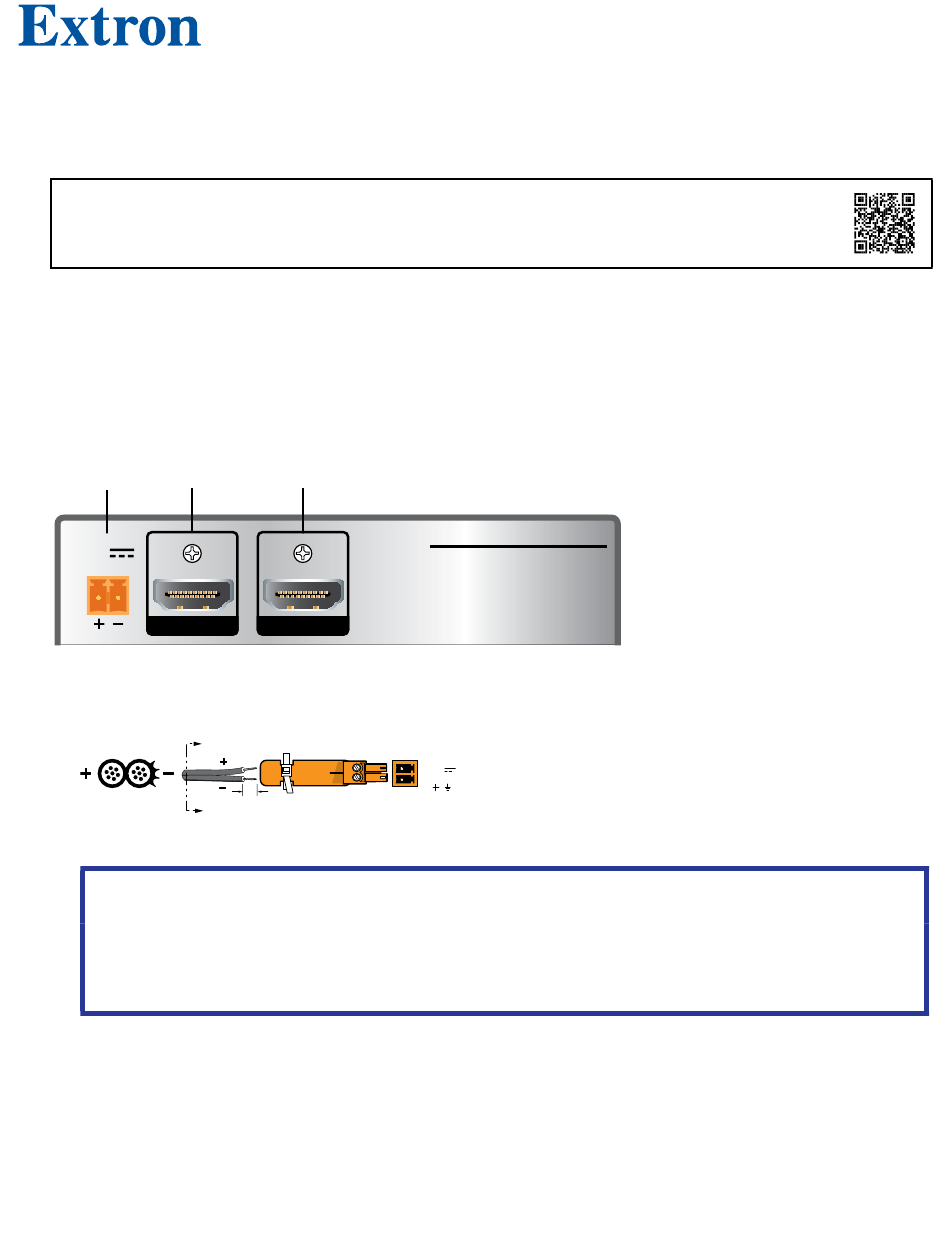

Figure 1. EDID 111H 4K Plus Rear Panel
Power Connector — Connect the included 12 VDC power supply to the orange, two-pole, 3.5 mm captive screw connector.
A
Wire the power supply as shown in figure 2.
Smooth
SECTION A–A
Figure 2.
External Power Supply Connection
ATTENTION: Risk of property damage:
ATTENTION : Risque de dommages matériels :
• Do not connect any external power supplies until you have read the Attention notifications in the Power Supply
section of the user guide for that device.
• Ne branchez pas de sources d'alimentation externes avant d'avoir lu les mises en garde dans la section « Power
Supply » du guide utilisateur pour cet appareil.
HDMI Input — Connect an HDMI source to this HDMI connector.
B
HDMI Output — Connect a display or other output device to the HDMI connector.
c
for the complete user guide, installation instructions, and specifications
C
OUTPUT
A
Ridges
3/16"
A
(5 mm) Max.
EDID 111H 4K PLUS
POWER
12V
0.4A MAX
1
