3.4 Replacing Board Base
Removing Connector Panel
3.4.1
1.
Remove Paper Guide R2.
"3.2.7 Removing Paper Guide R2" p.3-17
2.

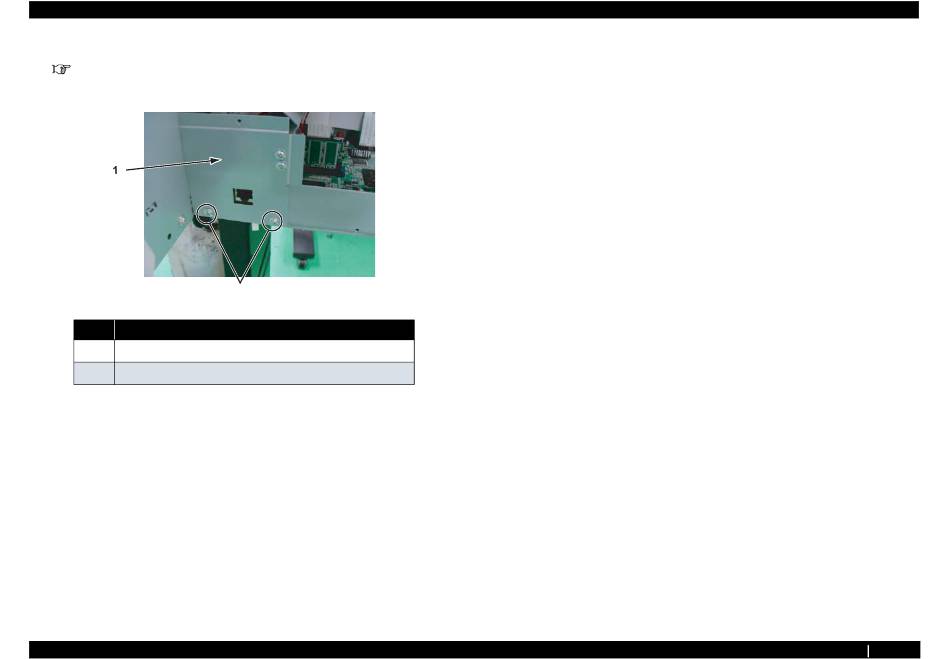

Remove the screws (2 pieces) retaining Connector Panel.
No.
1
Connector Panel
×
2
Tapping screwM3
6 S
3.
Remove connector Panel.
4.
To reassemble the unit, reverse the removal procedure.
3.4.1 Removing Connector Panel
2
Name
VJ1324E-M-02
P.3-37
