Page 3: Important Notice

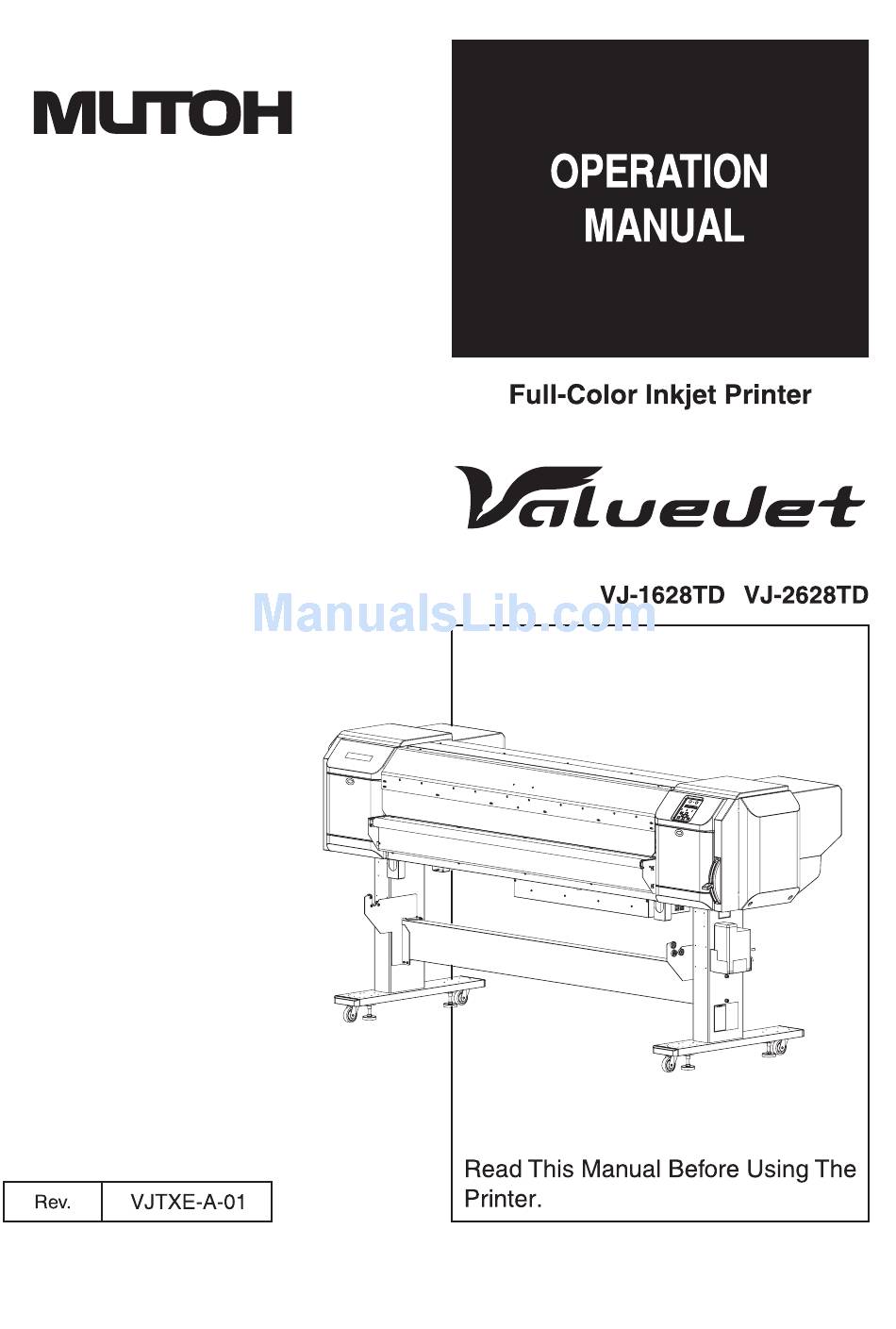

VJ-1628TD, VJ-2628TD OPERATION MANUAL Important Notice Important Notice For Users in Europe The CE marking is a mandatory European marking for certain product groups to indicate conformity with the essential health and safety requirements set out in European Directives. By affixing the CE marking, the manufacturer, his authorized representative, or the person placing the product on the market or putting it into service ensures that the item meets all the essential requirements of all applicable EU directives and that the applicable conformity assessment procedures have been applied.
Page 4 • The product and the contents of this publication may be changed without prior notification. • MUTOH INDUSTRIES LTD. has made the best efforts to keep this publication free from error, but if you find any uncertainties or misprints, please call us or the shop where you bought this equipment.
Page 5: Warranty Limitations
Warranty Limitations Warranty Limitations 1. MUTOH INDUSTRIES LTD. warrants part repair or replacement as a sole measure only if a failure is found in the system or in the materials and workmanship of the product the seller produced. However, if the cause of failure is uncertain, decide the action after due mutual consultation.
Page 6: About This Manual
Explains operating procedures along with unpacking, installation and preparation before use. Operation Manual (this manual) Purpose and Target Readers This manual explains preparations before use and operation procedures for MUTOH Full Color Ink Jet Printer VJ-1628TD, VJ-2628TD. This manual is prepared for the owners and operators of this printer.
Page 7 VJ-1628TD, VJ-2628TD OPERATION MANUAL About this Manual Manual Notation This section explains general cautions that must be followed in order to use this printer safely. Warning Meaning Used for dangerous situations where death or serious injury may be caused. WARNING Used for dangerous situations that may cause slight or medium injury, or when all or parts of CAUTION products are damaged.
Page 8 About this Manual VJ-1628TD, VJ-2628TD OPERATION MANUAL...
Page 9: Table Of Contents
General Table Of Contents VJ-1628TD, VJ-2628TD OPERATION MANUAL GENERAL TABLE OF CONTENTS Safety instructions Types and meanings of warnings ....... 1-2 Important safety instructions.
Page 10 General Table Of Contents VJ-1628TD, VJ-2628TD OPERATION MANUAL Test print ...........3-71 3.6.1 Nozzle check .
Page 11 General Table Of Contents VJ-1628TD, VJ-2628TD OPERATION MANUAL Panel setup menu Setup menu ..........5-2 5.1.1 MediaType menu .
Page 12 General Table Of Contents VJ-1628TD, VJ-2628TD OPERATION MANUAL Version menu ..........5-39 5.6.1 Version menu (main) .
Page 13: Safety Instructions
VJ-1628TD, VJ-2628TD OPERATION MANUAL 1 Safety instructions Safety instructions This chapter explains the installation of this printer, warning terms that operators need to know, caution items and warning labels on the printer main unit. WARNING • When installing and operating this printer, be sure to follow the directions and warnings in this book.
Page 14: Types And Meanings Of Warnings
1 Safety instructions VJ-1628TD, VJ-2628TD OPERATION MANUAL Types and meanings of warnings The warnings in the Operation Manual and the warning labels attached to the printer are categorized into three stages. Understand the meanings of the following warning terms and follow the contents (instructions) in this manual.
Page 15: Important Safety Instructions
It could lead to an electric shock or fire. Immediately turn OFF the power switch, disconnect the power plug from the electric socket, and contact your local MUTOH dealer. Wire the various cords as directed in the Operation Manual. Mistaken wiring could cause fire.
Page 16 1 Safety instructions VJ-1628TD, VJ-2628TD OPERATION MANUAL CAUTION Pay attention to the following points when handling power cable. • Do not tamper with the power cable. • Do not put heavy objects on the power cable. • Do not bend, twist or pull the power cable by force. •...
Page 17 VJ-1628TD, VJ-2628TD OPERATION MANUAL 1 Safety instructions Move the printer maintaining a horizontal position.
Page 18: Warning Labels
• Use cloth, water and mild detergent for removing dirt from the warning label. Avoid either organic solvents or gasoline. • It is necessary to replace the labels if they are damaged, lost or illegible. If the warning labels have to be replaced, contact your local MUTOH dealer.
Page 19: Location And Type Of Warning Labels
VJ-1628TD, VJ-2628TD OPERATION MANUAL 1 Safety instructions 1.3.2 Location and type of warning labels Pasting locations of the warning labels are shown in the following figure. Types of warning labels...
Page 20 1 Safety instructions VJ-1628TD, VJ-2628TD OPERATION MANUAL Types of warning labels...
Page 21: Product Overview
VJ-1628TD, VJ-2628TD OPERATION MANUAL 2 Product overview Product overview This chapter explains the features of this printer along with the names and functions of each part.
Page 22: Features
2 Product overview VJ-1628TD, VJ-2628TD OPERATION MANUAL Features This section explains the main features of the printer. (1) Supporting fabric media Using of grooved platen will prevent the ink from adhering to the printer body by penetrating through the fabric. Attaching plate to the grooved platen enables printing to media with no print through.
Page 23: Names Of Parts And Functions
VJ-1628TD, VJ-2628TD OPERATION MANUAL 2 Product overview Names of parts and functions This section explains the names and functions of each part. 2.2.1 Front section Name Function Media loading lever Used for fixing or releasing media. • Lower the lever to fix the media. The lever is normally set at this position when in use.
Page 24 2 Product overview VJ-1628TD, VJ-2628TD OPERATION MANUAL Name Function Platen Installed inside of the front cover. Pressurizing rollers Installed inside of the front cover. Press and hold the media when printing. Media cut groove Installed inside of the front cover. Used to cut media straight.
Page 25: Rear Section
VJ-1628TD, VJ-2628TD OPERATION MANUAL 2 Product overview 2.2.2 Rear section Name Function Roll media holder Used to set the roll media here. Include flanges where roll media is attached, and the levers that fix the roll media holders. Media feed slot Used for feeding media.
Page 26: Operation Panel
2 Product overview VJ-1628TD, VJ-2628TD OPERATION MANUAL 2.2.3 Operation panel Used for setting operation conditions, display of printer status and various functions. Names of each operation key and status display along with the functions are explained. • Refer to the following for details regarding the operation method of the operation panel. •...
Page 27 VJ-1628TD, VJ-2628TD OPERATION MANUAL 2 Product overview (1) Operation keys NOTE • The operation keys are assigned with different functions and names depending on printer status (Normal or Setup menu display). For details about printer status, refer to "2.3 Printer status". Name Normal Setup menu display...
Page 28 2 Product overview VJ-1628TD, VJ-2628TD OPERATION MANUAL (2) Display section Name Color Status Description Power lamp Green Lamp Power ON. Lamp An error has occurred. blinks Error content is displayed on the LCD. Lamp Power OFF. Data lamp Orange Lamp •...
Page 29 2 Product overview • When an error requiring a restart (fatal malfunction for the printer operation) occurs, all lamps blink with an alarm. 7.2.5 Error requiring restart If the error persists even when the malfunction is fixed, contact your local MUTOH dealer.
Page 30: Printer Status
2 Product overview VJ-1628TD, VJ-2628TD OPERATION MANUAL Printer status This section explains printer status. 2.3.1 Normal Printing is possible when media is loaded. The various functions for printing can be performed on the operation panel. 2.3.2 Setup menu display Various settings regarding printing can be made from the operation panel. The various functions for printing can be performed on the operation panel.
Page 31 VJ-1628TD, VJ-2628TD OPERATION MANUAL 2 Product overview Normal [Cancel] key [Menu] key Leave the printer as it is for 3 minutes Setup Menu Display NOTE • When the CR Maintenance menu is displayed, even leaving the keys untouched for three minutes does not return to the printer to normal status.
Page 32 2 Product overview VJ-1628TD, VJ-2628TD OPERATION MANUAL 2-12...
Page 33: Before Using
VJ-1628TD, VJ-2628TD OPERATION MANUAL 3 Before using Before using This chapter explains necessary steps before using the printer.
Page 34: Power Cable Connection
• Do not route the power cable near heating appliances. NOTE • Contact your local MUTOH dealer if the power cable is damaged. Follow the procedure below to install the power cable. 1. Make sure that the printer is turned OFF.
Page 35 VJ-1628TD, VJ-2628TD OPERATION MANUAL 3 Before using 2. Connect the power cable to the AC inlet on the back of the printer. Name AC inlet Power cable 3. Insert the power cable plug firmly in the socket. WARNING • Do not pull out or insert the power plug with a wet hand. This could lead to an electric shock.
Page 36 3 Before using VJ-1628TD, VJ-2628TD OPERATION MANUAL CAUTION • Pay attention to the following points when handling the power supply plug. Any mishandling of the power cable could cause a fire. • Make sure that no foreign substances such as dust etc. are stuck to the power plug.
Page 37: Turning The Power On/Off
VJ-1628TD, VJ-2628TD OPERATION MANUAL 3 Before using Turning the power ON/OFF This section explains how to turn the printer ON/OFF. 3.2.1 Turning the power ON Follow the procedure below to turn the power ON. 1. Press the [Power] key on the operation panel to turn ON the printer. •...
Page 38: Turning The Power Off
3 Before using VJ-1628TD, VJ-2628TD OPERATION MANUAL 3.2.2 Turning the power OFF Follow the procedure below to turn the printer OFF. 1. Verify the following regarding the operational condition of the product. • Printing or other operations are not in progress. •...
Page 39 VJ-1628TD, VJ-2628TD OPERATION MANUAL 3 Before using NOTE • If the head height is set to High or Mid, "Set Height to Low" is displayed on the operation panel, and the printer stops the procedure to turn the power OFF. To restart the procedure, return the head height to Low.
Page 40: Changing Temperature Display
3 Before using VJ-1628TD, VJ-2628TD OPERATION MANUAL Changing temperature display This section describes how to change the temperature display on the operation panel. In this printer, you can select from Celsius [Cº] or Fahrenheit [Fº]. Follow the procedures below. 1. From the Setup menu display, display the "Temperature" menu. 4.3.1 Menu setup procedure 2.
Page 41: Installing Ink Cartridges
VJ-1628TD, VJ-2628TD OPERATION MANUAL 3 Before using Installing ink cartridges This section describes the replacement time and steps of ink cartridges. CAUTION • When handling ink cartridges, pay attention so that ink does not get into your eyes or stick to your skin. If ink gets into your eyes or sticks to your skin, immediately wash it off with water.
Page 42 • This printer is designed to use genuine ink. • If you use inks other than MUTOH genuine ones, the print quality cannot be guaranteed. • Any problems caused by using the inks other than those recommended will not be covered by the warranty, and repair expenses will be paid by the customer.
Page 43 VJ-1628TD, VJ-2628TD OPERATION MANUAL 3 Before using 2. Press the [+] key or [–] key on the operation panel to select an ink set that matches the ink setting mode to be used. Refer to the following table for each type of the ink set. Setup item Setting Description...
Page 44 3 Before using VJ-1628TD, VJ-2628TD OPERATION MANUAL 3. Press the [Enter] key on the operation panel. • When selecting 8Color, 6Color, or 4Color Double, proceed to the step 5. "InkType : *" (For *, refer to the chart in the step 5) is displayed on the operation panel. •...
Page 45 VJ-1628TD, VJ-2628TD OPERATION MANUAL 3 Before using 5. Use the [+] key or [–] key on the operation panel to select the ink type. Ink types are as follows. Ink Type Display Name Dye Transfer Sublimation Ink VJ-DTSINK* Direct Print Sublimation Ink VJ-DPSINK* Water Pigment Ink RJ-FGINK...
Page 46 3 Before using VJ-1628TD, VJ-2628TD OPERATION MANUAL 7. Press the [Enter] key on the operation panel. • "Insert CleaningCart." is displayed on the operation panel 8. Prepare cleaning cartridges (8 pieces each). 9. Insert the cleaning cartridges (4 pieces) into the ink cartridge slots (4 slots). •...
Page 47 VJ-1628TD, VJ-2628TD OPERATION MANUAL 3 Before using 11. Remove the cleaning cartridges. Name Cleaning cartridge • "Busy-Washing" is displayed on the operation panel, and the printer starts head cleaning. • After head cleaning, "Wash Retry? No" is displayed on the operation panel. 12.
Page 48 3 Before using VJ-1628TD, VJ-2628TD OPERATION MANUAL 13. Shake the ink cartridge gently two to three times before inserting them. • Keep mark of the ink cartridge facing up and insert towards the printer side. • Insert the ink cartridge all the way to the end of the slot. •...
Page 49 VJ-1628TD, VJ-2628TD OPERATION MANUAL 3 Before using a When using eight colors a-1. Left-rear side of the printer Name Ink cartridge K (Black) C (Cyan) M (Magenta) Y (Yellow) a-2. Right-rear side of the printer 9 10 Name Ink cartridge SP1 (Special color 1) SP2 (Special color 2) SP3 (Special color 3)
Page 50 3 Before using VJ-1628TD, VJ-2628TD OPERATION MANUAL b When using six colors b-1. Left-rear side of the printer Name Ink cartridge K (Black) C (Cyan) M (Magenta) Y (Yellow) b-2. Right-rear side of the printer 9 10 Name Ink cartridge SP1 (Special color 1) SP2 (Special color 2) Cleaning cartridge...
Page 51 VJ-1628TD, VJ-2628TD OPERATION MANUAL 3 Before using c When using different types of four ink colors c-1. Left-rear side of the printer Name Ink cartridge K-A (Black A) C-A (Cyan A) M-A (Magenta A) Y-A (Yellow A) c-2. Right-rear side of the printer 9 10 Name Ink cartridge...
Page 52 3 Before using VJ-1628TD, VJ-2628TD OPERATION MANUAL d When using the same types of four ink colors d-1. Left-rear side of the printer Name Ink cartridge K-A (Black A) C-A (Cyan A) M-A (Magenta A) Y-A (Yellow A) d-2. Right-rear side of the printer 9 10 Name Ink cartridge...
Page 53 If there is no improvement in the print result even after refill a small amount of ink, leave the printer unused for an hour or more. Then, refill a small amount of ink again and check the print result. If there is still no improvement, contact your local MUTOH dealer. 3-21...
Page 54: Setting Media
3 Before using VJ-1628TD, VJ-2628TD OPERATION MANUAL Setting media This section explains how to load and set media, and settings for each media type. The following take-up units can be used with this printer. Name VJ-1628TD VJ-2628TD Take-up unit Take-up unit for printer models VJ-1604 —...
Page 55: Loading And Setting Roll Media
VJ-1628TD, VJ-2628TD OPERATION MANUAL 3 Before using 3.5.1 Loading and setting roll media This section explains how to load roll media (fabric media, roll media). Put the roll media in the center. The following roll media can be loaded to this printer. Items VJ-1628TD VJ-2628TD...
Page 56 3 Before using VJ-1628TD, VJ-2628TD OPERATION MANUAL 1. Release the tension roller. Name Tension roller 3-24...
Page 57 VJ-1628TD, VJ-2628TD OPERATION MANUAL 3 Before using 2. Loosen the fixing levers on the right and left side of the rear. Set the distance between the roll media holders wider than the roll media width. Name Roll media holder (Left) Roll media holder (Right) Roll media Fixing lever...
Page 58 3 Before using VJ-1628TD, VJ-2628TD OPERATION MANUAL 3. Fix the roll media holder (Left). Name Roll media holder (Left) Fixing lever 3-26...
Page 59 VJ-1628TD, VJ-2628TD OPERATION MANUAL 3 Before using 4. Set the roll media to the roll media holder (Left). Name Roll media holder (Left) Roll media 3-27...
Page 60 3 Before using VJ-1628TD, VJ-2628TD OPERATION MANUAL 5. Set the roll media to the roll media holder (Right) and fix the fixing lever. Name Roll media holder (Right) Fixing lever 3-28...
Page 61: Setting Interleaving Paper
VJ-1628TD, VJ-2628TD OPERATION MANUAL 3 Before using 6. Loosen the fixing levers of the right and left roll media holders, move the roll media to the center and tighten the levers. NOTE • Fix the roll media holders by pressing the holders to the printer. Name Roll media holder (Left) Roll media holder (Right)
Page 62: Setting Roll Media To The Take-Up Unit
3 Before using VJ-1628TD, VJ-2628TD OPERATION MANUAL 1. Load the roll media to the scroller. Name Roll media Scroller 2. Set the scroller to the scroller holder. Name Scroller Scroller holder 3.5.1.3 Setting roll media to the take-up unit This section explains how to set roll media to the take-up unit. 3-30...
Page 63 VJ-1628TD, VJ-2628TD OPERATION MANUAL 3 Before using NOTE • Load the roll media into the printer before setting it to the take-up unit. 3.5.1.1 Loading roll media into the printer Follow the procedure below to set the roll media to the take-up unit. 1.
Page 64 3 Before using VJ-1628TD, VJ-2628TD OPERATION MANUAL 5. Raise the media loading lever. Name Media loading lever • "Lever Up" is displayed on the operation panel. 6. Open the front cover. Name Front cover 3-32...
Page 65 VJ-1628TD, VJ-2628TD OPERATION MANUAL 3 Before using 7. When you print using the media with print through, such as the fabric media, remove all the ink gutters. (VJ-1628TD: 7, VJ-2628TD: 11) Name Ink gutter cover NOTE • Removing ink gutter covers turns OFF the vacuum fan. 5.1.1.1.3 Vacuum Fan menu •...
Page 66 3 Before using VJ-1628TD, VJ-2628TD OPERATION MANUAL 8. Pass the media over the fixing roller on the tension roller, and insert it into the media feed slot. Name Roll media Fixing roller Tension roller Media feed slot NOTE • If the end of the roll media is not wound tightly, wind it tightly again, and then load it. 9.
Page 67 VJ-1628TD, VJ-2628TD OPERATION MANUAL 3 Before using 10. Rewind the roll media a little by rolling the flange on the roll media holder while holding the edge of the media, and eliminate any slack or slant. NOTE • If you set the roll media free while rewinding, the roll media will fall out from the media feed slot on the rear of the product.
Page 68 3 Before using VJ-1628TD, VJ-2628TD OPERATION MANUAL Name Fabric media Pressurizing rollers When setting the paper media NOTE • When setting the roll media, set both sides of the media at least 5 mm inside from the edge of the pressurizing roller. Slippage or creases may occur during printing.
Page 69 VJ-1628TD, VJ-2628TD OPERATION MANUAL 3 Before using 11. When the roll media is not set properly, follow the procedures below to adjust the position of the media. a. Loosen the fixing levers of the right and left roll media holders, and move the roll media to left or right.
Page 70 3 Before using VJ-1628TD, VJ-2628TD OPERATION MANUAL 14. Make sure that the Shift switch is turned OFF. 15. Use the scroller position adjustment screw to adjust the position of the scroller until the roll media is centered. 16. Pull out the roll media from the printers feed slot, pass it over the front roller and through the outside of the cushioning roller, then fix the media into place at several locations with tape so that both edges are parallel with the media tube.
Page 71 VJ-1628TD, VJ-2628TD OPERATION MANUAL 3 Before using NOTE • If you use an interleaving paper, pull it out at this stage, pass it through the outside of the cushioning roller, and set it between the roll media. 3-39...
Page 72 3 Before using VJ-1628TD, VJ-2628TD OPERATION MANUAL 17. Raise the scroller release lever. • The scroller moves away from the driving mechanism. Name Scroller release lever 18. Turn the scroller by hand, scrolling the roll media onto the media tube for at least two full turns. Name Scroller 3-40...
Page 73 VJ-1628TD, VJ-2628TD OPERATION MANUAL 3 Before using 19. Set the tension roller. Name Roll media Fixing roller Tension roller Media feed slot NOTE When using rigid media, leave the tension roller released. 3-41...
Page 74 3 Before using VJ-1628TD, VJ-2628TD OPERATION MANUAL 20. Lower the media loading lever. Name Media loading lever 4.4.3 Cutting media • When you increase the pressure for the media, lower the media loading lever further as shown below. Name Media loading lever 21.
Page 75 VJ-1628TD, VJ-2628TD OPERATION MANUAL 3 Before using 22. Pull the cushioning roller forward. NOTE If the cushioning roller is not pulled forward, the take-up unit will not function. Name Scroller release lever Cushioning roller 23. Turn ON the Shift switch. 3-43...
Page 76: Adjusting Tension Roller Of Take-Up Unit
3 Before using VJ-1628TD, VJ-2628TD OPERATION MANUAL 24. Close the printer’s front cover. Name Front cover • The Media type setup menu is displayed on the operation panel. • The procedure for setting the roll media is complete. • Next, set the media type. 4.2.1 Media type NOTE •...
Page 77 VJ-1628TD, VJ-2628TD OPERATION MANUAL 3 Before using 1. Insert four roll-in T-slot nuts to the right side of the reinforcing rail groove. Name Reinforcing rail Groove Roll-in T-slot nut NOTE Insert roll-in T-slot nuts at an angle to the reinforcing rail groove. 2.
Page 78: Loading Roll Media In The Heavy Take-Up Unit
3 Before using VJ-1628TD, VJ-2628TD OPERATION MANUAL 3.5.1.5 Loading roll media in the heavy take-up unit This section explains how to load roll media into the heavy take-up unit. Put the roll media in the center. Follow the procedure below to install the roll media. 1.
Page 79 VJ-1628TD, VJ-2628TD OPERATION MANUAL 3 Before using 4. Place the roll media on the rear rail. Name Rear rail Roll media 5. Lift the left side of the roll media (looking from the rear of the heavy take-up unit), attach it to the feed unit, and tighten the handles.
Page 80 3 Before using VJ-1628TD, VJ-2628TD OPERATION MANUAL 6. Set the other side of the roll media in the same way as in step 3. Name Feed unit (Right) Roll media Handle 3-48...
Page 81 VJ-1628TD, VJ-2628TD OPERATION MANUAL 3 Before using 7. Loosen the handles on the right and left feed units, move the roll media to the center of the heavy take-up unit, and tighten the handles. NOTE Fix the feed unit while pressing it against the printer. Name Feed unit (Left) Feed unit (Right)
Page 82 3 Before using VJ-1628TD, VJ-2628TD OPERATION MANUAL 12. Raise the media loading lever. Name Media loading lever • "Lever Up" is displayed on the operation panel. 13. Open the front cover. Name Front cover 3-50...
Page 83 VJ-1628TD, VJ-2628TD OPERATION MANUAL 3 Before using 14. When you print using the media with print through, such as the fabric media, remove all the ink gutters. (VJ-1628TD: 7, VJ-2628TD: 11) Name Ink gutter cover NOTE • Removing ink gutter covers turns OFF the vacuum fan. 5.1.1.1.3 Vacuum Fan menu •...
Page 84 3 Before using VJ-1628TD, VJ-2628TD OPERATION MANUAL 15. Release the printer’s tension roller. Name Tension roller 16. Shift the feed shift switch as shown below. • Outside roll media: OUTSIDE ROLL • Inside roll media: INSIDE ROLL 3-52...
Page 85 VJ-1628TD, VJ-2628TD OPERATION MANUAL 3 Before using 17. Lift up the tension roller at the rear of the heavy take-up unit with your hand. Name Tension roller Roll media • The roll media is fed. 3-53...
Page 86 3 Before using VJ-1628TD, VJ-2628TD OPERATION MANUAL 18. Put roll media through Tension roller of Heavy-takeup unit. a. When using roll media whose outer surface is printable Name Roll media Tension roller 3-54...
Page 87 VJ-1628TD, VJ-2628TD OPERATION MANUAL 3 Before using b. When using roll media whose inner surface is printable Any problems caused by printing to roll media with printable inner side will not be covered by the warranty. Name Roll media Tension roller 19.
Page 88 3 Before using VJ-1628TD, VJ-2628TD OPERATION MANUAL 20. Pull the roll media out about 1 m from the front media feed slot which is located inside of the front cover. Name Media feed slot Roll media 3-56...
Page 89 VJ-1628TD, VJ-2628TD OPERATION MANUAL 3 Before using 21. Set the manual feed operation switch to "REVERSAL", and rewind the roll media to remove any slack or slant. NOTE If you set the roll media free while rewinding, the roll media will fall out from the media feed slot on the rear of the printer.
Page 90 3 Before using VJ-1628TD, VJ-2628TD OPERATION MANUAL Name Fabric media Pressurizing rollers When setting the paper media NOTE • When setting the roll media, set both sides of the media at least 5 mm inside from the edge of the pressurizing roller. Slippage or creases may occur during printing.
Page 91 VJ-1628TD, VJ-2628TD OPERATION MANUAL 3 Before using 22. If the edge of the roll media is set less than 5 mm from the edge of the pressurizing roller, follow the procedure below to adjust the position of the roll media. a.
Page 92 3 Before using VJ-1628TD, VJ-2628TD OPERATION MANUAL 23. Lower the media loading lever. Name Media loading lever 24. Press the "INITIALIZE" button on the feeding unit. 3-60...
Page 93: Setting Roll Media To The Heavy Take-Up Unit
VJ-1628TD, VJ-2628TD OPERATION MANUAL 3 Before using 25. Close the front cover. Name Front cover • The procedure for loading the roll media is complete. • Next, set the roll media. 3.5.1.6 Setting roll media to the heavy take-up unit 3.5.1.6 Setting roll media to the heavy take-up unit This section explains how to load roll media into the heavy take-up unit.
Page 94 3 Before using VJ-1628TD, VJ-2628TD OPERATION MANUAL 4. Press the [Forward] key on the operation panel, and feed the front edge of the roll media to the media tube of the take-up unit. 5. Pass the roll media over the front roller and tension roller, and fix it to the media tube at several locations with tapes.
Page 95: Installing Pressure Arm Stopper
VJ-1628TD, VJ-2628TD OPERATION MANUAL 3 Before using NOTE • When fixing to the media tube, make sure that both edges of the roll media are parallel with the media tube. • When fixing the fabric media, use double-sided tape to fix the entire bottom edge of the media to the media tube.
Page 96 3 Before using VJ-1628TD, VJ-2628TD OPERATION MANUAL 2. From the rear side of the printer, mount the tip of Pressure arm stopper in the groove behind Y rail. Name Y rail Groove Pressure arm stopper 3. Use your finger to push down Pressure arm touching the media edge. Name Pressure arm 3-64...
Page 97 VJ-1628TD, VJ-2628TD OPERATION MANUAL 3 Before using 4. Half-turn Pressure arm stopper downward and install it to Pressure arm. Name Pressure arm stopper Pressure arm 5. From the front side of the printer, check that Pressure roller of Pressure arm with Pressure arm stopper installed is not touching the media edge.
Page 98: Loading And Setting Cut Sheet Media
3 Before using VJ-1628TD, VJ-2628TD OPERATION MANUAL 3.5.2 Loading and setting cut sheet media This section explains how to load and set cut sheet media. NOTE The following sizes of cut sheet media can be used with this printer. • Media width: Minimum 420mm Follow the procedure below to set the cut sheet media.
Page 99 VJ-1628TD, VJ-2628TD OPERATION MANUAL 3 Before using 3. Press the [+] key or [–] key on the operation panel to select "Cut" and press the [Enter] key. • The display shifts to the Media Set menu. • Next, set the method for detecting media. 5.1.5 Media Set menu NOTE •...
Page 100 3 Before using VJ-1628TD, VJ-2628TD OPERATION MANUAL 7. Insert the cut sheet media into the media feed slot in the front of the printer. Name Cut sheet media Media feed slot 8. Lower the media loading lever. Name Media loading lever 3-68...
Page 101: Setting Media Type
VJ-1628TD, VJ-2628TD OPERATION MANUAL 3 Before using 9. Close the front cover. Name Front cover • The Media type setup menu is displayed on the operation panel. • The procedure for setting the cut sheet media is complete. • Next, set the media type. 4.2.1 Media type 3.5.3 Setting media type...
Page 102 3 Before using VJ-1628TD, VJ-2628TD OPERATION MANUAL 3. Press the [Enter] key on the operation panel. NOTE • If the following operations are performed in the media type setup menu, the printer starts media initial operation without specifying a media type. •...
Page 103: Test Print
VJ-1628TD, VJ-2628TD OPERATION MANUAL 3 Before using Test print Follow the procedure below to perform Test printing to confirm that the printer works correctly. 1. Turn ON the printer and load the roll media. 3.5.1 Loading and setting roll media 2.
Page 104 3 Before using VJ-1628TD, VJ-2628TD OPERATION MANUAL c. Press the [>] key on the operation panel. • "Test1: Nozzle Check" is displayed on the operation panel. • The display shifts to the Test Print menu. 5.2 Test Print menu 4. Press the [+] key or [–] key on the operation panel to select an item for printing from the following items.
Page 105: Nozzle Check
VJ-1628TD, VJ-2628TD OPERATION MANUAL 3 Before using 5. Press the [Enter] key on the operation panel. • Start performing Test Print for the selected item. • Refer to the following for details on each of the print list items. 3.6.1 Nozzle check ~ 3.6.4 Palette print 6.
Page 106: Mode Print
3 Before using VJ-1628TD, VJ-2628TD OPERATION MANUAL NOTE • If the nozzle check result indicates that the checked points are blurred or missing, clean the head. 6.2.3 Head cleaning Perform the nozzle check once again at the end of the work. •...
Page 107: Setup Print
VJ-1628TD, VJ-2628TD OPERATION MANUAL 3 Before using 3.6.3 Setup print Used to check the current setup of the printer. NOTE • Paste the setup print on this page. • User media and print mode lists are printed only when "ALL Setup List" is selected. •...
Page 108: Palette Print
3 Before using VJ-1628TD, VJ-2628TD OPERATION MANUAL 3.6.4 Palette print Used to compare pen colors used on the computer to the printing colors. NOTE • When "Mode5", "Mode6", "Mode9", or "Mode10" is set in the PrintMode menu, "Palette" is not displayed on the Test Print menu.
Page 109 VJ-1628TD, VJ-2628TD OPERATION MANUAL 3 Before using 3-77...
Page 110: Adjust Print
3 Before using VJ-1628TD, VJ-2628TD OPERATION MANUAL Adjust print It is used for optimizing the quality of image prints (Alignment). Alignment must be set every printing mode. After selected the printing mode that you want to use, follow the procedure below to perform alignment. NOTE •...
Page 111 VJ-1628TD, VJ-2628TD OPERATION MANUAL 3 Before using 2. Display the Adjust Print menu on the operation panel. a. Press the [Menu] key on the operation panel. • "Menu 1: Setup>" is displayed on the operation panel. • The operation panel shifts to the Setup menu display. b.
Page 112 3 Before using VJ-1628TD, VJ-2628TD OPERATION MANUAL d. Use the [+] key or [–] key on the operation panel to select the media type you would like to set. e. Press the [Enter] key on the operation panel. • "**>1: PrintMode" is displayed on the operation panel. f.
Page 113 VJ-1628TD, VJ-2628TD OPERATION MANUAL 3 Before using g. Press the [>] key on the operation panel. • "Adj.1: ConfirmPattern" is displayed on the operation panel. • The display enters the Adjust Print menu. 5.3 Adjust Print menu 3-81...
Page 114 3 Before using VJ-1628TD, VJ-2628TD OPERATION MANUAL 3. Press the [Enter] key on the operation panel. • A confirmation pattern for print quality adjustment is printed. • 3 confirmation patterns A to C will be printed. • The above illustration is the confirmation pattern for 8Color ink set. The confirmation patterns differ depending on the ink set as follows.
Page 115: Coarse Adjustment Patterns
VJ-1628TD, VJ-2628TD OPERATION MANUAL 3 Before using NOTE • For 4Color Single, follow the Head selection of the media type currently selected. • Once the confirmation pattern is printed, the display on the operation panel returns to "Adj1.ConfirmPattern". 4. Confirm that the confirmation pattern printing result is as follows. Check each of the confirmation patterns A to C.
Page 116 3 Before using VJ-1628TD, VJ-2628TD OPERATION MANUAL 3. Press the [Enter] key on the operation panel. • The printer starts printing Coarse Adjust patterns. • For Adjust print patterns, the same pattern will be printed repeatedly on both ends and the center of the paper.
Page 117 VJ-1628TD, VJ-2628TD OPERATION MANUAL 3 Before using 4. From Coarse Adjust Patterns 1A and 1H, select the number with the least misalignment from number 1 to 21. • For the following print sample "Adjust print pattern A", select "9". • For the following print sample "Adjust print pattern B", select "10".
Page 118 3 Before using VJ-1628TD, VJ-2628TD OPERATION MANUAL NOTE • For 4Color Single, follow the Head selection of the media type currently selected. 5. Press the [+] key or [–] key to enter the number that you selected in Step 4. NOTE •...
Page 119: Micro Adjustment Patterns
VJ-1628TD, VJ-2628TD OPERATION MANUAL 3 Before using NOTE • If you press the [Cancel] key on the operation panel while "PatternA (2A/2H): *" is displayed, the entry screen will go back to "PatternA (1A/1H): *". 7. In the same way, enter "PatternB (1A/1H): *". •...
Page 120 3 Before using VJ-1628TD, VJ-2628TD OPERATION MANUAL 3. Press the [Enter] key on the operation panel. • Start Adjust print pattern printing. • 3 pattern prints of "Adjust print pattern A" to "Adjust print pattern C" are printed for Adjustment pattern print.
Page 121 VJ-1628TD, VJ-2628TD OPERATION MANUAL 3 Before using 4. Check the print result of both ends and the center of the paper, and from Adjust print patterns 1A and 1H, select the number with the least misalignment from number 1 to 7. •...
Page 122 3 Before using VJ-1628TD, VJ-2628TD OPERATION MANUAL NOTE • For 4Color Single, follow the Head selection of the media type currently selected. 5. Press the [+] key or [–] key to enter the number that you selected in Step 4. NOTE •...
Page 123: Separate Adjust Pattern
VJ-1628TD, VJ-2628TD OPERATION MANUAL 3 Before using NOTE • If you press the [Cancel] key on the operation panel while "Pattern A (2A/2H): *" is displayed, the entry screen will go back to "Pattern A (1A/1H): *". 7. In the same way, enter "Pattern B (1A/1H): *". •...
Page 124 3 Before using VJ-1628TD, VJ-2628TD OPERATION MANUAL 3. Press the [Enter] key to determine it. • Start Adjust print pattern printing. For Adjust print patterns, the same pattern will be printed repeatedly on both ends and the center of the paper. •...
Page 125 VJ-1628TD, VJ-2628TD OPERATION MANUAL 3 Before using 4. Check the print result of both ends and the center of the paper, and from Adjust print patterns 1A and 1H, select the number with the least misalignment from number 1 to 7. •...
Page 126 3 Before using VJ-1628TD, VJ-2628TD OPERATION MANUAL NOTE • Press the [Cancel] key to return to "Adj1. ConfirmPattern". 6. Press the [Enter] key on the operation panel. • The set value of "Pattern A (1A/1H): *" is determined. • When using 8Color or 6Color ink set, continue the procedure to enter and determine "Pattern A (2A/2H): *".
Page 127: Connecting The Printer To Pc
VJ-1628TD, VJ-2628TD OPERATION MANUAL 3 Before using Connecting the printer to PC This section explains how to connect the printer and a PC. 3.8.1 System requirements The following are the system requirements for this printer. Operating system Windows 2000 Professional, Windows XP Pentium III processor 1 GHz or more Memory (RAM) 512 MB or more...
Page 128 3 Before using VJ-1628TD, VJ-2628TD OPERATION MANUAL 2. Insert the network interface cable into the network interface connector located on the right of the printer. Name Network interface cable Network interface cable connector 3. Connect the other connector of the network interface cable to your PC. •...
Page 129: Handling The Printer
VJ-1628TD, VJ-2628TD OPERATION MANUAL 4 Handling the printer Handling the printer This chapter explains how to handle the printer.
Page 130: Print Flow Chart
4 Handling the printer VJ-1628TD, VJ-2628TD OPERATION MANUAL Print flow chart The following flow chart illustrates the procedure to perform printing with the printer. Refer to each section as required. 1. Create print data. Create print data with application software. ↓...
Page 131: Media
Select the appropriate media according to the usage. NOTE • For details of the recommended media, contact your local MUTOH dealer. • If failures or malfunctions of the printer occur by the use of media that is not dedicated: • The printer will not be covered by the warranty and repair expenses will be paid by the customer.
Page 132: Cautions On Handling Media
4 Handling the printer VJ-1628TD, VJ-2628TD OPERATION MANUAL 4.2.2 Cautions on handling media Note the following points when handling the media. NOTE • Use recommended media under an appropriate environment. The appropriate temperature and humidity for printing are as follows. Temperature Humidity 22 C to 30 C...
Page 133: Printing Area
VJ-1628TD, VJ-2628TD OPERATION MANUAL 4 Handling the printer 4.2.4 Printing area The printable area of this printer is as follows. Printable Area Printable Area Cut sheet meida Roll media a=5mm a=5mm b=10mm~25mm b=10mm~25mm c=35mm c=5mm (105mm at media end) d=10mm~25mm d=10mm~25mm 4.2.5 Head height adjustment...
Page 134 4 Handling the printer VJ-1628TD, VJ-2628TD OPERATION MANUAL 1. Open the front cover. Name Front cover 2. Change the head height by moving the head height adjustment lever (orange). NOTE • Do not raise the head height adjustment lever higher than the following position. Doing so may damage the printer.
Page 135: When Setting The Head Height To Mid
VJ-1628TD, VJ-2628TD OPERATION MANUAL 4 Handling the printer 3. Close the front cover. Name Front cover 4.2.5.2 When setting the head height to Mid NOTE • Do not open the front cover or change the head height during printing. If the head height is changed, the alignment will be changed and high print quality will not be guaranteed.
Page 136 4 Handling the printer VJ-1628TD, VJ-2628TD OPERATION MANUAL 2. Change the head height by moving the head height adjustment lever (orange). Name Head height adjustment lever • The High lamp on the operation panel lights up in green. • The Low lamp on the operation panel lights up in green. 3.
Page 137: When Setting The Head Height To Low
VJ-1628TD, VJ-2628TD OPERATION MANUAL 4 Handling the printer 4.2.5.3 When setting the head height to Low NOTE • Do not open the front cover or change the head height during printing. If the head height is changed, the alignment will be changed and high print quality will not be guaranteed.
Page 138: Media Feed Compensation
4 Handling the printer VJ-1628TD, VJ-2628TD OPERATION MANUAL 3. Close the front cover. Name Front cover 4.2.6 Media feed compensation This section explains the Media feed compensation. The feeding length depends on the media type. The following or similar results may be seen in prints. •...
Page 139 VJ-1628TD, VJ-2628TD OPERATION MANUAL 4 Handling the printer d. Press the [+] key or [–] key on the operation panel to select the media type to use. e. Press the [Enter] key on the operation panel. • "**>1: Print Mode" is displayed on the operation panel. •...
Page 140 4 Handling the printer VJ-1628TD, VJ-2628TD OPERATION MANUAL b. Press the [Enter] key on the operation panel. • "Printing" is displayed on the operation panel. • Starts initial adjustment printing. Name Feed length Media feeding direction • When the initial adjustment printing is complete, the printer enters Normal. c.
Page 141 VJ-1628TD, VJ-2628TD OPERATION MANUAL 4 Handling the printer 5. Performs Confirm Print. a. Press the [+] key or [–] key on the operation panel to select "PF3: Confirm Print". b. Press the [Enter] key on the operation panel. • "Feed Length: 250 mm" is displayed on the operation panel. •...
Page 142 4 Handling the printer VJ-1628TD, VJ-2628TD OPERATION MANUAL 7. Perform Micro adjustment printing. a. Display the Dist.Adj menu on the operation panel in the same way as in step 1. b. Press the [+] key or [–] key on the operation panel to select "PF4:Micro Print". c.
Page 143: How To Fix The Media Firmly
VJ-1628TD, VJ-2628TD OPERATION MANUAL 4 Handling the printer 9. Sets up Micro Adjustment Change. a. Press the [+] key or [–] key to select "PF5:Micro Change". b. Press the [Enter] key on the operation panel. • "Micro: 0pulse" is displayed on the operation panel. c.
Page 144: Installing Media Holder Plates
4 Handling the printer VJ-1628TD, VJ-2628TD OPERATION MANUAL 4.2.7 Installing media holder plates Variations in quality and use conditions can cause the edges of the media to curl, resulting in damage to the media by the print head surface. To prevent this, use the media holder plates to reduce the amount of curling in the media. Follow the procedure below to install the media holder plates.
Page 145 VJ-1628TD, VJ-2628TD OPERATION MANUAL 4 Handling the printer 4. Set the media holder plates by sliding them from both sides of the platen. NOTE • Pay careful attention to the following when installing ink gutter covers. • Do not use the media holder plates for media whose thickness is 300 µm (0.3 mm) or thicker. The media holder plate may interfere with the print head.
Page 146 Using the printer with deformed media plates may damage the grid roller or print heads. Contact your local MUTOH dealer. NOTE • If there is interference with the media as it is fed through the printer after the media holder plates have been installed, the media holder plates should not be used.
Page 147: Menu Setups On The Operation Panel
VJ-1628TD, VJ-2628TD OPERATION MANUAL 4 Handling the printer Menu setups on the operation panel 4.3.1 Menu setup procedure Follow the procedure below to configure each setup menu. 1. Confirm that the operation panel is Normal. 2. Press the [Menu] key on the operation panel. •...
Page 148 4 Handling the printer VJ-1628TD, VJ-2628TD OPERATION MANUAL 4. The setting in the blinking part on the LCD monitor of the operation panel can be changed. Press the [+] key or [–] key to change the setting. 5. To save the changed setting, press the [Enter] key on the operation panel. •...
Page 149: Panel Setup Menu Overview
VJ-1628TD, VJ-2628TD OPERATION MANUAL 4 Handling the printer 6. Press the [Cancel] key on the operation panel to exit from the setup. • The previous setup menu is displayed. • When the main menu is displayed, the screen turns to Normal. 4.3.2 Panel setup menu overview This section explains the Panel setup menu of the printer.
Page 150: Operating From The Operation Panel
4 Handling the printer VJ-1628TD, VJ-2628TD OPERATION MANUAL Operating from the operation panel This section explains various functions that can be operated from the operation panel. • For names and functions of each key, refer to "2.2.3 Operation panel". 4.4.1 Feeding media You can feed roll media at a position that you want.
Page 151: Cutting Media
VJ-1628TD, VJ-2628TD OPERATION MANUAL 4 Handling the printer 2. Press the [Cancel] key on the operation panel. • The printer operates as follows. Printer status Operation with the [Cancel] key pressed During printing Terminates the printing, and deletes one data remaining in the printer. Receiving data/analyzing data Deletes the received/analyzed data and the subsequent data.
Page 152 4 Handling the printer VJ-1628TD, VJ-2628TD OPERATION MANUAL 3. Open the front cover. Name Front cover 4. Place a razor blade on the media cut groove on the media guide, and cut the roll media. CAUTION • Pay attention to the following points when you cut roll media. Mishandling the razor blade may cause a cut on your finger or hand.
Page 153: Changing And Confirming Settings While Printing
VJ-1628TD, VJ-2628TD OPERATION MANUAL 4 Handling the printer NOTE • When loading new roll media, cut the front edge of the media if it is not straight. 4.4.4 Changing and confirming settings while printing While the printer is operating, you can change or confirm settings for the Panel setup menu. 4.4.4.1 Procedure for changing and confirming settings while printing Follow the procedure below to change or confirm settings for the Panel setup menu.
Page 154: Settings That Can Be Changed Or Confirmed While Printing
4 Handling the printer VJ-1628TD, VJ-2628TD OPERATION MANUAL 4.4.4.2 Settings that can be changed or confirmed while printing NOTE • When you change a setting during operation, be sure to select "Backup" to save the setting that you changed. If the printer returns to Normal without "Backup" being selected, the changed setting is not saved. Setup item Setting Description...
Page 155: Changing Inks When Using Different Types Of Inks
VJ-1628TD, VJ-2628TD OPERATION MANUAL 4 Handling the printer 3. To restart printing, press the [Enter] key on the operation panel. • The printer restarts printing. 4.4.6 Changing inks when using different types of inks When using the printer in different types of four color ink mode, you can select which type of ink sets you want to use for printing.
Page 156 4 Handling the printer VJ-1628TD, VJ-2628TD OPERATION MANUAL b. Use the [+] key or [–] key on the operation panel to select "Set 1 : MediaType". c. Press the [Enter] key on the operation panel. • "Media : Type XX" (XX describes the number between 1 and 30) is displayed on the operation panel.
Page 157 VJ-1628TD, VJ-2628TD OPERATION MANUAL 4 Handling the printer e. Press the [Enter] key on the operation panel. • "**>1 : Print Mode" is displayed on the operation panel. f. Use the [+] key or [–] key on the operation panel to select "**>6: Head Select". 2.
Page 158: Selecting Ink Types
4 Handling the printer VJ-1628TD, VJ-2628TD OPERATION MANUAL 3. Use the [+] key or [–] key on the operation panel to select Print head to use between "Head 1" and "Head2". Print Head to Use Corresponding Ink Cartridge Slot Head 1 C-A, M-A, Y-A, K-A Head 2 C-B, M-B, Y-B, K-B...
Page 159 VJ-1628TD, VJ-2628TD OPERATION MANUAL 4 Handling the printer 3. Use the [+] key or [–] key on the operation panel to select Print head to use between "Head 1" and "Head 2". Print Head to Use Corresponding Ink Cartridge Slot Head 1 C-A, M-A, Y-A, K-A Head 2...
Page 160 4 Handling the printer VJ-1628TD, VJ-2628TD OPERATION MANUAL 5. Press the [Enter] key on the operation panel. 4-32...
Page 161: Changing Ink Setting Modes
4 Handling the printer Changing ink setting modes NOTE • To change the ink color combination, contact your local MUTOH dealer. • Do not perform the following operations during ink filling. • Do not turn OFF the printer. • Do not unplug the power cable.
Page 162 4 Handling the printer VJ-1628TD, VJ-2628TD OPERATION MANUAL NOTE • Be sure to use the dedicated cleaning cartridge. • You can wash each head individually via the setting of the Longstore menu. When changing the ink setting modes or the ink types, perform the washing operation as follows. •...
Page 163 VJ-1628TD, VJ-2628TD OPERATION MANUAL 4 Handling the printer 2. Turn OFF the power of the printer. 3.2.2 Turning the power OFF 3. Turn ON the power of the printer, and perform the following operation. 3.4 Installing ink cartridges 4-35...
Page 164 4 Handling the printer VJ-1628TD, VJ-2628TD OPERATION MANUAL 4-36...
Page 165: Panel Setup Menu
VJ-1628TD, VJ-2628TD OPERATION MANUAL 5 Panel setup menu Panel setup menu The section explains the Setup menu of the printer. Setup item Description Setup menu Various settings of the printer are configured. 5.1 Setup menu Test Print menu Performs nozzle check of the print head and setup list. 5.2 Test Print menu Adjust Print menu Sets up when adjusting the printer for the optimum quality of image print.
Page 166: Setup Menu
5 Panel setup menu VJ-1628TD, VJ-2628TD OPERATION MANUAL Setup menu Various settings of the printer are configured. Setup item Description MediaType Settings for the media type to print are configured. • [Enter] key: shifts to the sub menu. 5.1.1 MediaType menu Effect Sets up the Effect menu.
Page 167 VJ-1628TD, VJ-2628TD OPERATION MANUAL 5 Panel setup menu Setup item Description Auto Cleaning Sets up the time for auto cleaning during printing. • [Enter] key: shifts to the sub menu. 5.1.14 Auto Cleaning menu Smart / C Status Displays the Smart / C information. •...
Page 168: Mediatype Menu
5 Panel setup menu VJ-1628TD, VJ-2628TD OPERATION MANUAL 5.1.1 MediaType menu Settings for the media type to print are configured. Setup item Setting Description Media Type 1 Settings for the media type to print are configured. It is possible to set 30 different user settings as "Type 1 to 30" Type 2 for printing.
Page 169: User Media Menu
• End detection of roll media cannot be performed, etc. The problems caused by the use of user media will not be covered by the warranty and repair expenses will be paid by the customer. For details, contact your local MUTOH dealer. Setup item Setting...
Page 170: Printmode Menu
5 Panel setup menu VJ-1628TD, VJ-2628TD OPERATION MANUAL 5.1.1.1.1 PrintMode menu Settings for print quality (print mode) are set according to the usage of print data or print speed. NOTE When "Mode5", "Mode6", "Mode9", or "Mode10" is set in the PrintMode menu, "Palette" is not displayed on the Test Print menu.
Page 171 VJ-1628TD, VJ-2628TD OPERATION MANUAL 5 Panel setup menu Details of print mode NOTE Print speed is always Normal (N). PrintMode Resolution Pass Direction Mode 1 720×720 dpi 16 times Uni (unidirectional) Mode 2 720×720 dpi 16 times Bi (bidirectional) Mode 3 720×720 dpi 8 times Uni (unidirectional)
Page 172: Dist.adj Menu
5 Panel setup menu VJ-1628TD, VJ-2628TD OPERATION MANUAL 5.1.1.1.2 Dist.Adj menu Sets up various settings on the media feed compensation. Setup item Setting Description Init.Adj.Print Performs Initial Adjust Print. • [Enter] key: shifts to the sub menu. (1) Init.Adj.Print menu Init.Adj.Change Sets up Initial Adjust Change.
Page 173 VJ-1628TD, VJ-2628TD OPERATION MANUAL 5 Panel setup menu (2) Init.Adj.Change menu Sets up Initial Adjust Change. Setup item Setting Description Init. <Initial Print menu setting Sets up Initial Adjust Change. value> ± 50.0 mm — • [Enter] key: saves the setting and shifts to the previous menu.
Page 174: Vacuum Fan Menu
5 Panel setup menu VJ-1628TD, VJ-2628TD OPERATION MANUAL (5) Micro Adj.Change menu Sets up Micro Adjustment Change. Setup item Setting Description Micro Adj.Change –20 pulse to <0 pulse > to 20 Sets up Micro Adjustment Change. pulse — • [Enter] key: saves the setting and shifts to the previous menu.
Page 175: Dropsize Menu
VJ-1628TD, VJ-2628TD OPERATION MANUAL 5 Panel setup menu 5.1.1.1.4 DropSize menu Sets the ink drop size when printing. When printing on a fabric media, change the size so that you can choose print through the media or not. Setup item Setting Description DropSize...
Page 176: Effect Menu
5 Panel setup menu VJ-1628TD, VJ-2628TD OPERATION MANUAL 5.1.2 Effect menu Sets up the Effect menu. Set up this menu when you want to improve print quality by adjusting the set print mode. NOTE • The print quality may not be improved depending on the printing condition. Setup item Setting Description...
Page 177: Spitting Menu
VJ-1628TD, VJ-2628TD OPERATION MANUAL 5 Panel setup menu 5.1.3 Spitting menu Sets up the flushing operation while printing. Setup item Setting Description Spitting <Origin> Perform the flushing operation on the flushing box every time the print head returns to the origin position. •...
Page 178: Side Margin Menu
5 Panel setup menu VJ-1628TD, VJ-2628TD OPERATION MANUAL 5.1.4 Side Margin menu Set up the right and left margins (side margins) while printing. NOTE • When setting "On Media" in the Spitting menu, the value of the Side Margin menu is disabled and the margin to perform the flushing operation is set automatically.
Page 179: Media Set Menu (Roll)
VJ-1628TD, VJ-2628TD OPERATION MANUAL 5 Panel setup menu 5.1.5.1 Media Set menu (Roll) When using the roll media, select the media detection method from the following table. Setup item Setting Description Init. The media is not detected. Top&Width Detect the media width and edge while initializing the media. <Width>...
Page 180: Media Width Menu
5 Panel setup menu VJ-1628TD, VJ-2628TD OPERATION MANUAL 5.1.6 Media Width menu Specifies the media width between the loading mark and the left end if media detection is not performed during media initialization. (1) Media Width menu Displays the detected media width if media detection is performed during media initialization. (2) MediaWidth menu Name Roll media...
Page 181: Take-Up Menu
By doing so, the product will be unable to function properly. • When the Take-up menu is set to "Type 1", the setting for the Prev. Stick menu is disabled. 5.1.9 Prev. Stick menu • For details about the optional take-up unit, contact your local MUTOH dealer. Setup item Setting...
Page 182: Origin Menu
5 Panel setup menu VJ-1628TD, VJ-2628TD OPERATION MANUAL 5.1.8 Origin menu Sets the beginning of printing (origin) of the print data. Set the menu when reprinting on the margin with changing the printing data position to the printed media. Setup item Setting Description Origin...
Page 183: Prev. Stick Menu
VJ-1628TD, VJ-2628TD OPERATION MANUAL 5 Panel setup menu 5.1.9 Prev. Stick menu Sets up to prevent media from sticking when printing starts. NOTE • When the Take-up menu is set to "Type 1", the setting for the Prev. Stick menu is disabled. 5.1.7 Take-up menu Setup item Setting...
Page 184: Multi Strike Menu
5 Panel setup menu VJ-1628TD, VJ-2628TD OPERATION MANUAL 5.1.11 Multi Strike menu Sets up the overwrite count per line. Setup item Setting Description Multi Strike <1 cnt> to 9 cnt Set the overwrite count. — • [Enter] key: saves the setting and shifts to the previous menu.
Page 185: Auto Cleaning Menu
VJ-1628TD, VJ-2628TD OPERATION MANUAL 5 Panel setup menu 5.1.14 Auto Cleaning menu Configure the settings for the auto-cleaning operation. • The cleaning mode reflects the settings in the operation panel. 6.2.3 Head cleaning • If the printer head height is set to High, the auto cleaning setting is disabled. Manually perform the cleaning operation. 6.2.3 Head cleaning Setup item Setting...
Page 186: Printing Mode Auto Cleaning
5 Panel setup menu VJ-1628TD, VJ-2628TD OPERATION MANUAL 5.1.14.2 Printing Mode Auto Cleaning Set the auto cleaning interval for printing mode. Setup item Setting Description PrintingTime <0min> to 5min to 180min Sets the interval for auto-cleaning during printing. • 0min: The auto cleaning is not performed. •...
Page 187: Roll Length Menu
VJ-1628TD, VJ-2628TD OPERATION MANUAL 5 Panel setup menu 5.1.16 Roll Length menu Sets up the roll media length. Setup item Setting Description Roll <Off> Roll Length is not used. • [Enter] key: saves the setting and shifts to the previous menu.
Page 188: Longstore Menu
5 Panel setup menu VJ-1628TD, VJ-2628TD OPERATION MANUAL 5.1.17 Longstore menu Performs head washing. NOTE • Be sure to use the dedicated cleaning cartridge. • When you restart the printer after the head washing operation is complete, the InkSet menu is displayed.
Page 189: Cr Maintenance Menu
VJ-1628TD, VJ-2628TD OPERATION MANUAL 5 Panel setup menu 5.1.18 CR Maintenance menu Performs maintenance. Use this to perform the following daily maintenance shown below. • When replacing the flushing-box sponges. 6.1.3 Replacing the flushing-box sponges • When cleaning the cleaning wiper unit 6.2.4 Cleaning the cleaning wiper unit NOTE •...
Page 190: Life Times Menu
(20 %). PF Motor • The part should be changed when all of the asterisks have disappeared, and "Change" is displayed. Contact your local MUTOH dealer to ask for replacing parts. — • [Cancel] key: shifts to the previous menu.
Page 191: Subnet Mask Menu
VJ-1628TD, VJ-2628TD OPERATION MANUAL 5 Panel setup menu 5.1.22 Subnet Mask menu Sets the subnet mask of the printer. NOTE • Be sure to set the subnet mask after consulting the network administrator. Setup item Setting Description Subnet Mask 000.000.000.000 to Change the subnet mask by operating the following keys.
Page 192: Language Menu
5 Panel setup menu VJ-1628TD, VJ-2628TD OPERATION MANUAL 5.1.24 Language menu Sets the language used in the menu items displayed on the LCD monitor of the operation panel. Setup item Setting Description Language Japanese Displays the menu items in Japanese. English Displays the menu items in English.
Page 193: Inkset Menu
VJ-1628TD, VJ-2628TD OPERATION MANUAL 5 Panel setup menu 5.1.26 InkSet menu Used to confirm the current ink setting modes. When in different types of four color ink mode, you can change the ink set to be used. Setup item Setting Description InkSet <8color>...
Page 194 5 Panel setup menu VJ-1628TD, VJ-2628TD OPERATION MANUAL Ink cartridge slot Carriage Head 1 Head 2 4 color Head 1 4 color Head 2 Printed in *A ink cartridges Printed in *B ink cartridges (Ink cartridges in the slot No. 1, 2, 3, 4) (Ink cartridges in the slot No.
Page 195: Ink Type Menu
VJ-1628TD, VJ-2628TD OPERATION MANUAL 5 Panel setup menu 5.1.27 Ink Type Menu This section describes the procedure to select the ink type to use. The setup items differ depending on the ink set setting used. 5.1.27.1 8Color, 6Color, 4Color Double Setup Item Set Value Description...
Page 196 5 Panel setup menu VJ-1628TD, VJ-2628TD OPERATION MANUAL (2) Ink type selection When using 4Color Single, the following is displayed after selecting Print head in Ink type menu. Setup Item Set Value Description Head 1 or Head 2 <VJ-DTSINK *> Select this when using Dye Transfer Sublimation Ink.
Page 197: Test Print Menu
VJ-1628TD, VJ-2628TD OPERATION MANUAL 5 Panel setup menu Test Print menu Performs nozzle check of the print head and setup list. NOTE When "Mode5", "Mode6", "Mode9", or "Mode10" is set in the PrintMode menu, "Palette" is not displayed on the Test Print menu. 5.1.1.1.1 PrintMode menu •...
Page 198: Adjust Print Menu
5 Panel setup menu VJ-1628TD, VJ-2628TD OPERATION MANUAL Adjust Print menu Sets up when adjusting the printer for the optimum quality of image print (Alignment). Alignment must be set every printing mode. 3.7 Adjust print After the print mode to be used is selected, perform the alignment. 5.1.1.1.1 PrintMode menu Setup item Description...
Page 199: Cleaning Menu
VJ-1628TD, VJ-2628TD OPERATION MANUAL 5 Panel setup menu Cleaning menu Performs head cleaning. • Head cleaning can be operated when the printer is Normal. Refer to the following for operation procedures. 6.2.3 Head cleaning Setup item Description Short Discharges smaller amount of ink compared to "Normal". Normal Select this mode normally.
Page 200: Menu Option Menu
5 Panel setup menu VJ-1628TD, VJ-2628TD OPERATION MANUAL Menu Option menu Sets up the contents of the Setup menu. You can make setup items that you do not normally use invisible. Switch the setting "On (displayed)" to "Off (undisplayed)" using the [<] key or [>] key on the operation panel.
Page 201 VJ-1628TD, VJ-2628TD OPERATION MANUAL 5 Panel setup menu Setup item Setting Description Strike Wait <On> Sets up whether to display the Strike Wait menu. Slant Check <On> Sets up whether to display the Slant Check menu. Auto Cleaning <On> Sets up whether to display the Auto Cleaning menu. Smart / C Status <On>...
Page 202 5 Panel setup menu VJ-1628TD, VJ-2628TD OPERATION MANUAL Setup item Setting Description ALL Off No items in the Setup menu are displayed. • Pressing the [Enter] key deletes "*" for all items in the Menu Option menu. • Even if you select "ALL Off", you can display the items temporarily by selecting "Temporary"...
Page 203: Version Menu
VJ-1628TD, VJ-2628TD OPERATION MANUAL 5 Panel setup menu Version menu Displays the versions of main and controller firmware. 5.6.1 Version menu (main) Setup item Setting Description Ver. M *.** Displays the version of main firmware. — • [Cancel] key: cancels the setting and shifts to the previous menu.
Page 204: Sleep Mode Menu
5 Panel setup menu VJ-1628TD, VJ-2628TD OPERATION MANUAL Sleep Mode menu Sleep mode settings are configured. When you activate sleep mode, the printer operates as follows. • The vacuum fan stops. • All lamps turn off except for the power lamp. •...
Page 205: Set Timer Menu
VJ-1628TD, VJ-2628TD OPERATION MANUAL 5 Panel setup menu 5.7.1 Set Timer menu Set the head cleaning interval of this printer for Sleep Mode. When more than the set time has passed, the print head is cleaned automatically. NOTE • During Sleep Mode, even if the set amount of time has passed, print-head cleaning is not performed under the following circumstances.
Page 206: Sleep Mode Start Menu
5 Panel setup menu VJ-1628TD, VJ-2628TD OPERATION MANUAL 5.7.2 Sleep Mode Start menu Activate Sleep Mode During Sleep Mode, "Restart –> Enter" will be displayed in the operation panel. During Sleep Mode, pressing [Enter] key will return the printer to normal operation. NOTE •...
Page 207: Maintenance
VJ-1628TD, VJ-2628TD OPERATION MANUAL 6 Maintenance Maintenance This chapter describes daily maintenance of the product.
Page 208: Replacing Consumable Components
6 Maintenance VJ-1628TD, VJ-2628TD OPERATION MANUAL Replacing consumable components This section describes when and how to replace the ink cartridges, roll media and flushing-box sponges. 6.1.1 Replacing ink cartridges This section describes when to replace the ink cartridges. (1) Replacement time When "[*******] InkEnd"...
Page 209 • This printer is designed to use genuine ink. • If you use products other than MUTOH genuine parts, the print quality cannot be guaranteed. • Any problems caused by using the products other than those recommended will not be covered by the warranty, and repair expenses will be paid by the customer.
Page 210 6 Maintenance VJ-1628TD, VJ-2628TD OPERATION MANUAL 2. Remove the ink cartridge that you want to replace. NOTE • Used ink cartridge should be put in a plastic bag, etc, and dispose of it in compliance with local ordinance and instructions of local authorities. Name Ink cartridge Ink cartridge slots...
Page 211: Replacing Roll Media
VJ-1628TD, VJ-2628TD OPERATION MANUAL 6 Maintenance 4. Shake new ink cartridge two to three times gently before inserting it into the ink cartridge slot. Name Ink cartridge Ink cartridge slots 5. Confirm that the operation panel returns to Normal. NOTE •...
Page 212 6 Maintenance VJ-1628TD, VJ-2628TD OPERATION MANUAL (3) Replacing steps Follow the procedure below to replace the roll media. 1. If the printer is turned ON, confirm that operation such as printing is not in progress. 2. Raise the media loading lever. Name Media loading lever 3.
Page 213 VJ-1628TD, VJ-2628TD OPERATION MANUAL 6 Maintenance 4. Loosen the lever of the right roll media holder and remove the media. Name Right roll media holder Fixing lever Roll media 5. Take the same procedure as in step 4, remove the roll media from the left roll media holder. Name Left roll media holder Fixing lever...
Page 214: Replacing The Flushing-Box Sponges
6 Maintenance VJ-1628TD, VJ-2628TD OPERATION MANUAL 6. To load another roll media, refer to the following. • For loading roll media, refer to "3.5 Setting media". • For storing roll media not in use, refer to "4.2.3 Precaution on storing media". •...
Page 215 VJ-1628TD, VJ-2628TD OPERATION MANUAL 6 Maintenance (2) Type • For types and details of the flushing-box sponge, refer to "8.3 Options/Supply list". (3) Replacing steps Follow the steps below to replace the flushing-box sponges. 1. Verify the following regarding the operational condition of the product. •...
Page 216 6 Maintenance VJ-1628TD, VJ-2628TD OPERATION MANUAL c. Press the [+] key or [–] key to select "Set19: CR Maintenance". d. Press the [Enter] key on the operation panel. • "CR Mainte.: Start" is displayed on the operation panel. • The display enters the CR Maintenance menu. 5.1.18 CR Maintenance menu 3.
Page 217 VJ-1628TD, VJ-2628TD OPERATION MANUAL 6 Maintenance 4. Open the front cover. Name Front cover 5. Lift the flushing-box sponge hook and release the hook. Then, remove the flushing-box sponge holder. Name Flushing-box sponge hook Flushing-box sponge holder CAUTION • Do not drop waste fluid when replacing the flushing-box sponges. If waste fluid comes into contact with the grid roller, the surface of the grid roller will be damaged, and the media feed function may be affected.
Page 218 6 Maintenance VJ-1628TD, VJ-2628TD OPERATION MANUAL 6. Install the new flushing-box sponge to each flushing box. Name Flushing boxes Flushing-box sponges 7. Close the front cover. Name Front cover 6-12...
Page 219 VJ-1628TD, VJ-2628TD OPERATION MANUAL 6 Maintenance 8. Press the [Enter] key on the operation panel. • The print head returns to its original position. • "CR Mainte.: Start" is displayed on the operation panel. 9. Press the [Cancel] key on the operation panel several times. •...
Page 220 6 Maintenance VJ-1628TD, VJ-2628TD OPERATION MANUAL 11. Lift the flushing-box sponge hook located on the other side of the origin to release the hook. Then, remove the flushing-box sponge holder. Name Flushing-box sponge hook Flushing-box sponge holder 6-14...
Page 221 VJ-1628TD, VJ-2628TD OPERATION MANUAL 6 Maintenance 12. Install the new flushing-box sponge to each flushing box. Name Flushing boxes Flushing-box sponges 13. Close the front cover. Name Front cover • Flushing-box sponge replacement is complete. 6-15...
Page 222: Cleaning The Printer
It could lead to an electric shock or fire. Immediately turn OFF the power switch, disconnect the power plug from the electric socket, and contact your local MUTOH dealer. CAUTION • When cleaning the printer, be sure to turn OFF the power and disconnect the power plug.
Page 223: Cleaning The Outer Case
VJ-1628TD, VJ-2628TD OPERATION MANUAL 6 Maintenance 6.2.1 Cleaning the outer case This section describes how to clean the outer case. Wipe out dust and dirt attached to the outer case by using a soft cloth. 6.2.2 Cleaning the inside of the printer This section describes how to clean the inside of the printer.
Page 224 6 Maintenance VJ-1628TD, VJ-2628TD OPERATION MANUAL 2. Remove paper powder and dust attached to the pressurizing rollers using a soft brush. NOTE • Do not blow paper powder inside the printer using tools such as an air duster. It may cause an abnormal noise from the inside of the printer. Name Pressurizing rollers 3.
Page 225: Head Cleaning
VJ-1628TD, VJ-2628TD OPERATION MANUAL 6 Maintenance 4. Apply a damp and tightly squeezed soft cloth to wipe off the dirt of the unpainted (silver color) area in the center of the grid roller. Name Grid roller 6.2.3 Head cleaning If printed data is blurred or lacks part of it, clean the print head surface and nozzle (Head cleaning). Follow the procedure below to perform Head cleaning.
Page 226 6 Maintenance VJ-1628TD, VJ-2628TD OPERATION MANUAL 4. Press the [>] key on the operation panel to select the cleaning mode. 5. Press the [Cleaning] key on the operation panel for at least two seconds. • If the head height is set to High, "Set Height to Low" is displayed on the operation panel. Change the head height to Low.
Page 227: Cleaning The Cleaning Wiper Unit
VJ-1628TD, VJ-2628TD OPERATION MANUAL 6 Maintenance 6.2.4 Cleaning the cleaning wiper unit This section describes how to clean the cleaning wiper and surrounding area. (1) Time for cleaning Once a week, or when blurs or lacking parts appear on printed media after Head cleaning. (2) Cleaning procedures Follow the procedure below to clean the cleaning wiper and the surrounding area.
Page 228 6 Maintenance VJ-1628TD, VJ-2628TD OPERATION MANUAL b. Press the [>] key on the operation panel. • "Set1: MediaType" is displayed on the operation panel. c. Press the [+] key or [–] key to select "Set19: CR Maintenance". d. Press the [Enter] key on the operation panel. •...
Page 229 VJ-1628TD, VJ-2628TD OPERATION MANUAL 6 Maintenance 3. Press the [Enter] key on the operation panel. • Maintenance starts. • The print head moves to the left. • The cleaning wiper unit is up. • "CR Maintenance: End" is displayed on the operation panel. 4.
Page 230 6 Maintenance VJ-1628TD, VJ-2628TD OPERATION MANUAL 5. Use the cleaning stick to remove the ink clump and dust on the cleaning wiper. a. Cleaning wiper left side: Remove the ink and dust from the front and back. Name Cleaning wiper left side Cleaning stick Head cap unit b.
Page 231 VJ-1628TD, VJ-2628TD OPERATION MANUAL 6 Maintenance c. Cleaning wiper unit right side surface: Clean the right side surface of the cleaning wiper unit. Name Cleaning wiper right side surface Cleaning stick Head cap unit d. Cleaning wiper unit lower groove: Clean the cleaning wiper unit’s lower side groove starting at the back and moving towards the front.
Page 232: Cleaning The Ink Gutter
6 Maintenance VJ-1628TD, VJ-2628TD OPERATION MANUAL 6. Close the right maintenance cover. • Close the cover firmly until it is locked. Name Maintenance cover • Cleaning of the cleaning wiper and surrounding area is complete. • Press the [Cancel] key if cleaning the cleaning wiper unit and around the print head is not performed. 7.
Page 233 VJ-1628TD, VJ-2628TD OPERATION MANUAL 6 Maintenance (2) Cleaning method Wipe out inside the ink gutter with soft cloth such as a waste cloth. Name Ink gutter 6-27...
Page 234: Disposal Of Waste Fluids
6 Maintenance VJ-1628TD, VJ-2628TD OPERATION MANUAL Disposal of waste fluids The timing and method for the disposal of waste fluid are described below. (1) Disposal timing Dispose of waste fluids in the following cases: a. When the waste fluid tank is more than half full. b.
Page 235 VJ-1628TD, VJ-2628TD OPERATION MANUAL 6 Maintenance 4. After pouring the waste fluid to the empty container, close the waste fluid valve securely. Name Waste fluid valve 5. Wipe the opening of the waste fluid valve with a cloth, etc. 6. Dispose of the waste fluid as an industrial waste product. •...
Page 236: Moving Or Transporting The Printer
6 Maintenance VJ-1628TD, VJ-2628TD OPERATION MANUAL Moving or transporting the printer This section describes how to move or transport the printer. 6.4.1 Moving the printer This section describes how to move the printer. CAUTION • Move the printer maintaining a horizontal position. •...
Page 237 VJ-1628TD, VJ-2628TD OPERATION MANUAL 6 Maintenance 4. Loosen the four adjusters of the stand as shown in the next illustration. Name Adjusters Stands 5. Move the printer. NOTE • The casters supplied with the dedicated stand are manufactured for little movement in flat indoor areas, not for transporting equipment.
Page 238: Transporting The Printer
When transporting the printer, make sure to pack it in the same condition as purchased, using protective and packing materials to protect the printer from vibration and shocks. NOTE • When transporting the printer, consult the MUTOH product dealer at your point of purchase. 6-32...
Page 239: Troubleshooting
Troubleshooting This chapter describes possible troubles during the use of this product and countermeasures. If the error not included in any items of this section occurs, contact your local MUTOH dealer. NOTE • If you want to receive product warranty, prepare the warranty certificate.
Page 240: Malfunctions And Failures
7 Troubleshooting VJ-1628TD, VJ-2628TD OPERATION MANUAL Malfunctions and failures This section describes undisplayed malfunctions and failures of the printer, possible causes and countermeasures. 7.1.1 Problems in installation and introduction (1) Cannot perform the initial ink charge Possible cause Remedy Reference Is the front cover open or media loading lever Close the front cover, or lower the media 3.5 Setting...
Page 241: Nothing Is Printed
VJ-1628TD, VJ-2628TD OPERATION MANUAL 7 Troubleshooting (2) Does not work after loading the media Possible cause Remedy Reference Is the front cover open or media loading lever Close the front cover. 3.5 Setting raised? Lower the media loading lever. media Is the maintenance cover open? Close the maintenance cover.
Page 242: Media-Related Troubleshooting
7 Troubleshooting VJ-1628TD, VJ-2628TD OPERATION MANUAL 7.1.3 Media-related troubleshooting (1) The media slips or is torn during initialization NOTE • If the media is jammed or torn, remove it according to "7.3 The media is jammed". Possible cause Remedy Reference Are you using the recommended media? Use the recommended media.
Page 243 VJ-1628TD, VJ-2628TD OPERATION MANUAL 7 Troubleshooting Possible cause Remedy Reference Is the printer being used in an environment Only use the printer in an environment that is Installation other than specified, such as near to an air specified for use. manual conditioner? Are you using folded, torn or rolled media?
Page 244: Printing-Related Troubleshooting
7 Troubleshooting VJ-1628TD, VJ-2628TD OPERATION MANUAL (5) The media veers during printing Possible cause Remedy Reference Are you using the recommended media? Use the recommended media. 4.2.1 Media type Is the loading position of the media correct? Set the media correctly. 3.5.2 Loading and setting cut sheet media...
Page 245 VJ-1628TD, VJ-2628TD OPERATION MANUAL 7 Troubleshooting (3) Printing is blurred Possible cause Remedy Reference Are you using the recommended media? Use the recommended media. 4.2.1 Media type Are you using the thick or thin media? Use the recommended media. 4.2.1 Media type Is the media printed on the printing surface? Confirm the printing surface of the media and 3.5 Setting...
Page 246 7 Troubleshooting VJ-1628TD, VJ-2628TD OPERATION MANUAL (6) Printing lines are duplicated or patchy Possible cause Remedy Reference Is the nozzle in good condition? Perform Head cleaning. 6.2.3 Head cleaning Is the head height set to High? Return the head height to "Normal (Low)". 4.2.5 Head height adjustment...
Page 247: Error Messages
VJ-1628TD, VJ-2628TD OPERATION MANUAL 7 Troubleshooting Error messages This section describes messages displayed during normal printer operation or when errors occur, and solutions to the messages. 7.2.1 Status messages This section describes messages displayed during printer normal operation. When the product is operating correctly, each operation status is displayed on the operation panel as below.
Page 248 3.5.2 Loading menu is set to "Cut". and setting cut sheet Insert the ink cartridge. media • The value of the Authorization Code may be displayed for the display of the option function. For details, contact your local MUTOH dealer. 7-10...
Page 249: Message Type Error Display And Remedies
The waste fluid tank is full. Dispose of waste fluid. 6.3 Disposal of (Stops operation) waste fluids Life Times The operational life of the Contact your local MUTOH — [Head 1] print head 1 has almost dealer. expired. (Continues operation)
Page 250: Data Error Display And Solutions
7 Troubleshooting VJ-1628TD, VJ-2628TD OPERATION MANUAL Display Description Remedy Reference Smart/C End The Smart/C has run out of Charge Smart/C. — the ink. (Stops operation) Set Gutter Cover The ink gutter cover is not Attach the ink gutter cover. 3.5.2 Loading attached when using cut and setting cut sheet media setting.
Page 251: Command Error Display And Remedies
For an error requiring restart, operation will return to normal after removing the cause of the error and restarting the printer. If the same error continues to be displayed, contact the your local MUTOH dealer. Be sure to tell us the code no. of the error message when you contact us.
Page 252 7 Troubleshooting VJ-1628TD, VJ-2628TD OPERATION MANUAL Display Description Remedy Reference E*** Error [ ] A problem that does not have 1. Remove obstacles such as 7.3 The media is a remedy has occurred. paper scraps in the drive jammed system. 2.
Page 253: The Media Is Jammed
VJ-1628TD, VJ-2628TD OPERATION MANUAL 7 Troubleshooting The media is jammed When the set media is jammed, follow the procedure below to remove it. 1. Turn OFF the power of the printer. 3.2.2 Turning the power OFF 2. Open the front cover. Name Front cover 3.
Page 254 7 Troubleshooting VJ-1628TD, VJ-2628TD OPERATION MANUAL 4. Raise the media loading lever. Name Media loading lever 5. Pull the media to your side, and cut the torn part with cutting tools such as a razor blade. Name Razor blade Roll media 7-16...
Page 255 VJ-1628TD, VJ-2628TD OPERATION MANUAL 7 Troubleshooting 6. Turn the flanges of the roll media holder and take up the roll media. Name Flanges Roll media 7. If paper dust or pieces of paper remain inside the printer, remove them. 7-17...
Page 256 7 Troubleshooting VJ-1628TD, VJ-2628TD OPERATION MANUAL 7-18...
Page 257: Appendix
VJ-1628TD, VJ-2628TD OPERATION MANUAL 8 Appendix Appendix This chapter describes specifications and included components with this printer.
Page 258: Product Specifications
8 Appendix VJ-1628TD, VJ-2628TD OPERATION MANUAL Product specifications 8.1.1 Printer specifications Items Specification Model name VJ-1628TD VJ-2628TD Printing method On-demand piezo drive system Drive system Firmware servo/DC motor drive Media feed system Multipoint pressurizing grid roller system Media fixing system Pressurization roller down system by manual lever Media feed/ejection Roll media: Rear feed/Front ejection...
Page 259 VJ-1628TD, VJ-2628TD OPERATION MANUAL 8 Appendix Items Specification Power Power voltage AC 90 V to AC 132 V / AC 198 V to AC 264 V Frequency 50 Hz/60 Hz ± 1 Hz Power Printing VJ-1628TD 200W consumption VJ-2628TD 300W Standby Under 45 W Outer diameter...
Page 260: Interface Specification
8 Appendix VJ-1628TD, VJ-2628TD OPERATION MANUAL Interface specification This section describes each type of interface specifications supported by this product. 8.2.1 Network interface specification Items Specification Network type Ethernet IEEE802.3 Network I/F 10BASE-T/100BASE-TX Automatic transfer type (RJ-45 Connector twist pair cable) MDI/MDI-X Automatic transfer Corresponding protocol TCP/IP...
Page 261: Options/Supply List
VJ-1628TD, VJ-2628TD OPERATION MANUAL 8 Appendix Options/Supply list For more information about the options and the supply items, contact your local MUTOH dealer.
Page 262 8 Appendix VJ-1628TD, VJ-2628TD OPERATION MANUAL...
Page 263 VJ-1628TD, VJ-2628TD OPERATION MANUAL Index INDEX ＜ Symbol ＞＜ C ＞ [<] key ..............2-7 [Cancel] key ............2-7 [>] key ..............2-7 Cautions on handling media ....... 4-4 [+] key ..............2-7 Changing and confirming settings [–] key ..............2-7 while printing ............ 4-25 Changing ink setting modes ......
Page 264 Index VJ-1628TD, VJ-2628TD OPERATION MANUAL ＜ F ＞＜ L ＞ Fatal operational failure ........7-13 Language menu ..........5-28 Features .............. 2-2 LCD display section ..........2-8 Feeding media ..........4-22 Life Times menu ..........5-26 Fine and S.Fine lamp .......... 2-8 Loading and setting cut sheet media ....
Page 265 VJ-1628TD, VJ-2628TD OPERATION MANUAL Index ＜ O ＞＜ S ＞ Operation keys ............2-7 Safety instructions ..........1-1 Operation Manual ..........1-2 Selecting Ink Types .......... 4-30 Operation method ..........2-6 Separate Adjust Pattern ........3-91 Operation panel ...........2-6 Set Timer menu ..........5-41 Origin menu ............5-18 Setting interleaving paper .........
Page 266 Index VJ-1628TD, VJ-2628TD OPERATION MANUAL ＜ V ＞ Vacuum Fan menu ........... 5-10 Version menu ........... 5-39 Version menu (controller) ........ 5-39 Version menu (main) ........5-39 ＜ W ＞ Warning labels ............ 1-6 warnings ............. 1-2 Waste fluid tank ..........2-5 Waste fluid valve ........
Page 267 VJ-1628TD, VJ-2628TD OPERATION MANUAL Setup menu diagram Setup menu diagram For details of the Setup menu configuration diagram, refer to the followings. NOTE • For details of each setup item, refer to followings: • Setup menu diagram (Ready to Print): "5 Panel setup menu"...
Page 268 Setup menu diagram VJ-1628TD, VJ-2628TD OPERATION MANUAL Setup menu diagram (Ready to Print) (1/4) Setup MediaType To Setup menu diagram (Ready to Print)(2/4) None 1 Effect None 2 Wave 1 Wave 2 Fuzz 1 Fuzz 2 Wow 1 Wow 2 Fine&Wave 1 <Fine&Wave 2>...
Page 269 VJ-1628TD, VJ-2628TD OPERATION MANUAL Setup menu diagram Setup menu diagram (Ready to Print) (2/4) To Setup menu diagram (Ready to Print)(1/4) Mode1 to <Mode3> to Mode14 <Type 1> to Type 30 Print Mode Confirm Pattern Adjust Print Coarse Adj.Ptn Adj.PatternALL Adj.
Page 270 Setup menu diagram VJ-1628TD, VJ-2628TD OPERATION MANUAL Setup menu diagram (Ready to Print) (3/4) To Setup menu diagram (Ready to Print)(1/4) Setup 000.000.000.000 to <192.168.001.253> to IP Address 255.255.255.255 000.000.000.000 to <255.255.255.000> to Subnet Mask 255.255.255.255 000.000.000.000 to <192.168.001.254> to Gateway 255.255.255.255 Language...
Page 271 VJ-1628TD, VJ-2628TD OPERATION MANUAL Setup menu diagram Setup menu diagram (Ready to Print) (4/4) To Setup menu diagram (Ready to Print)(1/4) Test Print Nozzle Check Mode Print SetUp List ALL SetUp List Palette Cleaning Short Normal Long LittleCharge Menu Option MediaType Off / <On>...
Page 272 Setup menu diagram VJ-1628TD, VJ-2628TD OPERATION MANUAL Setup menu diagram (Receiving / Converting / Printing) PF Micro Adj. -20pulse to 0 to 20pulse Backup...
