VLT ® Automation Drive FC 300
Instruction Manual High Power
Ordering Information
Rittal TS-8 Enclosure
70.9 in [1800 mm]
78.7 in [2000 mm]
86.6 in [2200 mm]
Kit Contents
• Ductwork components
• Mounting hardware
• Gasket material
• Delivered with D3 and D4 frame kits:
• 175R5639 - Mounting templates and top/bottom cut-out for Rittal enclosure.
• Delivered with E2 frame kits:
• 175R1036 - Mounting templates and top/bottom cut-out for Rittal enclosure.
All fasteners are either:
• 0.39 in [10 mm], M5 Nuts torque to 2.3 Nm (20 in-lbs)
• T25 Torx screws torque to 2.3 Nm (20 in-lbs)
NOTE!
Duct Kit Instruction Manual, 175R5640,
Please see the

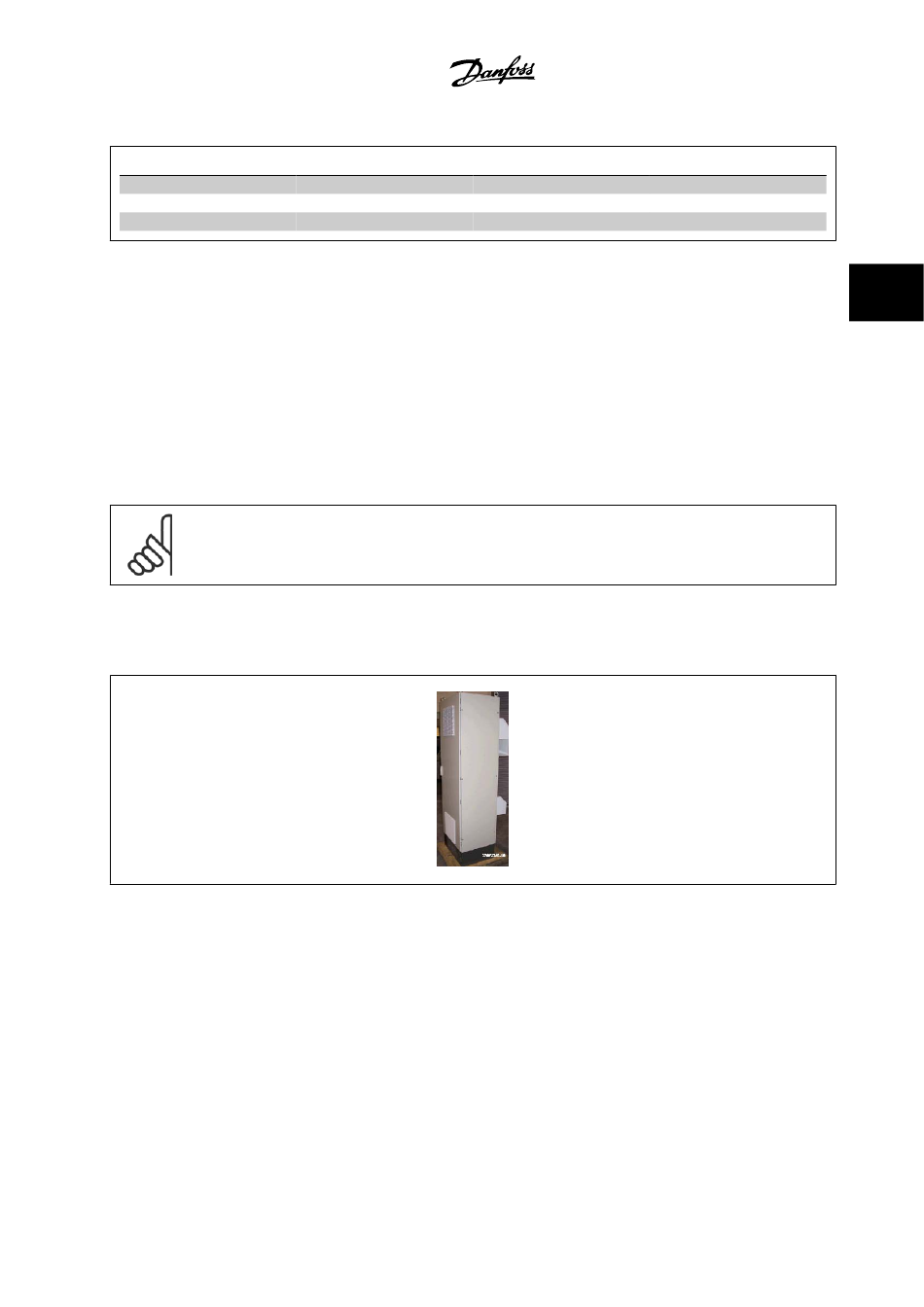

3.4.2 Outside installation / NEMA 3R kit for Rittal enclosures

This section is for the installation of NEMA 3R kits available for the VLT series drive frames D3, D4 and E2. These kits are designed and tested to be used
with IP00 / chassis versions of these frames in Rittal TS8 NEMA 3R or NEMA 4 enclosures. The NEMA 3R enclosure is a dust-proof, rain-proof, ice resistant
outdoor enclosure. The NEMA 4 enclosure is a dust-proof and watertight enclosure.
The minimum enclosure depth is 19.7 in [500 mm] (23.6 in [600 mm] for E2 frame) and the kit is designed for a 23.6 in [600 mm] (31.5 in [800 mm]
for E2 frame) wide enclosure. Other enclosure widths are possible, however, additional Rittal hardware is required. The maximum depth and width are
as required for the installation.
Frame D3 Kit Part No.
176F1824
176F1826
for further information
MG.33.U2.22 - VLT ® is a registered Danfoss trademark
Frame D4 Kit Part No.
176F1823
176F1825
3 How to Install
Frame E2 Part No.
Not possible
176F1850
176F0299
3
3-29
