4 How to Program
4.1.3 Initial Commissioning

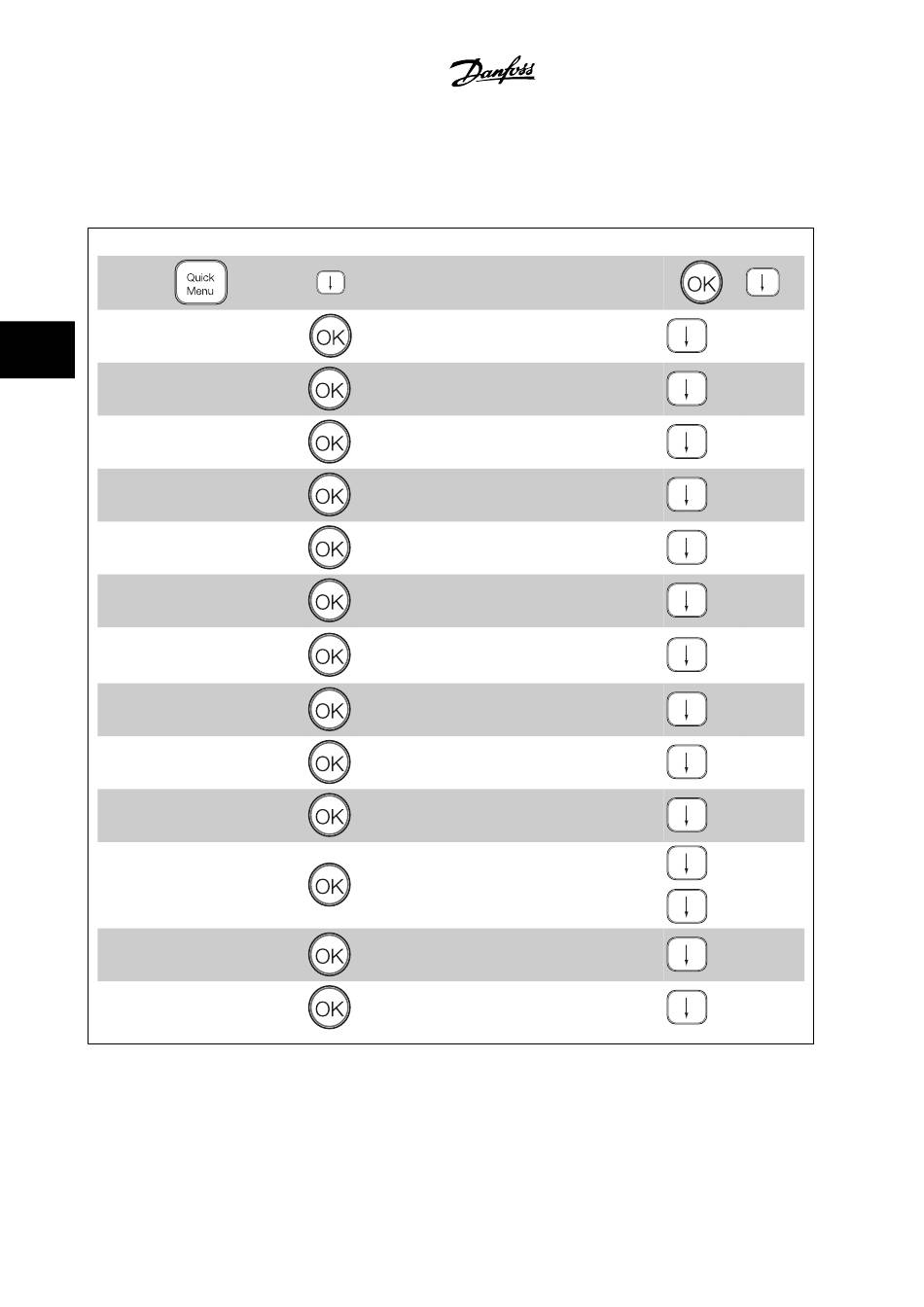

The easiest way of carrying out the initial commissioning is by using the Quick Menu button and follow the quick set-up procedure using LCP 102 (read
table from left to right). The example applies to open-loop applications:
Press
0-01 Language
4
1-20 Motor power
1-22 Motor voltage
1-23 Motor frequency
1-24 Motor current
1-25 Motor nominal speed
5-12 Terminal 27 Digital Input
1-29 Automatic Motor Adaptation
3-02 Minimum reference
3-03 Maximum Reference
3-41 Ramp1 up time
3-42 Ramp1 down time
3-13 Reference site
4-2
Q2 Quick Menu
Set language
Set motor nameplate power
Set nameplate voltage
Set nameplate frequency
Set nameplate current
Set nameplate speed in RPM
If terminal default is Coast inverse, it is possible to change this
No function
setting to . No connection to terminal 27 is then
needed for running AMA
Set desired AMA function. Enabling complete AMA is recom-
mended
Set the minimum speed of the motor shaft
Set the maximum speed of the motor shaft
Set the ramping-up time with reference to synchronous motor
speed, n .
s
Set the ramping-down time with reference to synchronous mo-
tor speed, n .
s
Set the site from where the reference must work
