VLT ® Automation Drive FC 300
Instruction Manual High Power

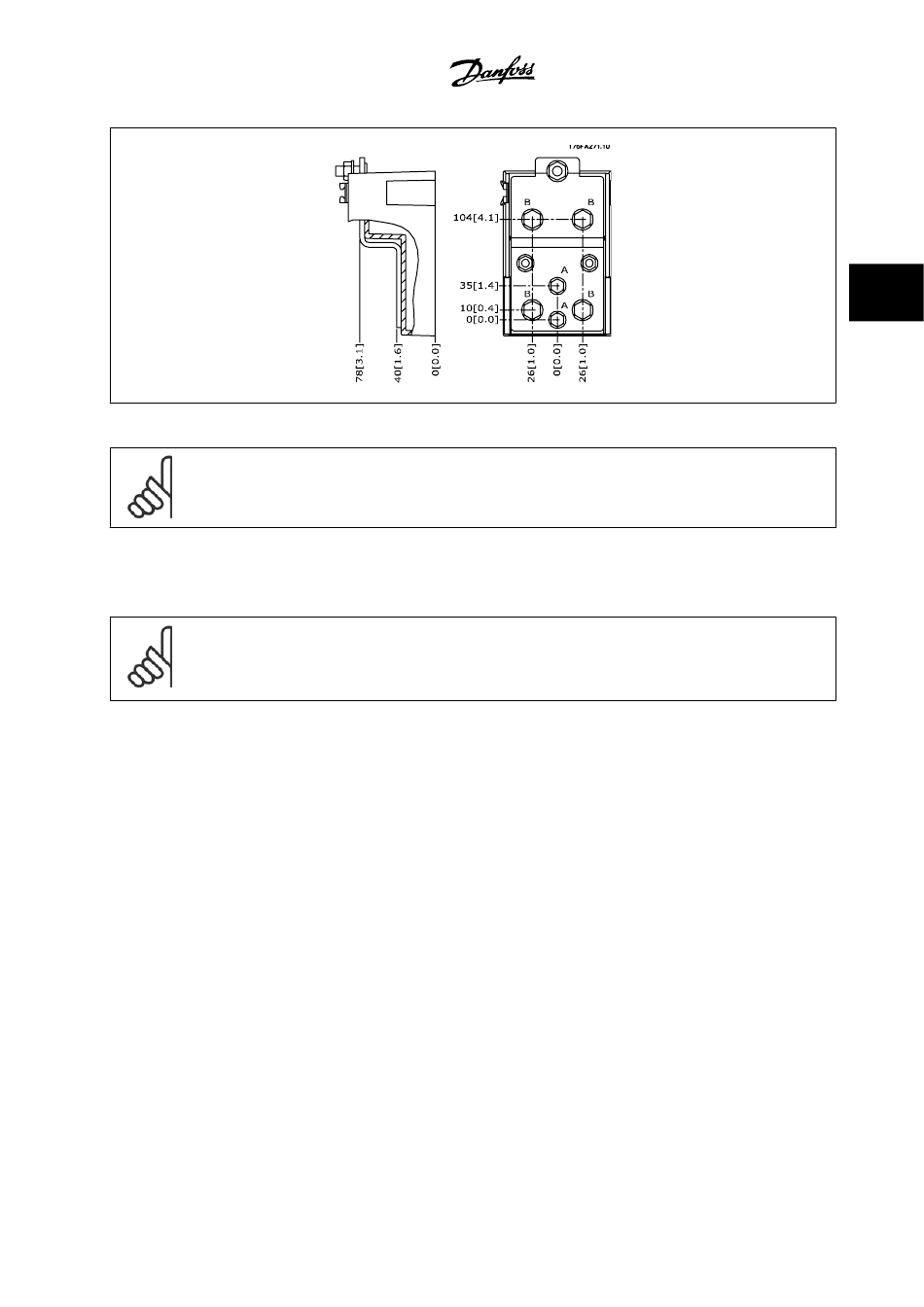

Figure 3.18: Terminal in details
NOTE!
Power connections can be made to positions A or B

3.3.5 Terminal Locations - F enclosures

NOTE!
The F enclosures have four different sizes, F1, F2, F3 and F4. The F1 and F2 consist of an inverter cabinet on the right and rectifier
cabinet on the left. The F3 and F4 have an additional options cabinet left of the rectifier cabinet. The F3 is an F1 with an additional
options cabinet. The F4 is an F2 with an additional options cabinet.
MG.33.U2.22 - VLT ® is a registered Danfoss trademark
3 How to Install
3
3-19
