3 How to Install
3

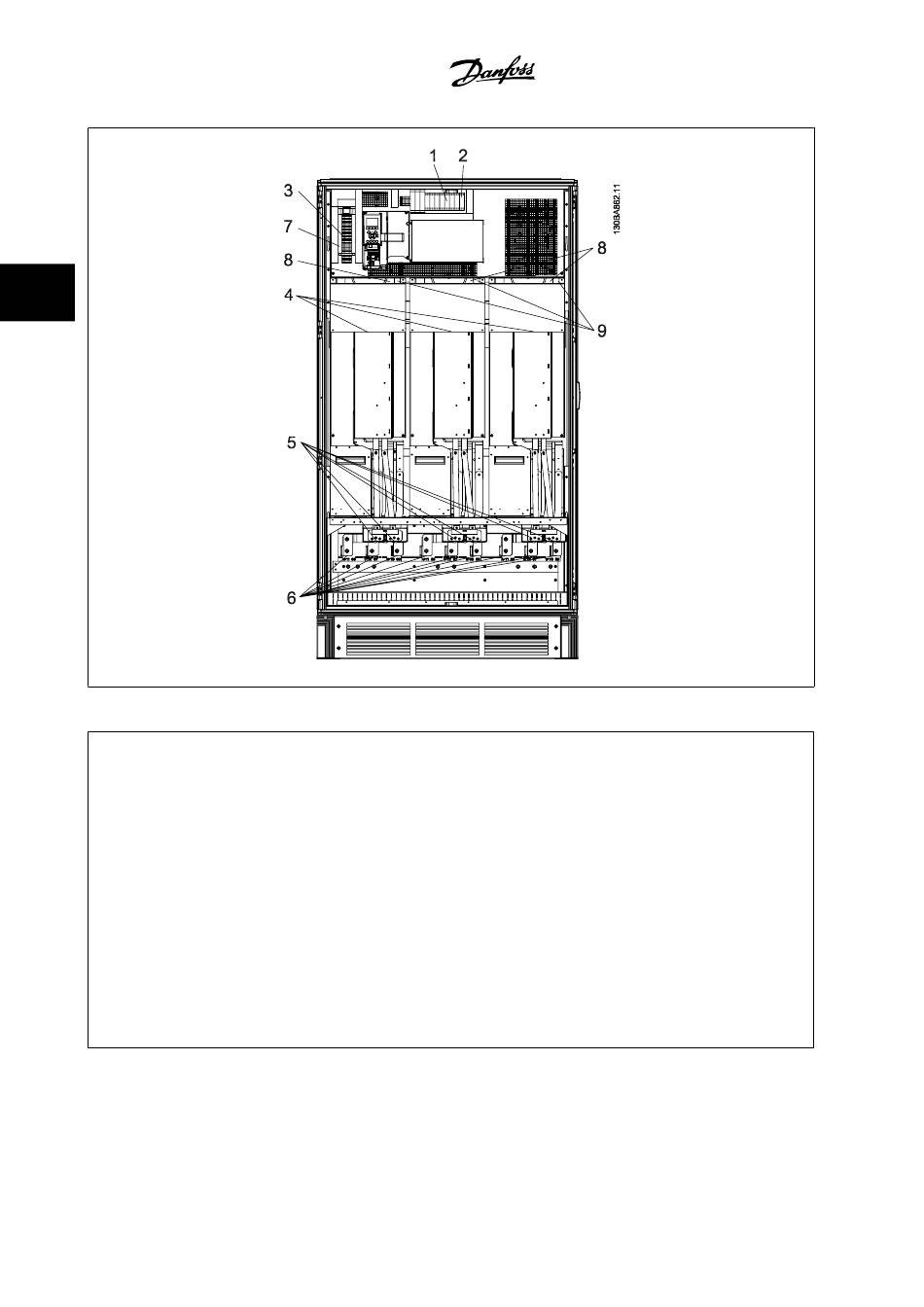

Figure 3.43: Inverter Cabinet, enclosure F2 and F4
1) External Temperature Monitoring
2) AUX Relay
01 02 03
04 05 06
3) NAMUR
4) AUX Fan
100 101 102 103
L1 L2 L1 L2
5) Brake
-R +R
81 82
6) Motor
U V W
96 97 98
T1 T2 T3
3-44
