3 How to Install
3

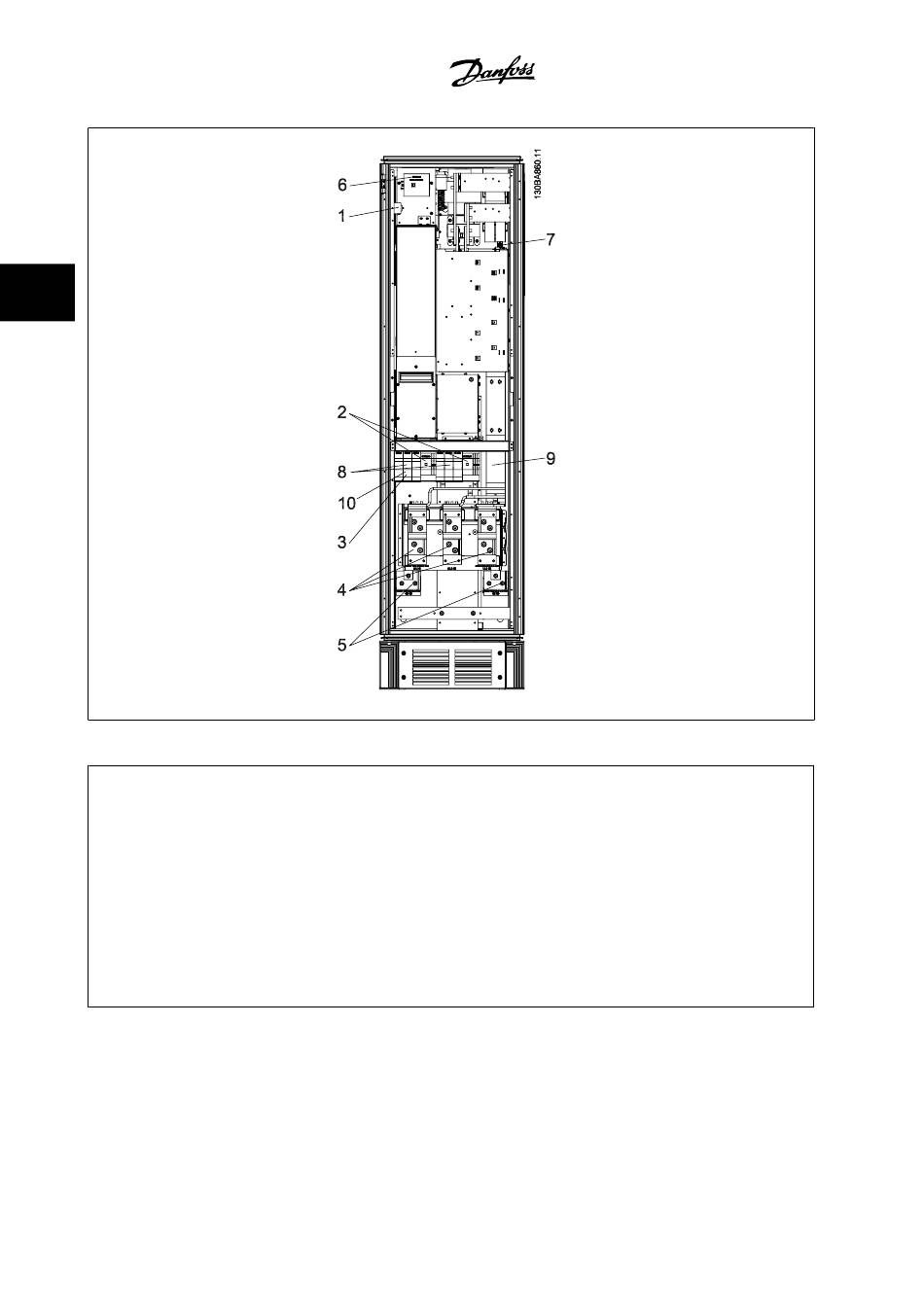

Figure 3.41: Rectifier Cabinet, enclosure F1, F2, F3 and F4
1) 24 V DC, 5 A
T1 Output Taps
Temp Switch
106 104 105
2) Manual Motor Starters
3) 30 A Fuse Protected Power Terminals
4) Line
R S T
L1 L2 L3
5) Load sharing
-DC +DC
88 89
3-42
