Lifting - Danfoss VLT Automation Drive FC 300 Instruction Manual

VLT ® Automation Drive FC 300
Instruction Manual High Power

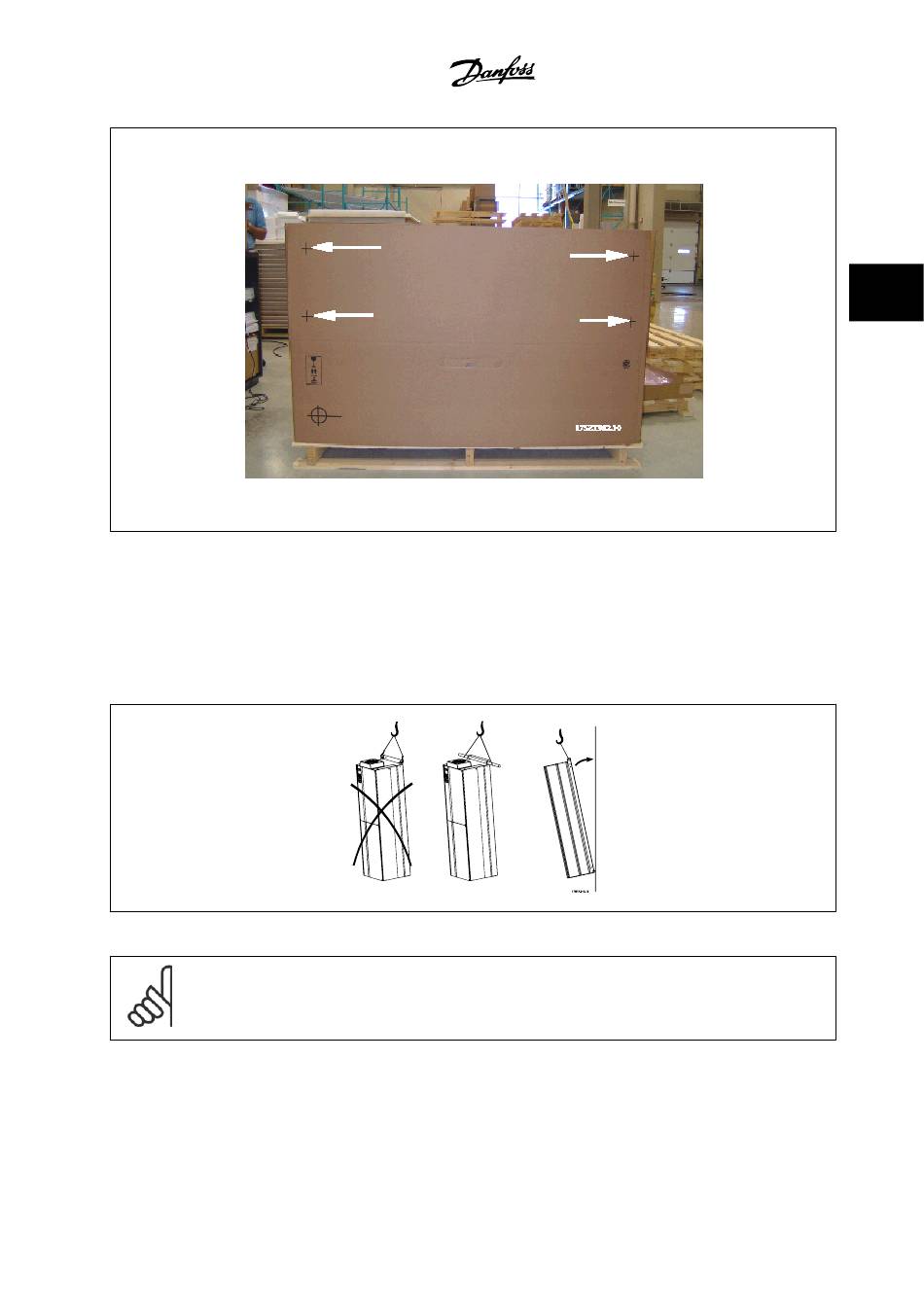

Figure 3.2: Mounting Template

3.2.4 Lifting

Always lift the adjustable frequency drive using the dedicated lifting holes. For all D and E2 (IP00) enclosures, use a bar to avoid bending the lifting holes
of the adjustable frequency drive.
Figure 3.3: Recommended lifting method, D and E enclosures
NOTE!
The lifting bar must be able to handle the weight of the adjustable frequency drive. See
different enclosures. Maximum diameter for bar is 1 inch (25 cm). The angle from the top of the drive to the lifting cable should be 60
degrees or greater.
MG.33.U2.22 - VLT ® is a registered Danfoss trademark
3 How to Install
Mechanical Dimensions
for the weight of the
3
3-3
