VLT ® Automation Drive FC 300
Instruction Manual High Power
There is one pedestal that fits both frames D1 and D2. Its ordering number is 176F1827. The pedestal is standard for an E1 frame.
Required Tools:
• Socket wrench with 0.28-0.67 in (7–17 mm) sockets
• T30 Torx Driver
Torques:
• M6 - 4.0 Nm (35 in-lbs)
• M8 - 9.8 Nm (85 in-lbs)
• M10 - 19.6 Nm (170 in-lbs)
Kit Contents:
• Pedestal parts
• Instruction Manual
Install the pedestal on the floor. Fixing holes are to be drilled according
to this figure:
Mount the drive on the pedestal and using the enclosed bolts, attach it
to the pedestal, as shown in the illustration.

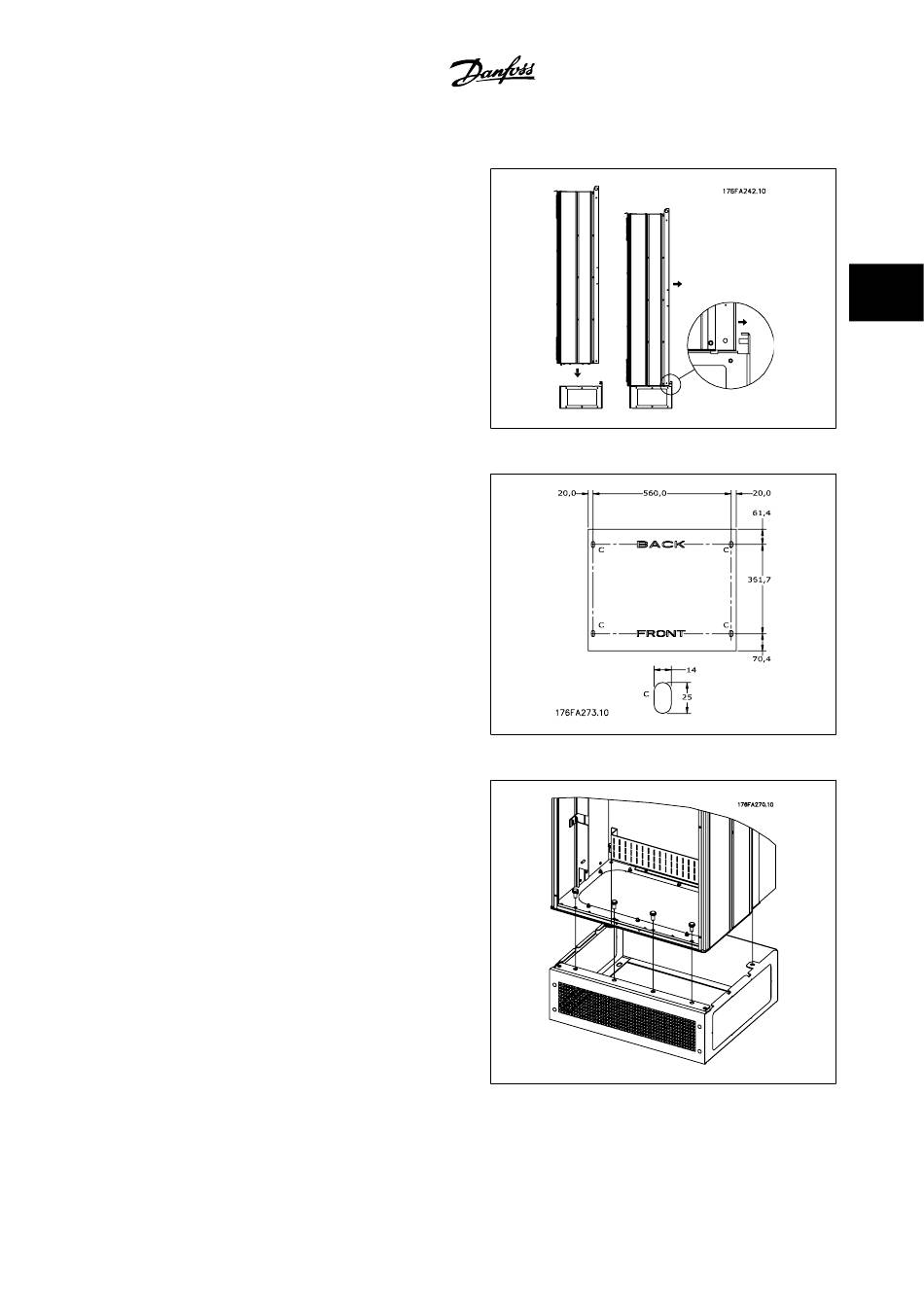

Figure 3.29: Mount the drive onto pedestal.
Figure 3.30: Drill master for fixing holes in floor.
Figure 3.31: Mounting the drive to the pedestal
