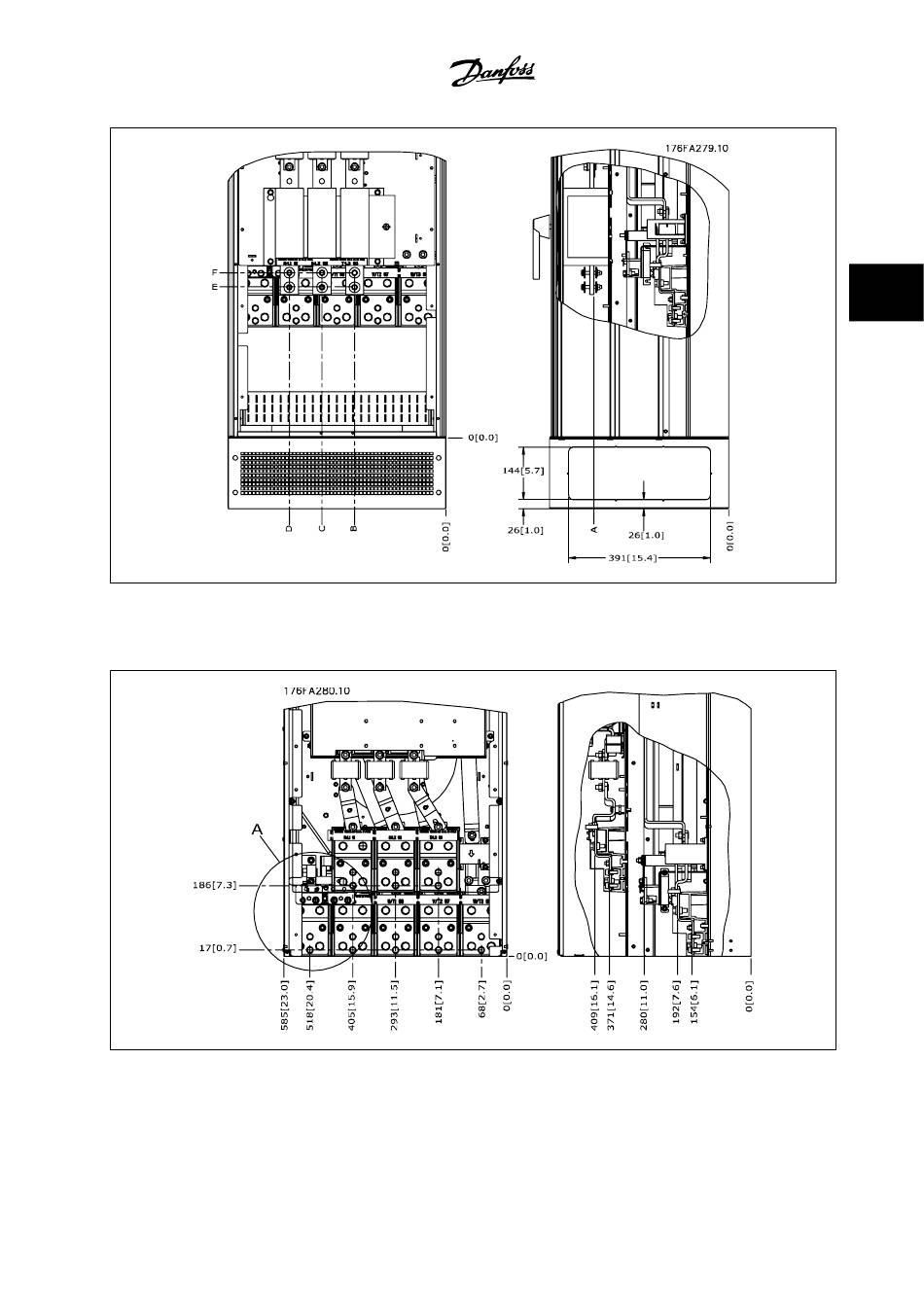

Figure 3.14: IP21 (NEMA type 1) and IP54 (NEMA type 12) enclosure power connection position of disconnect switch
Terminal locations - E2
Give thought to the following terminal positions when designing the cable access.
Figure 3.15: IP00 enclosure power connection positions
MG.33.U2.22 - VLT
®
is a registered Danfoss trademark
3 How to Install
3
3-17
