3 How to Install
3

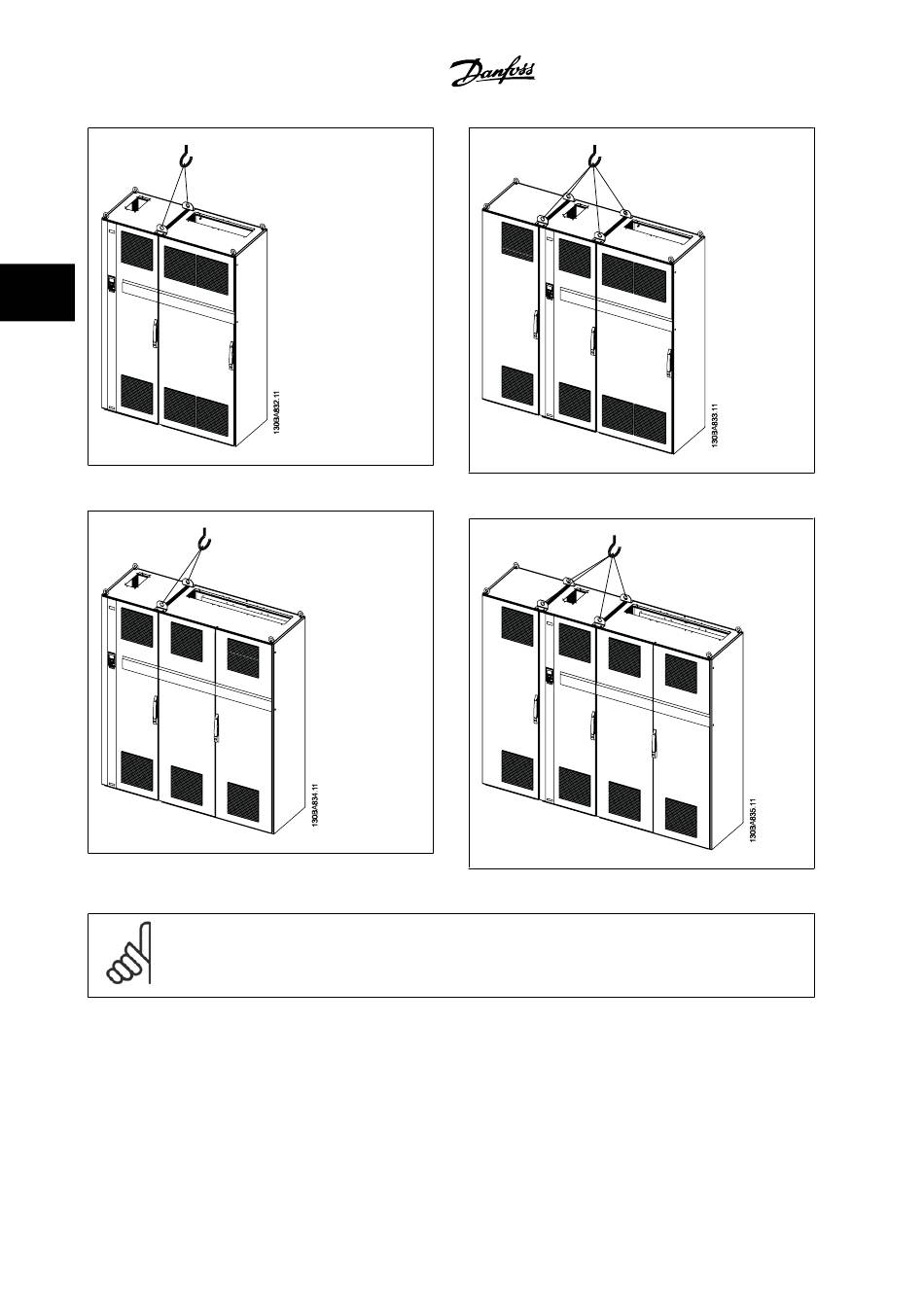

Figure 3.4: Recommended lifting method, enclosure F1
Figure 3.5: Recommended lifting method, enclosure F2
NOTE!
Note that the plinth is provided in the same packaging as the VLT but is not attached to F1-F4 enclosures during shipment. The plinth
is required to allow airflow to the drive to provide proper cooling. The F enclosures should be positioned on top of the plinth in the
final installation location. The angle from the top of the drive to the lifting cable should be 60 degrees or greater.
3-4
Figure 3.6: Recommended lifting method, enclosure F3
Figure 3.7: Recommended lifting method, enclosure F4
MG.33.U2.22 - VLT
®
is a registered Danfoss trademark
VLT
®
Automation Drive FC 300
Instruction Manual High Power
