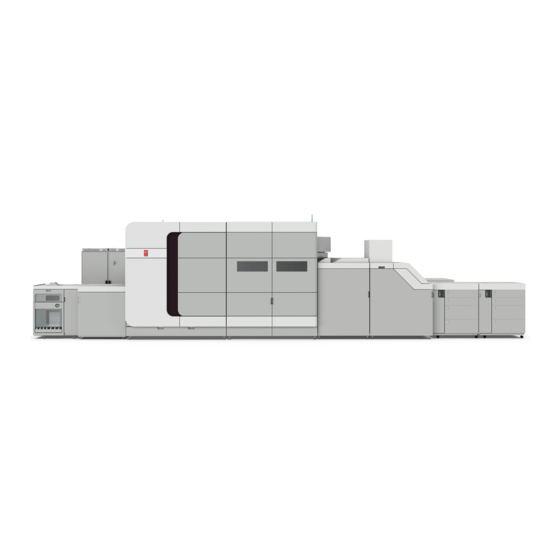

Oce VarioPrint i Series Operation Manual
  1. Manuals
  2. Brands
  3. Oce Manuals
  4. Printer
  5. VarioPrint i Series
  6. Operation manual

Oce VarioPrint i Series Operation Manual

Hide thumbs Also See for VarioPrint i Series:
1
2
Table Of Contents
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
457
458
459
460
461
462
463
464
465
466
467
468
469
470
471
472
Table of Contents

Advertisement

Quick Links

Download this manual
Operation guide
VarioPrint i-series

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VarioPrint i Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Oce VarioPrint i Series

Summary of Contents for Oce VarioPrint i Series

  • Page 1 Operation guide VarioPrint i-series...
  • Page 2 Copyright and Trademarks Copyright Copyright 2015 - 2018 Océ. Illustrations and specifications do not necessarily apply to products and services offered in each local market. No part of this publication may be reproduced, copied, adapted or transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language in any form or by any means, electronic, mechanical, optical, chemical, manual, or otherwise, without the prior written permission of Océ.

  • Page 3: Table Of Contents

    Contents Contents Chapter 1 Introduction.........................9 About the VarioPrint i-series......................... 10 Information in this operation guide......................12 Users of the printer............................14 Other VarioPrint i-series guides........................15 Notes for the reader............................16 Chapter 2 Safety and Environment Information................19 Chapter 3 Explore the printer......................27 Main hardware parts............................
  • Page 4 Contents Chapter 6 Job media handling......................87 Media in a central role........................... 88 Assign media from media catalog to paper trays..................89 Load media via the schedule.........................91 Unpack the media............................92 Load media into the paper module.......................94 Learn about stacking behavior........................98 Remove prints...............................101 Manage the media from control panel.......................
  • Page 5 Contents Explore the realistic preview.........................175 Explore the pixel-precise preview......................178 Explore the layout functions......................... 186 Edit a job..............................190 Change job name, number of sets or print range.................190 Change use of special pages......................193 Check first set...........................195 Change job media and job media print modes................196 Change the layout of the job......................
  • Page 6 Contents Learn about input and output profiles....................294 Define an input profile........................... 297 Define an output profile.........................299 Create composite output profiles......................301 Define color mapping...........................303 Spot color management..........................307 Learn about spot colors.........................307 Create a spot color from the control panel..................309 Create a spot color in Settings Editor....................313 Read the spot color patch chart......................
  • Page 7 Contents Job settings are not correct.........................396 Use remote assistance..........................397 Print or download a report.......................... 398 Restart the printer............................400 Many sheets arrive in the sentry tray......................401 Read the sentry rejections overview......................405 Change relative humidity in paper modules....................407 Remove sheets from the printheads......................408 Remove sheets from the fixation drum......................410 Check the status of the RIP unit........................412 Decrease productivity level for a job......................
  • Page 8 Contents...

  • Page 9: Chapter 1 Introduction

    Chapter 1 Introduction...

  • Page 10: About The Varioprint I-Series

    About the VarioPrint i-series About the VarioPrint i-series The VarioPrint i-series are sheet-fed inkjet color production printers printing at 300 ipm or 200 ipm. The printer platform combines new reliable applications with proven inkjet productivity, and premium quality output. The VarioPrint i-series steered by PRISMAsync Print Server offers digital workflows—black and white, highlight color, and full color—into one effective and productive platform.
  • Page 11 About the VarioPrint i-series • The PRISMAsync Remote Control app on your smart phone helps to stay informed about the print production on the VarioPrint i-series. Even at a distance. • The web-based Settings Editor is the tool where you configure the printer according to new or changed requirements.

  • Page 12: Information In This Operation Guide

    Information in this operation guide Information in this operation guide Content This operation guide helps you to achieve your business purposes while you prepare and print jobs with the VarioPrint i-series. Read this operation guide to learn what the VarioPrint i-series can do for you: how to operate, maintain, evaluate, and configure the printer and how to use it in a safe way.
  • Page 13 Information in this operation guide Learn about quality control sheets on Learn about media of quality control sheets page 241 Define the attributes of an automated work- Learn about new attributes of an automated flow on page 147 workflow Apply an automated workflow in job destina- Apply an automated workflow to a job in the tion on page 158 job destination...

  • Page 14: Users Of The Printer

    Users of the printer Users of the printer Target group with respect to safety information A user of the printer is with respect to safety an "ordinary person." The roles of the ordinary person with respect to the printer can be different. The roles of the target group are described below.

  • Page 15: Other Varioprint I-Series Guides

    Other VarioPrint i-series guides Other VarioPrint i-series guides The following other guides are available for the VarioPrint i-series. You find these guides on the downloads site downloads.oce.com. • PRISMAprofiler User guide • PRISMAlytics Dashboard Quick Reference Guide • PRISMAsync Remote Control Quick Reference Guide •...

  • Page 16: Notes For The Reader

    Names of options to be used in a fixed order Safety symbols Before you use this product, make sure you read and understand the safety information that "http://downloads.oce.com" belongs to the product. Find the safety information on . Also be sure to follow all warnings and instructions marked on the product.
  • Page 17 Notes for the reader Symbol Type of symbol Indicates CAUTION Laser beam Indicates a caution concerning operations that may lead to in- jury to persons if not performed correctly. To use the ma- chine safely, always pay attention to these cautions. IMPORTANT Indicates an operational requirement or restriction.
  • Page 18 Notes for the reader Chapter 1 - Introduction...

  • Page 19: Safety And Environment Information

    Chapter 2 Safety and Environment Information...
  • Page 20 Disclaimer: OCE MAKES NO WARRANTY OF ANY KIND WITH REGARD TO THE CONTENT OF THIS DOCUMENTATION AND ITS COMPLETENESS, EITHER EXPRESS OR IMPLIED, EXCEPT AS PROVIDED HEREIN, INCLUDING WITHOUT LIMITATION, THEREOF, WARRANTIES AS TO MARKETABILITY, MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE OF USE OR NON-INFRINGEMENT.
  • Page 21 • Failure to comply with the User Documentation; • Work performed incorrectly on the machine; • Unauthorized modifications. The following labels are used in the machine to identify and categorize the level of the seriousness of hazard: Label Type Description WARNING Indicates a warning concerning operations that may lead to injury or even death to persons if not performed correctly.
  • Page 22 Power source WARNING • Put the power plug directly into a power outlet that has the same configuration as the plug. The use of an adapter can result in an inadequate power supply. If a proper power outlet is not available, ask a qualified electrician to carry out the installation. IMPORTANT •...
  • Page 23 Grounding WARNING • Connect the power cord to a power outlet that is equipped with a protective earthing (PE) terminal. • This equipment is not designed for connection to an IT power system. An IT power system is a voltage network in which the neutral wire is not connected to earth. •...
  • Page 24 Operation WARNING • Do not lean, lie or stand on any part of the machine, including parts that can be pulled outwards (e.g. media drawers). • Read the User Documentation carefully before operating the machine. If you do not understand something in the User Documentation, please contact your authorized service representative.
  • Page 25 Actions in response to troubles WARNING • In the event of damage to the covers, power cable or operating elements, or penetration of fluids or foreign bodies, immediately switch off the power switch, unplug the power cords and contact your authorized service representative. CAUTION •...
  • Page 26 Liquid Crystal Display (LCD) CAUTION • Do not touch or ingest fluids from a broken Liquid Crystal Display (LCD). When clothes or skin come into contact with the fluid, immediately clean the clothes and skin with soap and water. After eye contact, immediately rinse the eyes with a washing lotion for at least 15 minutes and consult a physician.

  • Page 27: Chapter 3 Explore The Printer

    Chapter 3 Explore the printer...

  • Page 28: Main Hardware Parts

    Main hardware parts Main hardware parts The VarioPrint i-series is a modular printer. The modules in the front position are mainly used for the job production. The modules in the rear position give access to the consumables, service units, and control units. The VarioPrint i-series can have up to three paper input modules and one or two high capacity stackers.
  • Page 29 Main hardware parts Description of main hardware parts The print module holds the ink printheads and the print belt. The print belt in the print module uses the suction air technique to ensure that sheets re- main flat under the printheads. Sheet cooling decreases the temperature of sheets printed on one side.
  • Page 30 Main hardware parts Description of main hardware parts The fixation module with the fixation drum dries the prints with heated air. The power module is responsible for the power management. Chapter 3 - Explore the printer...

  • Page 31: Paper Input

    Paper Input Paper Input The VarioPrint i-series can handle a wide range of media sizes and media weights, for coated and uncoated media. The very accurate print process and the small gap between a sheet and the printheads require that sheets are in optimal shape and correctly positioned on the paper path. Transfer of sheets during the paper input process [3] Location of paper input process Location of the paper input process...
  • Page 32 Paper Input Description paper path For duplex prints, the prints go for a second pass through the input registration unit and the print module. The paper path module interweaves sheets that were printed on one side with blank sheets. The sentry examines all sheets. The registration input module positions the sheets precisely on the paper path before they enter the print module.
  • Page 33 Paper Input [6] Open (1) a paper tray and unassign (2) its media Chapter 3 - Explore the printer...

  • Page 34: Print Process

    Print Process Print Process The VarioPrint i-series has a drop-on-demand piezoelectric ink technology. In the print module the print belt transfers the sheets under the printheads. The nozzles of the printheads eject the ink drops. The drum of the fixation module dries the printed sheets. The printer cleans the printheads on a regular base.
  • Page 35 Print Process Description The sheets move in a single-pass way under the ink printheads where the nozzles eject the ink. When the printer has the ColorGrip option, there is an extra set of printheads. The heated, fanned air dries the prints in the fixation drum. Thanks to the air separation technique the prints move from the print belt to the paper path in the fixation module.
  • Page 36 Print Process [11] Nozzle receives an electric signal (A) and ejects an ink drop (B) Drop size modulation The VarioPrint i-series printhead nozzles can produce drops of five different sizes. This mechanism is called drop size modulation. The largest drop size is only used to compensate for a failure of an adjacent nozzle.

  • Page 37: Paper Output

    Paper output Paper output The VarioPrint i-series collects the prints in one or two high capacity stackers. When additional finishing takes place, the prints are transported via the high capacity stacker to the third-party finisher. Location of the paper output process There are two models of the registration output module.
  • Page 38 Paper output Transport of the prints during the paper output process [16] Transport of prints during the paper output process (model without system tray) [17] Transport of prints during the paper output process (model with system tray) Description paper path The registration output module receives the prints.
  • Page 39 Paper output [18] High capacity stacker Description The front door gives access to the registration unit and the paper path. The front cover gives access to the flip rings and the paper path. The slide door protects the stacks. The top cover gives access to the paper path. The control panel shows the filling level and has a button to eject the stack manually.
  • Page 40 Paper output Description control panel The full tray indicator indicates the status of the stack tray. [20] 1. Stack is ejected soon. 2. Stack is ejected. The stack height indicator indicates the filling level of the stack tray. [21] 1. Stack tray is filled. 2. Stack tray is full. The eject button enables a manual stack eject.

  • Page 41: Print Quality Aspects

    Print quality aspects Print quality aspects The VarioPrint i-series offers flexibility to make the optimal media choices for your applications and print business. In practice, the job workflow of the VarioPrint i-series is based around the use of the media catalog.

  • Page 42: Benefits Of Colorgrip

    Benefits of ColorGrip Benefits of ColorGrip ColorGrip is an inline paper conditioning process during printing. ColorGrip liquid drops are applied on the location of the bitmap. The table below shows how ColorGrip improves the print quality of uncoated media, inkjet treated media and coated media. The use of ColorGrip results in crisp text and graphics achieving a high level of detail.

  • Page 43: Chapter 4 Getting Started

    Chapter 4 Getting started...

  • Page 44: Interfaces To Access The Printer

    Interfaces to access the printer Interfaces to access the printer There are several starting points to use the VarioPrint i-series. Whether you access the printer via the control panel or remotely via Remote Manager, you quickly find your way while operating the VarioPrint i-series.
  • Page 45 Interfaces to access the printer [23] Control panel The table below describes the main parts of the control panel and their functions. Description The sleep button brings the printer into the sleep mode or awakes the printer from the sleep mode. The stop button stops the print process, after a set, after a record, or as soon as possible.
  • Page 46 Interfaces to access the printer [24] Remote printer driver The table below describes the main parts of the printer driver and their functions. Use the online help of the printer driver when you need more information. Function Description Printer configuration Finishing options of the printer.
  • Page 47 Interfaces to access the printer Remote Manager Remote Manager shows the jobs that are stored on the printers that belong to a cluster. Remote Manager is the perfect solution to do job submitting, job planning, job editing, and job monitoring from a remote workstation. You can simply re-route jobs from one printer to the other printer.
  • Page 48 Interfaces to access the printer You receive alerts when upcoming actions, such as loading media or adding consumables, are foreseen. Or if a problem with the printer requires immediate action. The table below describes four screens of Remote Control. [27] Remote Control Description The configuration screen has options to indicate how you want to be informed.
  • Page 49 Interfaces to access the printer Function can be changed. Function cannot be changed. Function is also available on the control panel. Group of functions can be changed in one dialog. Chapter 4 - Getting started...

  • Page 50: Log In, Log Out, And Change Passwords

    Log in, log out, and change passwords Log in, log out, and change passwords Log in to the printer Access without login It depends on the function [Access to control panel] if all users are allowed to view the control panel settings without a login.
  • Page 51 Log in to the printer Log in with a factory defined user account When you use a factory defined user account, you can select the user account from a list. 1. When the domain selection is displayed, select the hostname or IP address of the printer. 2.
  • Page 52 Log in to the printer Log in with your smart card Your organization can use PKI or NFC smart cards to identify users of the printer. A single smart card can be used for the authentication of one or multiple user accounts. 1.

  • Page 53: Log Out Or Switch Roles

    Log out or switch roles Log out or switch roles When you are finished, it is important to log out to end the session. It is also possible to authenticate again with an other user account without leaving the application. The session timeout period determines how long you remain logged in without using the printer.

  • Page 54: Change Password

    Change password Change password Users are strongly recommended to follow the security guidelines of their organization. The use of passwords is part of these security guidelines. NOTE This instruction does not apply to the password of a domain user account. 1.

  • Page 55: Recover Password

    Recover password Recover password If you have lost your password, you can define a new password via a password recovery email. The email with the link to define a new password is sent to the email address associated with your user account. Activate the link within four hours after your received the email. IMPORTANT Ensure that your email address is part of your user account settings.
  • Page 56 Recover password 2. Click [OK]. Chapter 4 - Getting started...

  • Page 57: Learn About The Printer Status

    Learn about the printer status Learn about the printer status Wake up the printer When the printer is in sleep mode, you use the sleep button to wake up the printer. [30] Sleep button Printer status colors The vertical status bar on the dashboard, the status LED on the control panel, and the operator attention light show the same status color.
  • Page 58 Learn about the printer status Color Action required Red warns that you must perform an action immediately because the printer no longer can print. The following actions can be needed: 1. Load media. 2. Remove prints. 3. Replace containers. 4. Replace tissue ribbon cassettes. 5.
  • Page 59 Learn about the printer status [33] Dashboard symbols to indicate expected maintenance tasks Chapter 4 - Getting started...
  • Page 60 Learn about the printer status Chapter 4 - Getting started...

  • Page 61: Chapter 5 Define Defaults

    Chapter 5 Define defaults...

  • Page 62: Adjust Control Panel And Warning Time

    Adjust control panel and warning time Adjust control panel and warning time There are several options to adjust the control panel. Go to the control panel adjustment functions 1. Go to the control panel. 2. Touch [System]→[Setup]. Change the display language of the control panel 1.
  • Page 63 Adjust control panel and warning time Improve the readability of the control panel [35] Control panel settings 1. Touch [Control panel settings]. 2. Touch [Auto adjust] to use the automatic adjustment. 3. Use the [Brightness] function to increase or decrease the brightness. Touch the field or use the + or - buttons.

  • Page 64: Define Printer Defaults

    Define printer defaults Define printer defaults Define the accessibility Go to the accessibility settings [37] [System settings] tab Open the Settings Editor and go to: [Preferences]→[System settings]→[Accessibility]. Enable a beep sound during toggling [38] Beep sound 1. Use the [Beep sound] function to enable or disable the beep sound. 2.

  • Page 65: Define The Regional Settings

    Define the regional settings Define the regional settings You can set the regional settings. The system administrator can adjust the time and time zone. 1. Open the Settings Editor and go to: [Preferences]→[System settings]→[Regional settings]. [41] [System settings] tab 2. Use the [Region] to select the media format. •...

  • Page 66: Define System Of Measurement

    Define system of measurement Define system of measurement 1. Open the Settings Editor and go to: [Preferences]→[System settings]→[Regional settings]. [43] [System settings] tab 2. Use the [System of measurement] function to select the system of measurement. • [Metric]: work with g/m2 and mm. •...

  • Page 67: Keep Few Sheets In Empty Paper Tray

    Keep few sheets in empty paper tray Keep few sheets in empty paper tray tray empty status. This can Indicate if you want to keep some sheets in a paper tray that has the be helpful to see which media were loaded. [46] Keep remaining sheets in empty tray 1.

  • Page 68: Define Storage Of Printed Jobs

    Define storage of printed jobs Define storage of printed jobs You can define if printed jobs are displayed on the control panel. This allows operators to re-print printed jobs. When printed jobs are visible, you can define their storage time. [48] Storage of printed jobs 1.

  • Page 69: Define Job Defaults

    Define job defaults Define job defaults Define default font of page numbers Page numbering can be selected in the job properties. You can set the default font in the Settings Editor. [50] Font settings 1. Open the Settings Editor and go to: [Preferences]→[Print job defaults]→[Page numbering]. [51] [Print job defaults] tab 2.

  • Page 70: Define Default Use Of Special Pages

    Define default use of special pages Define default use of special pages Banner pages, trailer pages and separator sheets are special pages that can be added to a job. Change use of special pages on page 193) The Settings Editor has functions to configure the use of special pages.
  • Page 71 Define default use of special pages • [Use default media]: the banner are printed on default media. [55] Media of banner pages 5. Click [OK]. Define the 6. When you have selected [Use default media], then define the default media. ( default media of banner and trailer pages on page 7.
  • Page 72 Define default use of special pages • [Use default media]: the trailer pages are printed on default media. [59] Default media of trailer pages 5. Click [OK]. 6. Use the [Media print mode of banner and trailer pages] function to define how the media print mode of trailer pages is selected.
  • Page 73 Define default use of special pages Define the default media of separator sheets 1. Open the Settings Editor and go to: [Preferences]→[Print job defaults]. [63] [Print job defaults] tab 2. Use the [Media of separator sheets] function to select the default media of the separator sheets.

  • Page 74: Define Default Media For Job Tickets And Covers

    Define default media for job tickets and covers Define default media for job tickets and covers Define the default media of job tickets 1. Open the Settings Editor and go to: [Preferences]→[Print job defaults]. [66] [Print job defaults] tab 2. Use the [Banner pages, trailer pages, and tickets] function to select the default media of job tickets.

  • Page 75: Import And Export Definitions Of Special Pages

    Import and export definitions of special pages Import and export definitions of special pages Special pages are banner pages, trainer pages, job tickets, separator sheets and covers. You can Define default media for job define the default media and media print modes of special pages. ( tickets and covers on page It is also possible to import or export the media definitions of special pages.

  • Page 76: Define Postscript, Pdf, And Ppml Job Defaults

    Define PostScript, PDF, and PPML job defaults Define PostScript, PDF, and PPML job defaults [74] Default [PDF] functions Go to the [PostScript], [PPML] or [PDF] defaults 1. Open the Settings Editor and go to: [Preferences]. [75] [PostScript], [PPML] and [PDF] tabs 2.
  • Page 77 Define PostScript, PDF, and PPML job defaults Define the resolution (PostScript, PPML, PDF) Use the [Print resolution] function to define the default print resolution. [76] Print resolution Define XObject optimization (PDF) Use the [Use PDF XObject optimization] function to define how XObject objects are processed. XObject objects, such as background images, are defined only once in a PDF file.
  • Page 78 Define PostScript, PDF, and PPML job defaults • Use the [Tumble] function to tumble two-sided documents that are bound at the top or the bottom edge. The tumble function rotates the imposition of the back side 180 degrees. [80] Tumble •...

  • Page 79: Define Default Stacking In The High Capacity Stacker

    Define default stacking in the high capacity stacker Define default stacking in the high capacity stacker There can be one or two high capacity stackers. [85] High capacity stacker defaults 1. Open the Settings Editor and go to: [Preferences]→[Print job defaults]. [86] [Print job defaults] tab 2.
  • Page 80 Define default stacking in the high capacity stacker [89] Default header orientation 5. Use the [Top tray - Preferred feed edge] and [Stack tray - Preferred feed edge] functions to indicate if the long or short side of the sheet points refers to the feed direction of the sheets by default.
  • Page 81 Define default stacking in the high capacity stacker [93] Maximum stack height Chapter 5 - Define defaults...

  • Page 82: Define Default Job Processing

    Define default job processing Define default job processing Go to the printing workflow settings 1. Open the Settings Editor and go to: [Preferences]→[System settings]. [94] [System settings] tab Define the processing of jobs submitted via LPD/LPR The printer protocol LPD can be enabled by the system administrator. The print protocol LPR must be installed on the workstation that submits the jobs.
  • Page 83 Define default job processing Define the location of the RIP process 1. Use the [Location RIP process] function to indicate where the RIP processes jobs when they arrive in the print queue. • [All locations]: the RIP can process jobs in all job destinations. •...

  • Page 84: Download Account Log Files

    Download account log files Download account log files What are account log files Account log files store details of all printed jobs. The printer generates account log files that can be downloaded for job cost calculation. Every record in the file represents a single job. The record consists of job properties and usage of inks and media.
  • Page 85 Download account log files [100] Download account log file 3. Select one of the available account log files. 4. Click [Download account log file]. 5. Click [OK]. Chapter 5 - Define defaults...
  • Page 86 Download account log files Chapter 5 - Define defaults...

  • Page 87: Job Media Handling

    Chapter 6 Job media handling...

  • Page 88: Media In A Central Role

    Media in a central role Media in a central role Paper is both physically and chemically a complex substrate. The properties of paper have a big influence on ink, the print process, and therefore the look and quality of your prints. Although it takes only seconds, the trip of a sheet through the printer subjects it to many demands.

  • Page 89: Assign Media From Media Catalog To Paper Trays

    Assign media from media catalog to paper trays Assign media from media catalog to paper trays To let the printer know which media are loaded, you assign the media to a paper tray. In case you want to load media in advance for one or more jobs you select media from the media catalog and assign the media to one or more available paper trays.
  • Page 90 Assign media from media catalog to paper trays 1. Press the paper tray button at the right-hand side of the control panel. 2. Select a paper tray in which you want to load the media and touch [Open]. 3. Remove and rewrap media in the original packaging or other moistureproof material, if applicable.

  • Page 91: Load Media Via The Schedule

    Load media via the schedule Load media via the schedule The schedule shows which media the job needs. When a scheduled job needs media that are not loaded or when one of the paper trays is almost empty, it is easy to load via the schedule. When the paper tray with the media is empty, the printer automatically uses the media from an other paper tray in which the media are loaded and assigned.

  • Page 92: Unpack The Media

    Unpack the media Unpack the media Media are packed into moistureproof material and stored on flat surfaces to protect the sheets from environmental influences and damage. Before you load media in the paper trays, unpack the media and check the stack. The ream or cartons have a label that lists information such as the media name, weight, size, quantity of sheets, load orientation, and certifications.
  • Page 93 Unpack the media Action Place a ream of media on a flat surface. The direction of the arrow on the label indicates the preferred side for printing. For two-sided printing this side indicates the front side which is printed first. Fold out the short sides of the packaging.

  • Page 94: Load Media Into The Paper Module

    Load media into the paper module Load media into the paper module Media must be loaded in optimal condition and according to load instructions. A job also needs media to print nozzle failure detection sheets. These media can be job media, or alternative media if the job media are not appropriate for nozzle failure detection sheets.
  • Page 95 Load media into the paper module Load media Action Open the paper tray via the schedule, the trays view or the button on the control panel of the paper module. Only one tray can be open at the same time. You can open a paper tray when the printer is printing.
  • Page 96 Load media into the paper module Action Slowly turn the knob clockwise until the side sliders touch the stack without damaging it. Squeeze the green handle of the front slider to move the trailer-edge sliders carefully against the stack without damaging it. Take the next stack of media.
  • Page 97 Load media into the paper module After you finish It can happen that damaged or deformed sheets come on the paper path. The sentry is able to detect these imperfect sheets and purge them to the sentry tray. There are guidelines how to Many sheets arrive in the sentry tray on page prevent sentry tray output.

  • Page 98: Learn About Stacking Behavior

    Learn about stacking behavior Learn about stacking behavior One or two high capacity stackers collect the prints and automatically eject a stack of prints. Overview of the high capacity stacker on page Below you find three stack and eject scenarios (A, B, C) for transaction and document print jobs that you configure on the VarioPrint i-series.
  • Page 99 Learn about stacking behavior B. Keep the sets of document print jobs together [110] B. Keep the sets of document print jobs together 1. The stack tray of the first high capacity stacker collects the sets from the first job until the maximum stack height has been reached.
  • Page 100 Learn about stacking behavior 1. The stack tray of the first high capacity stacker collects the prints from the first job until the maximum stack height has been reached. 2. The eject tray of the first high capacity stacker ejects the first stack of job 1. 3.

  • Page 101: Remove Prints

    Remove prints Remove prints The high capacity stacker ejects a stack of prints according to your requirements. The high capacity stacker control shows the filling levels and indicates when an stack eject is prepared. [113] Location of the high capacity stacker CAUTION •...
  • Page 102 Remove prints • Press the eject button twice to eject the stack as soon as possible. The green attention light blinks fast. The eject tray automatically moves back to its original position after you removed the stack. Chapter 6 - Job media handling...

  • Page 103: Manage The Media From Control Panel

    Manage the media from control panel Manage the media from control panel The system administrator decides if media management via the control panel is possible. Media Learn about media elements and all other media elements are managed in the Settings Editor. ( on page 264) [115] Media management from the control panel...
  • Page 104 Manage the media from control panel Chapter 6 - Job media handling...

  • Page 105: Transaction Printing

    Chapter 7 Transaction printing...

  • Page 106: Job Workflow In Transaction Printing Mode

    Job workflow in transaction printing mode Job workflow in transaction printing mode The transaction printing mode fits print environments that print large numbers of business critical data, such as invoices, checks, and salary slips. The VarioPrint i-series uses the IPDS protocol to communicate between the data submitting system and the printer.
  • Page 107 Job workflow in transaction printing mode documents can be part of the IPDS data stream. The active transaction setup specifies the Work with automated workflows on page print properties. ( 143) 2. Job planning One or more jobs are part of a data stream submitted to the printer during a connection session.

  • Page 108: Work With The Schedule In Transaction Printing Mode

    Work with the schedule in transaction printing mode Work with the schedule in transaction printing mode The schedule in transaction printing mode, shows less job information compared with the schedule in document printing mode. The schedule does not show colored media bars or Work with the schedule in document printing production times for the transaction print jobs.

  • Page 109: Activate The Transaction Printing Mode

    Activate the transaction printing mode Activate the transaction printing mode When the transaction printing mode is active, the data stream enters the printer via a separate IPDS port. Meanwhile, all submitted document print jobs come in the list of waiting jobs. The printer begins to process these jobs, after you leave the transaction printing mode and return to the document printing mode.
  • Page 110 Activate the transaction printing mode Bring transaction printing online or offline in Settings Editor 1. Open the Settings Editor and go to: [Transaction printing]→[Settings]. [120] [Settings] tab 2. Read the [Printer status] value to know the status of transaction printing. [121] Bring transaction printing online of offline 3.

  • Page 111: Monitor Or Stop Transaction Print Jobs

    Monitor or stop transaction print jobs Monitor or stop transaction print jobs PRISMAproduction provides a single point of control to proof, spool, interrupt, reprint, and monitor transaction print jobs. Use the Stop button on the control panel to stop printing and remove transaction print jobs Stop printing on page from the list of scheduled jobs.

  • Page 112: Work With Transaction Setups

    Work with transaction setups Work with transaction setups Learn about transaction setups What are transaction setups A transaction printing setup is a set of attributes that is used for transaction printing. You can create different setups, but only one setup can be loaded, which means it is active. The attributes of the active transaction setup define the media, color, print delivery, and other properties of the transaction print job.

  • Page 113: Define A New Transaction Setup

    Define a new transaction setup Define a new transaction setup You can define a new transaction setup or change the name and description of a current Open a transaction setup. To define the attributes, you first need to open the transaction setup. ( transaction setup to change attributes on page 116) Go to the transaction setups...

  • Page 114: Load A Transaction Setup

    Load a transaction setup Load a transaction setup When you load a transaction setup, you make it active. You can only load a transaction setup when transaction printing is offline or when you press the stop button on the control panel. Learn about transaction setups on page 112) NOTE...
  • Page 115 Load a transaction setup [131] [Transaction setups] menu 5. Bring transaction printing online. The status of the transaction setup is [Loaded]. Chapter 7 - Transaction printing...

  • Page 116: Open A Transaction Setup To Change Attributes

    Open a transaction setup to change attributes Open a transaction setup to change attributes Learn about transaction setups on You open a transaction setup to check or change its attributes. ( page 112) 1. Open the Settings Editor and go to: [Transaction printing]→[Transaction setups]. [132] [Transaction setups] tab 2.

  • Page 117: Define The Attributes Of An Ipds Transaction Setup

    Define the attributes of an IPDS transaction setup Define the attributes of an IPDS transaction setup Learn about transaction setups on A transaction setup with the status [Opened], can be adjusted. ( page 112) 1. Open the Settings Editor and go to: [Transaction printing]→[Transaction setups]. [134] [Transaction setups] tab 2.
  • Page 118 Define the attributes of an IPDS transaction setup [IPDS] attributes Description [Offset stacking] Select if stacking occurs with or without an offset. [Font capture] Indicate if fonts and other resources can be captured to the printer Define the resources on page disk.
  • Page 119 Define the attributes of an IPDS transaction setup NOTE Click [Edit] in the title bar to adjust the attributes in one dialog. [139] Media selection for tray-to-media mode Define the tray-to-tray mapping You link logical trays (indicated by a number from 1 to 16) to physical paper trays. The printer uses media that are assigned to these physical paper trays.
  • Page 120 Define the attributes of an IPDS transaction setup PDF attributes Description [Black Point Compensation Use this function applies to the relative colorimetric rendering in- algorithm] tent. Details in dark regions of the document can be lost with the standard color conversion. The Black Point Compensation aligns the darkest level of black achievable (black point) of the source to the darkest level of black achievable on the printer.
  • Page 121 Define the attributes of an IPDS transaction setup Color management attrib‐ Description utes [Black preservation] Use the function to apply pure black preservation when possible. Pure black preservation means that the color black is composed of 100% K ink. When pure black preservation is not possible or disa- bled, the color black is composed of a mixture of two or more C, M, Y, and K inks.
  • Page 122 Define the attributes of an IPDS transaction setup Error recovery modes Description [Normal] recovery The printer recovers the output from the point the error occurred, like the printer behavior in the document printing mode. At least one source file page is printed. This may result in double prints. [Suppressed Mode], [Nor- The host recovers the print process from the point the error occur- mal] recovery...

  • Page 123: Import, Export, Or Restore Transaction Setups

    Import, export, or restore transaction setups Import, export, or restore transaction setups You can import, export, and restore transaction setups. Go to the transaction setups Open the Settings Editor and go to: [Transaction printing]→[Transaction setups]. [146] [Transaction setups] menu Import transaction setups 1.

  • Page 124: Validate A Transaction Setup

    Validate a transaction setup Validate a transaction setup What is transaction setup validation When you have defined, changed, or imported a transaction setup, you can validate the transaction setup to check its media definitions. When you use the [Validate] option, the printer checks for each tray if the media definition is valid.

  • Page 125: Validate All Transaction Setups

    Validate all transaction setups Validate all transaction setups You can validate all available transaction setups. The report displays the number of valid and invalid trays per transaction setup. When the report shows invalid transaction setups, use the [Validate] function to examine the problems per tray. ( Validate a transaction setup on page 124) The report displays for every transaction setup the tray selection mechanism ([Tray to media] or...

  • Page 126: Read The Transaction Setup Validation Report

    Read the transaction setup validation report Read the transaction setup validation report Example: Validation in [Tray to media] mode A transaction setup has the following attributes. [149] Tray 1 media attributes [148] IPDS attributes [151] Tray 3 media attributes [150] Tray 2 media attributes The validation report found that the transaction setup is not valid.
  • Page 127 Read the transaction setup validation report Validation in [Tray to tray] mode The transaction setup has the following attributes. [153] IPDS attributes The validation report found that the transaction setup is not valid. [154] Example of validation report in tray-to-tray mode Valid paper tray: 1 •...

  • Page 128: Define The Resources

    Define the resources Define the resources Type of resources There are several types of resources that you can manage and use for transaction printing: 1. Fonts 2. Code pages 3. Color mapping tables 4. Data objects, such as font files, image types or color management resources The VarioPrint i-series uses the following types of resources.
  • Page 129 Define the resources Tasks Fonts Fonts for Code pages Color map‐ Data objects embedded ping table Import resource file Install imported re- source ** Delete imported re- source ** Delete installed re- source ** Delete permanent resource ** Delete captured re- source ** Capture resources Yes*...

  • Page 130: Use The Advanced Transaction Printing Functions

    Use the advanced transaction printing functions Use the advanced transaction printing functions You can set some general transaction printing settings. VarioPrint i-series transaction printing is based on the IPDS bi-directional communication protocol. [158] Advanced settings transaction printing 1. Open the Settings Editor and go to: [Transaction printing]→[Settings]. [159] [Settings] tab 2.

  • Page 131: Overrule The Set Image Shift For Transaction Print Jobs

    Overrule the set image shift for transaction print jobs Overrule the set image shift for transaction print jobs Define the attributes of an IPDS The transaction setup has attributes to define the image shift. ( transaction setup on page 117) From the control panel you can overrule the image shift definition of a transaction setup.
  • Page 132 Overrule the set image shift for transaction print jobs Chapter 7 - Transaction printing...

  • Page 133: Chapter 8 Document Printing

    Chapter 8 Document printing...

  • Page 134: Learn About Workflow Profiles

    Learn about workflow profiles Learn about workflow profiles Choose The printer provides workflow profiles to manage your workload from the control panel. ( a workflow profile on page 136) A workflow profile determines the following: • Destination of document print jobs: the list of scheduled jobs or the list of waiting jobs. •...
  • Page 135 Learn about workflow profiles [Check and print] workflow profile • The check-and-print workflow profile Job planning fits an environment for which every document print job needs attention. Waiting You check the print quality and layout jobs setting of the first set before printing Print production the entire job.

  • Page 136: Choose A Workflow Profile

    Choose a workflow profile Choose a workflow profile Learn The printer provides workflow profiles to manage your workload from the control panel. ( about workflow profiles on page 134) You select one of the available standard workflow profiles and, if required, change one or more attributes so it fits the print production requirements.
  • Page 137 Choose a workflow profile [167] Confirm start of job 1. Select the workflow profile. 2. Use the [Confirm start of job] function to select the one of the following values. • [On]: Confirm that a job can start. • [Confirm start of job with conflicting settings]: Confirm that a job can start with default settings in case the job has conflicting settings.

  • Page 138: Job Workflow In Document Printing Mode

    Job workflow in document printing mode Job workflow in document printing mode [169] Document print jobs Collaterals, books, and manuals are typical applications of the document printing mode. The document printing mode fits print environments with a wide range of PDF print applications. When the printer is in the document printing mode there are several locations from where you can submit jobs to the printer: the remote printer driver, PRISMAprepare, Remote Manager, hotfolders, and the LPR channel.
  • Page 139 Job workflow in document printing mode The printer prints the jobs according to the job sequence in the list of scheduled jobs. Job media are loaded in the paper trays, prints and waste are removed in time and there are sufficient supplies of consumables in the printer.
  • Page 140 Job workflow in document printing mode Job preparation PRISMAprepare Adobe Hotfolder PRISMAsync driver Waiting jobs Scheduled Job planning jobs Waiting Waiting jobs jobs Scheduled Scheduled jobs jobs Waiting jobs Print production Scheduled jobs PRISMAsync PRISMAsync Remote Manager Remote Control In addition to the basic workflow, Remote Manager and Remote Control offer the following. 1.

  • Page 141: Activate The Document Printing Mode

    Activate the document printing mode Activate the document printing mode In case the transaction printing mode is active and you want to go to the document printing mode, follow this instruction. As long as the document printing mode is active, the printer cannot accept transaction print jobs.

  • Page 142: Work With The Schedule In Document Printing Mode

    Work with the schedule in document printing mode Work with the schedule in document printing mode When you work in document printing mode, the schedule predicts the job production time and offers a daily up to eight-hour plan board. The schedule provides all information of the scheduled jobs on a moving timeline, so you are able to intervene in time and keep your printer running.

  • Page 143: Work With Automated Workflows

    Work with automated workflows Work with automated workflows Learn about automated workflows Automated workflows are managed in the Settings Editor. An automated workflow bundles a series of pre-set attributes to define the job properties. You can apply an automated workflow when you submit one or more PDF jobs.

  • Page 144: Define A New Automated Workflow

    Define a new automated workflow Define a new automated workflow Learn about An automated workflow bundles a series of pre-set attributes to define jobs. ( automated workflows on page 143) Go the automated workflows Open the Settings Editor and go to: [Workflow]→[Automated workflows]. [173] [Automated workflows] tab Add a new automated workflow 1.
  • Page 145 Define a new automated workflow Delete an automated workflow (default) . You cannot delete the automated workflow: 1. Select one or more automated workflows. 2. Click [Delete]. Chapter 8 - Document printing...

  • Page 146: Restore The Default Automated Workflow

    Restore the default automated workflow Restore the default automated workflow Learn about An automated workflow bundles a series of pre-set attributes to define jobs. ( automated workflows on page 143) (default) , you When you want to restore the values of the attributes of the automated workflow use the [Restore] function.

  • Page 147: Define The Attributes Of An Automated Workflow

    Define the attributes of an automated workflow Define the attributes of an automated workflow Learn about An automated workflow bundles a series of pre-set attributes to define jobs. ( automated workflows on page 143) Define the attributes 1. Open the Settings Editor and go to: [Workflow]→[Automated workflows]. [178] [Automated workflows] tab 2.
  • Page 148 Define the attributes of an automated workflow [General] attributes Description [Sorting] Select if sorting occurs by set or by page. [Variable data job (pages Use this function to indicate that the job is a variable data job. En- per record)] ter the number of pages that composes a record.
  • Page 149 Define the attributes of an automated workflow [Layout] attributes Description [Image shift] Select this function to define the image shift of the front side and the back side in two directions. Enter '0' to indicate that there is Explore the layout functions on page not shift required.
  • Page 150 Define the attributes of an automated workflow [Print quality] attributes Description [Image smoothing] Use the this function to prevent unsmooth lines and image blocks in the document. This occurs when source objects have a lower resolution than the printer. The [Image smoothing] interpolation method only affects images below 300 dpi.
  • Page 151 Define the attributes of an automated workflow [Workflow] attributes Description [Separator sheets], [Sepa- Indicate if sets or a group of sets are separated by a separator Define default use rator sheet after N sets] sheet. N means the number of sets in a group. ( of special pages on page [PDF XObject optimization] Use this function to define how XObjects are processed.
  • Page 152 Define the attributes of an automated workflow [Page numbering] attrib‐ Description utes [Use page numbers], [Start Indicate if you want to use page numbers. The default font and the with page number], [Loca- font size are pre-defined. ( Define default font of page numbers on tion], [Text before page page number], [Text after page...

  • Page 153: Submit Jobs Via Lpr

    Submit jobs via LPR Submit jobs via LPR PDF files can be submitted to the printer with an LPR command. When you print via LPR the queue name is the name of an automated workflow. Jobs submitted via LPR take over the attributes of the automated workflow.

  • Page 154: Submit Jobs Via Hotfolders

    Submit jobs via hotfolders Submit jobs via hotfolders Hotfolders enable you to submit print jobs by simply drag & drop ready-to-print PDF files onto a shortcut on your desktop. The job properties are taken over from the automated workflow that is part of the hotfolder definition or from the JDF ticket that you put in the hotfolder.
  • Page 155 Submit jobs via hotfolders After the authentication of the credentials, the Finder automatically opens the mounted drive with the hotfolder name. Use a JDF ticket 1. Go the hotfolder shortcut. 2. Drag & drop the Default_ticket.jdf file on the hotfolder shortcut. Drag &...

  • Page 156: Use The Job Ticket Editor

    Use the job ticket editor Use the job ticket editor The JDF ticket is a file that contains the instructions to handle and print a job. The Settings Editor has a ticket editor to create, load and save JDF tickets. Job Definition Format (JDF) is a standard format to automate the print production between different applications.
  • Page 157 Use the job ticket editor 3. Click [Open]. Save a JDF ticket 1. Define the job properties you want to include into the JDF ticket. 2. Click [Save ticket]. 3. Save the JDF job ticket Chapter 8 - Document printing...

  • Page 158: Apply An Automated Workflow In Job Destination

    Apply an automated workflow in job destination Apply an automated workflow in job destination Learn about You can apply an automated workflow when you submit one or more PDF jobs. ( automated workflows on page 143) It is also possible to apply an automated workflow to jobs that are visible on the control panel. You can apply an automated workflow to jobs on the control panel in the following situations: •...
  • Page 159 Apply an automated workflow in job destination [188] Select automated workflow NOTE (default) automated workflow to restore the original job properties. Select the 4. Press [OK]. NOTE You can filter jobs based on job label. The [Job label] field is the name of the automated workflow that has been applied.

  • Page 160: Plan The Jobs

    Plan the jobs Plan the jobs Learn about DocBox The DocBox is a job destination to collect jobs before printing. DocBox folders make it easy to group jobs according to a job owner or a department. There can also be DocBox folders for jobs that must be printed according to specific requirements.
  • Page 161 Learn about DocBox Destination of DocBox jobs The active workflow profile defines where jobs arrive when they are printed from the DocBox. Learn about workflow profiles on page 134) [191] Destination of DocBox jobs Chapter 8 - Document printing...

  • Page 162: Find, Select, And Filter Jobs

    Find, select, and filter jobs Find, select, and filter jobs There are three destinations where print jobs can arrive: the list of waiting jobs, the list of scheduled jobs, or in one of the DocBox folders. When there are many jobs in the same location, you can use the select, filter and search functions to find the jobs you want.
  • Page 163 Find, select, and filter jobs [193] Jobs in the print queue The jobs show information about: • [Job]: job name and sender name. • [Pages]: number of source file pages. • [Sets]: number of sets. • [Submitted]: date and time of job submission. •...
  • Page 164 Find, select, and filter jobs [195] Selection options for waiting jobs [196] Job label as selection option Selection options Description Scheduled jobs / DocBox Waiting jobs / Printed jobs [All jobs] Select all jobs [Jobs with loaded me- Select the jobs that dia] have media assigned to a paper tray.
  • Page 165 Find, select, and filter jobs [197] Filter options for waiting jobs [198] Select media to filter jobs Filter options Description [Used media] Show only jobs that use certain media. [Output tray] Show only jobs that use a certain output tray. [Loaded media] Show only jobs that use media that are assigned to paper trays.

  • Page 166: Move Jobs To Another Location

    Move jobs to another location Move jobs to another location The destination of a print job is defined during the job preparation. After arrival, you can decide to move one or more jobs to another location. For example, because you want to print a job later or want to store a job.
  • Page 167 Move jobs to another location Function Scheduled Waiting jobs DocBox Printed jobs jobs [Copy to waiting jobs] [Copy to DocBox] Forward a job to another printer When there are remote printers configured in the Settings Editor, you can forward jobs to these printers.

  • Page 168: Combine Jobs

    Combine jobs Combine jobs To increase the print productivity, you can combine several waiting jobs or DocBox jobs into a single job. You can change some properties of the combined job and the job order. The original jobs are no longer visible in the location. However, you can always recover the original jobs with the [Split] function.
  • Page 169 Combine jobs Combine DocBox jobs 1. Go to a DocBox folder. Find, select, and filter jobs on 2. Tap the jobs, or use an option from the [Select] menu. ( page 162) [208] Combine DocBox jobs 3. Touch [Build]. 4. If required, you can change the job name, the job order, and other properties. [209] Properties of combined DocBox jobs 5.

  • Page 170: Delete Print Jobs

    Delete print jobs Delete print jobs You can remove print jobs before or after they are printed. For security reasons, the system administrator can enable the E-shredding option. E-shredding overwrites the deleted job data and prevents the data recovery of a removed job. When the control panel shows the printed jobs, you can reprint jobs.

  • Page 171: Duplicate A Job

    Duplicate a job Duplicate a job When you want to use different print settings for the same source file, you can duplicate a job. [212] Duplicate jobs Function Scheduled Waiting jobs DocBox Printed jobs jobs [Duplicate] 1. Go to the destination of the jobs. Find, select, and filter jobs on 2.

  • Page 172: Create A Variable Data Job

    Create a variable data job Create a variable data job What is a variable data job Variable data printing is used for direct marketing, advertising, and personalized letters. PRISMAprepare and other document authoring tools allow for building personalized documents. Variable data, for example names and addresses, are merged with fixed elements and saved as multi-record documents Olaf NR.
  • Page 173 Create a variable data job [215] Change job type 4. Specify the structure of the job. [216] Variable data print job 5. Touch [OK], and again [OK] to start the conversion. icon indicates the new variable data job. Chapter 8 - Document printing...

  • Page 174: Create A Note For The Operator

    Create a note for the operator Create a note for the operator You can create a note for the operator on several locations. A job that has a note for the operator has the following symbol. 1. Touch the job. 2.

  • Page 175: Make Changes To The Job

    Make changes to the job Make changes to the job Explore the realistic preview The [Edit job] dialog provides the job properties and a realistic preview of the document. When a job is ready to print, you want to be sure that the set job properties guarantee the print quality you require.
  • Page 176 Explore the realistic preview 2. Touch to go to the document view. The document view shows two opposite pages. 3. Touch to display the scroll bar. Use the scroll bar or swipe to go to another page in the same view. 4.
  • Page 177 Explore the realistic preview Pixel-precise preview Explore the pixel-precise preview on Continue with the tour to explore the pixel-precise preview. ( page 178) Chapter 8 - Document printing...

  • Page 178: Explore The Pixel-Precise Preview

    Explore the pixel-precise preview Explore the pixel-precise preview The [Adjust image] tile of the job properties provides the pixel-precise preview. When a job is ready to print, you want to be sure that the set job properties guarantee the print quality you require.
  • Page 179 Explore the pixel-precise preview Before you begin [218] Edit job 1. Select a two-sided color job in the list of waiting jobs and . 2. Press [Edit]. 3. Press [Adjust image]. Tour to explore the pixel-precise preview 1. Browse the document. •...
  • Page 180 Explore the pixel-precise preview • Use the zoom bar to zoom in or out. • Touch to hide the zoom bar again. • You can swipe the page to find the area you need. 3. Touch the color picker tool •...
  • Page 181 Explore the pixel-precise preview 5. Touch to show the CMYK tone curve editor. The [Basic mode] allows for simple CMYK editing with sliders for quick and easy adjustments. • Select the page you want to edit. When you select multiple pages, the last page of the selection is shown.
  • Page 182 Explore the pixel-precise preview • Press [Load]. The list of presets contains standard and custom presets. You can also use a standard preset as a starting point to create new presets. • Select one of the standard presets. • Press [Done]. •...
  • Page 183 Explore the pixel-precise preview • Touch and move the [Contrast] slider. • Touch [Reset] to restore the contrast. 9. Plot anchor points in [Advanced mode]. • Select [Advanced mode]. The tone curve of one of the CMYK channel colors can be selected.
  • Page 184 Explore the pixel-precise preview The [Input] field represents the input density (%) of the selected anchor point on the curve. The [Output] field represents the output density (%) of the selected anchor point on the curve. • Use the + and - buttons of the [Input] and [Output] fields to change the position of an anchor point .
  • Page 185 Explore the pixel-precise preview • Select [Y]. • Touch a clipping control and drag it to a new position. • Touch the other clipping control and drag it to a new position. • Select [C] and move the clipping controls. •...

  • Page 186: Explore The Layout Functions

    Explore the layout functions Explore the layout functions The [Edit job] dialog provides the job properties and a realistic preview of the document. When a job is ready to print, you want to be sure that the set job properties guarantee the print quality you require.
  • Page 187 Explore the layout functions Tour to explore the layout functions 1. The [Booklet] imposition realizes a docu- 2. Use [Fit to page] to fit the source page size ment that can be half-folded to create a book- to the document size. let.
  • Page 188 Explore the layout functions 5. The [Zoom] function creates more or less 5. The [Align] function aligns the source file white space around the source file page or pa- page or pages on the document page accord- ges. ing to the required position. This position re- flects the direction when you hold the docu- ment in a readable way.
  • Page 189 Explore the layout functions 8. The [Margin erase] function erases the mar- gin of the source file page or pages. Chapter 8 - Document printing...

  • Page 190: Edit A Job

    Edit a job Edit a job Change job name, number of sets or print range Go to the job properties [219] Edit job 1. Touch the job. 2. Press [Edit]. Change number of sets 1. In the [Job] settings, touch [Number of sets]. [220] Separator sheets 2.
  • Page 191 Change job name, number of sets or print range Change the print range The print range indicates which source file pages are printed. For variable data jobs, you can select the records you want to print. 1. In the [Job] settings, touch [Print range]. 2.
  • Page 192 Change job name, number of sets or print range 2. Enter a new name of the job. 3. Touch [OK]. Chapter 8 - Document printing...

  • Page 193: Change Use Of Special Pages

    Change use of special pages Change use of special pages What are special pages Banner pages, trailer pages and separator sheets are special pages that can be added to a job. [221] Banner pages (1), a trailer pages (2) and separator sheets (3) •...
  • Page 194 Change use of special pages Change the use of separator sheets [223] Separator sheets Indicate if you want to add separator sheets to distinguish individual sets in the job output. Media of the separator sheets are defined in the Settings Editor. 1.

  • Page 195: Check First Set

    Check first set Check first set Especially for jobs with many sets, it is useful to check the first printed set, before all remaining sets are printed in one run. The [Check first set] function is available when the active workflow profile allows this function. Choose For that, the [Check first set] attribute of the workflow profile has to be set to [As in job].

  • Page 196: Change Job Media And Job Media Print Modes

    Change job media and job media print modes Change job media and job media print modes The job can change the media and media print mode of the job. The media and media print modes of the document are defined during the job preparation. [225] Edit job Go to the job properties 1.
  • Page 197 Change job media and job media print modes [227] Select media in basic and advanced mode 3. Touch [OK]. Change the cover media Use the Cover function on page Media for covers can be changed in the [Cover] function. ( 199) Change the media print mode When the job has covers, you can select the media print mode of the body pages, the front cover...

  • Page 198: Change The Layout Of The Job

    Change the layout of the job Change the layout of the job The print layout is defined during the job preparation. When jobs arrive in the list of waiting jobs, Explore the realistic preview on there is time to check the layout in the realistic preview. ( page 175) [229] Job properties...
  • Page 199 Change the layout of the job [230] Adjust the binding edge 1. Press [Binding edge]. 2. The document orientation ([Orientation]) is the orientation when you hold the document pages to present it in a readable way. The document orientation ([Orientation] is taken over from the source file and cannot be changed.
  • Page 200 Change the layout of the job [232] Select the Multiple-up imposition 1. Touch [Layout]. 2. Use the [Multiple up] drop-down list to select the number of pages that compose the imposition on a document page. 3. Touch [OK]. Use the [Booklet] function The [Booklet] imposition realizes a document that can be half-folded to create a booklet.
  • Page 201 Change the layout of the job [234] Select the Same-up imposition 1. Touch [Layout]. 2. Use the [Same up] drop-down list to select the number of source file pages that are printed on a document page. 3. Touch [OK]. Use the [Zoom] function You can scale the source file page or pages according to the document page size, or set the zoom factor manually (25% - 400%).
  • Page 202 Change the layout of the job [236] Select the alignment 1. Touch [Align]. 2. Touch one of the available alignment positions. 3. Touch [OK]. Use the [Margin shift] function The [Shift] function shifts the source file page or pages on the document page to create more space at the binding edges.
  • Page 203 Change the layout of the job NOTE To define the [Back side ({0})], touch the chain symbol to unlock the front side and back side fields. 4. Touch [OK]. Use the [Image shift] function The [Image shift] function shifts the entire imposition that is composed of the source file page or pages.
  • Page 204 Change the layout of the job [239] Define Margin erase 1. Touch [Margin erase]. 2. Touch the sheet edge (top, bottom, left, right) where you want to erase the margin. 3. Touch the [Binding edge] field to enter a value or use the - and + buttons. 4.

  • Page 205: Change Print Quality Options For The Job

    Change print quality options for the job Change print quality options for the job The print quality settings are defined during the job preparation. When jobs arrive in the list of waiting jobs, there is time to check the print quality properties. The [Adjust image] tile gives access to the pixel-precise editor and the CMYK tone curve editor.
  • Page 206 Change print quality options for the job [242] Print quality properties 1. Use the [Color preset] to select one of the available color presets. [243] Adjust color preset 2. Touch [Edit color settings]. [244] Adjust color settings 3. Use the [Input profile] drop-down list to select one of the available DeviceCMYK or DeviceRGB input profiles.
  • Page 207 Change print quality options for the job [246] Adjust DeviceCMYK input profile [245] Adjust DeviceRGB input profile 4. Use the [Overruling] function to indicate if the RGB or CMYK embedded input profile and rendering intent must be overruled or not. [247] Overruling of embedded input profile or rendering intent •...
  • Page 208 Change print quality options for the job [249] Adjust printing in black and white or in color 9. Use the [PDF overprint simulation] function to make opaque objects look transparent. Underlying objects become visible. If this function is disabled, the colors on top will knock out all underlying colors.
  • Page 209 Change print quality options for the job Use the [Color bar] function Define a color bar on When you want to print a color bar, select one of the available color bars. ( page 289) 1. Use the [Color bar] drop-down list to select the required color bar. [252] Adjust the color bar 2.
  • Page 210 Change print quality options for the job Use the [Image smoothing] function [254] Use the quality adjustments functions 1. Open the [Quality adjustments] group. 2. Use the [Image smoothing] function to prevent unsmooth lines and image blocks in the document. This occurs when source objects have a lower resolution than the printer. The [Image smoothing] interpolation method only affects images below 300 dpi.
  • Page 211 Change print quality options for the job [256] Use a trapping preset 3. Touch [OK] to save the changes. Chapter 8 - Document printing...

  • Page 212: Change The Prints Delivery For The Job

    Change the prints delivery for the job Change the prints delivery for the job The prints delivery settings can be defined during the job preparation. When jobs arrive in the list of waiting jobs, there is time to check the prints delivery. [257] Edit job 1.
  • Page 213 Change the prints delivery for the job [259] Change the way of sorting 6. Use the [Offset stacking] to indicate if you want to apply offset stacking for each delivered set or per group of sets. [260] Change the way of stacking 7.
  • Page 214 Change the prints delivery for the job • [Header down LEF]: long-edge feed direction, header of printed document pages points to the front side of printer. • [Header down SEF]: short-edge feed direction, header of printed document pages points to the front side of printer.

  • Page 215: Print A Job

    Print a job Print a job This topic describes the functions to print one or more jobs from the control panel. Most functions are available in several job locations. Make a proof When you make a proof, the printer prints one set of the job. A proof print is an addition to the regular job.
  • Page 216 Print a job Print a job ticket You can read the job settings by printing a job ticket. The job ticket is printed in the printer language and shows the job properties. [267] Print job ticket [268] An example of a job ticket print Properties of The job ticket job is printed as soon as possible.
  • Page 217 Print a job Function Scheduled Waiting jobs DocBox Printed jobs jobs [Print now] Move to top Use the [Move to top] function to move a job to the first position of the list of scheduled jobs so that it is printed as soon as possible. [270] Move to top Function Scheduled...
  • Page 218 Print a job 1. Insert the USB drive into the USB port at the left-hand side of the control panel. 2. Touch [Jobs]→[USB]. 3. Touch the directory that stores the files, if needed. 4. Select one or more jobs. 5. Touch [Print] to move the job to the list of scheduled jobs. Touch [Save] to move the job to the list of waiting jobs.

  • Page 219: Stop Printing

    Stop printing Stop printing There are three different methods to stop or delay the printing of jobs. [272] Stop button Stop after a completed set or record Stop printing after the next set or next record has been completed. 1. Press the [Stop] button once. The printer stops when the print buffer is empty and a complete set or record has been printed.
  • Page 220 Stop printing Stop after job Stop printing after a certain job has been completed. 1. Select the job in the list of scheduled jobs. 2. Touch [Stop after job]. Stop to load a transaction setup Load You can also use the [Stop] button to load a transaction setup in transaction printing mode. ( a transaction setup on page 114) Chapter 8 - Document printing...

  • Page 221: Print What You Expect

    Chapter 9 Print what you expect...

  • Page 222: Media Family Calibration

    Media family calibration Media family calibration Learn about media family calibration What is media family calibration The output profile calculates the CMYK values that the printer must print to reproduce source Learn about input and output profiles on page colors on a certain media substrate. ( 294) The actual ink amounts to print these CMYK values, however, slightly change over time.
  • Page 223 Learn about media family calibration Calibration status of media family and media print mode calibrated when all media print modes of this media family have A media family gets the status been calibrated. The media family calibration dialog shows which media families and media print modes need calibration.
  • Page 224 Learn about media family calibration During the media family calibration the printer calculates the differences between the measured values and the target (output profile) values for each of the C, M, Y, and K channel colors. At the time the output profile was created, the CMYK values calculated by the output profile exactly matched the measured Lab values of the colors that were printed on the media.

  • Page 225: Calibrate A Media Family

    Calibrate a media family Calibrate a media family The goal of the media family calibration is to ensure that the color reproduction of media remains Learn about media family calibration on page stable over time. ( 222) Media families and media print modes that need calibration have this symbol: [280] Media family calibration 1.
  • Page 226 Calibrate a media family 6. Take the set of printed charts and remove the first charts that are not marked with a number. One sheet is printed on the front side, the other sheet is printed on the back side. [282] Calibration chart Measure charts with the i1 spectrophotometer on page 7.

  • Page 227: Read Media Family Calibration Feedback

    Read media family calibration feedback Read media family calibration feedback After you measured the charts, the feedback window shows the results of the performed procedure. Depending on the feedback information, you can decide to save the new calibration curves or discard the results. ( Calibrate a media family on page 225) Comparison with previous calibration...
  • Page 228 Read media family calibration feedback The summary and detailed views show the differences, the measured values, and the reference color values for both sides. NOTE For the first calibration of the media print mode there are no reference values and thus no feedback information.
  • Page 229 Read media family calibration feedback 2. Touch the > and < symbols to scroll through the calibration charts. Use the zoom symbol to zoom in or out. Examine patches of the heatmap In this example, the heatmap shows green, orange, and red patches. The patch contains more details about the measured colors, the reference colors, and the color differences.
  • Page 230 Read media family calibration feedback [284] Exceeding tolerance level Chapter 9 - Print what you expect...

  • Page 231: Read Tolerance Levels For The Media Family Calibration

    Read tolerance levels for the media family calibration Read tolerance levels for the media family calibration The evaluation of media family calibration results are based on set tolerance levels. Color evaluation methods use metrics to decide if printed colors are close enough to their Learn about color differences on page Overview of color validation reference colors or not.
  • Page 232 Read tolerance levels for the media family calibration 3. Click [Edit]. Chapter 9 - Print what you expect...

  • Page 233: Adjust Cmyk Tone Curves Of A Media Print Mode

    Adjust CMYK tone curves of a media print mode Adjust CMYK tone curves of a media print mode The VarioPrint i-series color management and the print engine ensure an optimal color Calibrate a media family on page reproduction on the media you use. ( 225) However, sometimes you want to adjust the CMYK tone curves of a media print mode.
  • Page 234 Adjust CMYK tone curves of a media print mode 5. Adjust the CMYK tone curves. Explore the pixel-precise preview on page 178 Read how to use the pixel-precise preview and the functions to adjust the CMYK tone curves. 6. Touch [OK]. Chapter 9 - Print what you expect...

  • Page 235: Restore Calibration Curves

    Restore calibration curves Restore calibration curves It can be necessary to restore the calibration curves. For example, when you notice that the Learn about media family previous calibration has been performed on incorrect media. ( calibration on page 222) 1. Open the Settings Editor and go to: [Media]→[Media families]. 2.

  • Page 236: Measure Charts With The I1 Spectrophotometer

    Measure charts with the i1 spectrophotometer Measure charts with the i1 spectrophotometer For the media family calibration and the color validation you use an i1 spectrophotometer to measure charts. You can use the ruler that belongs to the equipment to prevent that you touch the ink layer on the chart with the i1 spectrophotometer.

  • Page 237: Print Quality Control

    Print quality control Print quality control Learn about printhead maintenance Well maintained printheads are important for keeping the image quality high and keeping the printer productive. Moreover, printheads are expensive to replace. The print module keeps the printheads in optimal condition before, during, and after printing. The printhead unit moves to the rear of the print module when maintenance procedures are scheduled or when the printer is idle.
  • Page 238 Learn about printhead maintenance [292] Purging of a nozzle (A) and wiping the drops with dry tissue (B) A role of tissue ribbon is enclosed in a cassette. For each ink two cassettes (labeled L and R) are available to clean the nozzle plate. When the tissue ribbons in the L or R cassettes are used up, the cassettes must be replaced.
  • Page 239 Learn about printhead maintenance C. Between print runs. A purge & dry tissue wipe is needed when a new print run starts, more than 40 seconds later than the previous print run ended. When there are jobs to print the printhead unit goes to the maintenance position.

  • Page 240: Printhead Maintenance To Repair Extensive Nozzle Failures

    Printhead maintenance to repair extensive nozzle failures Printhead maintenance to repair extensive nozzle failures The printer can perform the printhead maintenance procedure to repair nozzle failures which Learn about quality control sheets on cannot be solved by nozzle failure compensation. ( page 241) 1.

  • Page 241: Learn About Quality Control Sheets

    Learn about quality control sheets Learn about quality control sheets What are quality control sheets Quality control sheets are extra sheets that are used during a job. The printer uses quality control sheets for nozzle failure detection and for nozzle cleaning. Media of quality control sheets The media definition includes a parameter that indicates if media and media sides are suitable for Define media optimization parameters on page...
  • Page 242 Learn about quality control sheets [298] Productive nozzles (A) and the production of an extra large ink drop when a nozzle fails to eject ink (B) In case the number of failing nozzles exceeds a certain threshold value, the nozzle failure compensation is not sufficient to safeguard the print quality.

  • Page 243: Define Usage Of Quality Control Sheets

    Define usage of quality control sheets Define usage of quality control sheets Learn about quality control Quality control sheets are extra sheets that are printed during a job. ( sheets on page 241) Configure nozzle failure detection 1. Open the Settings Editor and go to: [Preferences]→[System settings]→[Nozzle failure detection].
  • Page 244 Define usage of quality control sheets [302] Media optimization parameters If the printer prints a job on media that cannot be used for quality control sheets, alternative media can be used to print and read the nozzle failure detection information. This means that you load both job media and alternative media, so that nozzle failure detection sheets remain part of the quality control.

  • Page 245: Make Intermediate Check Prints

    Make intermediate check prints Make intermediate check prints What are intermediate check prints An intermediate check print is a print sample of a job sheet. Intermediate check prints are printed according to a set interval and arrive in a tray that collects the system prints. In addition, you can use the intermediate check print function on the control panel to check a single sheet of the current job.

  • Page 246: Define Usage Of Intermediate Check Prints

    Define usage of intermediate check prints Define usage of intermediate check prints An intermediate check print is a print sample of a job sheet. You can use these sheets to check the print quality. Intermediate check prints are printed according to a set interval, but can also be printed on demand.

  • Page 247: Color Validation

    Color validation Color validation Learn about color validation tests VarioPrint i-series color validation tests and the output profile accuracy test provide you an objective method to evaluate the color reproduction for the media and media print modes you use. The reference printing conditions of the default color validation tests are already defined, as well as their quality levels and tolerance levels.
  • Page 248 Learn about color validation tests Digital print certification The available pre-defined, industry standard color validation tests meet one or the following digital print certifications. 1. DPC: IDEAlliance Digital Press Certification 2. VPC: FOGRA Validation Printing System Certification 3. PSD: FOGRA Print Standard Digital Certification Evaluation methods The traditional side-by-side evaluation method checks if printed colors exactly match the colors of the reference printing condition.
  • Page 249 Learn about color validation tests Example Description An RGB overprint patch is a patch where equal amounts of two inks are used: Y and M, Y and C, C and M. The inks are printed in one patch to produce R, G, or B. A K-only patch is a patch where only K ink is printed.

  • Page 250: Learn About Color Differences

    Learn about color differences Learn about color differences What are color differences When you have printed a specific source color or a spot color, it can be required to check if the reproduced color is the close enough to the source color. Or, you maybe want to know how accurate the printer reproduces colors on specific media in general.
  • Page 251 Learn about color differences • a* - the red - green component, where +a* indicates red, and -a* indicates green, ranges from -128 to +127. • b* - the yellow - blue component, where +b* indicates yellow, and -b* indicates blue, ranges from -128 to +127.
  • Page 252 Learn about color differences ∆E [314] Difference between two colors in CIELAB The following Delta E range illustrates how the values of Delta E may be interpreted for a specific color evaluation. • Delta E smaller than 1 is not visible by the human eye. •...
  • Page 253 Learn about color differences ∆L △Ch (Delta Ch) Close to the gray axis, in other words for near neutral colors, the usage of Delta H is not appropriate enough. Instead, the usage of the △Ch (Delta Ch) metric is proposed. The metric that is called chromaticness can reveal gray balance errors.

  • Page 254: Perform A Color Validation Test

    Perform a color validation test Perform a color validation test VarioPrint i-series color validation tests provide an objective method to check the color Learn about color validation tests on reproduction of the printer on the selected media. ( page 247) You perform the test with media that have been calibrated just before the color validation.
  • Page 255 Perform a color validation test [318] Perform the color validation test 6. Use the [Media print mode] function to select the media print mode. 7. Use the [Color validation test] function to select a validation test . [319] Print target 8.
  • Page 256 Perform a color validation test [320] Measure target Measure charts with the i1 7. Measure the charts with the i1 spectrophotometer. (See spectrophotometer on page 236) 8. Finish the procedure. Read color validation results on page 9. Read the feedback information. ( 259) Chapter 9 - Print what you expect...

  • Page 257: Create A Color Validation Test

    Create a color validation test Create a color validation test You can create your own VarioPrint i-series color validation test to check the color reproduction Learn about color on selected media. Then you create a custom test printing condition. ( validation tests on page 247, Learn about color differences on page...

  • Page 258: Read Tolerance Levels For Color Validation Tests

    Read tolerance levels for color validation tests Read tolerance levels for color validation tests Evaluation tests can have different quality levels based on different tolerance levels for the same Tolerance levels on page metric. ( 249) You cannot change the metrics and tolerance levels for the pre-defined FOGRA and IDEAlliance color validation tests.

  • Page 259: Read Color Validation Results

    Read color validation results Read color validation results The color validation test results show if the color reproduction of the printer is according to the selected digital print certifications or the custom defined printing condition. Color validation tests have metrics and tolerance levels to evaluate if printed colors are close enough to their reference colors or not.
  • Page 260 Read color validation results [328] Download report of color validation test. Chapter 9 - Print what you expect...

  • Page 261: Manage Media Definitions

    Chapter 10 Manage media definitions...

  • Page 262: Learn About Media Substrates

    Learn about media substrates Learn about media substrates The VarioPrint i-series can handle a range of media substrates. Offset uncoated Inkjet treated Offset coated Inkjet coated Offset uncoated paper Inkjet treated paper is Offset coated paper is Inkjet coated paper is is commodity paper for printers that use for conventional off-...
  • Page 263 Learn about media substrates Pre-punched Pre-punched media can be used for man- uals, handbooks, and other documents that are bound at a later moment. Chapter 10 - Manage media definitions...

  • Page 264: Learn About Media Elements

    Learn about media elements Learn about media elements What is a media definition A media definition is a set of related media elements that belongs to a media entry in the media catalog. The VarioPrint i-series has three types of media elements: media, media families, and media print modes.
  • Page 265 Learn about media elements Media print modes A media family has one or two factory defined media print modes: • HighSpeed: media print mode for high print speed. This media print mode is not available for coated media families. • SpecialtySpeed: media print mode for lower print speed. This media print mode is available for all media families.
  • Page 266 Learn about media elements Media packs When the Service organization has prepared a new media definition, you receive a media pack. A media pack is a ZIP file that contains one or more media definitions and the corresponding output profiles. You import a media pack from the media catalog. Attributes and parameters of media elements Media elements imported from a media pack have factory defined attributes and parameters.

  • Page 267: Define Media Elements

    Define media elements Define media elements Import a media pack A media pack is a ZIP file that contains one or more media definitions. The printer only imports Learn about media elements on media elements and output profiles that are not available. ( page 264) 1.

  • Page 268: Define Media In The Media Catalog

    Define media in the media catalog Define media in the media catalog Learn about media The media catalog lists all media entries that can you can select for jobs. ( elements on page 264) [336] [Media catalog] menu Go to the media catalog 1.
  • Page 269 Define media in the media catalog [340] Copy media 4. Click [OK]. Edit media settings 1. Select a media entry. 2. Click [Edit]. [341] [Media catalog] menu Define the media settings on page 3. Change one or more media settings. ( 270) NOTE Not all fields are editable.
  • Page 270 Define media in the media catalog [342] Edit media settings 4. Click [OK]. Delete media You cannot delete media that are used in job definitions. 1. Select one or more media entries. 2. Click [Delete]. [343] [Media catalog] menu Define the media settings The table below describes the settings that you can change.
  • Page 271 Define media in the media catalog Media settings Description [Cycle length] Enter the cycle length in case the media are tab paper. [Punch holes] Enter the number of holes in case the media are pre-punched. [Standard color] Select the color of the media. Select the [Custom] to define the color yourself.

  • Page 272: Define Media Optimization Parameters

    Define media optimization parameters Define media optimization parameters Learn Media optimization parameters determine how the printer handles and prints the media. ( about quality control sheets on page 241) Most media optimization parameters are not editable. This topic describes how you can adjust the [General parameters] settings.
  • Page 273 Define media optimization parameters Media optimization param‐ Description eters • [Enable printing on front Indicate if the front and back sides of the media are suitable for side] printing. When you disable one or both functions, you prevent • [Enable printing on back that ink drops come one or both sides of the media sheet.

  • Page 274: Define A Media Family

    Define a media family Define a media family Learn about media elements on All media entries of the media catalog belong to a media family. ( page 264) A media family has one or more media print modes that are also listed in the list of media Define a media print mode on page families.
  • Page 275 Define a media family 4. Click [OK]. Edit a media family 1. Select a media family. 2. Click [Edit]. [354] [Media families] menu Define media family settings on page 3. Change one or more media family settings. ( 275) [355] Media family settings 4.
  • Page 276 Define a media family Media family settings Description [Calibration timer (days)] Define the calibration interval. The interval can be set between 0 and 365 days, in steps of 1 day. Enter 0 to disable the calibration Learn about media family calibration timer of the media family.

  • Page 277: Define A Media Print Mode

    Define a media print mode Define a media print mode A media print mode defines how the printer must print the media. Media print modes allow to print the same media with a different sets of print parameters. It depends on the job which media print mode the operator selects.
  • Page 278 Define a media print mode [360] Copy a media print mode 4. You can read the values of the media print mode parameters. NOTE The Tunable Inkjet Performance license allows for adjusting a set of tunable media print parameters. 5. Click [OK]. NOTE Calibrate a media family Ensure you calibrate the media print mode before you use it in a job.
  • Page 279 Define a media print mode [362] Edit a factory default media print mode 4. You can read the values of the media print mode parameters. NOTE The Tunable Inkjet Performance license allows for adjusting a set of tunable media print parameters. 5.
  • Page 280 Define a media print mode [364] Edit a custom media print mode 4. You can read the values of the media print mode parameters. 5. Click [OK]. NOTE Calibrate a media Ensure you calibrate a changed media print mode before you use it in a job. ( family on page 225) Delete media print modes...
  • Page 281 Define a media print mode [Calibration information] Description [Restore the default cali- The media print mode defines what output profile, CMYK calibra- Learn about media bration curve] tion curves and CMYK tone curves are used. ( elements on page 264) This function is only available if a media family calibration for the media print mode has been performed.

  • Page 282: Adjust The Minimum Print Gap

    Adjust the minimum print gap Adjust the minimum print gap What is the minimum print gap The printheads can move up and down in vertical direction above the print belt. The minimum print gap is the distance between the top of the sheet and the nozzle plate. Print gap [367] Print gap Increasing or decreasing the minimum print gap parameter...
  • Page 283 Adjust the minimum print gap [370] Minimum print gap parameter 4. Use the [Minimum print gap] function to adjust the minimum print gap. NOTE You can only enter values that are between two pre-set value boundaries. 5. Click [OK]. Chapter 10 - Manage media definitions...
  • Page 284 Adjust the minimum print gap Chapter 10 - Manage media definitions...

  • Page 285: Manage Color Definitions

    Chapter 11 Manage color definitions...

  • Page 286: Define Color Defaults

    Define color defaults Define color defaults Go to the color defaults Open the Settings Editor and go to: [Color]→[Color defaults]. [371] [Color defaults] tab Define the color defaults [372] Color defaults 1. Use the [Print black & white] function to indicate how jobs are printed: in black and white or in color.
  • Page 287 Define color defaults handle PDF/X compliant PDF source files. Then, the output intent overrules the DeviceCMYK rendering intent and DeviceCMYK input profile. 8. Use the [Overprinting black] function to force the printer to print pure black text and graphics over the background color. The [Overprinting black] prevents that white lines appear around black characters and graphics.

  • Page 288: Define An Information Bar

    Define an information bar Define an information bar An information bar contains printer and job information. It can be selected as a job property. The bar is printed in the trim area of a page. Duplex sheets get the bar at both sides and simplex sheets at the print side.

  • Page 289: Define A Color Bar

    Define a color bar Define a color bar Color bars are color control strips to verify the color quality of the prints. The color bar uses the print settings of the media definition. The bar is printed in the trim area of a page. Duplex sheets get the bar at both sides and simplex sheets at the print side.
  • Page 290 Define a color bar [380] [Color bars] menu 2. Select the EPS file that represents the color bar. 3. Click [OK]. Export a color bar You can only export previously imported color bars. 1. Select the color bar. 2. Click [Export]. 3.

  • Page 291: Define A Color Preset

    Define a color preset Define a color preset A color preset consists of a series of pre-defined color settings. Color presets help to easily select the correct color settings during the job definition. The list of color presets is available in PRISMAprepare, automated workflows, Remote Manager, the remote printer driver and on the control panel.
  • Page 292 Define a color preset Color preset attributes Description [DeviceRGB input profile] Use this function to select the DeviceRGB input profile. [DeviceRGB rendering in- Use this function to select the DeviceRGB rendering intent. tent] [Overruling for RGB] Use this function to indicate if the embedded DeviceRGB input profile is overruled or not.
  • Page 293 Define a color preset Color preset attributes Description [Black Point Compensation Use this function applies to the relative colorimetric rendering in- (BPC)] tent. Details in dark regions of the document can be lost with the standard color conversion. The Black Point Compensation aligns the darkest level of black achievable (black point) of the source to the darkest level of black achievable on the printer.

  • Page 294: Input Profiles And Output Profiles

    Input profiles and output profiles Input profiles and output profiles Learn about input and output profiles Color spaces Devices as monitors and printers create colors in a different way. Because of these differences colors are described differently for each device. The different methods of describing colors are called color spaces.
  • Page 295 Learn about input and output profiles [383] [Input profiles] menu Source files can also contain input profiles. If required, you can decide to overrule these embedded profiles or not. Create Input profiles can be used as simulation profile to create a composite color profile. ( composite output profiles on page 301) Output profiles on the printer...
  • Page 296 Learn about input and output profiles You can apply device simulation with or without a DeviceLink profile. A DeviceLink profile represents the printer you want to simulate. The DeviceLink profile functions as the input profile, the output profile and one or more rendering intents. Separation The process where the output profile converts the colors from the Profile Connection Space (PCS) color space into the CMYK color space is called separation.

  • Page 297: Define An Input Profile

    Define an input profile Define an input profile Input and output profiles are used to link the CMYK or RGB input color spaces to the color space of the printer. The input profile is used to convert the source color space to the universal Profile Connection Space (PCS) color space.
  • Page 298 Define an input profile [389] Import input profile 5. Click [OK]. Export an input profile 1. Click [Export]. 2. Browse to the location to store the ICC file. 3. Click [OK]. Chapter 11 - Manage color definitions...

  • Page 299: Define An Output Profile

    Define an output profile Define an output profile Learn about input and output profiles Output profiles are elements that are part of media packs. ( on page 294) Define a media print All media print modes have a link to one of the available output profiles. ( mode on page 277) Go to the output profiles...
  • Page 300 Define an output profile [392] Import output profile 3. The [Import output profile] dialog box appears. [393] Import output profile When the [Simulation profile] field has the [None] value, device simulation is turned off and a Create normal output profile is created. Otherwise, select one of the available profiles. ( composite output profiles on page 301) 4.

  • Page 301: Create Composite Output Profiles

    Create composite output profiles Create composite output profiles You can create a composite output profiles to simulate the color reproduction of another printer Learn about input and output profiles on page or printing condition. ( 294) When other printers or printing conditions are simulated, a third color space, next to the input color space and the printer's color space, is defined: the simulated color space.
  • Page 302 Create composite output profiles [396] [Output profiles] tab 2. Click [Import]. 3. Browse to the storage location of the output profile (ICC file). [397] Import an output profile 4. The [Import output profile] dialog box appears. [398] Import an output profile 5.

  • Page 303: Define Color Mapping

    Define color mapping Define color mapping A color mapping is a function that maps (transforms) a source color value into a new target color value. Color mapping is applied during the job RIP process. Color mapping also applies to color bars and information bars.
  • Page 304 Define color mapping [400] Add color mapping Define the color mapping attributes on page 3. Define the color mapping attributes. ( 305) 4. Click [OK]. Edit color mapping [401] Edit color mapping 1. Select a color mapping. 2. Click [Edit]. Define the color mapping attributes on page 3.
  • Page 305 Define color mapping Define the color mapping attributes Attributes Description [Source color type] Use the [Source type] drop-down list to select the type of source color. • RGB color value • CMYK color value • Spot color of a spot color library •...
  • Page 306 Define color mapping Spot color Description 'All' A mapping to this (exactly spelled) spot color name prints all primary col- rich black . ors instead of the source color. This results in a 'None' A mapping of this (exactly spelled) spot color name makes objects invisi- ble on the print.

  • Page 307: Spot Color Management

    Spot color management Spot color management Learn about spot colors [402] Spot color definitions Spot colors realize a consistent color and are often used in logos and house style colors. The printer provides a spot color editor and a set of pre-defined spot color libraries, such as PANTONE libraries and HKS libraries.
  • Page 308 Learn about spot colors • Pre-defined spot color libraries, with pre-defined spot color definitions. • Custom spot color libraries, with spot color definitions that have been created on the control panel or in the Settings Editor. • Imported spot color libraries (Named color profiles), with spot color definitions stored in an ICC profile.

  • Page 309: Create A Spot Color From The Control Panel

    Create a spot color from the control panel Create a spot color from the control panel Learn Spot colors realize a consistent color and are often used in logos and house style colors. ( about spot colors on page 307) Below you find the instructions for creating a spot color from the control panel.
  • Page 310 Create a spot color from the control panel [405] Add a spot color 5. Use the [Tint] function to enter a tint value (%). 6. Enter the CMYK value. Read the spot color patch chart on 7. To evaluate the CMYK values, print a patch chart. ( page 316) Use the [Step size] function to define the degree of patch variations.
  • Page 311 Create a spot color from the control panel [406] Measure Lab value 3. Press [Start]. 4. Follow the wizard instructions how to measure the color. IMPORTANT If ΔE is larger than 3, you are advised to measure the spot color again. Read the spot color patch chart on 5.
  • Page 312 Create a spot color from the control panel The [Old] color patch is the color rendering of the Lab definition. The [New] color patch shows the rendering of the CMYK values for the media family. 5. Touch [OK]. Chapter 11 - Manage color definitions...

  • Page 313: Create A Spot Color In Settings Editor

    Create a spot color in Settings Editor Create a spot color in Settings Editor Learn Spot colors realize a consistent color and are often used in logos and house style colors. ( about spot colors on page 307) Below you find the instructions for creating a spot color in the Settings Editor. Go to the spot colors Open the Settings Editor and go to: [Color]→[Spot colors].
  • Page 314 Create a spot color in Settings Editor [410] Lab values of a spot color 3. Click [Add CMYK value]. The CMYK spot color value is displayed for the default media family and 100% tint value. [411] CMYK values of a spot color 4.
  • Page 315 Create a spot color in Settings Editor [412] Edit a spot color 6. Use the [Tint] function to enter a tint value (%). 7. To evaluate the CMYK values, print a patch chart. Use the [Step size] function to define the degree of patch variations. This step size is from 1 to 8.

  • Page 316: Read The Spot Color Patch Chart

    Read the spot color patch chart Read the spot color patch chart When you add or edit a spot color definition, you can print a patch chart to check how the set CMYK values and small variations on these values appear on media. The printed colors and the CMYK values of the patches give the best visual match to fine-tune the spot color for the given Create a spot color from the control panel on page Create a spot color in...
  • Page 317 Read the spot color patch chart Patches with red text When a CMYK value comes below 0% or above 100%, the value is clipped. This new CMYK value is printed in red text and the patch has a dotted line. Chapter 11 - Manage color definitions...

  • Page 318: Define A Spot Color Library

    Define a spot color library Define a spot color library The printer provides pre-defined spot color libraries, such as PANTONE libraries and HKS Learn about spot colors on page libraries. ( 307) The Settings Editor can store three types of spot color libraries: •...
  • Page 319 Define a spot color library [414] [Spot color libraries] menu 1. Click [Import]. 2. Select the ICC file that contains the named color profile. 3. Enter a name and description. 4. Click [OK]. Export a spot color library named spot color profiles ). You can only export a previously imported spot color library ( 1.

  • Page 320: Create A Trapping Preset

    Create a trapping preset Create a trapping preset When you notice white edges between color planes, you can add a trapping preset to your job. Use the trapping editor on the control panel to create a trapping preset. [415] Effect of use of a trapping preset Define the attributes of an automated To use a trapping preset in an automated workflow, see workflow on page...
  • Page 321 Create a trapping preset [417] Trapping preset editor 4. Click [Save as] to save the settings and enter a name for the preset. 5. Click [OK]. 6. Check the print results. Be aware that an edge can appear at locations where color planes overlap each other. Chapter 11 - Manage color definitions...
  • Page 322 Create a trapping preset Chapter 11 - Manage color definitions...

  • Page 323: Chapter 12 Save Energy

    Chapter 12 Save energy...

  • Page 324: Put Printer In Sleep Mode

    Put printer in sleep mode Put printer in sleep mode When you do not operate the printer, you can reduce the energy consumption with the sleep mode. The printer is using a very small amount of power in the sleep mode. The sleep mode is activated when you press the sleep button or when the sleep-mode timer expires.

  • Page 325: Shut Down The Printer

    Shut down the printer Shut down the printer When you do not operate the printer, you can reduce the energy consumption with the sleep Put printer in sleep mode on page mode. ( 324) You can also shut down the printer to further reduce the energy consumption. After the printer has been shut down the PRISMAsync controller, the control panel, the print engine, and the attached modules are switched off.

  • Page 326: Configure The Sleep Mode

    Configure the sleep mode Configure the sleep mode When you do not operate the printer, you can reduce the energy consumption with the sleep mode. The sleep mode is activated when you press the sleep button or when the sleep-mode timer expires.

  • Page 327: Configure The Energy Save Timers

    Configure the energy save timers Configure the energy save timers Use energy save timers to automatically shut down and awake the printer for the recurring periods that the printer is not productive, for example overnight or over the weekend. The timers ensure that you save energy and that the printer is ready when the first jobs are planned.
  • Page 328 Configure the energy save timers [428] Automatic shutdown time Chapter 12 - Save energy...

  • Page 329: Prepare Printer For A Long Shut-Down Period

    Prepare printer for a long shut-down period Prepare printer for a long shut-down period When the printer is in shut-down mode, the printer needs time to perform the automatic printhead maintenance and to warm up. The time the printer needs to warm up depends on the print room temperature.
  • Page 330 Prepare printer for a long shut-down period Chapter 12 - Save energy...

  • Page 331: Chapter 13 Maintain The Printer

    Chapter 13 Maintain the printer...

  • Page 332: Learn About Printer Maintenance

    Learn about printer maintenance Learn about printer maintenance VarioPrint i-series consumables Only use media that are part of the media catalog. These media are approved for use on the Media specifications on page VarioPrint i-series. ( 428) CAUTION Do not store media in places exposed to open flames, as this may cause the media to ignite, resulting in burns or a fire.
  • Page 333 VarioPrint i-Series MICR ink- MICR ink MSDS 1051 All related safety data sheets can be found on the website of Océ in the download section. Therefore, use the following link. "http://downloads.oce.com/ProductDownloads/Index/555" Other consumables Consumable Description VarioPrint i-Series Tissue Ribbons-B1 Tissue ribbon cleans the printheads on regular base.

  • Page 334: Ink, Colorgrip And Maintenance Liquid Supplies In The Printer

    Ink, ColorGrip and maintenance liquid supplies in the printer Ink, ColorGrip and maintenance liquid supplies in the printer The cyan, magenta, yellow and black ink containers are stored in the ink cabinet. This is also the storage location of process maintenance liquid (PML) and ColorGrip liquid. There are two types of ink cabinets: an ink cabinet with doors and an ink cabinet with drawers.
  • Page 335 Ink, ColorGrip and maintenance liquid supplies in the printer [431] [Supplies] overview Storage of inks, ColorGrip liquid, and process maintenance liquid (PML) Inks, ColorGrip liquid, and PML are stored in replaceable containers. The inks and liquids are pumped from the containers into buffers. From there, the printer uses what it needs for printing and maintenance processes.
  • Page 336 Ink, ColorGrip and maintenance liquid supplies in the printer [433] Storage of inks, ColorGrip, and PML in ink cabinet with drawers Description Replaceable containers of inks, ColorGrip and maintenance liquid. NOTE The ink cabinet with drawers also locates a container with liquid that will be refil- led by the Service organization.

  • Page 337: Replace Or Add Consumables

    Replace or add consumables Replace or add consumables Replace a container in the ink cabinet with doors There are two ink cabinet models. This topic describes the replacement of containers in the ink Replace a container in the ink cabinet with cabinet with doors.
  • Page 338 Replace a container in the ink cabinet with doors Procedure Action Open the doors of the ink cabinet. 1. Take out the empty container. The LEDs of containers that are empty are off. 2. Place the full container next to the empty container.
  • Page 339 Replace a container in the ink cabinet with doors Action Press the green button to confirm that you placed a full container. The LED blinks slowly for about 10 seconds while the RFID tag of the container is read. Then the LED remains on.

  • Page 340: Replace A Container In The Ink Cabinet With Drawers

    Replace a container in the ink cabinet with drawers Replace a container in the ink cabinet with drawers There are two ink cabinet models. This topic describes the replacement of containers in the ink Replace a container in the ink cabinet with cabinet with drawers.
  • Page 341 Replace a container in the ink cabinet with drawers Action The LEDs of containers that are empty are off. Press the connector of the supply tube of the empty container and disconnect the tube. Take out the empty container and place the empty container next to the full container. Unscrew, swap, and fasten the caps of both con- tainers.
  • Page 342 Replace a container in the ink cabinet with drawers After you finish The container package contains a sticker. Use this sticker on an empty ink container to reuse as a waste container. Place the sticker over the present sticker. Chapter 13 - Maintain the printer...

  • Page 343: Replace The Cmyk Ink Waste Container

    Replace the CMYK ink waste container Replace the CMYK ink waste container The dashboard indicates when you must prepare the replacement of a full ink waste container. Filling levels of supplies and waste on page 443) The CMYK ink waste container is full. The CMYK ink waste container is full and the buffer is nearly full.
  • Page 344 Replace the CMYK ink waste container Action Press the connector of the full container and dis- connect the supply tube from the cap. NOTE The supply tube can drip liquid. Use cleaning cloths to clean the tube. Take out the full container. Unscrew the caps of the full and empty container, swap the caps and fasten them.

  • Page 345: Replace The Colorgrip Waste Container

    Replace the ColorGrip waste container Replace the ColorGrip waste container The dashboard indicates when you must prepare the replacement of a full ColorGrip waste Filling levels of supplies and waste on page container. ( 443) The ColorGrip waste container is full. The ColorGrip waste container is full and the buffer is nearly full.
  • Page 346 Replace the ColorGrip waste container Action Press the connector of the full container and dis- connect the supply tube from the cap. NOTE The supply tube can drip liquid. Use cleaning cloths to clean the tube. Take out the full container. Unscrew the caps of the full and empty container, swap the caps and fasten them.

  • Page 347: Replace The Waste Water Container

    Replace the waste water container Replace the waste water container There are two types of conditioning modules. A conditioning module with a waste water container and a conditioning module without a waste water container. This topic describes the replacement of the waste water container. The dashboard indicates when you must prepare the replacement for a full waste water Filling levels of supplies and waste on page container.
  • Page 348 Replace the waste water container Action Touch [Container replacement]→[Replace waste water container]. Touch [Unlock] to unlock the door of the waste water compartment. 1. Open the door of the waste water compartment. 2. Open the lid. Take the cap from the holder and screw it on the full container.
  • Page 349 Replace the waste water container Action Place the empty container in the waste water com- partment. Unscrew the cap of the empty container and place the cap in the holder. Close the lid. To close the lid completely, slightly move the funnel backwards and forwards. Close the door of the waste water compartment.

  • Page 350: Refill The Conditioning Liquid In The Paper Module Container

    Refill the conditioning liquid in the paper module container Refill the conditioning liquid in the paper module container To keep the relative humidity optimal, the paper module needs conditioning liquid. There are paper modules with containers to supply conditioning liquid and paper modules with an internal system to supply conditioning liquid.
  • Page 351 Refill the conditioning liquid in the paper module container Action 1. Turn the ring to unlock the drop catcher. 2. Pull out the drop catcher from the container. NOTE Ensure that the drop catcher does not touch the floor. Carefully pour the demineralized water into the container.

  • Page 352: Replace Printer Parts

    Replace printer parts Replace printer parts Replace the flip rings of the high capacity stacker The dashboard indicates when you must prepare the replacement of the four flip rings. The print system notices that maintenance is needed and shows the message that flip rings must be replaced in high capacity stacker 1 or 2.
  • Page 353 Replace the flip rings of the high capacity stacker Action Open the front cover high ca- pacity stacker 1 or 2. Rotate the flip wheel to ac- cess to the flip rings. Put a large-format sheet on the stack tray, so that loose flip rings cannot fall into the high capacity stacker.

  • Page 354: Replace The Tissue Cassettes

    Replace the tissue cassettes Replace the tissue cassettes Printheads are automatically cleaned with tissue ribbon according to a cleaning scheme. A roll of tissue ribbon is enclosed in a cassette. For each ink color and the ColorGrip liquid two cassettes (labeled L and R) with ribbon are available.
  • Page 355 Replace the tissue cassettes Action Because of ink pollution store the tissue cas- settes in a cardboard box or in the optional un- wind tool. 1. Use one hand to squeeze the shafts of the first cassette of the series of left-hand or right-hand cassettes (L or R).

  • Page 356: Replace A Tissue Ribbon

    Replace a tissue ribbon Replace a tissue ribbon Printheads are automatically cleaned with wet tissue ribbon according to a cleaning scheme. A roll of tissue ribbon is enclosed in a cassette. For each ink color and the ColorGrip liquid two cassettes (labeled L and R) with ribbon are available.
  • Page 357 Replace a tissue ribbon Action 1. Push and hold the bracket to the outside to un- lock the tissue ribbon holder. 2. Lift the holder out of the cassette. 1. Remove the shaft. 2. Remove the core of the tissue ribbon. Remove the sticker and glue from the core in the cassette.
  • Page 358 Replace a tissue ribbon Action 1. Put the tissue cassette flat on the table. 2. Because of pollution put a large sheet of paper underneath the tissue cassette. 3. Moisten a cleaning cloth with PML and clean the top roller thoroughly. Pay special attention to the area in between the teeth.

  • Page 359: Clean Printer Parts

    Clean printer parts Clean printer parts Clean Z-sensors Clean the Z-sensors in the paper path module When the Z-sensors in the paper path module are polluted, an action required window appears on the control panel. [444] Location of the paper path module Before you begin You need cleaning cloths to clean the Z-sensors (Alphawipe pads Texwipe TX1004).
  • Page 360 Clean the Z-sensors in the paper path module Action Use the green handle to open and hold the Z- sensor unit. Take a cleaning cloth and move the cloth three times over the lower sensors. Take a new cleaning cloth and move the cloth three times over the upper sensors.

  • Page 361: Clean The Z-Sensors In The Registration Input Module (Z1)

    Clean the Z-sensors in the registration input module (Z1) Clean the Z-sensors in the registration input module (Z1) When the Z-sensors in the registration input module are polluted, an action required window appears on the control panel. [445] Location of the registration input module Before you begin You need cleaning cloths to clean the Z-sensors (Alphawipe pads Texwipe TX1004).
  • Page 362 Clean the Z-sensors in the registration input module (Z1) Action Take a cleaning cloth and move the cloth three times over the lower sensors. Take a new cleaning cloth and move the cloth three times over the upper sensors. Gently close the Z-sensor unit. Use the green handle to close the paper guide.

  • Page 363: Clean The Z-Sensors In The Registration Input Module (Z2)

    Clean the Z-sensors in the registration input module (Z2) Clean the Z-sensors in the registration input module (Z2) When the Z-sensors in the registration input module are polluted, an action required window appears on the control panel. [446] Location of the registration input module Before you begin You need cleaning cloths to clean the Z-sensors (Alphawipe pads Texwipe TX1004).
  • Page 364 Clean the Z-sensors in the registration input module (Z2) Action 1. Take five cleaning cloths and fold the cloths in half. 2. Move the folded cloths over the lower sen- sors three times. NOTE You cannot easily access the lower Z- sensors.

  • Page 365: Clean The Z-Sensors In The Registration Output Module Without System Tray

    Clean the Z-sensors in the registration output module without system tray Clean the Z-sensors in the registration output module without system tray There are two registration output modules: with or without a system tray. This topic describes the cleaning of Z-sensors in the registration output module without a system tray. When the Clean the Z-sensors in the registration output registration output module has a system tray, see module with system tray on page...
  • Page 366 Clean the Z-sensors in the registration output module without system tray Action Use the green handle to open and hold the Z- sensor unit. 1. Take a cleaning cloth and move the cloth three times over the lower sensors. 2. Take a new cleaning cloth and move the cloth three times over the upper sensors.

  • Page 367: Clean The Z-Sensors In The Registration Output Module With System Tray

    Clean the Z-sensors in the registration output module with system tray Clean the Z-sensors in the registration output module with system tray There are two registration output modules: with or without a system tray. This topic describes the cleaning of Z-sensors in the registration output module with a system tray. When the registration Clean the Z-sensors in the registration output module output module has no system tray, see without system tray on page...
  • Page 368 Clean the Z-sensors in the registration output module with system tray Action Take a cleaning cloth and move the cloth three times over the lower sensors. Take a new cleaning cloth and move the cloth three times over the upper sensors. Gently close the Z-sensor unit.

  • Page 369: Clean Sz-Rollers

    Clean SZ-rollers Clean SZ-rollers Learn about clean SZ-rollers Advised is to clean the SZ-rollers once a week. Dependent on the used media, used ink and print production it can be necessary to adjust the clean frequency. When the SZ-rollers are very polluted registration and image quality problems may occur.

  • Page 370: Clean The Sz-Rollers In The Paper Path Module

    Clean the SZ-rollers in the paper path module Clean the SZ-rollers in the paper path module When the SZ-rollers in the paper path module are polluted, registration and image quality problems may occur. [449] Location of the paper path module Before you begin You need the following items: •...
  • Page 371 Clean the SZ-rollers in the paper path module Action Pull one leaf spring towards the front side and at the same time push the other leaf spring towards the back side to open the SZ-unit. 1. Moisten a cleaning cloth with PML.
  • Page 372 Clean the SZ-rollers in the paper path module Action Push firmly against the middle of the unit to close the SZ-unit. Make sure the unit is also locked in place at the rear side. Close the paper guide with the green handle. Close the front door of the paper path module.

  • Page 373: Clean The Sz-Rollers In The Registration Input Module

    Clean the SZ-rollers in the registration input module Clean the SZ-rollers in the registration input module When the SZ-rollers in the registration input module are polluted, registration and image quality problems may occur. [450] Location of the registration input module Before you begin You need the following items: •...
  • Page 374 Clean the SZ-rollers in the registration input module Action Pull one leaf spring towards the front side and at the same time push the other leaf spring towards the back side to open the SZ-unit. 1. Moisten a cleaning cloth with PML.
  • Page 375 Clean the SZ-rollers in the registration input module Action Push firmly against the middle of the unit to close the SZ-unit. Make sure the unit is also locked in place at the rear side. Close the paper guide with the green handles. Close the front door of the registration input module.

  • Page 376: Clean The Sz-Rollers In The Print Module

    Clean the SZ-rollers in the print module Clean the SZ-rollers in the print module When the SZ-rollers in the print module are polluted, registration and image quality problems may occur. [451] Location of the print module Before you begin You need the following items: •...
  • Page 377 Clean the SZ-rollers in the print module Action To open the paper guide. 1. Turn the green knob 1. 2. Turn and lift the green knob 2. 1. Moisten a cleaning cloth with PML. 2. Use the cloth to moisten the upper and lower rollers.
  • Page 378 Clean the SZ-rollers in the print module After you finish Dispose the used cleaning cloths. Chapter 13 - Maintain the printer...

  • Page 379: Clean The Sz-Rollers In The Registration Output Module With System Tray

    Clean the SZ-rollers in the registration output module with system tray Clean the SZ-rollers in the registration output module with system tray When the SZ-rollers in the registration output module are polluted, image quality and registration problems may occur. [452] Location of the registration output module with system tray Before you begin You need the following items: •...
  • Page 380 Clean the SZ-rollers in the registration output module with system tray Action Pull one leaf spring towards the front side and at the same time push the other leaf spring towards the back side to open the SZ-unit. 1. Moisten a cleaning cloth with PML.
  • Page 381 Clean the SZ-rollers in the registration output module with system tray Action Push firmly against the middle of the unit to close the SZ-unit. Make sure the unit is also locked in place at the rear side. Close the paper guide with the green handle. Close the front door of the registration output module.

  • Page 382: Clean The Sz-Rollers In The Registration Output Module Without System Tray

    Clean the SZ-rollers in the registration output module without system tray Clean the SZ-rollers in the registration output module without system tray When the SZ-rollers in the registration output module are polluted, image quality and registration problems may occur. [453] Location of the registration output module without system tray Before you begin You need the following items: •...
  • Page 383 Clean the SZ-rollers in the registration output module without system tray Action Push the leaf springs outward at the front and rear side to open the SZ-unit. Moisten a cleaning cloth with PML and moisten the upper and lower rollers with the cloth. •...
  • Page 384 Clean the SZ-rollers in the registration output module without system tray Action • Hold the paper guide with one hand and turn the knob to un- lock the guide with the other hand. • Lower the paper guide until the guide is locked.

  • Page 385: Clean The Sz-Rollers In The High Capacity Stacker

    Clean the SZ-rollers in the high capacity stacker Clean the SZ-rollers in the high capacity stacker When the SZ rollers in the high capacity stacker are polluted, registration and image quality problems may occur. [454] Location of the high capacity stackers Before you begin You need the following items: •...
  • Page 386 Clean the SZ-rollers in the high capacity stacker Action Use the socket wrench to loosen the screw and open the black cover. Open the two retaining clips and disconnect the flat cable. Chapter 13 - Maintain the printer...
  • Page 387 Clean the SZ-rollers in the high capacity stacker Action IMPORTANT Do not pull the flat cable. Pull out the registration unit and place it on a clean flat surface. Pull one leaf spring towards the front side and at the same time push the other leaf spring towards the back side to open the SZ-unit.
  • Page 388 Clean the SZ-rollers in the high capacity stacker Action 1. Wait for about 10 seconds to let the roll- ers absorb the PML. 2. Clean the upper and lower pair of roll- ers. Rub the moist cloth across the roll- ers from the side until all pollution is gone.
  • Page 389 Clean the SZ-rollers in the high capacity stacker Action Close the cover and use the socket wrench to fasten the screw. Close the front door of the high capacity stacker. After you finish Dispose the used cleaning cloths. Chapter 13 - Maintain the printer...

  • Page 390: Clean Print Belt

    Clean print belt Clean print belt Clean the inner side of the print belt When the inner side of the print belt is dirty, a message on the dashboard and the orange maintenance key symbol appear. Clean the inner side of the print belt within 12 hours after the control panel shows the message.
  • Page 391 Clean the inner side of the print belt Action Touch [Unlock] to unlock the door of the print module. Open the lower and upper doors of the print module. Hold the side with the foam strips up and slide a cleaning cloth over the cleaning plate.
  • Page 392 Clean the inner side of the print belt Action Close the upper and lower doors of the print module. The print belt starts to run for ap- proximately 10 minutes. When the control panel indicates that the print belt has stopped, open the lower and upper front doors of the print module.

  • Page 393: Clean The Surface Of The Print Belt

    Clean the surface of the print belt Clean the surface of the print belt When the surface of the print belt is dirty, you see a message on the control panel that you must clean the print belt surface. [456] Location of the print belt Before you begin •...
  • Page 394 Clean the surface of the print belt Action Place a large sheet of paper (A3 / 11" x 17" or larger) underneath the print belt to collect dirt. 1. Use a dry cleaning cloth to clean the print belt surface. 2.

  • Page 395: Chapter 14 Problem Solving

    Chapter 14 Problem Solving...

  • Page 396: Job Settings Are Not Correct

    Job settings are not correct Job settings are not correct Conflicting settings The job properties window shows when the job has settings that do not match. When you print a job with conflicting settings, the printer can show a dialog to confirm the start of the job. The workflow profile determines how the printer behaves when the job has conflicting settings.

  • Page 397: Use Remote Assistance

    Use remote assistance Use remote assistance When you have a question or a problem you can use remote assistance. The Service organization or the support helpdesk can provide support via a remote connection. Remote assistance can be used for all kind of questions you have. The Service organization cannot access or retrieve job or account information via the remote connection.

  • Page 398: Print Or Download A Report

    Print or download a report Print or download a report There are several reports to inform you about the configuration of the printer or about printer events. [459] Logging and reports [460] Color configuration Go to the reports Open the Settings Editor and go to: [Support]→[Troubleshooting]. [461] [Troubleshooting] tab On the control panel touch: [System]→[Setup]→[System configuration]→[Logging and reports].
  • Page 399 Print or download a report [462] Logging and reports on the control panel Reports Below you find an overview of the files your can download and print. There are some other files available, that you can download on request of your Service organization. Report Description Control panel...

  • Page 400: Restart The Printer

    Restart the printer Restart the printer You can restart the printer to solve a problem or to implement adjustments. The printer informs you when it is necessary to restart the printer to implement adjustments. The system administrator can restart the printer from the Settings Editor. 1.

  • Page 401: Many Sheets Arrive In The Sentry Tray

    Many sheets arrive in the sentry tray Many sheets arrive in the sentry tray The sentry of the printer checks all sheets that enter the print engine during the first pass (for simplex printing) and again during the second pass (for duplex printing). The printer checks sheets on deformations—like curls, waves, tight edges, and damages—to prevent printhead touching.
  • Page 402 Many sheets arrive in the sentry tray [466] First pass sentry rejection First pass sentry rejections may be caused by incorrect media storage or media handling. You notice first pass sentry rejection by ejected sheets that have not been printed. Second pass sentry rejection For the second pass, the sentry checks the sheets that already have passed the print engine for front-side printing.
  • Page 403 Many sheets arrive in the sentry tray • When the media size changes in the paper tray, first load a part of a stack, adjust the rulers, and then load the other remaining sheets. • Ensure the paper tray parts do not touch the media during loading. •...
  • Page 404 Many sheets arrive in the sentry tray • Use sharp knives in the cutting device to avoid bad and rough sheet edges. • Cut the paper in the correct size. The difference between the actual sheet size and the media attribute size cannot be larger than + / - 1 mm / 0.039".

  • Page 405: Read The Sentry Rejections Overview

    Read the sentry rejections overview Read the sentry rejections overview What does the sentry rejections overview show Many sheets arrive in the The sentry rejections overview can help you to solve sentry rejections. ( sentry tray on page 401) The overview is not stored permanently on the printer. After a system reboot, the sentry rejections overview is empty.
  • Page 406 Read the sentry rejections overview Information Description Cause The detected media size deviates from the media size attribute. To solve sentry rejections in next jobs, check that the media size you loaded is according to the media size attribute in the media catalog. The detected media height of one or more sheets is larger than the print gap configured in the media print mode.

  • Page 407: Change Relative Humidity In Paper Modules

    Change relative humidity in paper modules Change relative humidity in paper modules Adjust the relative humidity of the paper modules when you encounter sheets in the sentry tray Many sheets arrive in the sentry tray on page with curl, tight edges, or waviness. ( 401) [470] Relative humidity of paper modules 1.

  • Page 408: Remove Sheets From The Printheads

    Remove sheets from the printheads Remove sheets from the printheads When sheets stuck to the printheads, a message appears on the control panel to remove the sheets. A paper jam in the print module can cause a polluted print belt. When you have removed the paper, ensure that there are no dirt particles left on the print belt.
  • Page 409 Remove sheets from the printheads Action Manually move the print belt to the right-hand side and check if the print belt is dirty. • If the print belt is clean, continue with step 11. • If the print belt is dirty, continue with step 8. Place a large sheet of paper (A3 / 11"...

  • Page 410: Remove Sheets From The Fixation Drum

    Remove sheets from the fixation drum Remove sheets from the fixation drum When sheets are stuck on the fixation drum, you see a message on the control panel that you must remove the sheets. [473] Location of the fixation drum Before you begin You need to have the rights to access the maintenance tasks and the configuration settings.
  • Page 411 Remove sheets from the fixation drum Action Carefully remove all sheets from the fixation drum. In the illustration, the possible locations of sheets that are stuck are indicated orange. Close the two doors that cover the fixation drum. Close the right-hand door of the fixation module. Touch [Confirm] on the control panel when you have removed all sheets.

  • Page 412: Check The Status Of The Rip Unit

    Check the status of the RIP unit Check the status of the RIP unit The PRISMAsync Print Server consists of a main controller, two standard RIP units and optional Check the two additional RIP units. The RIP units are responsible for raster image processing. ( status of the RIP unit on page 412) When one or more RIP units do not communicate with the main controller, the orange RIP...

  • Page 413: Decrease Productivity Level For A Job

    Decrease productivity level for a job Decrease productivity level for a job You can decrease the productivity level for specific jobs that need more time for the printing and fixation process. [475] Productivity level 1. Open the Settings Editor and go to: [Preferences]→[System settings]. [476] [System settings] tab 2.

  • Page 414: Perform Media Registration

    Perform media registration Perform media registration What is media registration The VarioPrint i-series continuously traces and, if needed, slightly corrects the position of the sheets on the paper path. So, the front and back images are correctly printed on both sides of the sheets.
  • Page 415 Perform media registration [478] Media registration functions 1. Touch [System]→[Optimize]→[Optimize]. 2. Touch [LEF registration] or [SEF registration], depending on the feed direction of the media sheets in the printer. LEF means feeding long edge. SEF means feeding short edge. 3. Load and assign five sheets in one of the paper trays. 4.
  • Page 416 Perform media registration [479] Registration charts 5. Again, print a verification chart if you want to check the results of the automatic adjustment. 6. Close the menu. You can go to the manual adjustment settings to see the correction values that were generated by the automatic adjustment procedure.
  • Page 417 Perform media registration Measure the deviations [481] Sheet deviations on the paper path and the print effects on the verification chart (Example for front sheet, A4/ Letter, long-edge feed direction) 1. Deviation on X coordinate (feed direction) Measure the distances between left-hand sheet edge and vertical marker lines. Repeat for the other side (B).

  • Page 418: Adjust Media Registration Parameters

    Adjust media registration parameters Adjust media registration parameters In some special situations, it is necessary to adjust the registration parameters belonging to the Define media optimization parameters on page media. ( 272) Perform Before you change any registration parameter, check the printed registration chart ( media registration on page Clean printer parts on page 414) and clean the S and SZ rollers (...
  • Page 419 Adjust media registration parameters Media registration parameters [485] Sheet deviations on the paper path and the print effects on a verification chart (Example for front sheet, A4/ Letter, long-edge feed direction) Editable parameters Description X offset, front or back side; long- These parameters can be used to adjust the registration on edge feed or short-edge feed the X coordinate (feed direction).
  • Page 420 Adjust media registration parameters Chapter 14 - Problem Solving...

  • Page 421: Chapter 15 References

    Chapter 15 References...

  • Page 422: Specifications

    Specifications Specifications Printer specifications General Specification Value Type Sheet-fed inkjet digital color press Resolution 600 x 600 dpi; perceived as 1,200 dpi image quality due to drop size modulation Transaction printing mode: 240 dpi, 300 dpi, 600 dpi, or automati- cally detected Inkjet technology Drop-on-demand;...
  • Page 423 Printer specifications Specification Value Media inspection On-the-fly detection of media imperfections related to paper squareness and height deformations. This can be caused for ex- ample by waves, bursts, folded corners. Sheets with detected im- perfections are purged into the sentry tray. An overview of the sentry rejections is available on the control panel.
  • Page 424 Printer specifications Automatic nozzle failure correction Action Description Nozzle failure detection Nozzle failure detection sheets are printed to detect nozzles that sheets are not productive. Nozzle failure detection sheets can be printed on job media or al- ternative media. Nozzle failure compensa- •...

  • Page 425: Paper Input Specifications

    Paper input specifications Paper input specifications Specification Value Description Paper module with four paper trays Options • Additional second and third paper module • Paper module Flex XL for media size support up to 353 mm x 500 mm / 13.8" x 19.7" in tray 3 and 4 •...

  • Page 426: Paper Output Specifications

    Paper output specifications Paper output specifications High capacity stacker Specification Value Description One standard and as optional a second high capacity stacker, each with a stack tray, eject tray and top tray Options • Additional second high capacity stacker • Interface to connect third-party finishers that are compliant with SFD / DFD Maximum paper capacity Top tray: 200 sheets, 20 mm / 0.79"...

  • Page 427: Settings Editor Specifications

    Settings Editor specifications Settings Editor specifications http(s)://<IP address> or http(s)://<hostname> URL to access the Settings Editor Recommended resolution of your Minimum 640 x 480 pixels computer screen Supported web browsers • Microsoft ® ® Internet Explorer 8 and higher • Mozilla Firefox ®...

  • Page 428: Media Specifications

    Media specifications Media specifications Media sizes Minimum and maximum media sizes In the overviews below you will find the supported media sizes of the VarioPrint i-series. IMPORTANT Only load media that are listed in the media catalog. Size Value Minimum size (W x H) 203 mm x 203 mm / 7.99"...

  • Page 429: Media Packaging

    Media packaging Media packaging The best media can become unusable if not properly packed and shipped. Proper packaging protects the media from moisture, contamination, and physical damage. Media are normally shipped in cartons when a large quantity is ordered. The media mostly arrive on wooden pallets.
  • Page 430 Media packaging Proper packaging [488] Paper hygrometer [487] Pallet packed with media Attention point for pallets Use a moistureproof separation board above and below the media. Use plastic strapping to band the contents of the pallet in two directions. Do not use metal banding.

  • Page 431: Media Storage

    Media storage Media storage Packaging, storage, and unpacking guidelines enable optimal print productivity of the printer. When the environmental conditions of the storage room and the print room differ, media must be Print room transported to the print room in time, to allow for temperature acclimation. ( conditions on page Media temperature acclimation on page 434,...

  • Page 432: Temperature Adjustment Time Of Media Before Printing

    Temperature adjustment time of media before printing Temperature adjustment time of media before printing When media are moved from the storage room to the print room which has a different temperature and relative humidity, the media must acclimate during a certain period. During this acclimation period, keep the reams closed until you are ready to load the paper trays.

  • Page 433: Prints Storage

    Prints storage Prints storage To keep maximum print quality, you must store prints in an optimal storage environment before the transfer to the final destination. Use the following storage recommendations: • Store prints on a flat surface. • Store prints so that the sheets cannot fold or crease. •...

  • Page 434: Print Room Conditions

    Print room conditions Print room conditions Minimal area Configuration Dimensions Minimal floor Minimal room Minimal volume printer (W x D x area height Standard 880 cm x 275 cm 1,040 cm x 575 300 cm / 118" 205 m x 240 cm / cm / 12,509,867 in 29 x 9.2 x 7.1 ft...

  • Page 435: Prismasync Print Server Rip (Raster Image Processor)

    PRISMAsync Print Server RIP (raster image processor) PRISMAsync Print Server RIP (raster image processor) PRISMAsync Print Server is the heart of the VarioPrint i-series. It steers the performance, the raster image process of the print files, and the color management. PRISMAsync Print Server offers a seamless workflow integration for both transactional based and document based print environments.
  • Page 436 PRISMAsync Print Server RIP (raster image processor) can plan and edit the jobs as soon as they are listed. The full ripping process occurs after the editing and when jobs come in the list of scheduled jobs. Chapter 15 - References...

  • Page 437: Overview Of Color Validation Metrics

    Overview of color validation metrics Overview of color validation metrics A color validation test has a series of metrics that are calculated and evaluated when the test is performed. The tables lists all metrics that can be used in a color validation test. In practice, a color validation test uses a small subset of the available metrics.
  • Page 438 Overview of color validation metrics △E76 (Delta E 1976) Metrics Description Substrate ΔE76 Color difference in ΔE76 between the measured and the reference substrate white. For a side-by-side evaluation, the color control strip must be printed with the rendering intent absolute colorimetric. The reference substrate white is compared to the measured simulated substrate white of the printed media.
  • Page 439 Overview of color validation metrics Metrics Description Maximum ΔH CMY sol- Highest color difference in ΔH between the measured Lab values of the CMY solid patches on the color control strip and the Lab values of the matching patches of the reference printing condition. Average ΔH composite Average color difference in ΔH between the measured Lab values of grays...
  • Page 440 Overview of color validation metrics NOTE • The |ΔL| value refers to the absolute value of △L. • The weighted |ΔL| puts more emphasis on the color differences for light grays, where the K △L (Delta L) on page value is lower than 50%. ( 252) estimation because the darkest patch of the •...

  • Page 441: Creation Of Calibration Curves

    Creation of calibration curves Creation of calibration curves Learn about media family The illustrations below explain how the calibration curves are created. ( calibration on page 222) 1. Imagine, you use an i1 spectrophotometer to measure a test chart with magenta gradients from 0% to 100%.
  • Page 442 Creation of calibration curves ∆E Measurements (0,0,0) Patch 4. Finally, per color channel a smooth calibration curve is composed that represents the extrapolated corrections. PRISMAsync Print Server uses these calibration curves to convert CMYK values to new values: C=> C', M =>M', Y => Y' and K => K'. In this example, the printer will print for low M values less magenta ink than before and will print more magenta ink for the higher M values.

  • Page 443: Filling Levels Of Supplies And Waste

    Filling levels of supplies and waste Filling levels of supplies and waste The dashboard of the control panel shows messages and symbols to indicate when you need to replace supplies and empty waste. The [Supplies] pane shows the status of all supplies and waste.
  • Page 444 Filling levels of supplies and waste Sym‐ Action required Sym‐ Action required Replace the container of the process Replace the container of the process maintenance liquid (PML). maintenance liquid (PML). Ink waste and ColorGrip waste container One of the waste containers is full. Replace this waste container. One of the waste containers is full.
  • Page 445 Filling levels of supplies and waste [Supplies] overview [491] [Supplies] overview Status of ink, ColorGrip, PML supplies Cyan Magen‐ Yellow Black Color‐ Action required Grip No action required. Replace container. Action required window appears. Re- place ink container. No action required. The container icon shows the filling level.
  • Page 446 Filling levels of supplies and waste Symbol Action required Available supply No action required. Available tissue ribbon length (6,000 cm / 2,362.2") is less than 400 cm / 157.48". Action required window appears. Replace Available tissue ribbon length (6,000 cm / left and/or right tissue cassettes.
  • Page 447 Filling levels of supplies and waste Status of trays that collect system prints or not printed sheets Symbol Action required Available supply No action required. Sentry tray and system tray have capacity to collect sheets. Not all printers have a system tray.

  • Page 448: Status Indicators

    Status indicators Status indicators This topic provides an overview of the status indicators for: • Jobs • Paper trays • Media Job status indicators Icon Description The printer is receiving (spooling) the job. The printer has not started to rip the job (raster image processing). The printer is ripping the job (raster image processing).
  • Page 449 Status indicators Icon Description The paper tray is empty. The paper tray is empty and a print job uses this paper tray. The paper tray is open. The paper tray contains too much media. The paper tray contains media for long-edge feeding. The paper tray contains media for short-edge feeding.
  • Page 450 Status indicators Chapter 15 - References...

  • Page 451: Chapter 16 Regulation Notices

    Chapter 16 Regulation Notices...
  • Page 452 Directive 2014/53/EU (RED). The product is CE-marked to show conformance with applicable legal requirements. The CE Declaration of Conformity is provided for your convenience. You can download the CE Declaration of Conformity from the support "http://downloads.oce.com/" site of your product at Conformity declaration for Radio Law (Japan) This end device contains an RFID module which is already approved by MIC (AC-17014) for Radio Law.
  • Page 453 Conformity declaration for Federal Telecommunications Law (Mexico) This end device contains an RFID module which is already approved by IFETEL (RCPOCOC16-1941) for Federal Telecommunications Law. Conformity declaration for Telecommunications (Singapore) This end device contains an RFID module which is registered with the Info-communications Media Development Authority under regulation 20(6) of the Telecommunications (Dealers) Regulations (Cap 323, Rg 6) (the "Dealers Regulations") and approved for sale in Singapore.
  • Page 454 • WARNING This product employs a Class 3R laser diode that emits a visible laser beam. The locations of the laser is marked with a red cross in the illustration below. • CDRH regulations This machine is certified as a Class 1 Laser product under Radiation Performance Standard according to the Food, Drug and Cosmetic Act of 1990.
  • Page 455 Battery Labeling (USA) This product contains a Lithium battery, containing Perchlorate Material – special handling may "http://www.dtsc.ca.gov/hazardouswaste/perchlorate" apply, see Battery labeling (Taiwan) Translation: Waste batteries, please recycle. End of Life: Eurasian Economic Union (EAEU) Russia and Belarus Утилизация продукции Данную продукцию следует утилизировать должным образом, в соответствии...
  • Page 456 "http:// more information regarding return and recycling of WEEE products, please visit www.canon-europe.com/environment" . Reference: Directive 2012/19/EU. End of Life; WEEE (India) This product is not to be disposed of with your household waste, according to the E-Waste (Management) Rules, 2016. This product should be handed over to a designated collection point, e.g., to an authorized collection site for recycling waste electrical and electronic equipment (EEE).
  • Page 457 RoHS (Vietnam) Canon and Océ brand products sold in Vietnam market comply with following Circular and Decision - "Circular No.30/1011/TT-BCT dated August 10, 2011 of the Ministry of Industry and Trade stipulating temporarily the permissible content limitation of some toxic chemicals in the electronic, electrical products"...
  • Page 458 Depending on the installed Paper modules, High Capacity Stackers and other finishing devices, the floor plan may look different. Deployment area: below 2000 m altitude and non-tropical (China) • Translation: Can only be safely used lower than 2,000 meters altitude. •...

  • Page 459: Index

    Index Index search job label..........(default)..............automated workflow......143, (Delta Ch Background spitting description............description............metrics............prevent............(Delta H Banner pages description............change job setting..........193 metrics............configure............70 (Delta L configure default media........description............default media............70 metrics............default media print mode........70 import and export..........workflow profile..........
  • Page 460 Index Calibration timer...........274 Color reference chart..........275 Calibration timer of the media family....274 Color stations............122 Carton Color validation acclimation before printing......CGATS report..........media packaging..........metrics............unpack...............92 overview of metrics........CGATS report test result............Color validation test........257 Tolerance levels..........download............Color validation report......... Check first set Color validation test change job...
  • Page 461 Index Covers description............automated workflow........147 work with schedule........change job output.......... Document view.............175 import and export..........DPC: IDEAlliance Digital Press Certification..media print modes.........197 Drop size modulation..........CropBox..............76 Dry tissue wipe............. Dashboard E-shredding............170 location............. Eject behavior symbols supplies and waste levels....choose...............98 Data dump file............
  • Page 462 Index clean SZ-rollers..........import or export..........Hotfolder transaction setup..........120 configure............154 Input tray linking create shortcut..........154 transaction printing........121 drag and drop files.........154 Intermediate check prints JDF ticket............configure............246 workflow...........138 delivery............order job processing........82 description............print..............IPDS configure via Settings Editor......130 i1 Spectrophotometer.......... port..............
  • Page 463 Index Job type Material data sheets..........automated workflow........147 Maximum stack height create variable data job......... configure high capacity stacker...... Job workflow stacking behavior..........document printing mode.......138 Media transaction printing mode......106 acclimation before printing......Job-by-job workflow profile........ assign media to paper tray......89 Jobs attributes..........266,...
  • Page 464 Index media registration..........414 Minimum print gap..........remote printer driver........Moiré reduction Media family automated workflow........147 before and after import......... change job setting..........210 calibration..........222, configure job default........286 calibration media........... Move jobs..............166 configure job default........286 Multiple up default............. 274, automated workflow........147 in media elements structure......
  • Page 465 Index stacking behavior..........indicators............Output profile keep sheets in empty tray....... configure............299 load instruction..........configure job default........286 paper module........... description............Paper tray button............44 in media elements structure......Paper waste............443 Output profile accuracy test........ PDF enable cache......... 117, Output tray PDF fonts............... automated workflow........147 PDF job...
  • Page 466 Index Print range PRISMAsync color control strip......automated workflow........147 PRISMAsync Media Wedge......... change job setting..........191 PRISMAsync Print Server........Print resolution RIP..............automated workflow........147 specifications..........423 configure PDF, PPML, PostScript default..module............435 Print room conditions.......... Process maintenance liquid (PML) Print sides filling level information......... automated workflow........147 replace.............337,...
  • Page 467 Index session timeout..........print job ticket..........216 Remote Control............47 select............... Remote diagnostics protocol.......130 view..............Remote Manager workflow profile..........description............Secure error recovery.......... start..............Secure output recovery........117 Remote printer driver..........45 Sentry Rendering intent description............configure job default........286 location............. description............Sentry rejections transaction setup..........120 overview............
  • Page 468 Index automated workflow........147 change in job setting........Target charts configure PDF, PPML, PostScript default..description............Source color............303 patches............248 Special pages Target spot color..........change job setting..........193 Temperature acclimation of media.....432 configure............70 Ticket editor............import and export..........Time settings............Split................168 Time zone..............65 Spot color Timeout period external...
  • Page 469 Index delete...............113 transaction setup in tray-to-tray mode..124 edit..............113 Variable data job export.............. automated workflow........147 image shift............Variable data printing import..............123 automated workflow........147 media print mode selection......create job in schedule........172 media selection..........description............open..............information..........172 overrule image shift........131 records............restore............. RIP..............
  • Page 470 Index standard............use..............Z-sensors clean in high capacity stacker....... clean in paper path module....359, clean in print module........376 clean in registration input module (Z1)..361, clean in registration input module (Z2)..363 clean in registration output module..379, clean in registration output module with system tray.............
  • Page 472 Canon U.S.A., Inc. www.usa.canon.com Canon Canada Inc. www.canon.ca Canon Europe Ltd www.canon-europe.com Canon Latin America Inc. www.cla.canon.com Océ Australia Pty Ltd www.oce.com.au Canon China Co., Ltd www.canon.com.cn Canon Singapore Pte. Ltd www.canon.com.sg Canon Hongkong Co., Ltd www.canon.com.hk © Océ 2015 - 2018...
