84 Connecting the Kinetix 6000 Drive System

Wiring the LIM Connectors

Publication 2094-UM001A-EN-P — September 2006
This section provides examples and wiring tables to assist you in
making connections to the line interface module (LIM) connectors.

Wiring the Auxiliary Input Power (APL) Connector

The Auxiliary Input Power (APL) connector is present only on the
2094-XL75S-Cx models.

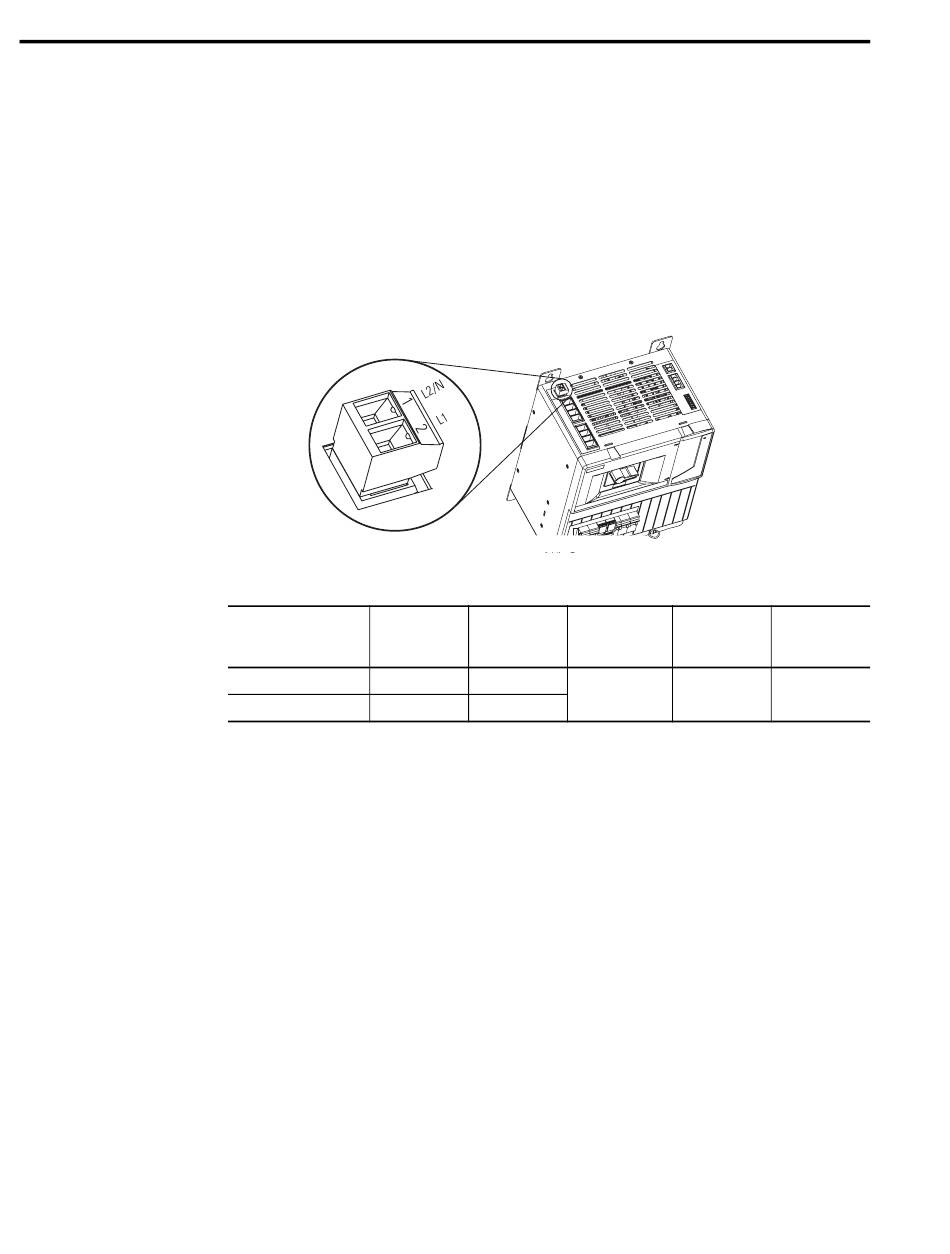

Line Interface Module (APL connector)
Auxiliary Input Power (APL) Connector
Single-phase Supply APL Pin
L1 1
L2 2
Recommended
Wire Size
Signal
2
mm (AWG)
L1
0.2-4.0
(24-10)
L2/N
Line Interface Module, Top View
(2094-XL75S-Cx is shown)
Strip Length Torque Value
mm (in.) Nm (lb-in)
7.0 0.5 - 0.6
(0.28) (4.4 - 5.3)
