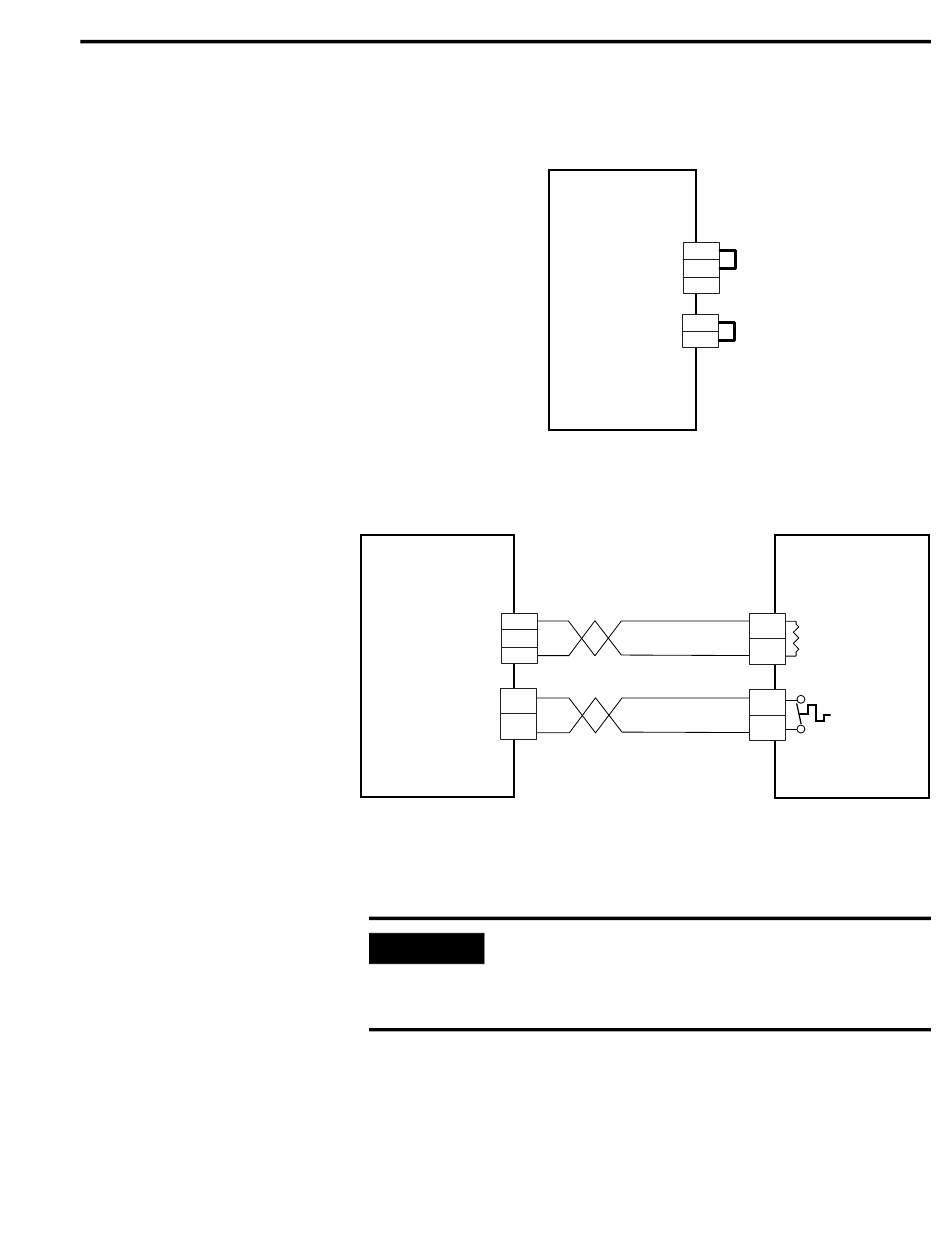

Shunt Module Wiring Examples

Shunt Module Wired for Internal Operation (default configuration)
Shunt Module Wiring Example with External Passive Shunt
Kinetix 6000
Shunt Module
2094-BSP2
3
COL
External Shunt Resistor
2
INT
(RC) Connector
1
DC+
External Thermal Switch TS2
2
(TS) Connector
TS1 1
Refer to External Shunt Module Specifications on page 184, for a list of
external passive shunt module catalog numbers available for the
Kinetix 6000 drives
Only passive shunts with a thermal switch are wired to the TS
IMPORTANT
connector on the Kinetix 6000 shunt module. If your external
passive shunt does not have a thermal switch, leave the jumper
(default configuration) in place on the TS connector.
Interconnect Diagrams
Kinetix 6000
Shunt Module
2094-BSP2
3
COL
External Shunt Resistor
2
INT
(RC) Connector
1
DC+
2
External Thermal Switch
TS2
1
(TS) Connector
TS1
Publication 2094-UM001A-EN-P — September 2006
201
External Passive
Shunt Module
COL
Resistor
DC+
Thermal
Switch
