Setting the Additional Bus Capacitance Parameter

Follow these steps to set the Additional Bus Capacitance parameter.
1. Start your DriveExplorer software.
2. From the menu bar choose Explore\Connect\Local or enter Ctrl-L
from the keyboard.
DriveExplorer software will read your system.

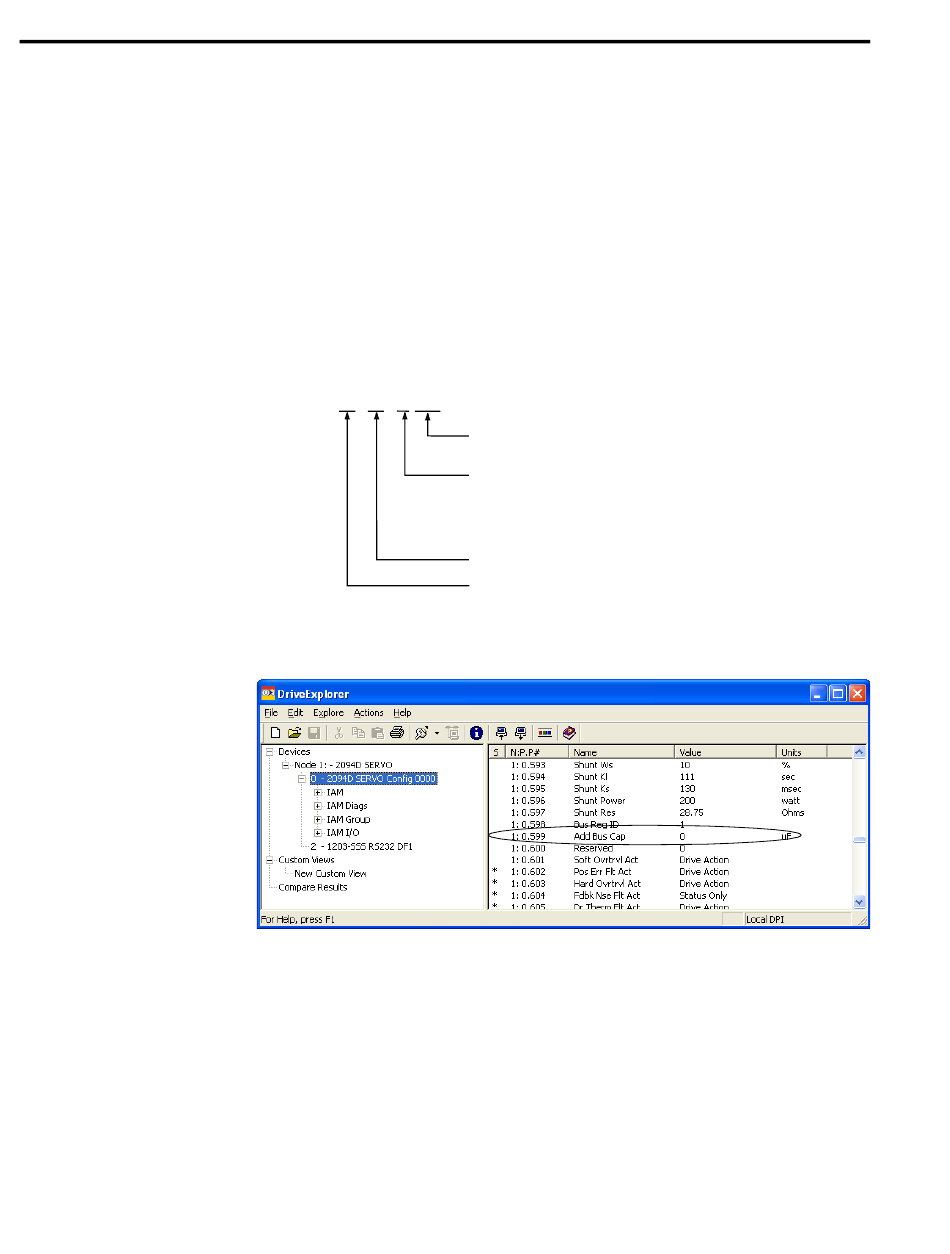

3. Observe the Linear List of parameters as grouped by Node, Port,
and Axis hierarchy as shown below.
Linear List Legend
N: P. x xxx
Parameter Number
30 = Version Data
Axis Number
0 = IAM (axis 1)
1 = AM (axis 2)
2 = AM (axis 3)
3 = AM (axis 4)
DPI Port Number
Network Node Number
4. Select Devices\Node\Product\ and navigate to the parameter
x:x:x599 as shown below.
5. Double-click the x:x:x599 Add Bus Cap parameter.
