Technical Data
Original Instructions
Kinetix 3, 300, 350, 2000, 6000, 6200, 6500, 7000 Servo Drives
Specifications
Bulletin Numbers 2071, 2093, 2094, 2097, 2099, 2198
Topic
Summary of Changes
Servo Drive Compatibility

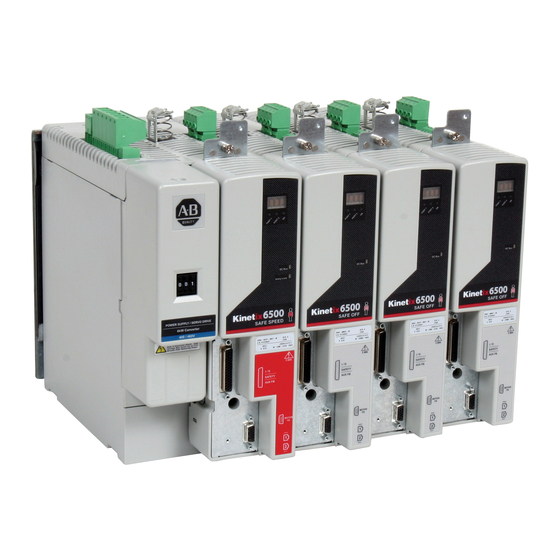

Kinetix 6200 and Kinetix 6500 Modular Multi-axis Servo Drives
Kinetix 6000 Multi-axis Servo Drives
Kinetix 300 and Kinetix 350 EtherNet/IP Servo Drives
Kinetix 3 Component Servo Drives
Kinetix 2000 Multi-axis Servo Drives
Kinetix 7000 High Power Servo Drives
Motor Overload Protection
Common Accessories
Kinetix 2090 Interface Cables
Additional Resources
This document provides catalog numbers and product specifications, including power, performance, environmental, certifications,
dimension drawings, and accessories for Allen-Bradley® servo drives.
Use this publication with the Kinetix® Motion Control Selection Guide, publication KNX-SG001, to help make decisions selecting the motion
control products that are best suited for your system requirements.
Page
2
2
3
21
40
55
62
76
88
89
149
165

Advertisement

loading
Need help?

Need help?

Do you have a question about the Allen-Brandley Kinetix 3 and is the answer not in the manual?

Questions and answers

Related Manuals for Rockwell Automation Allen-Brandley Kinetix 3

Summary of Contents for Rockwell Automation Allen-Brandley Kinetix 3

  • Page 1 Technical Data Original Instructions Kinetix 3, 300, 350, 2000, 6000, 6200, 6500, 7000 Servo Drives Specifications Bulletin Numbers 2071, 2093, 2094, 2097, 2099, 2198 Topic Page Summary of Changes Servo Drive Compatibility Kinetix 6200 and Kinetix 6500 Modular Multi-axis Servo Drives Kinetix 6000 Multi-axis Servo Drives Kinetix 300 and Kinetix 350 EtherNet/IP Servo Drives Kinetix 3 Component Servo Drives...
