2.2.4 Connector J6 – COM1 (Remote Communications and Discrete Control Port)
PS-1 J6 Conn.
Pin
A RS485_+RX
B RS485_-RX
C RS485_+TX
D RS485_-TX
E RS232_RD
F Ethernet TX+
G RS232_TD
H Ethernet TX-
J TX/RX Switch Drive 1 Pos Not for customer use
K Gnd
L SUMFLT In
M SUMFLT Out
N TX Switch Pos 1 Ind
P RX Switch Pos 1 Ind
R +24V
S System Mute Control
T Switch Common
U Ethernet RX-
V Ethernet RX+
PS-2 J6 Conn.

Table 2-4. Connector J6 Pinout

Name
Pin 3 of DB9 female connector
Pin 3 of RJ45 female connector
Pin 2 of DB9 female connector
Pin 6 of RJ45 female connector
Ground (also Pin 5 of DB-9F connector)
Open when faulted, else tied to Pin K
When faulted, tied to Pin K, else open
Online/Offline indication
Not for customer use
Not for customer use
System muted if customer ties to Pin K
GND rerence for Pin N
Pin 2 of RJ45 female connector
Pin 1 of RJ45 female connector

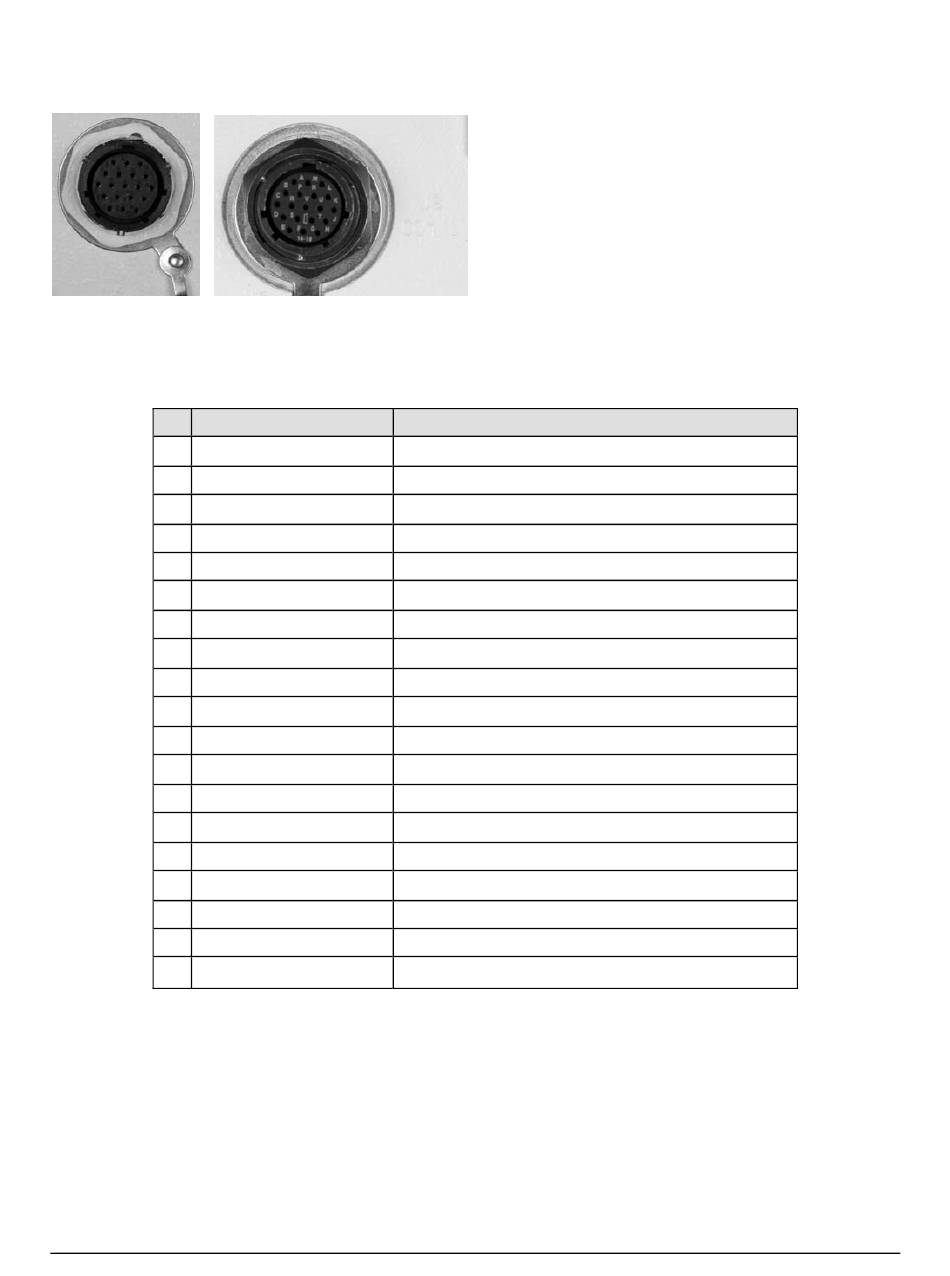

The COM 1/ Discrete Control connector J6 is the
primary input for controlling and monitoring the
SSPA. It is a 19-pin circular connector, type
MS3112E14-19S. The pinout specification is
contained in Table 2-4.
Mating connector: ITT: KPT06J14-19P or
MS3116J14-19P.
