LPOD C-/Ku-Band Outdoor Amplifier/Block Up Converter
System Connections and Operation
2.2.3.1

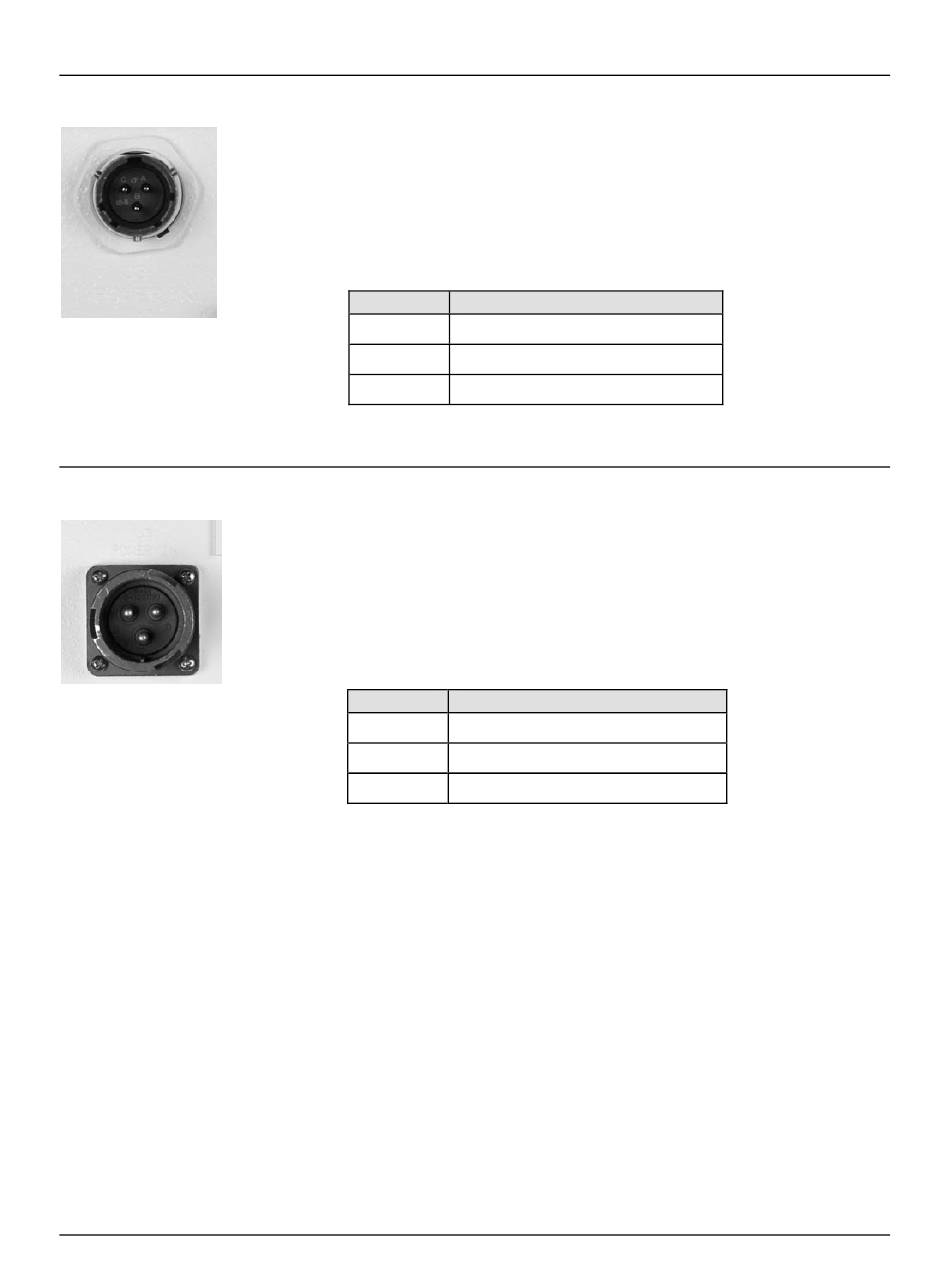

LPOD PS-1 J3 AC Power Main

2.2.3.2

LPOD PS-2 J3 AC Power Main

The mating connector specification unique to the LPOD PS-1 AC power
interface and the pin assignments (Table 2-2) are as follows:
Mating Connector: CEFD PN CN/MS-STPG03F02 (ITT Cannon
KPT06B-12-35).

Table 2-2. LPOD PS-1 'J3 PWR IN' Pin Assignments

Pin LPOD PS-1 Assignment
A LINE (L1)
B NEUTRAL (L2)
C GND
The mating connector specification unique to the LPOD PS-2 AC power
interface and the pin assignments (Table 2-3) are as follows:
Mating Connector: CEFD PN CN/MS-STPG03F07 (ITT Cannon
CA3106E20-19SB).

Table 2-3. LPOD PS-2 'J3 PWR IN' Pin Assignments

Pin LPOD PS-2 Assignment
A GND
B NEUTRAL (L2)
C LINE (L1)
2–3
Revision 0
MN-LPOD
