2.2.5 Connector J6 – COM1 (Remote Communications and Discrete Control Port)
PS-1 J6 Conn.
Pin
A
B
C
D
E
F
G
H
J
K
L
M
N
P
R
S
T
U
V
PS-2 J6 Conn.

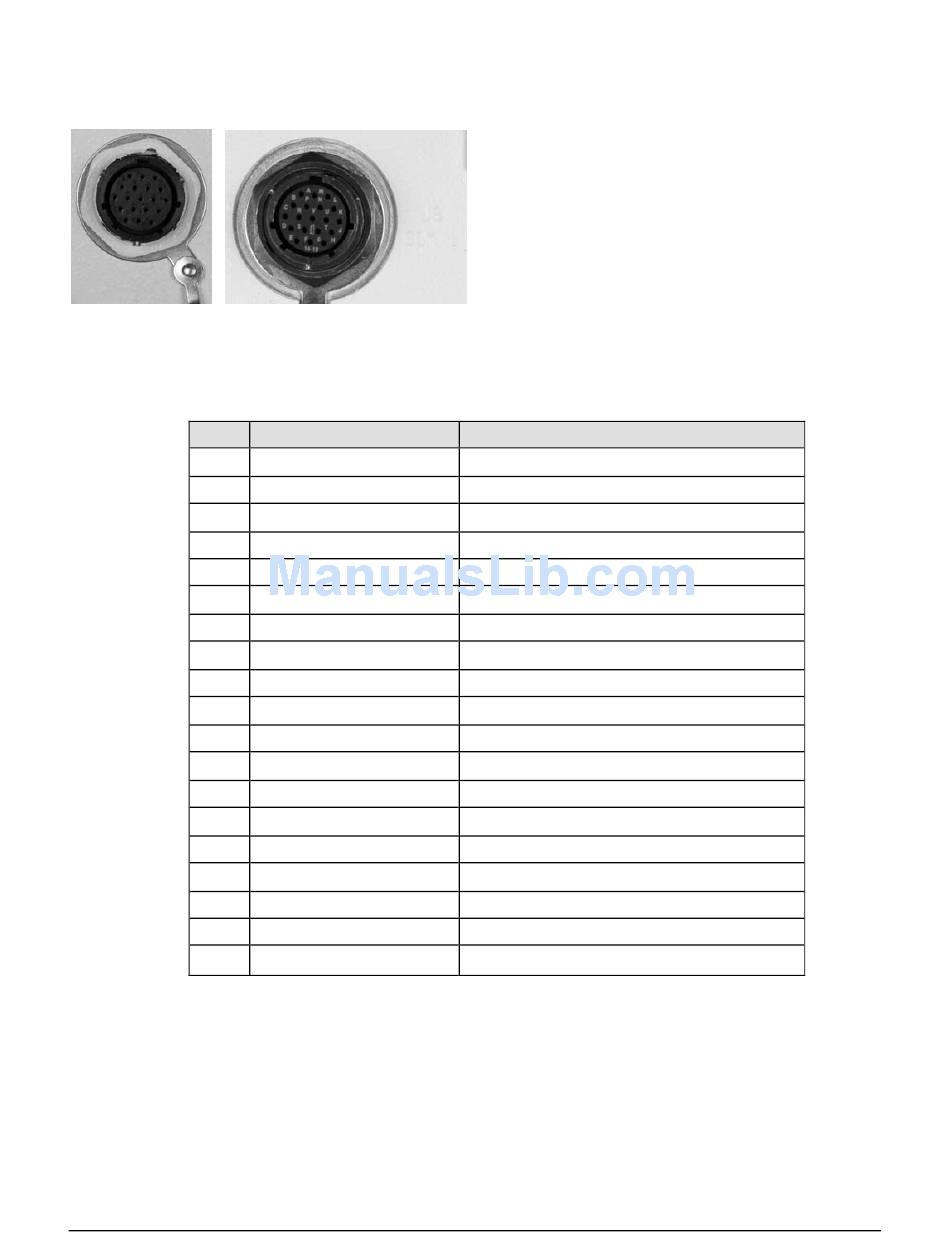

Table 2-7. Connector J6 Pinout

Name
RS485_+RX
RS485_-RX
RS485_+TX
RS485_-TX
RS232_RD
Ethernet TX+
RS232_TD
Ethernet TX-
TX/RX Switch Drive 1 Pos
Gnd
SUMFLT In
SUMFLT Out
TX Switch Pos 1 Ind
RX Switch Pos 1 Ind
+24V
System Mute Control
Switch Common
Ethernet RX-
Ethernet RX+
The COM 1/ Discrete Control connector J6 is the
primary input for controlling and monitoring the
SSPA. It is a 19-pin circular connector, type
MS3112E14-19S. The pinout specification is
contained in Table 2-7.
Mating connector: ITT: KPT06J14-19P or
MS3116J14-19P.
Description
Pin 3 of DB9 female connector
Pin 3 of RJ45 female connector
Pin 2 of DB9 female connector
Pin 6 of RJ45 female connector
Not for customer use
Ground (also Pin 5 of DB-9F connector)
Open when faulted, else tied to Pin K
When faulted, tied to Pin K, else open
Online/Offline indication
Not for customer use
Not for customer use
System muted if customer ties to Pin K
GND reference for Pin N
Pin 2 of RJ45 female connector
Pin 1 of RJ45 female connector
2–6
Revision 3
MN-LPOD
