2.2.5 Connector J9 – Output Sample (PS-2 Only)
2.2.6 Connectors J10 and J11 – Optional Modem Rx and LNB Interfaces
PS-1 Conns. – J10 (left), J11 (right)
PS-2 Conns. – J10 (left), J11 (right)

2.2.7 Ground Connector

A #10-32 stud is provided at the locations shown in Figure 2-2 for connecting a common
chassis ground among equipment.
PS-1 Ground location

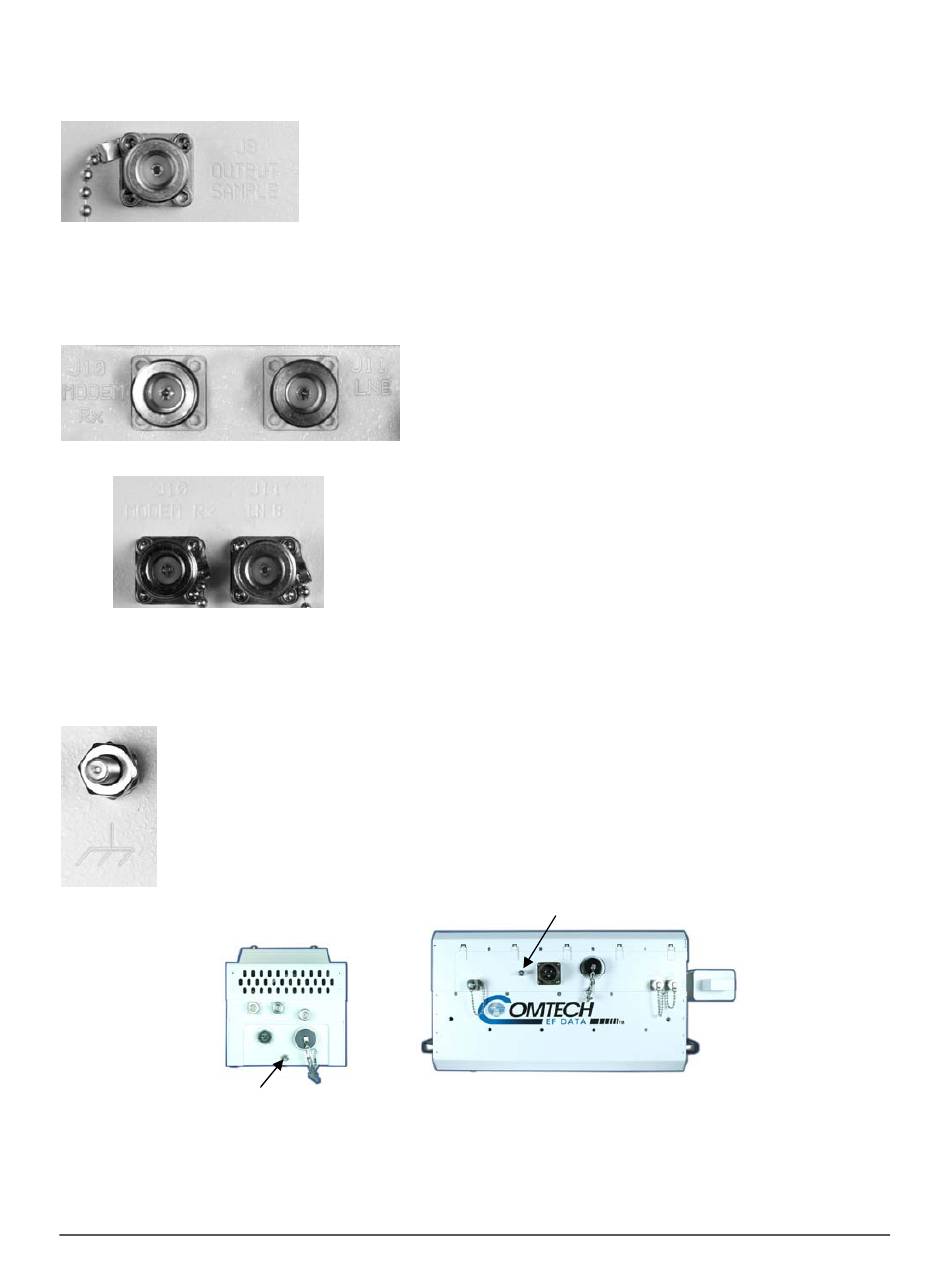

The Output Sample port connector is a Type 'N' female connector
available only on the PS-2 model. It provides a nominal -40 dB sample of
the output signal. A calibration label is provided near the connector that
shows the actual coupling values vs. frequency.
The J10 Modem Rx and J11 LNB port connectors are both
Type 'N' female connectors, providing both bias and a
reference signal to a Low Noise Block Converter (LNB), and
passing the LNB's L-Band output to the modem's Rx input.

Figure 2-2. LPOD Ground Connectors

2–5
PS-2 Ground location
