Danfoss VLT HVAC Basic Drive FC 101 Design Manual page 60

Installation
Enclosure size I2
1
5 5
2
3
1 RS485
2 Mains
3 Ground
4 Cable clamps
5 Motor
6 UDC
7 Relays
8 I/O

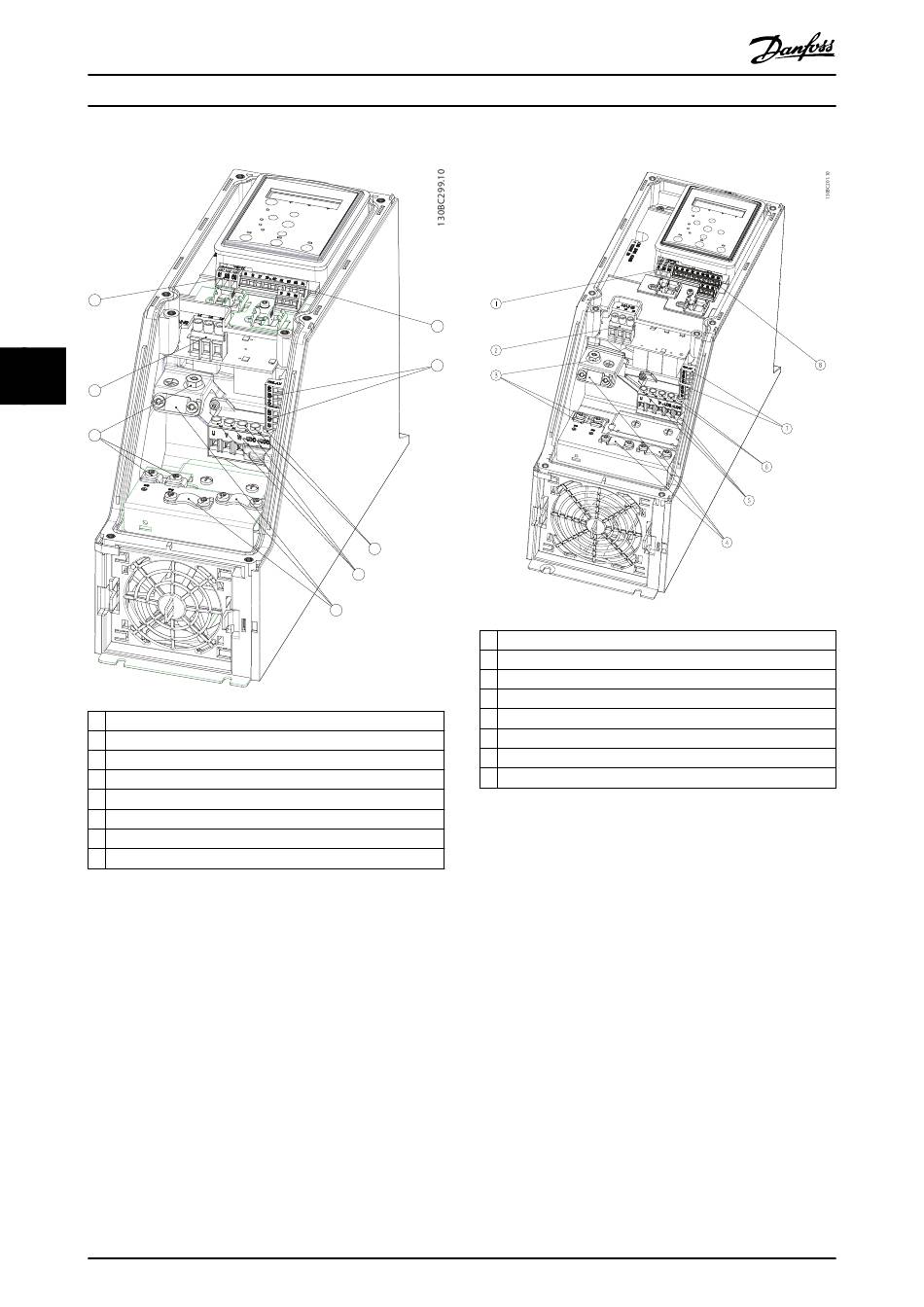

Illustration 5.8 Enclosure Size I2
IP54, 380–480 V, 0.75–4.0 kW (1–5 hp)
58
®
VLT HVAC Basic Drive FC 101
Enclosure size I3
8
7
6
5
4
1 RS485
2 Mains
3 Ground
4 Cable clamps
5 Motor
6 UDC
7 Relays
8 I/O
Illustration 5.9 Enclosure Size I3
IP54, 380–480 V, 5.5–7.5 kW (7.5–10 hp)
Danfoss A/S © 04/2016 All rights reserved. MG18C702
